Coolgear 16 Port Managed USB 3.2 Gen 1 Hub w/ 15KV ESD Surge Protection
- Advanced Protection: The 16-port USB 3.2 Gen 1 hub protects your device with advanced ESD protection. Built-in 15kV ESD surge protection offers you security and assurance that your connected devices will be protected
- Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant ensuring super-fast 5Gbps data transfer speeds. It supports super speed high speed and full speed which enables it to be compatible with USB 2.0 / 1.1
- Port Management Software: Control each individual ports status turn bus power on/off and even reset the entire hub through the hubs management software which supports Windows Mac and Linux operating systems
- LED Indicators: 16 LEDs for each downstream port to indicate the current bus power states
- Mounting Options: Wall Surface Rack and DIN Rail
- Note: The last USB port of this hub (Port 16) does NOT support USB 2.0 / 1.1 devices. It is used to communicate with managing utilities. However, it still supports USB 3.2 Gen 1 devices.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Industrial Grade | +12V~24V DC Input | Surface Mountable | Rack Mount | DIN Rail | 5 Gbps | Screw Lock
The CG-16PU3MGD from our MDS-UH Port Management Series is a managed USB 3.2 Gen 1 (or commonly called USB3.0) hub which is designed to provide rich unique features for industrial applications. It provides an instant expansion of 16 USB 3.2 Gen 1 downstream facing ports and keeps the excellent reliability and compatibility with all USB 3.2, USB 2.0 and 1.1 existing devices.
Specifications:
- Compliance: USB 3.2 Gen 1/2.0 compliant

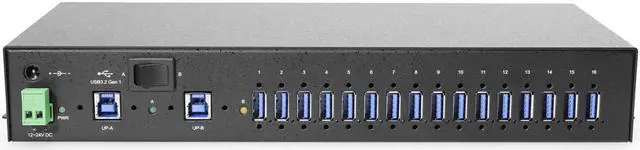

- Upstream: 2 USB ports, Switchable, Type B connectors, Screw-lock type
- Downstream: 16 USB ports, Type A connectors, Screw-lock type
- LED Indicators: 16 LEDs for each downstream port to indicate the current bus power states
- Speed: 5Gbps (Super-speed), 480Mbps (High speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed)
- Supply Current: 1.5A max. per channel
- Housing: SECC (galvanized steel)
- Weight: (product only) 1,100g (2.43 lb)
- Dimensions (LxWxH): 30.85x13.02x4.42 mm (12.15x5.12x1.74 in)
- Input Voltage: 12V~24V DC external power
- Power Consumption: 35mA @ 20 VDC, 30mA @ 24 VDC
Note: The last USB port of this hub (Port 16) does NOT support USB 2.0 / 1.1 devices. It is used to communicate with managing utilities. However, it still supports USB 3.2 Gen 1 devices.

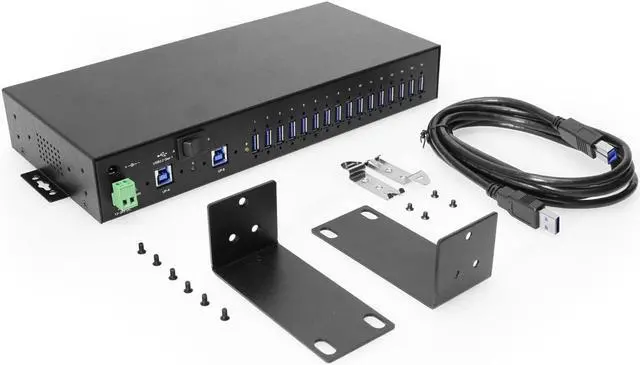

Package Contents:
- 16 Port Managed USB 3.2 Gen 1 Hub
- 5ft. USB-A to USB-B Cable
- 2-Pin Terminal Block
- Rack Mount Flanges
- DIN Rail Clips
- Screw Pack
*Surface Mounting screws not included.
