Coolgear Metal 4 Port USB 3.1 Gen2 Hub Type-C and Type-A Ports with Mounting Kit

In stock.
Ships from United States.
Most customers receive within 7-9 days.
  • Provides 4 (2 USB-C female and 2 female USB-A) Downstream facing USB 3.1 Ports.
  • Supports 10Gbps(Super-Speed Plus), 5Gbps (Super-Speed), 480Mbps(High-Speed), 12Mbps(Full-Speed), and 1.5Mbp
Overview
Specs
Reviews

Metal 4 Port USB 3.1 Super-Speed+ Hub with Type-C and A Ports

The Coolgear CG-4PG2MHUB 4 port USB 3.1 Type-C 10Gbps industrial metal hub includes DIN Rail and surface mounting Kit. This hub supports USB 3.1 Super-Speed Plus (10Gbps data transfer) with (2) USB Type-A female and (2) USB female Type-C downstream ports. It uses USB C for upstream data transmission to the computer.

The CG-4PG2MHUB USB 3.1 Type-C hub uses a 2-pin Phoenix connector for input power of +7 - 48V DC for the downstream ports (power supply is sold separately). It is backward compatible with 5Gbps (Super-Speed) 480Mbps(High-Speed) 12Mbps(Full-Speed) and 1.5Mbps(Low-Speed) data rates. The DIN Rail Clip is secured to the back of the hub for Din Rail mounting.

Note: This hub although it supports battery charging spec1.2 does not have PD (power delivery) functionality.

Metal 4 Port USB 3.1 Gen2 Hub Features

  • Compliant with USB 3.1 Gen2 Specifications.

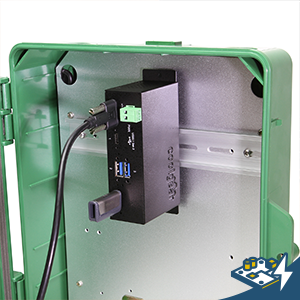

  • Rigid wall and DIN Rail mountable metal case.
  • Provides 4 (2 USB-C female and 2 female USB-A) Downstream facing USB 3.1 Ports.
  • Supports 10Gbps(Super-Speed Plus) 5Gbps (Super-Speed) 480Mbps(High-Speed) 12Mbps(Full-Speed) and 1.5Mbps(Low-Speed) data rates.
  • Multi Transaction Translators (TT) per Hub
  • Support USB Battery Charging: SDP CDP and DCP modes.
  • Item Dimensions: 5.23in(L) x 2.42in(W) x 1.43in(H) (133.0 x 61.5 x 36.3mm).

Environmental Specifications

  • Operating Temp: 0 to 70 C (32 to 158 F)
  • Operating Humidity:5 to 95% RH

LED Status Descriptions

  • Off = No USB device detected.
  • Slow Blinking = USB 2.0 mode.
  • Quick Blinking = USB 3.1 Gen1 mode.
  • Steady On = USB 3.1 Gen2 mode.

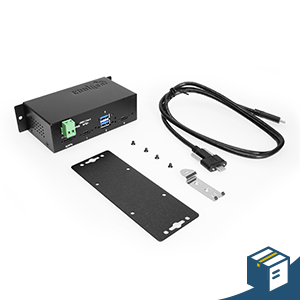

Package Contents

  • USB 3.1 Gen2 4 Port Hub
  • USB-C Male to Male Gen2 Cable

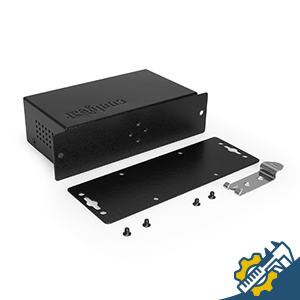

  • Mounting hardware w/screws
