Metal 4 Port USB 3.2 Gen 2Super-Speed+ Hub with Type-C and A Ports

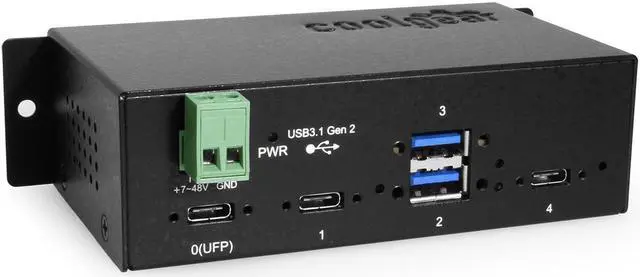

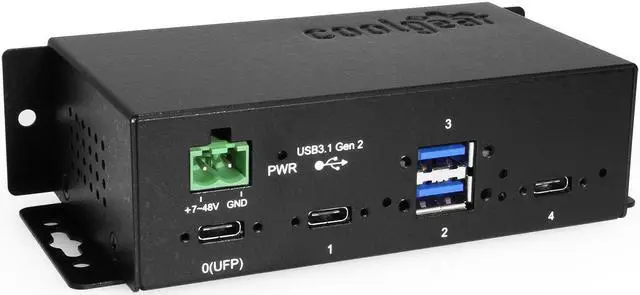

The Coolgear CG-4PG2MHUB 4 port USB 3.2 Gen 2 Type-C 10Gbps industrial metal hub includes DIN Rail and surface mounting Kit. This hub supports USB 3.2 Gen 2 Super-Speed Plus (10Gbps data transfer) with (2) USB Type-A female and (2) USB female Type-C downstream ports. It uses USB C for upstream data transmission to the computer.

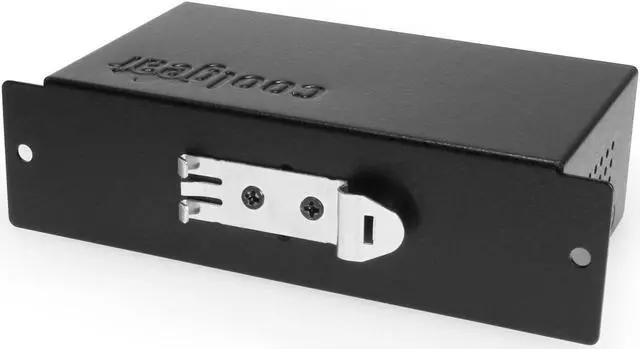

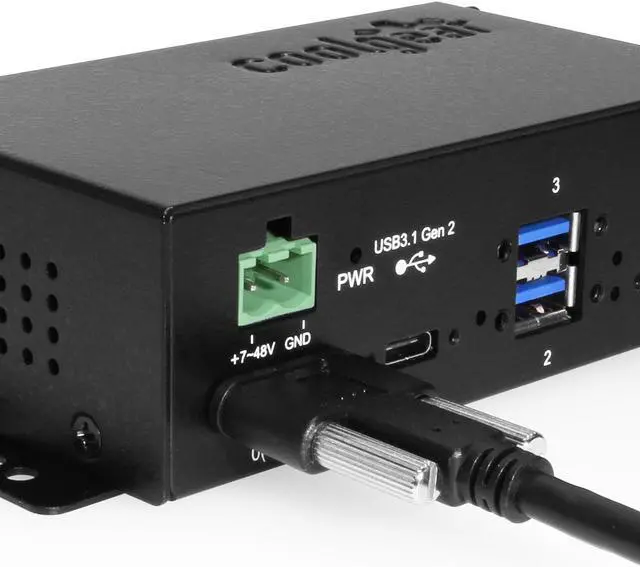

The CG-4PG2MHUB USB 3.2 Gen 2 Type-C hub uses a 2-pin Phoenix connector for input power of +7 - 48V DC for the downstream ports (power supply is sold separately). It is backward compatible with 5Gbps (Super-Speed), 480Mbps(High-Speed), 12Mbps(Full-Speed), and 1.5Mbps(Low-Speed) data rates. The DIN Rail Clip is secured to the back of the hub for Din Rail mounting.
Note: This hub, although it supports battery charging spec1.2, does not have PD (power delivery) functionality.
- Product Dimensions 5.23 × 2.42 × 1.43 inches (L x W x H)
- Item Weight 1.16 pounds

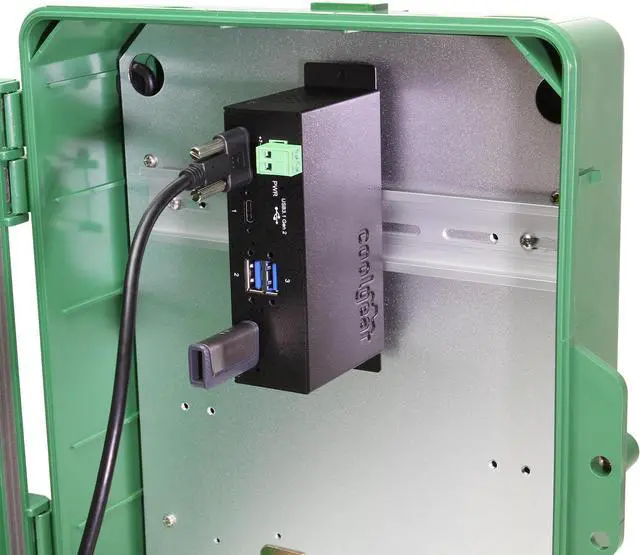

- Rigid Wall and DIN Rail Mountable Metal Case
Environmental Specifications:
- Operating Temp: 0 to 70 C (32 to 158 F)
- Operating Humidity:5 to 95% RH
- Input Voltage: +7~48V DC
- Power Source: 2-Pin Terminal Block
LED Status Descriptions
- Off = No USB device detected.
- Slow Blinking = USB 2.0 mode.
- Quick Blinking = USB 3.2 Gen 1 mode.
- Steady On = USB 3.2 Gen 2 mode.
- USB 32 Gen 2 4 Port Hub
- USB-C Male to Male Gen 2 Cable

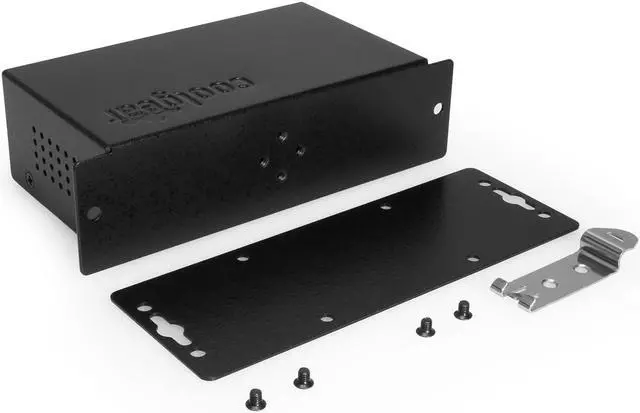

- Surface Mounting Plate
- DIN-Rail Mounting Bracket
- Screw-Pack
