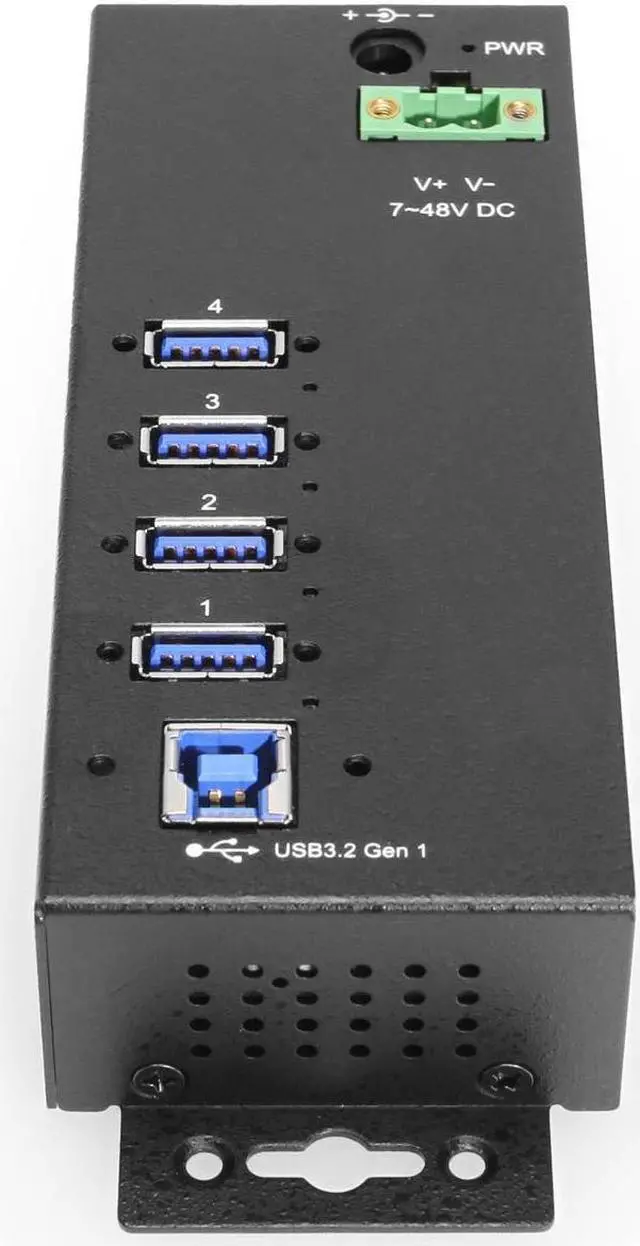

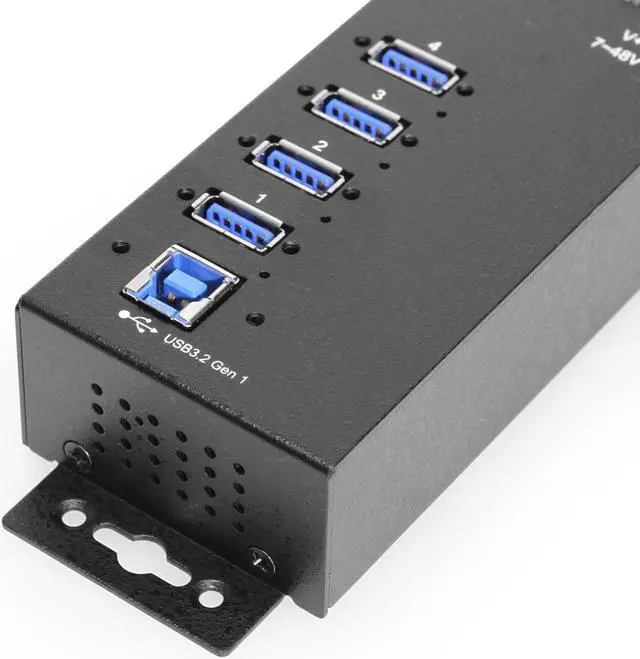

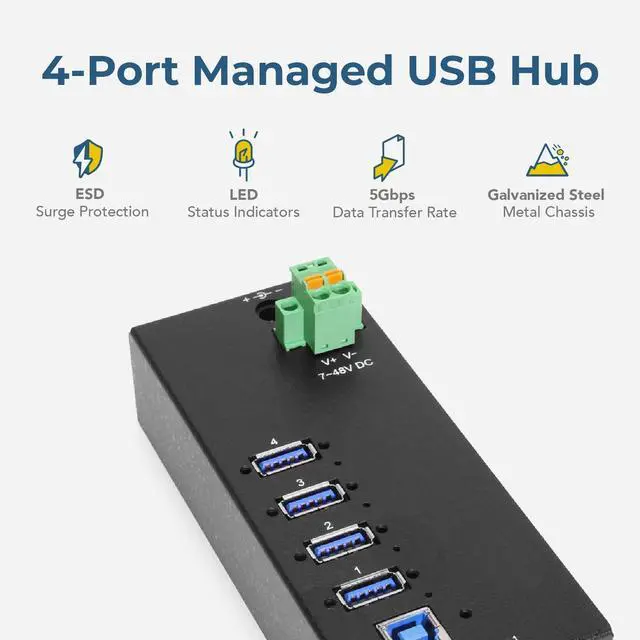

Coolgear 4 Port Managed USB 3.2 Gen 1 Hub w/ 15KV ESD Surge Protection & Vertical Port Orientation

Introduction:

The CG-4PU3MGDv2 is a managed USB 3.2 Gen 1 hub which is designed to provide rich unique features for industrial applications. It provides an instant expansion of 4 USB 3.2 Gen 1 downstream facing ports and keeps the excellent reliability and compatibility with all USB 3.2 US B2.0 and 1.1 existing devices.

The CG-4PU3MGDv2 is supplied with the managing software utilities which can turn on/off the bus power of each downstream device or even reset the entire hub. It also can save the designated state to its flash memory and read it back as the initial state of its next power up cycle.

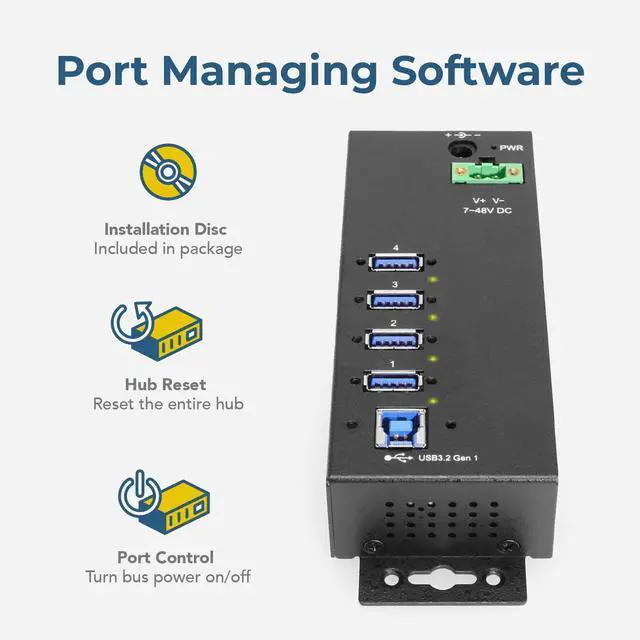

Managing Software

The CG-4PU3MGDv2 software package contains several managing software utilities which support different platforms allowing better control over each individual ports' status. A GUI (Graphical User Interface) and console command prompt utilities for all major Microsoft Windows and Mac OS. It also includes utilities for different Linux versions.

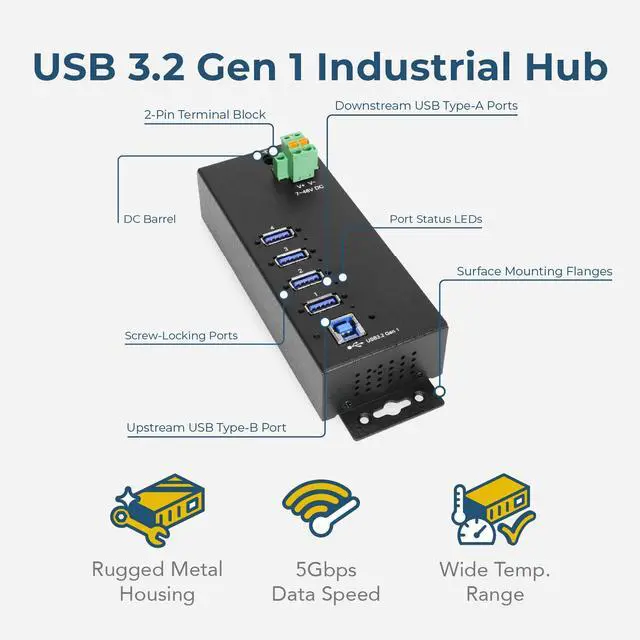

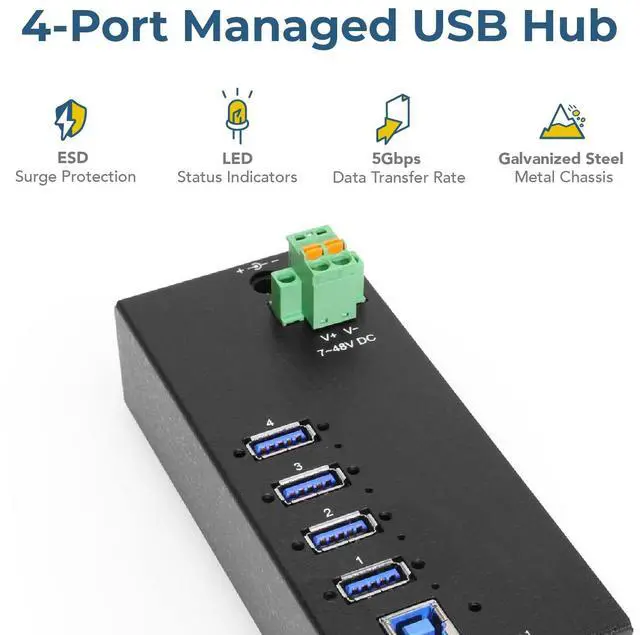

Features:

• Compliant with USB Specification 3.2 Gen 1

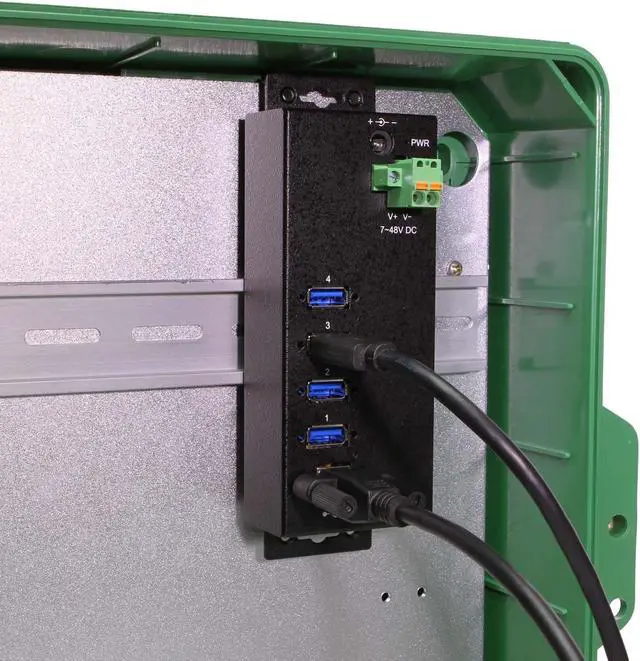

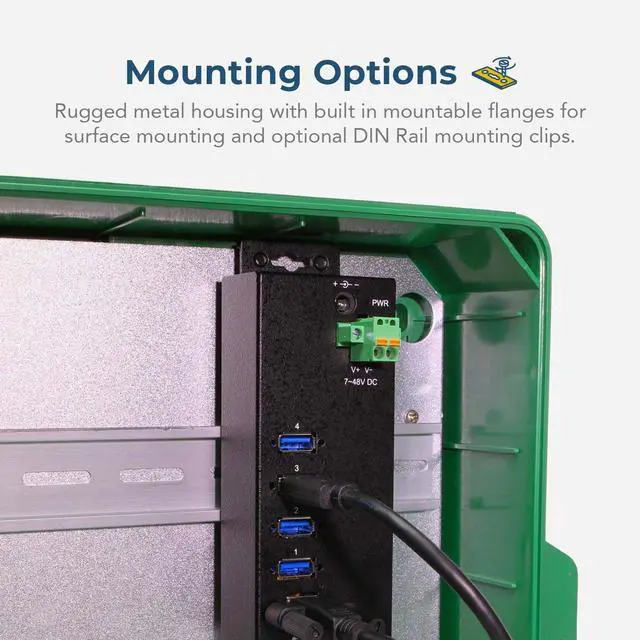

• Metal Case DIN Rail and wall mountable
• Manageable Bus power for each Port
• Software utility for Windows Linux
• Provides 4 Downstream USB 3.2 Gen 1 ports
• USB Screw-Lock Cables and Terminal Blocks
• 5Gbps (Super-speed) and lower speeds
• 15KV ESD Level 4 Protection for Each Port
• +7~48V DC Wide Range Input Power
• USB Battery Charging v1.2 : CDP DCP modes

Note: The last USB port of this hub (Port 4) does NOT support USB 2.0 / 1.1 devices. It is used to communicate with managing utilities. However, it still supports USB 3.2 Gen 1 devices.

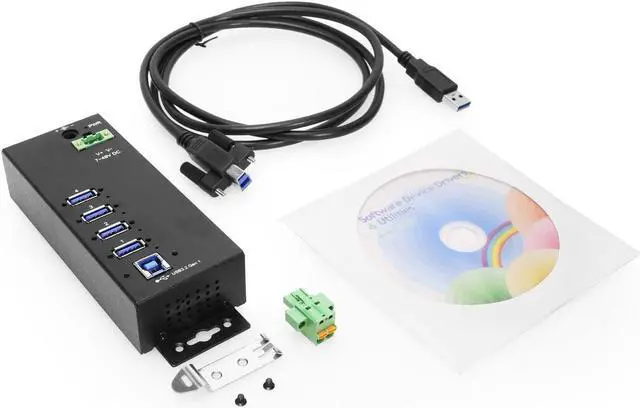

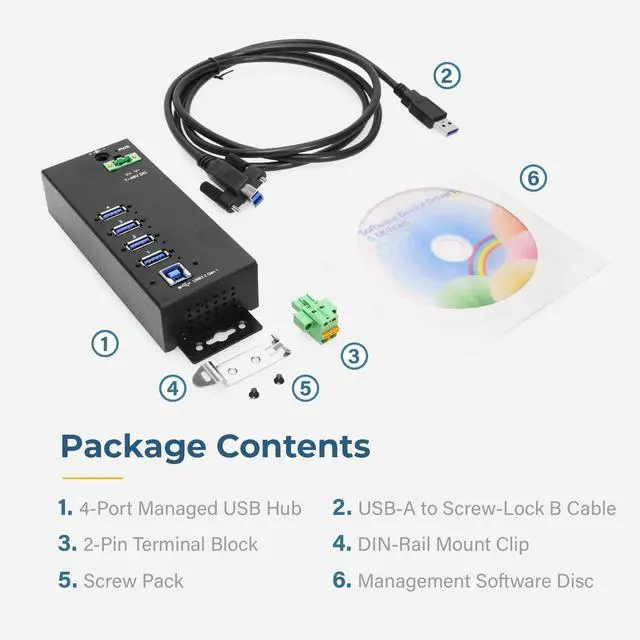

Package Contents:

• 4 Port Managed USB 3.2 Gen 1 Hub


• USB-A to Screw Lock USB-B Cable


• Management Software Disc


• 2-Pin Terminal Block


• DIN Rail Clips


• Screw Pack

*Surface Mounting screws not included.
