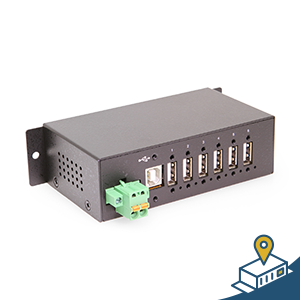

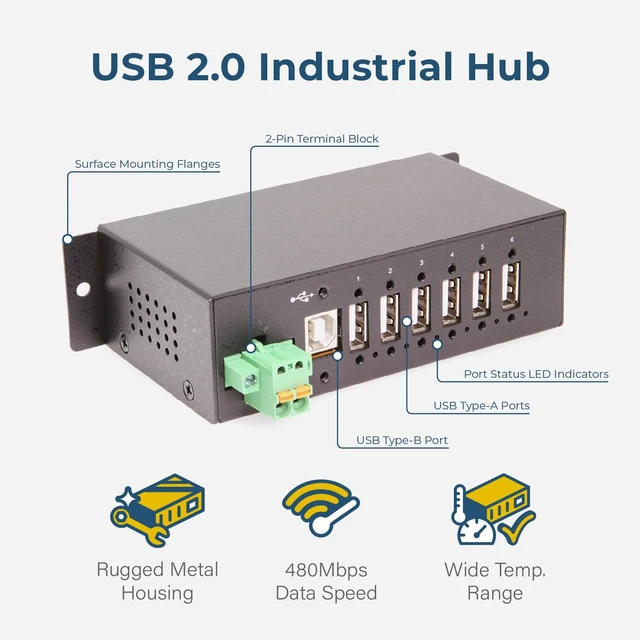

The CG-6PU2MGD is a managed USB 2.0 hub which is designed to provide unique features for industrial applications. It provides an instant expansion of 6 USB 2.0 downstream facing ports and keeps excellent reliability and compatibility with all USB3.x, USB2.0, and 1.1 existing devices.
- Compliance: USB 2.0 / 1.1 compliant

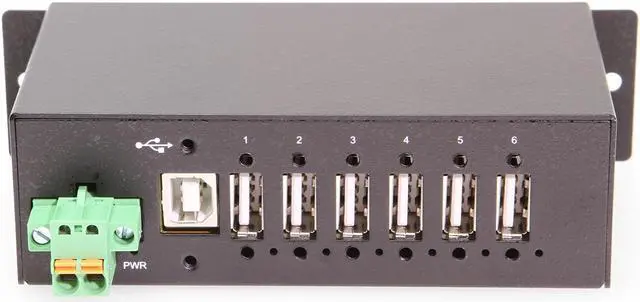

- Upstream: 1 USB port, Type B connector, Screw-lock type

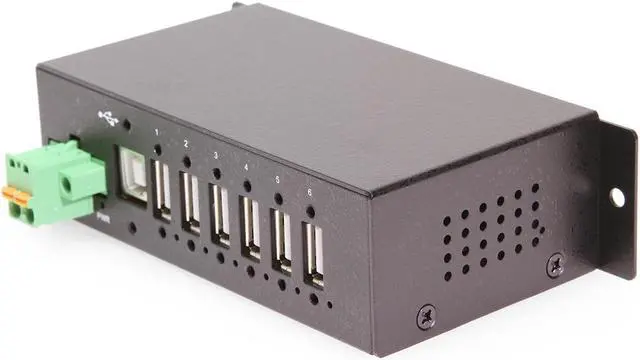

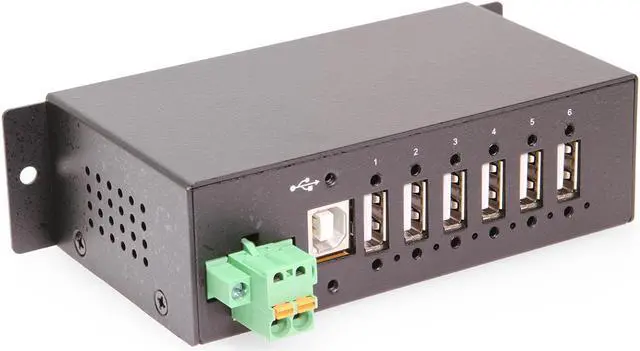

- Downstream: 6 USB ports, Type A connectors, Screw-lock type
- LED Indicators: 6 LEDs for each downstream port to indicate the current bus power states
- Speed: 480Mbps (High speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed)
- Protection: Supports 15KV ESD Protection for Each Port
- Supply Current: 500mA max. per channel

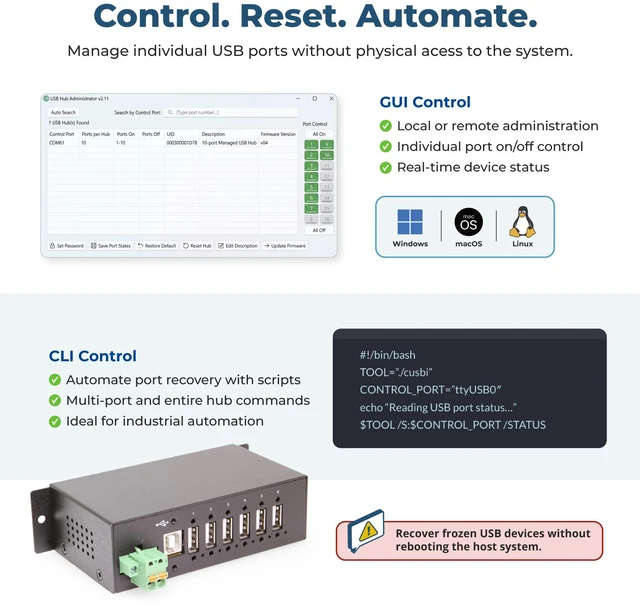

The CG-6PU2MGD is supplied with managing software utilities that can turn on/off the bus power of each downstream device or even reset the entire hub. It also can save the designated state to its flash memory and read it back as the initial state of its next power up cycle. Different utilities were supported for different operating systems such as Windows, Intel x86-64 and ARM-based Linux.

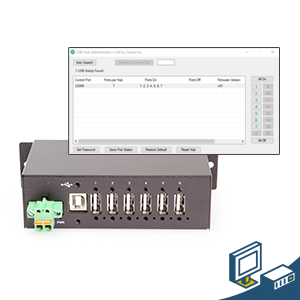

The CG-6PU2MGD software package contains several managing software utilities that support different platforms allowing better control over each individual ports' status. A GUI (Graphical User Interface) and console command prompt utilities for all major Microsoft Windows. It also includes utilities for different Linux versions. The utilities were written to easily operate with the applications software written with different languages such as C#, C++, VB, Python or even a PHP server scripting language.
- Housing: SECC (Galvanized Steel)

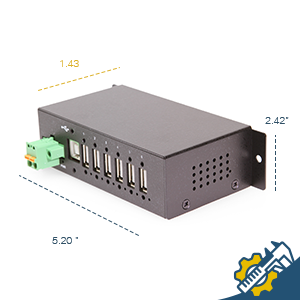

- Form Factor: 5.20 × 2.42 × 1.43 in.
- Item Weight: 0.6 lbs.

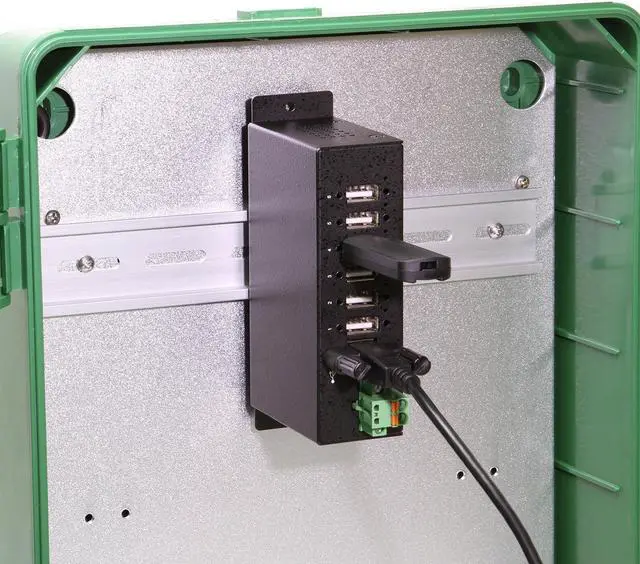

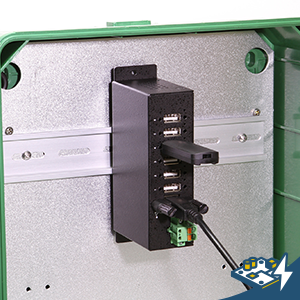

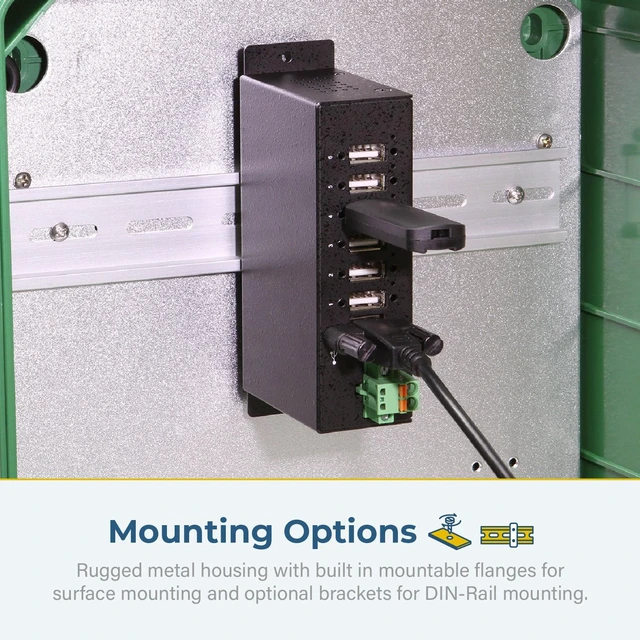

- Mounting Options: Surface, Wall, and DIN Rail
- Supports USB Screw-Lock Cables and Terminal Blocks
Input Voltage: +7 ~ 48 VDC external power

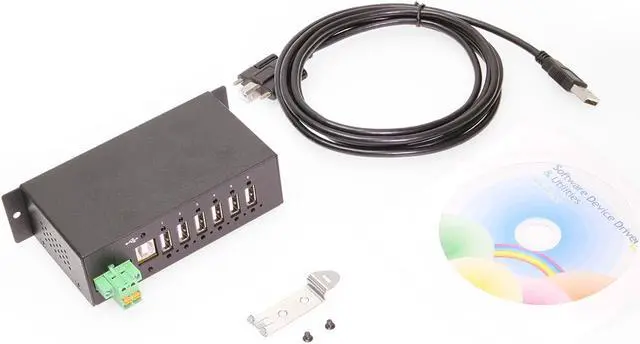

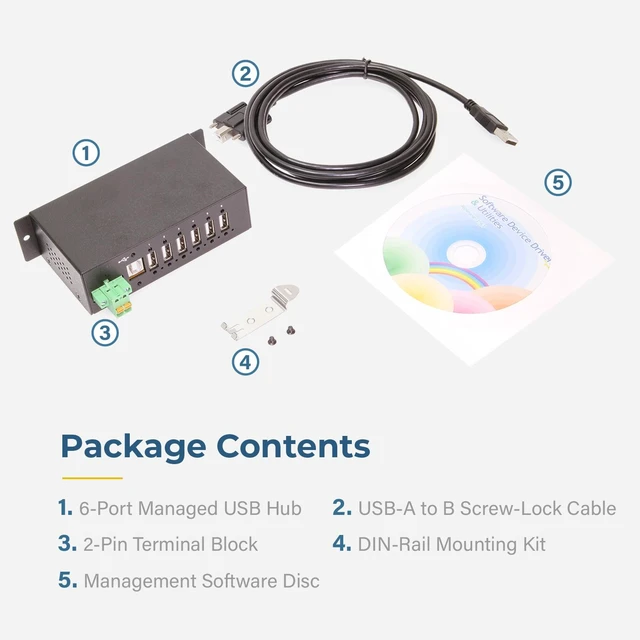

- 6 Port Managed USB 2.0 Hub w/ 15KV ESD Surge Protection
- USB-A to Screw-Lock USB-B Cable
- Management Software Disc

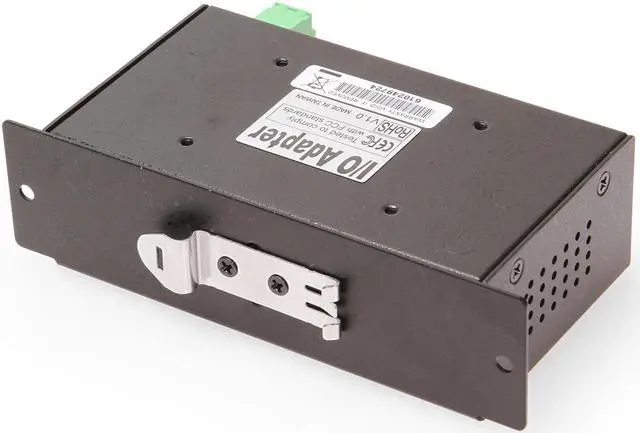

- DIN Rail Mounting Clip
- 2x Screws
