Coolgear USB 3.0 7 Port Hub, 2 Type-C and 5 Type-A Ports, DIN Rail Mountable, ESD Protection, Power Adapter Included
- [ Industrial Grade ] : +7-48V DC Input | 15KV Surge Protection | Surface Mountable | DIN-Rail Mountable | 5 Gbps | 7 Downstream USB Ports
- [ Modern Connectors ] : This hub expands one USB-C port into 7 USB ports, with 5 Type-A and 2 Type-C connectors, adding flexiblility to your integration. Each port is USB 3.2 Gen 1 compliant, ensuring fast 5Gbps data transfer speeds with backwards compatibility to support USB 2.0 and USB 1.1 speeds.

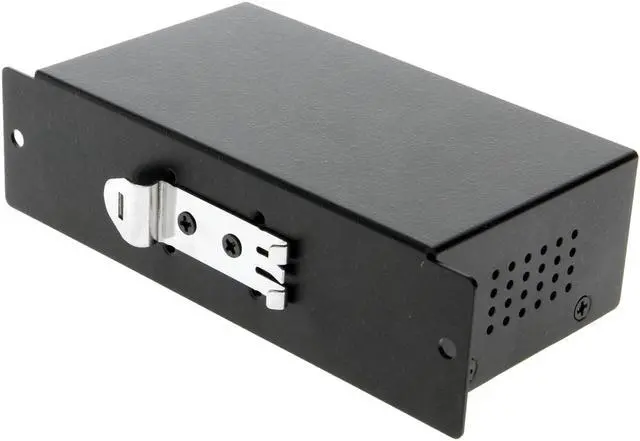

- [ Rugged and Mountable ] : Industrial-grade metal enclosure with built-in wall mounting flanges and DIN-Rail brackets allows for secure, space-saving installations in demanding environments.
- [ Protect Your Equipment ] : Features 15kV ESD surge protection per port to keep your connected peripherals safe.

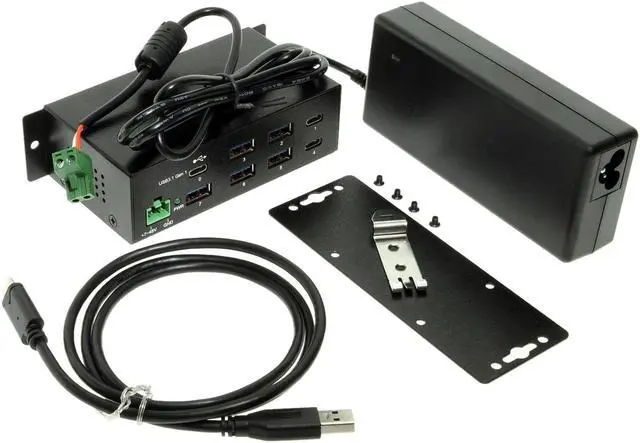

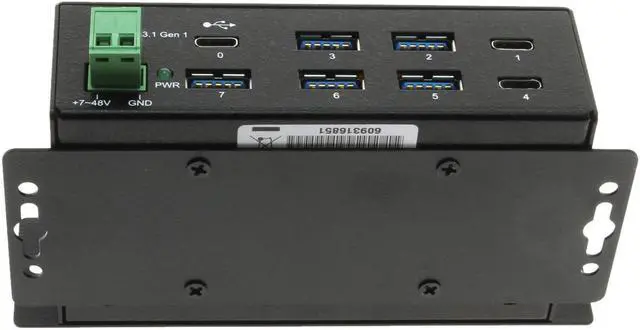

- [ Connectivity ] : Upstream: 1 USB C Port | Downstream: 5 USB A Ports and 2 USB C Ports | Power Connector: 7-48V DC 2-pin Terminal Block (Power Adapter Included).
- [ Why Coolgear? ] : Your Trusted Partner based in the USA, Providing Advanced Engineering, Highly Reliable and Superior Built Products to handle the most demanding industries for over 20 years. Reach out to us for CAD, Mechanical Drawings and, Data Sheets.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
New USB-C Hub - 3x USB-C Ports and 5x USB-A w/Power Adapter
CoolGear's new USB-C 7 Port Hub that is USB3.1 Gen1 specifications compliant includes a metal constructed chassis multiple mounting options and a power adapter. This USB-C Hub is an excellent choice for your USB 3.1 Gen1 applications it delivers up to 5Gbps and provides 1 USB-C Upstream port 2 USB-C and 5 USB-A downstream ports.
The USB-C hub is surge protected and backward compatible with USB 2.0/1.1 compliant host using its RISC-like USB controller. It provides a unique self-power mode to work with wide range (+7 ~ 48V DC) input DC power from its terminal block (includes power adapter). It supports fast USB charging specifications by turning its downstream ports from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Ports (DCP).
USB-C Hub Features & Specifications
- Compliant with USB 3.1 Gen 1 Specifications
- Provides 1 USB3.1 Gen 1 Upstream Port with USB-C connector
- Provides 7 USB3.1 Gen 1 Downstream Facing Ports (with 2 USB-C and 5 USB-A Connectors) which manage up to 5Gbps
- Full-Featured USB-C Port Enables Reversible Plug Orientation and Cable Direction
- Supports 5Gbps 480Mbps 12Mbps and 1.5Mbps Speed
- Includes a Mounting bracket for flat surfaces
- Supports Multi Transaction Translators per Hub
- Supports Wide Range Input (+7~48V DC) Self-power Mode from the Terminal Blocks (power adapter included)
- Supports 15KV ESD Surge Protection for Each Port.
- Supports a 2-pin Terminal Block Connector for external power input

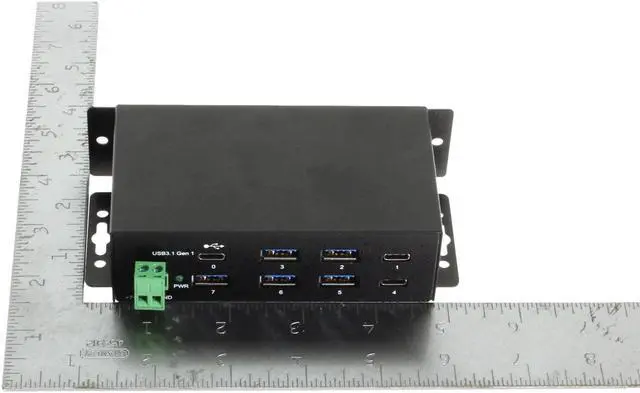

- Form Factor: 5.23inch(L) x 2.42inch(W) x 1.43inch(H) (13.30x6.15x3.63 cm)
Environmental Info
- Operating Temp.: 0 to 55 C (32 to 131 F)
- Storage Temp: -20 to 85 C (-4 to 185 F)
- Operating Humidity: 5 to 95% RH
