Coolgear 7 Port Managed USB 3 Hub w/ 15KV ESD Surge Protection

The CG-7PU3MGD is a managed USB 3.2 Gen 1 (commonly called USB3.0) hub which is designed to provide rich unique features for industrial applications. It provides an instant expansion of 7 USB 3.2 Gen 1 downstream facing ports and keeps the excellent reliability and compatibility with all USB3.2, USB2.0 and 1.1 existing devices.

• Compliance: USB 3.2 Gen 1/2.0 compliant

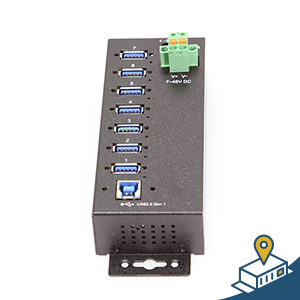

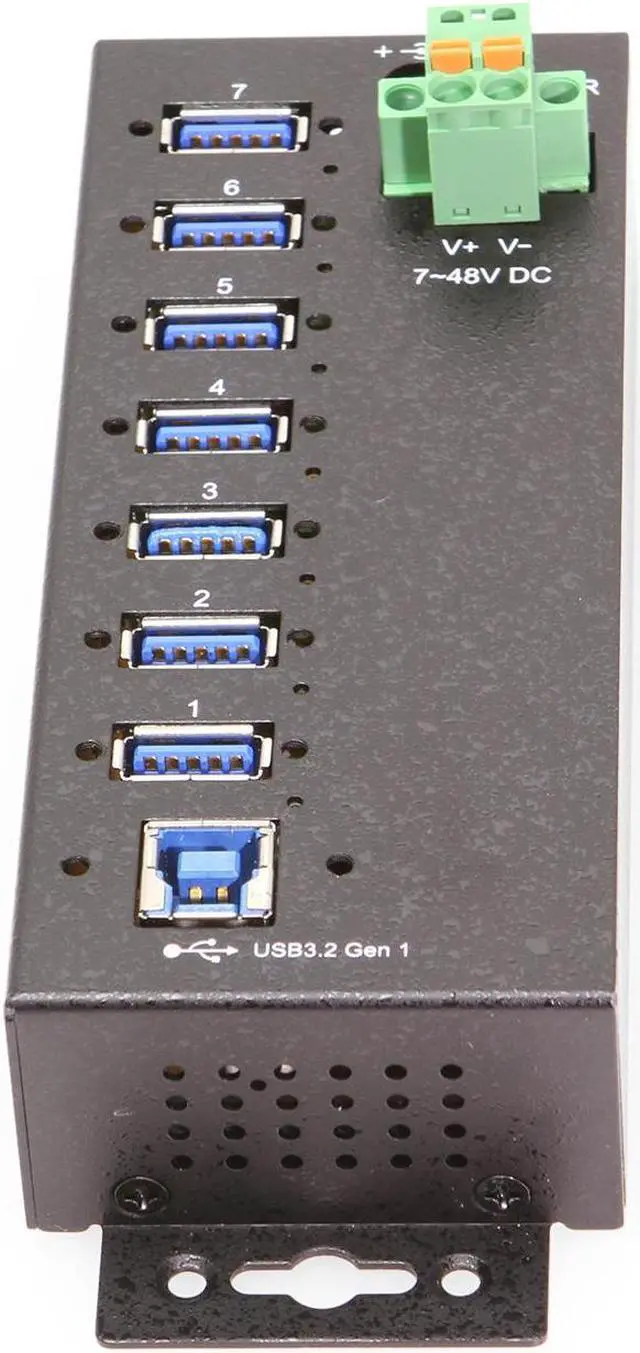

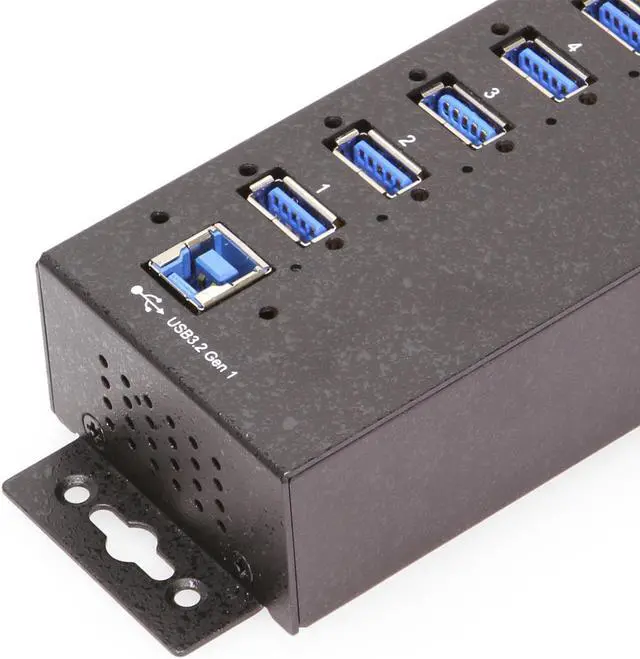

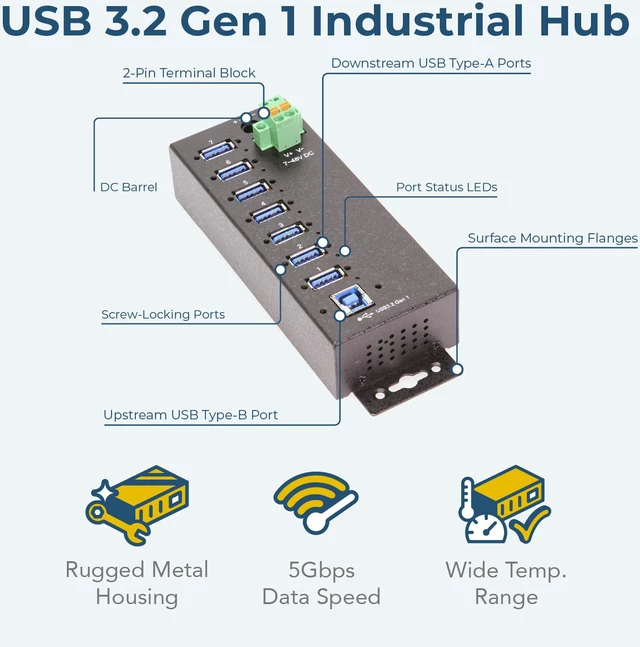

• Upstream: 1 USB port, Type B connector, Screw-lock type
• Downstream: 7 USB ports, Type A connectors, Screw-lock type
• LED Indicators: 7 LEDs for each downstream port to indicate the current bus power states
• Speed: 5Gbps (Super-speed), 480Mbps (High speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed)

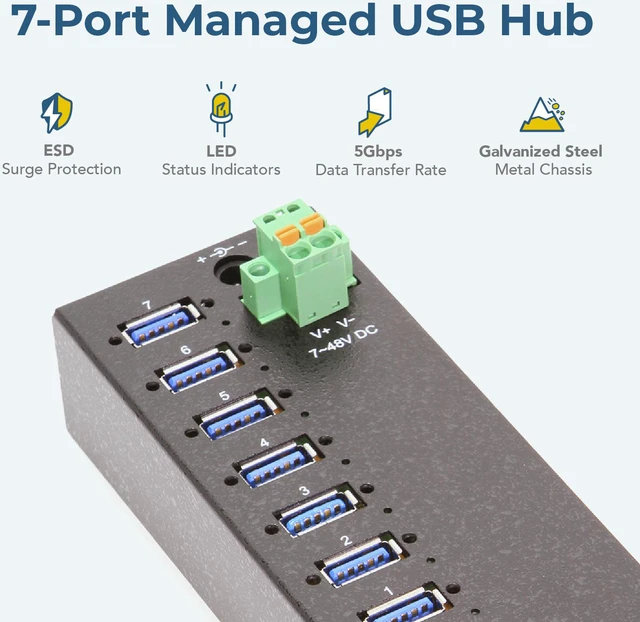

• Protection: Supports 15KV ESD Protection for Each Port
• Supply Current: 1.5A max. per channel

Note: The last USB port of this hub (Port 7) does NOT support USB 2.0 / 1.1 devices. It is used to communicate with managing utilities. However, it still supports USB 3.2 Gen 1 devices.

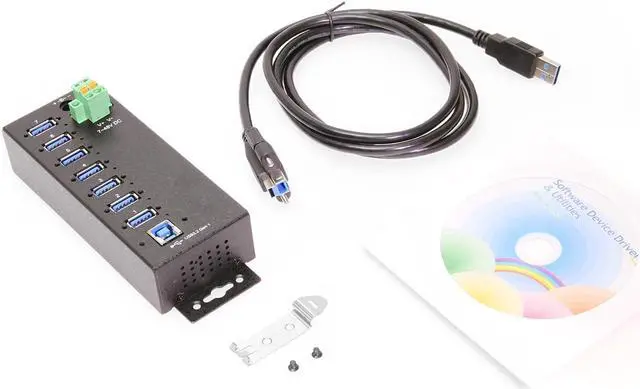

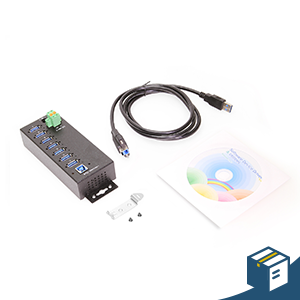

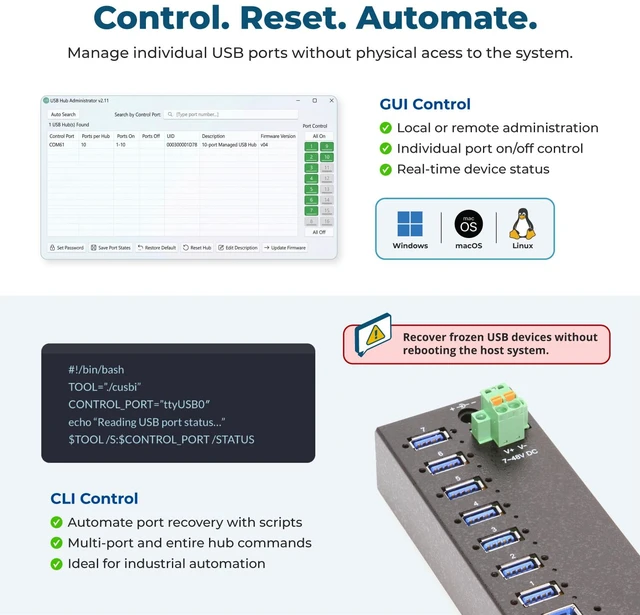

The CG-7PU3MGD is supplied with managing software utilities which can turn on/off the bus power of each downstream device or even reset the entire hub. It also can save the designated state to its flash memory and read it back as the initial state of its next power up cycle. Different utilities were supported for different operating systems such as Windows, Intel x86-64 and ARM based Linux.

The CG-7PU3MGD software package contains several managing software utilities which support different platforms allowing better control over each individual ports' status. A GUI (Graphical User Interface) and console command prompt utilities for all major Microsoft Windows. It also includes utilities for different Linux versions. The utilities were written to easily operate with the applications software written with different language such as C#, C++, VB, Python or even a PHP server scripting language.
