Coolgear 7-port USB-C 3.2 Hub w/ 15KV ESD Surge Protection DIN RAIL Mount

The CG-7U3CML is a 7-port Type-C USB3.2 Gen 1 Metal Hub that complies with the Universal Serial Bus (USB) Specifications Revision 3.1 Gen 1 and works up to 5Gbps. It provides 1 USB-C upstream port and 7 USB-C downstream facing ports.

The CG-7U3CML provides a unique self-powered mode working with a wide range (+7~48V DC) input DC power from its terminal blocks and DC jack connectors. It supports fast USB charging specifications by turning its downstream ports from a Standard Downstream Port (SDP) into a Charging Downstream Port (CDP) or a Dedicated Charging Port (DCP).

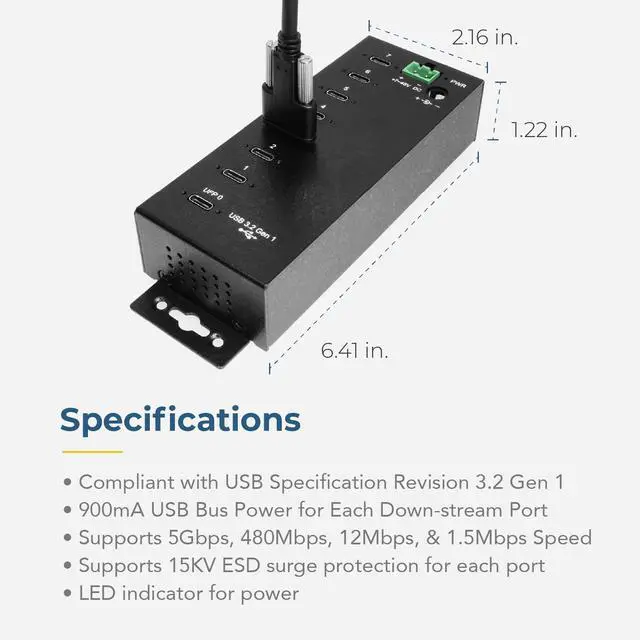

Features:

• Compliant with USB3.2 Gen 1 Specifications

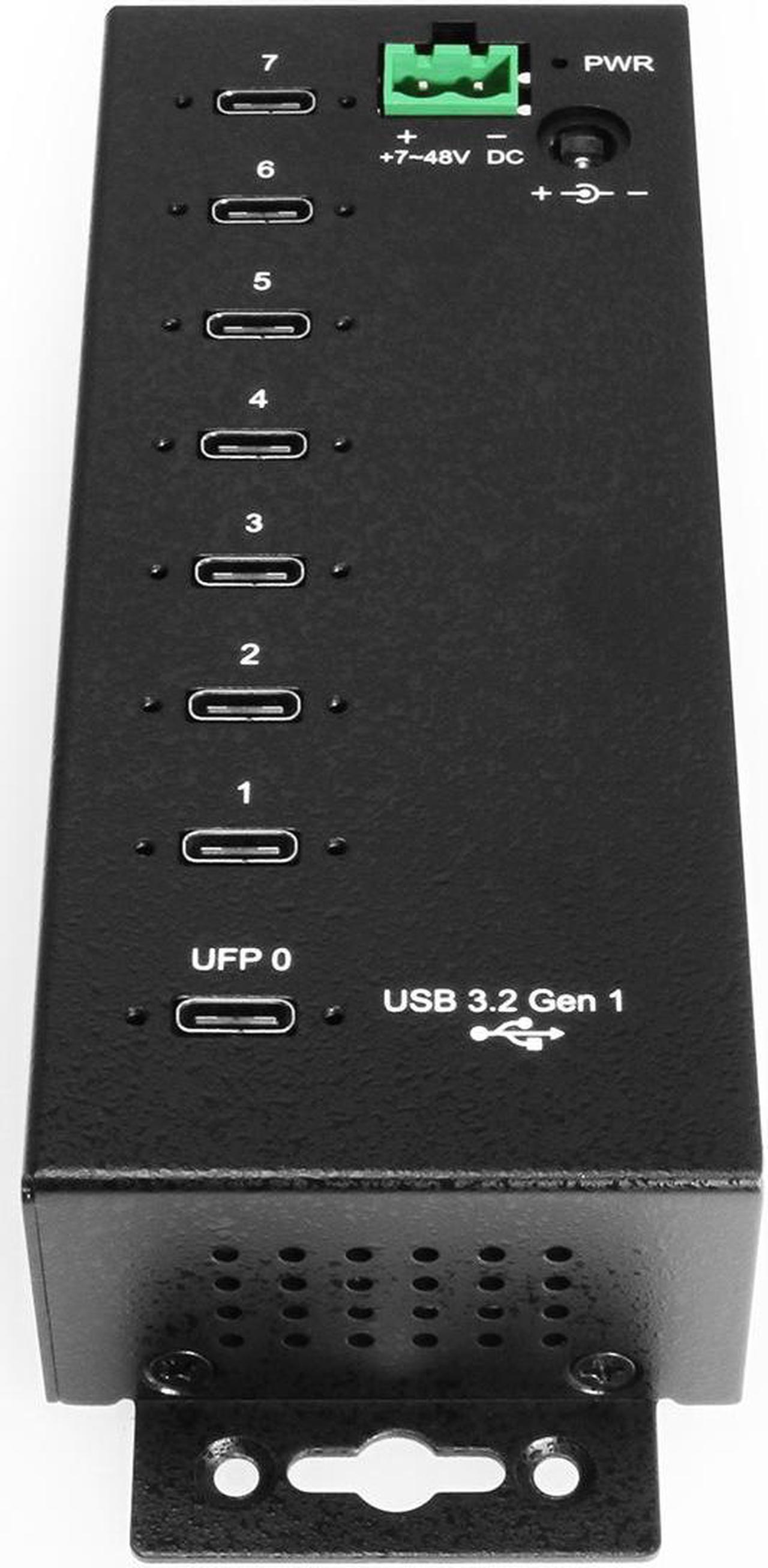

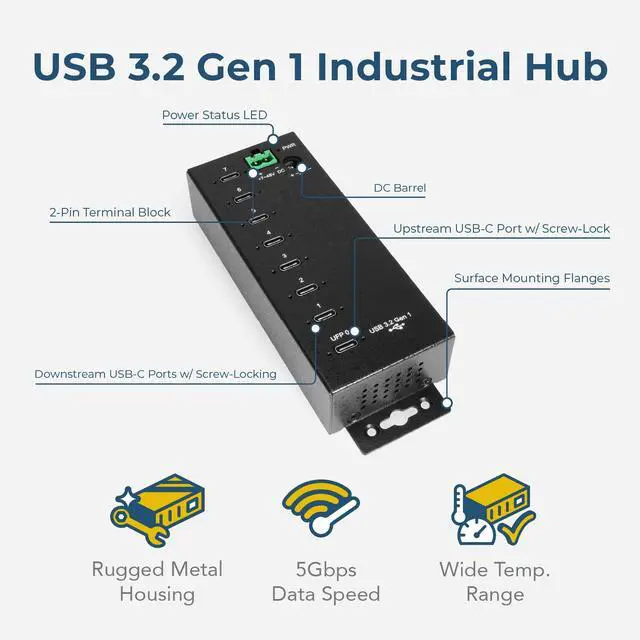

• 1 upstream USB-C and 7 downstream USB-C connectors

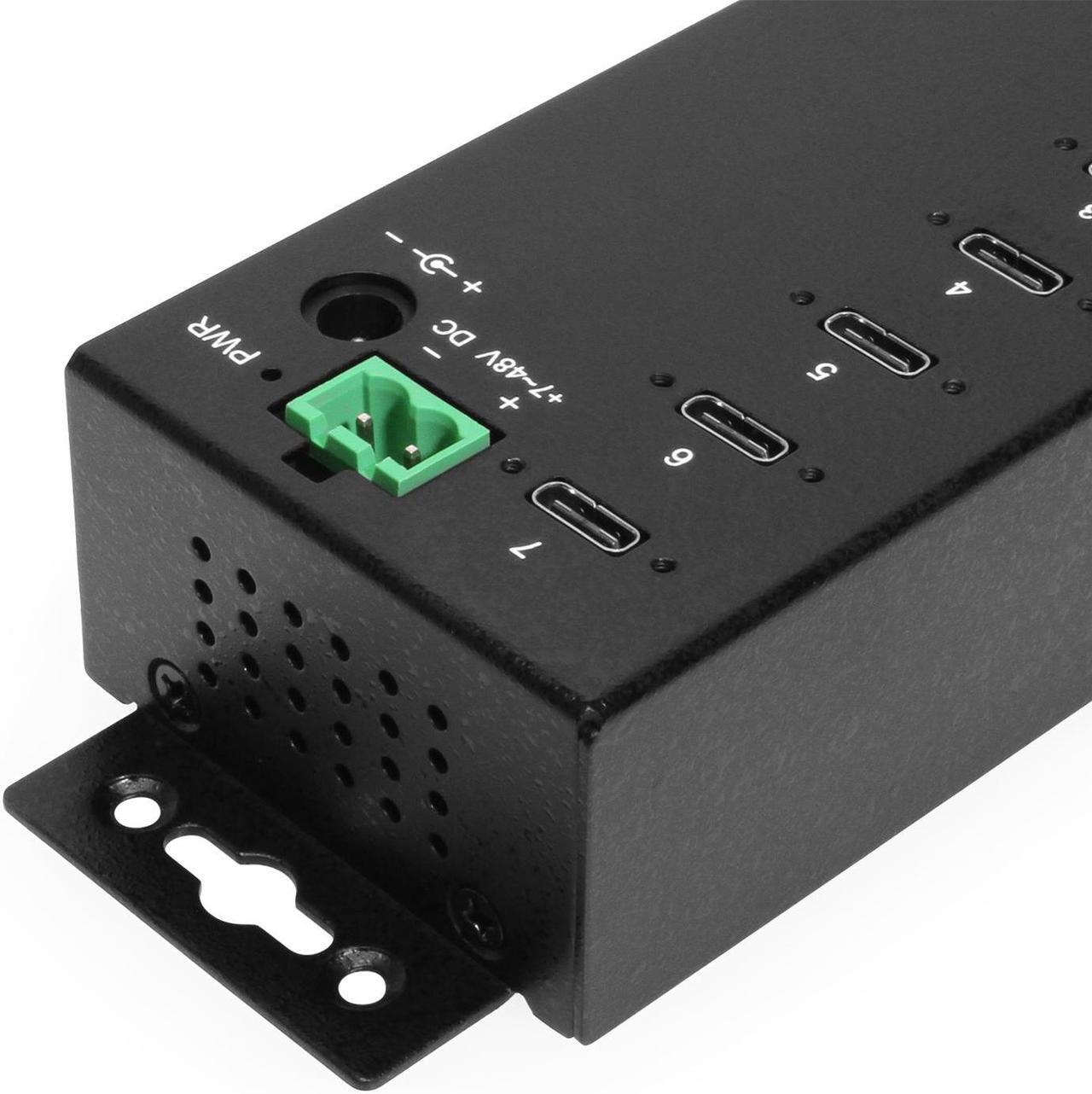

• Power connectors: terminal blocks and DC jack
• +7~48V DC wide range power input

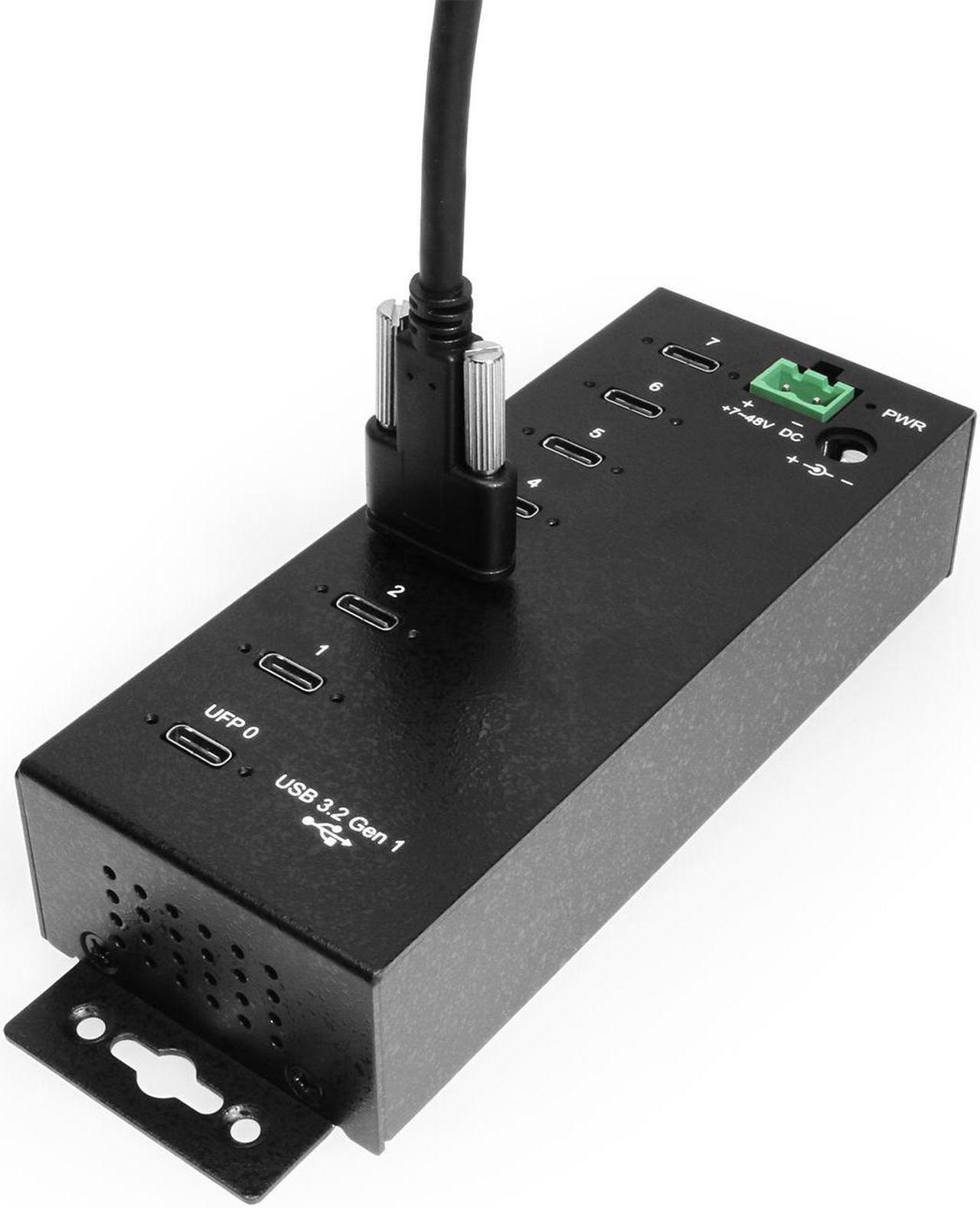

• Supports USB-C screw-lock cables
• Support speeds: 5Gbps (Super-speed) 480Mbps (High-speed) 12Mbps (Full-speed) and 1.5Mbps (Low-speed)
• Supports 15KV ESD surge protection for each port
• Supports fast USB Battery Charging: CDP and DCP modes
• Provides 0.9A each for all 7 USB downstream ports

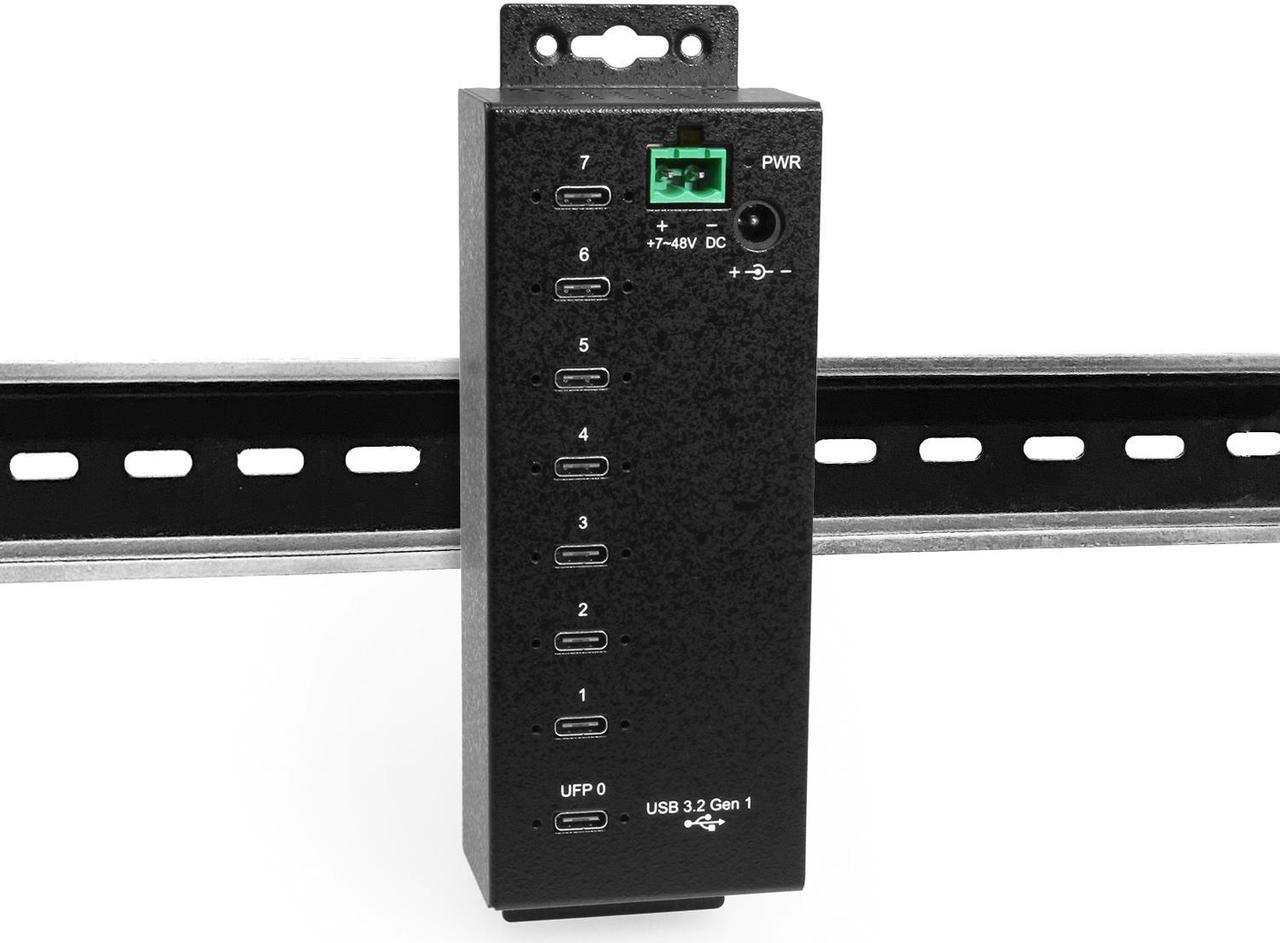

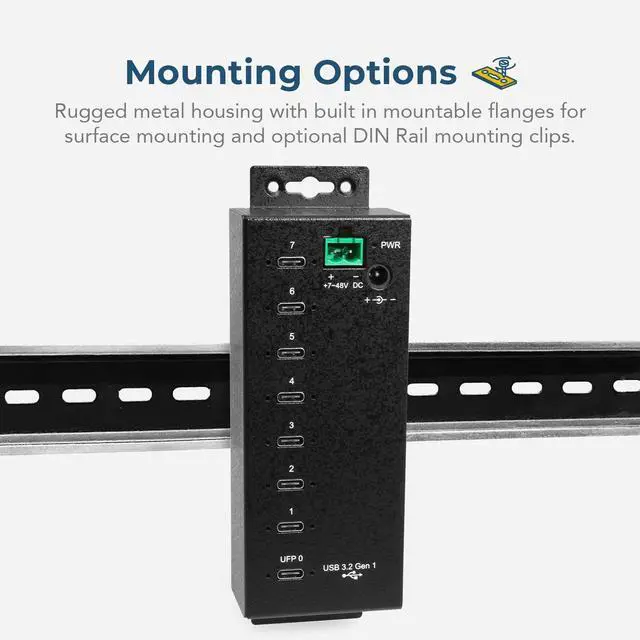

• Supports wall and DIN RAIL mounting options

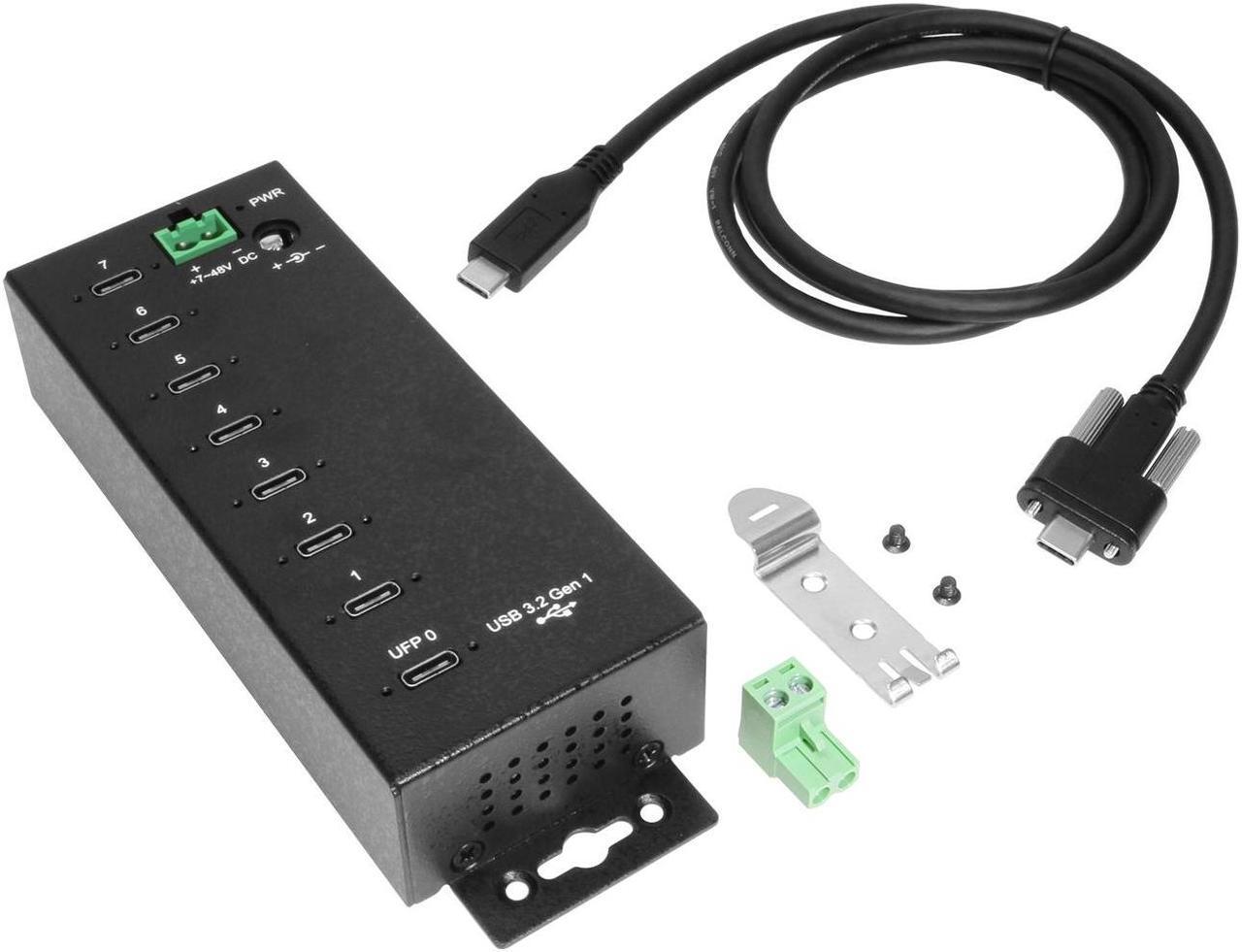

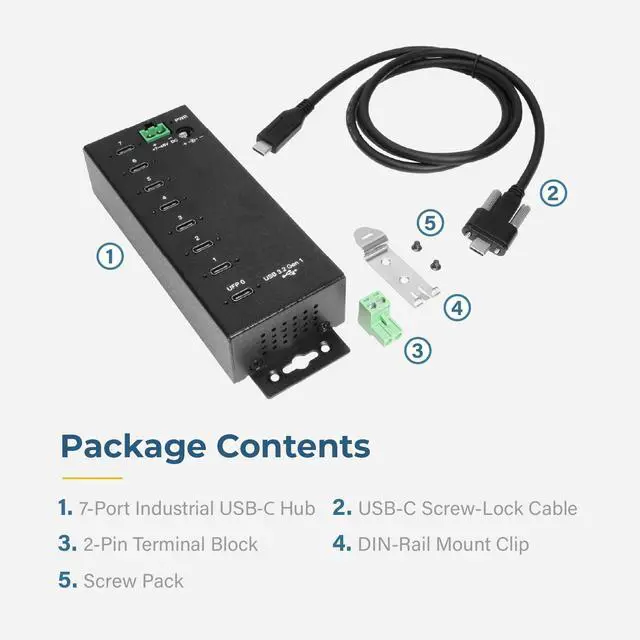

Package Contents:

• USB 3.2 Gen 1 Type-C Hub

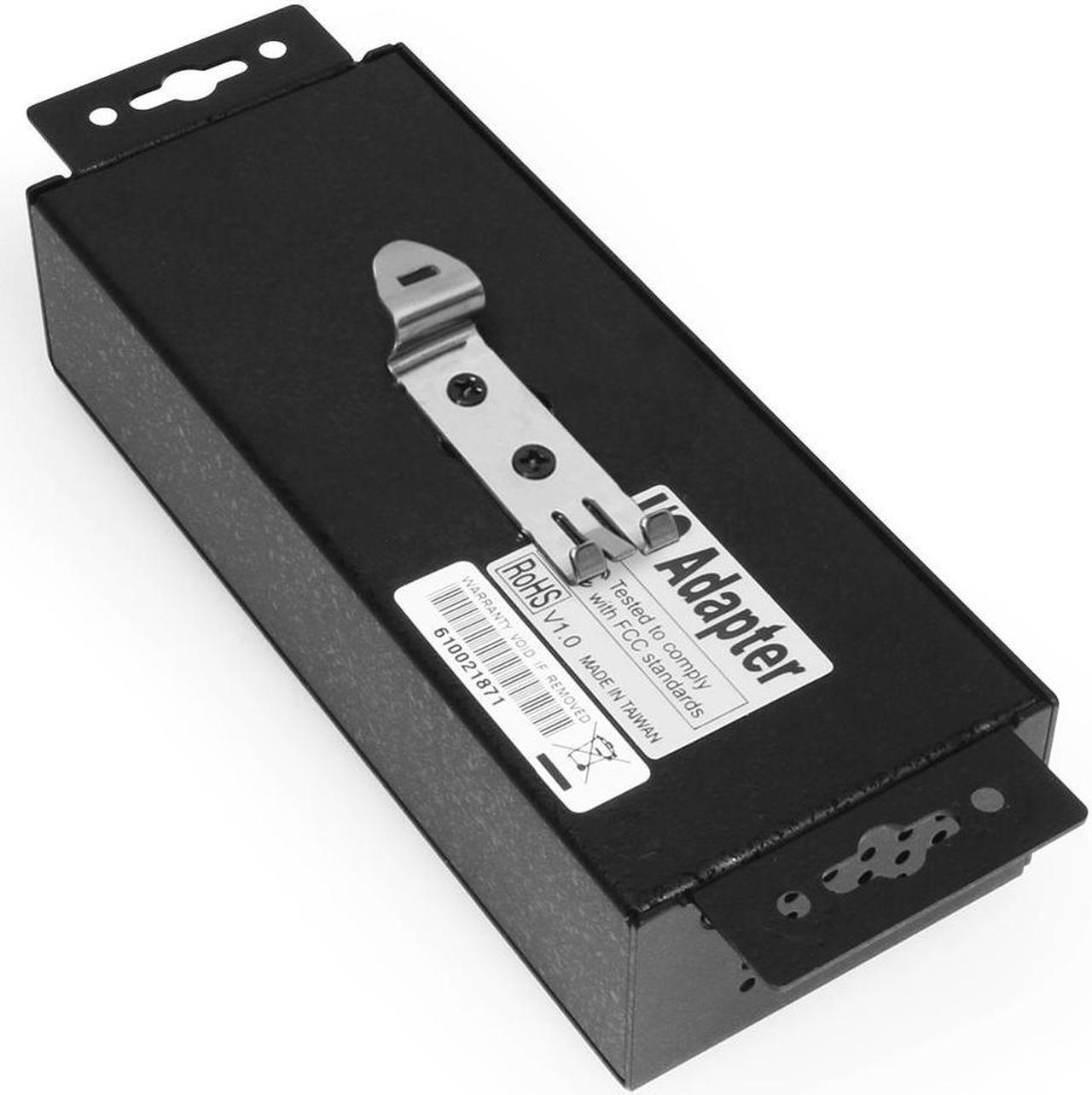

• Din rail clip and screws
• 2 Pin phoenix connector
• 3' Screw lock USB-C to USB-C cable

*Surface Mounting screws not included.
