Coolgear 4 Port USB 3.1 Micro Hub with Surge Protection and Mounting Kit

USB 3.1 Gen Micro Hub with 4 Ports and Surge Protection

The CG-MIC4P31H is a micro sized USB hub made to gen1 USB specifications. With 4 USB Type-A downstream ports the hub will transfer data up to 5GBps. It is powered by 5V DC input through its 2 pin Phoenix connector for proper function.

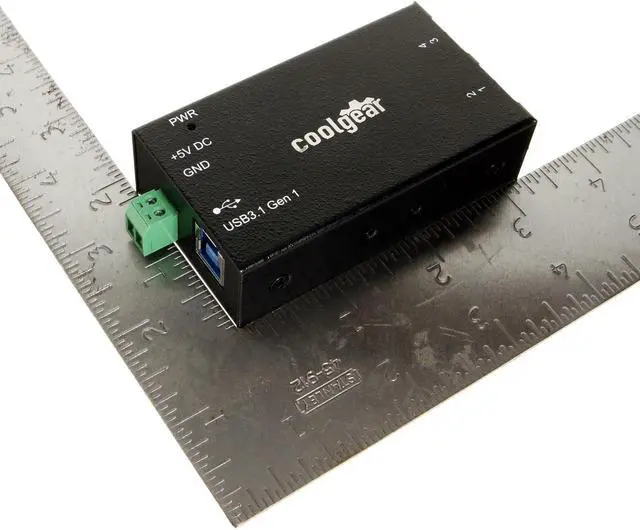

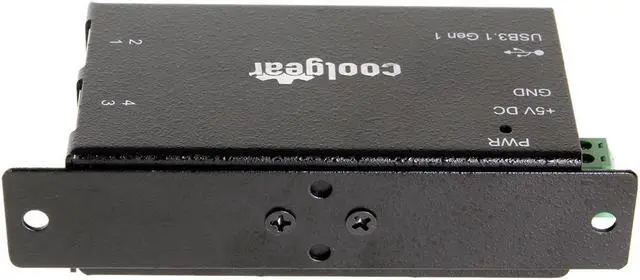

The hub can be mounted using its included metal bracket; it can also be mounted using a Din Rail Clip not included. The hub is built to save space in industrial environments in its metal chassis.

4 Port USB 3.1 Micro Hub Features

• Supports systems with USB 3.0 2.0 1.1 ports
• Has power LED indicating power is on

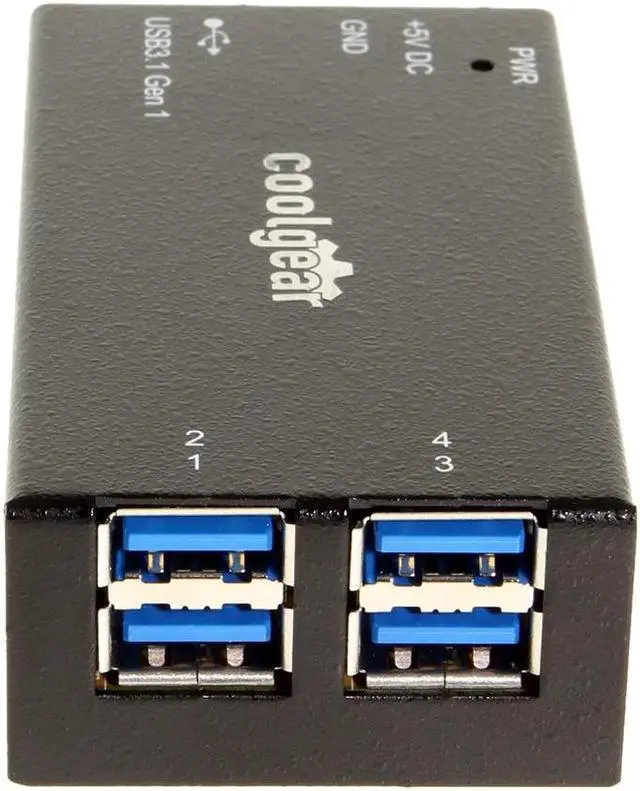

• Provides 4 downstream ports supporting 5Gbps data speeds

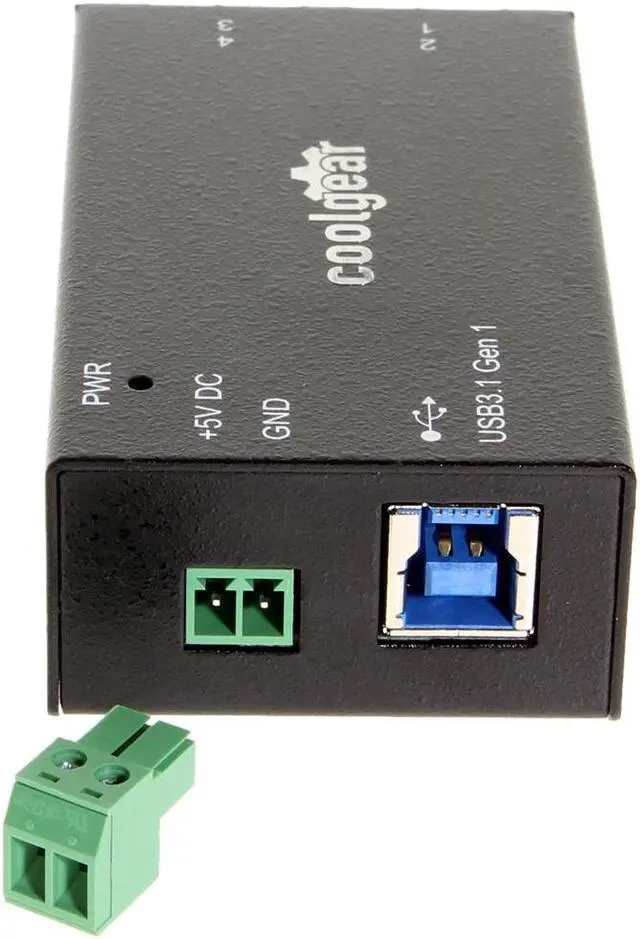

• Provides 1 upstream Type-B port to the host computer
• Compliant with USB 3.1 specifications

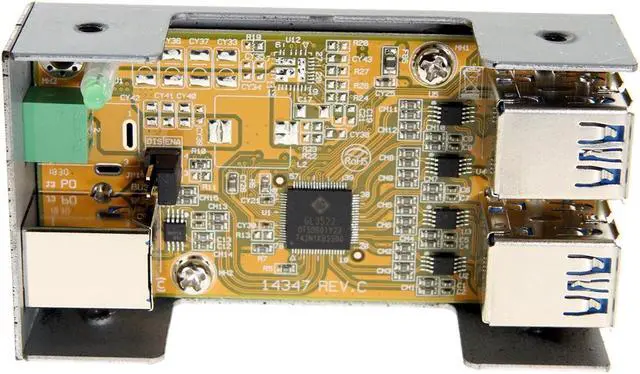

• Built with RISC-like hub controller
• Data speeds of up to 5Gbps Super-Speed 480Mbps High-Speed and 12Mbps Full-Speed and 1.5Mbps Low-Speed

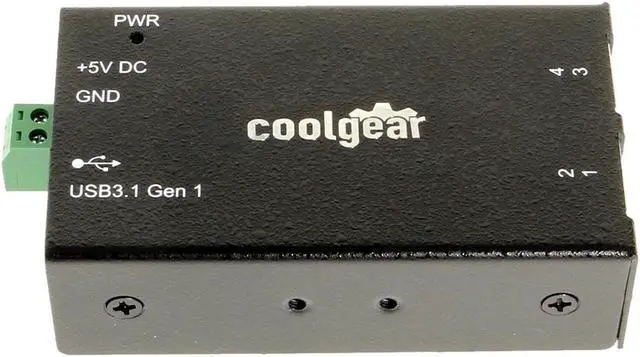

• Supports +5V DC self-power input (power adapter sold separately) through 2 pin Phoenix connector
• Supports 15KV ESD surge protection for each port

Environmental

• Operating Temp.: 0 & 70 C (32 to 150 F)
• Storage Temp.: -20 to 85 C (-4 to 185 F)
• Operating Humidity: 5 to 95% RH

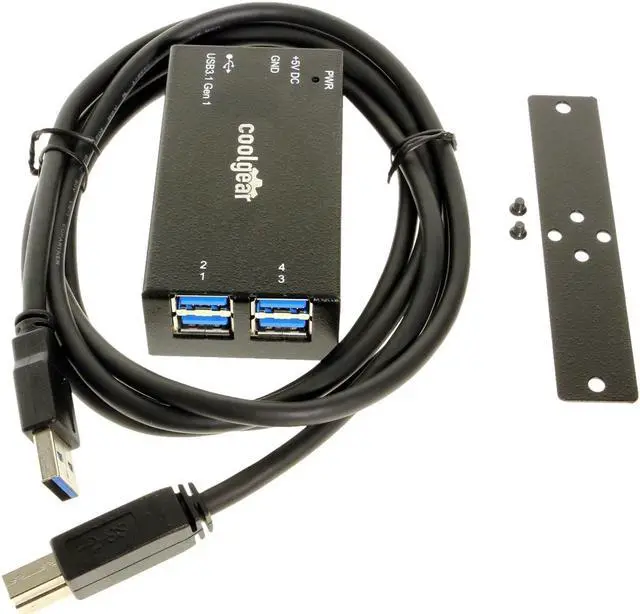

Package Contents

• 4 Port USB 3.1 Micro Hub
• 5ft. A to B USB 3.0 device cable
• Mounting bracket and (2) screws

*Surface Mounting screws not included
