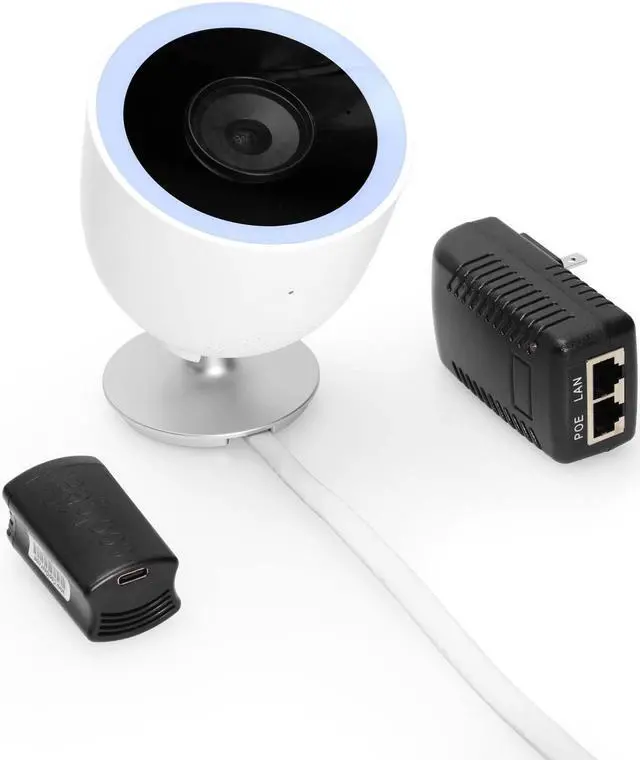

USB C Power Extender Kit for Nest Cam IQ / Outdoor
The CG-PWRPNESTKIT is a Nest Cam USB Power Extender with power over Ethernet (PoE) kit enabling a longer power connection. The Nest Cam currently includes a stock 25ft. USB Type-C cable that connects to a USB C power source. Coolgear's Nest Cam USB C extender kit provides a solid solution to extend power to Nest Cam distance. How the Nest Cam IQ Power Extender Works
Coolgear has developed a 22W USB-C PD Power Pod. The USB-C Power Pod in combination with a splitter and a power source can add an additional 100 meters.
to your connection. A Cat6 cable with RJ45 male ends plugs into the RJ45 female power source, then to the splitter. The splitter barrel connector plugs into the Power Pod and the Nest Cam USB-C cable to the Power Pod. Nest Cam IQ USB Extender Kit Features
- Extends the length of the Nest Cam power connection up to an additional 100 meters.
- Compact effective PoE solution for Nest Cam USB connection.

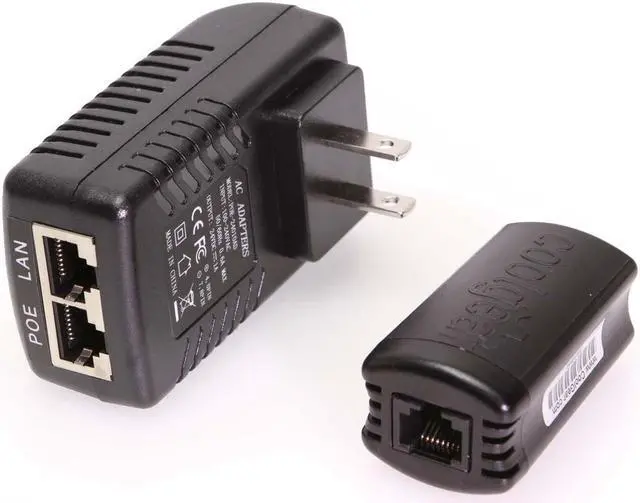

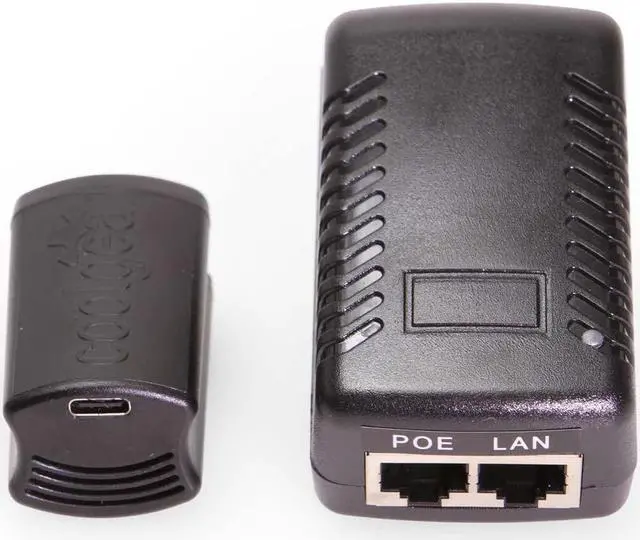

- Kit includes Power Pod, splitter, and power adapter.
- Supports the 5-15V DC range of various Nest Cam's
- Cost effective solution to extend the working length of the Nest Cam.
- No addition items needed with this 3pc. kit.
Splitter 22W USB-C Power Pod Supports PD Profiles: 5V/ 2.39A, 9V/ 2.07A, 12V/ 1.51A, 15V/ 1.27A, 20.0V / 1.11A Input:
- Length: 7.250 in
- RJ45 female power input from source
- Standard Barrel connector
5.5 x 2.1 mm Barrel 18-24V DC,
Output: USB-C Female Very High Efficiency up to 97% Variable voltage input: 20 – 28V Over Voltage Protection Under Voltage Protection Over Temperature Protection Operating Temperature: 10 to 60C Humidity: 5-90% Dimensions: 2.1 in (L) x 1.2 in (W) x 1.0 in (H)
