Coolgear USB 3.2 Gen 1 Bus Powered 4 Port Mini Hub with ESD

Features

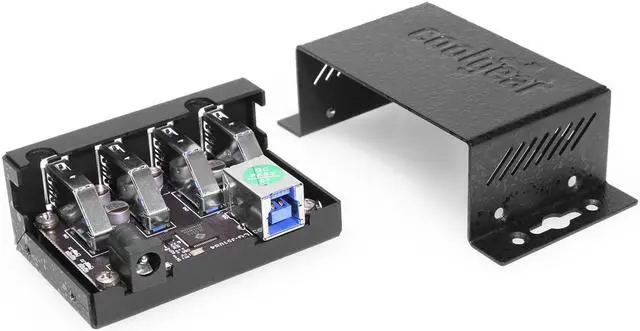

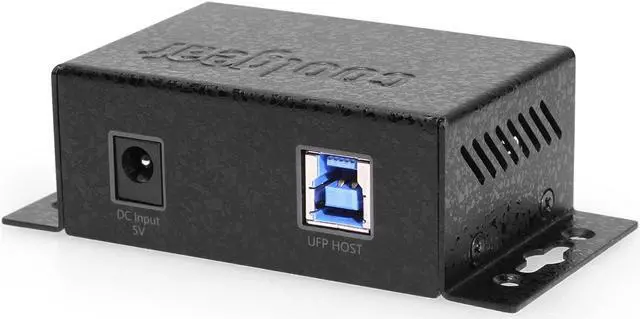

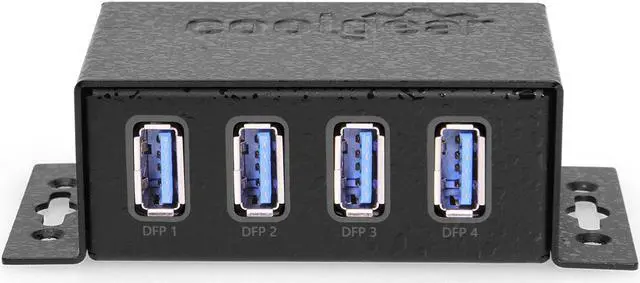

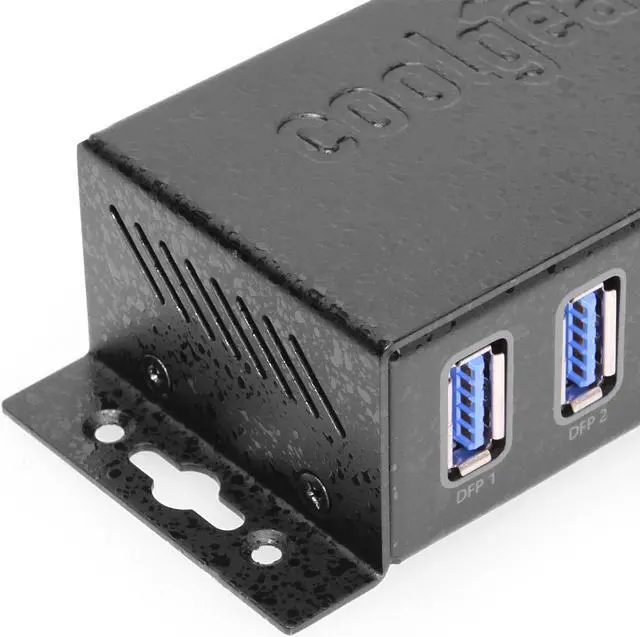

Compact Mountable USB 3.2 Gen 1 4 Port Hub with an industrial-grade chassis and surface mounting flanges. The CG-U3MINI4P-BPH has a 5V DC input with ESD and Surge protection and supports fast charging for Apple 1A/2.4A and Samsung Galaxy devices. Each port is protected individually to help keep your peripherals safe. The CG-U3MINI4P-BPH uses a GL 3510 controller chip featuring native fast-charging and complies with USB-IF battery charging specification rev 1.2.

Applications

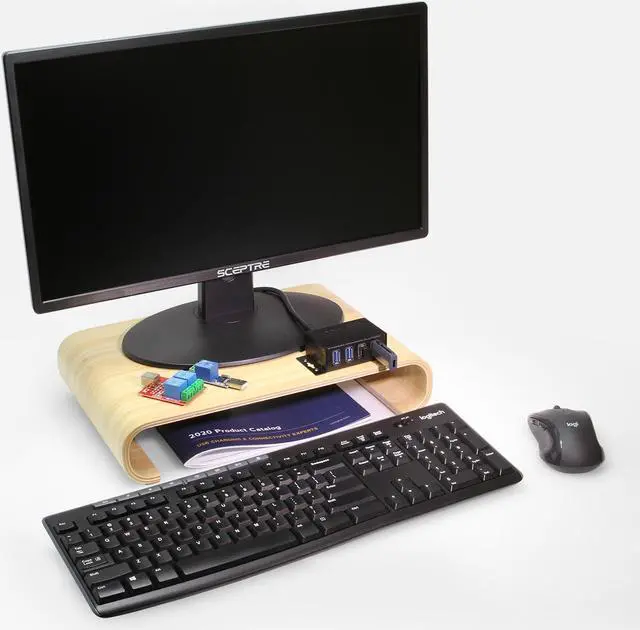

• Connect up to 4 USB devices and peripherals to your computer or laptop.
• Surface Mount or mount to a DIN rail in harsh industrial environments such as factories or warehouses.
• Add 4 fast-charging data-communicating USB ports for ease-of-access for locations otherwise hard to access.

Specifications

• Upstream port supports Super-Speed (SS) High-Speed (HS) and Full-Speed (FS) traffic
• Downstream ports support SS HS FS and LS traffic
• Compliant with USB Battery Charging Revision v1.2 supporting CDP DCP and ACA-Dock
• Downstream ports can be turned from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Port (DCP)
• Downstream devices can be charged while upstream VBUS is not present which can be applied on wall charger applications
• Upstream port is capable of charging and data communicating simultaneously for portable devices supporting ACA-Dock or proprietary charging protocols
• Supporting Apple 1A/2.1A/2.4A and Samsung Galaxy devices fast-charging
• Compatible with Windows XP 7 8 10 and Mac OS X
• Approvals: CE, FCC, REACH, RoHS

Package Contents:

• USB 3.2 Gen 1 4-Port Hub
• 3ft. USB A to B Cable for Hub

*Surface Mounting screws not included.
