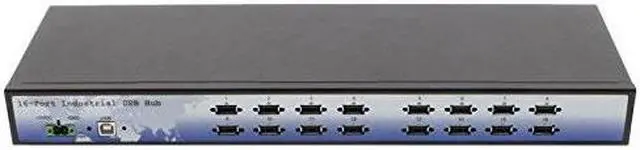

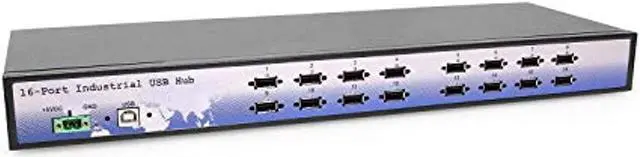

Industrial USB Hub with 16 Ports features a rugged metal enclosure with Built In Power Adapter (UL and FCC Approved). This durable all metal chassis utilizes GL 852GT USB 2.0 Industrial MTT Hub controller chip.
The terminal power input connector is with two screw holes securely locking the power wires to prevent them from accidental disconnection it incorporates the USB hub chips for industrial usage. This hub is featured with normal operation in wide ambient temperature from -40 C to 70 C operation in a harsh environment.
Features:
- Industrial-grade 16-port USB 2.0 Hub with rack-mountable metal case.
- Suitable for DIN-rail mounting.
- Common mode filtering on all data lines.
- Over-current detection and protection circuit design.
- Each downstream USB port supplies 5V 500mA power for external high-power USB devices.
- Individual port power management.
- Provided a terminal block connector to support 5V 1A power for external devices.
- Supports USB 1.1 and USB 2.0 transfer speeds (1.5 ~ 480Mbps) automatic link and speed detection.
- Plug-and-Play; no software or drivers required.
- 15KV ESD immunity for serial interface protected.
- LED for power and USB status indication.
- All USB connectors with screw holes for lock the USB cable.
- Supports wide ambient temperature operation -40 degrees C to 70 degrees C(-40 degrees F to 158 degrees F).
- CE FCC approval.
- 110-220V AC input
- Windows 98 Me XP 2000 2003 CE Vista Windows 7 8 Linux and Mac OS 10.X
- Dimensions: 427mm(L) x 144mm(W) x 44mm(H)
- Hub Weight: 3.606 lbs.
.
