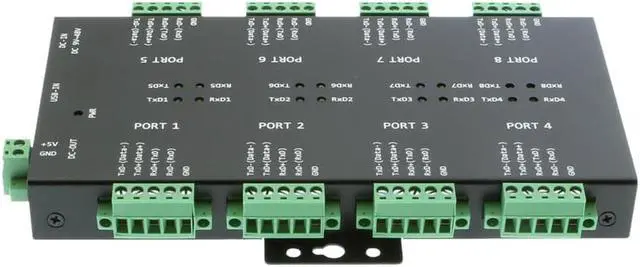

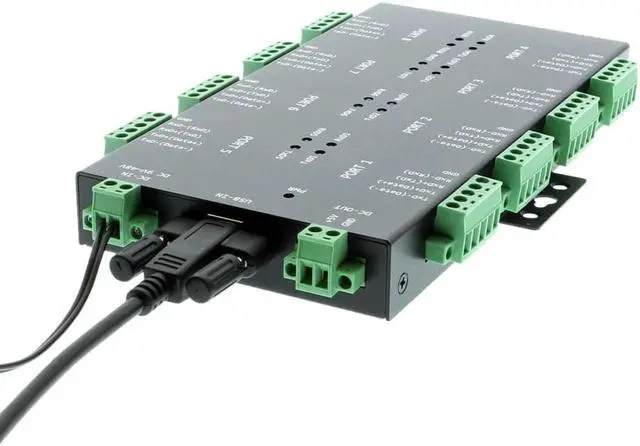

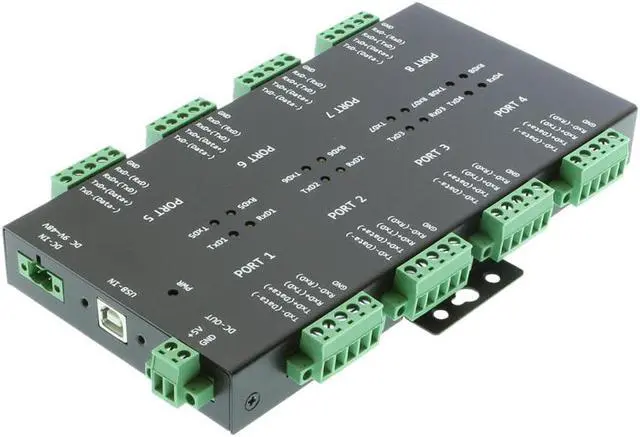

Coolgear USB2 to 8-Port RS232-422-485 Serial TB Adapter

  • Each serial port supports 5-pin screw-lock-type terminal block connector
  • AC to DC-12V, 1A switching power supply included
  • Virtual COM port drivers available for Windows 10, 8.1, 8, 7, Vista, 2003, 2000
  • Dimensions: 192.42 x 122.22 x 23.60 mm (L×W×H), dimensions are to DIN rail(W), to power plug(L)
  • Supports USB 1.1 and USB 2.0 transfer speeds from 1.5 up to 480 Mbps
+
+
Overview
Specs
Reviews

Any questions? Ask CelesteSM will help you find out quickly.

USB 2.0 to 8-port industrial serial adapter that protects your device(s) with 15KV ESD protection and 600W surge protection over each port. It is designed to make RS-422 and RS-485 serial port expansion quick and simple through its terminal block connections. Port signals are controlled by DIP switches as is the control over termination and biasing.

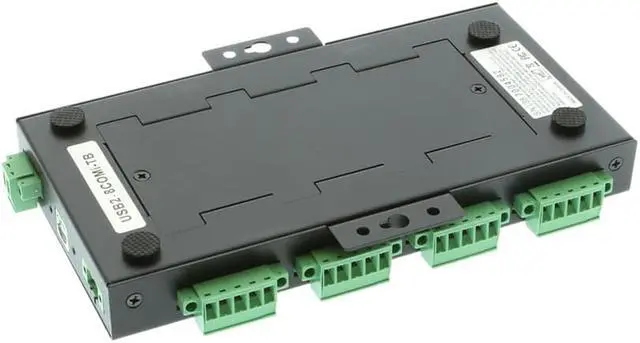

The USB 2 to 8-port serial adapter has an industrial designed metal case where the DIP switches are located within the bottom metal access panel.


Features:



  • Supports USB 1.1 and USB 2.0 transfer speeds from 1.5 up to 480 Mbps, automatic link and speed detection.

  • Adds eight high-speed RS-232/422/485 serial ports via USB connection.

  • 2K byte receive buffer.

  • 2K byte transmit buffer for high speed data throughput.

  • Requires no IRQ, DMA, I/O port.

  • Data rates: 300 bps to 921.6K bps.

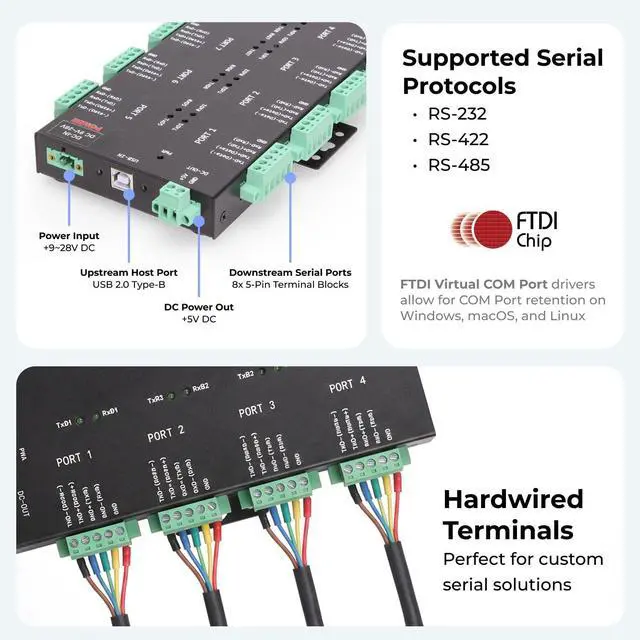

  • Each serial port supports 5-pin screw-lock-type terminal block connector.

  • Auto-transmit buffer control for 2-wire RS-485 half-duplex operation.

  • Biasing and Termination resistors installed on-board.

  • Supports RS-232 3-wire signals: RxD, TxD, GND

  • Supports RS-422, RS-485 4-wire signals: TxD-, TxD+, RxD+, RxD-

  • Supports RS-485 2-wire signals: data-, data+

  • Monitor LEDS of TxD, RxD indicating port status

  • AC to DC-12V, 1A switching power supply included

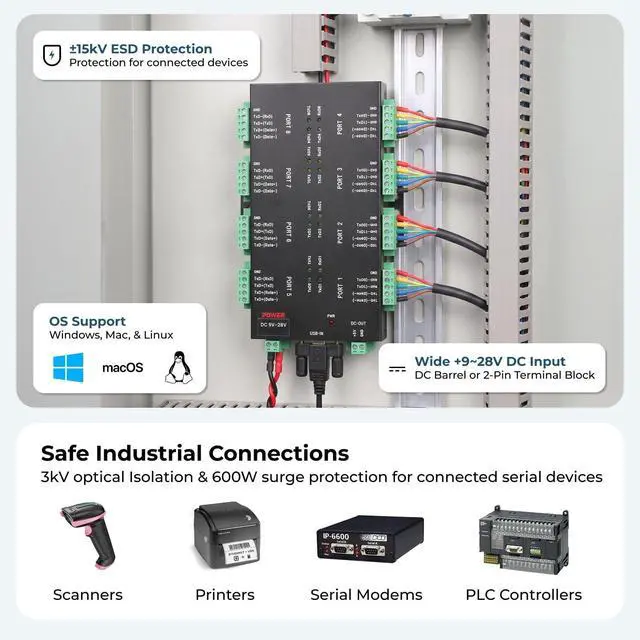

  • 15KV ESD protection and 600W surge protection for all serial signals

  • Virtual COM port drivers available for Windows 10, 8.1, 8, 7, Vista, 2003, 2000

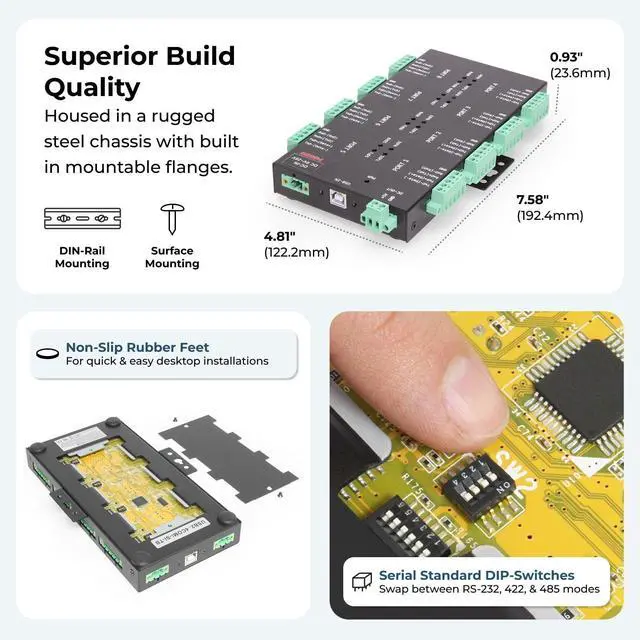

  • Industrial grade metal case with DIN-rail ears for Din-rail mounting.

  • Chipset: Genesys GT852G 4-port USB 2.0 hub chip + FTDI FT4232H USB 2.0 to quad UART chip

  • Dimensions: 192.42 x 122.22 x 23.60 mm (L×W×H), dimensions are to DIN rail(W), to power plug(L)
