Coolgear Industrial 12-Port USB 2.0 Powered Hub for PC-MAC DIN-RAIL Mount

  • SUPER FAST SPEEDS This 12 port USB hub is 2.0 compliant guaranteeing super-fast speeds data transfer speeds of 480Mbps. Backward compatible Super-Speed 480Mbps High-Speed and 12Mbps Full-Speed and 1.5Mbps Low-Speed
  • MOUNTING OPTIONS With an industrial rugged metal chassis built-in DIN rail and surface mountable brackets. This device allows for flexible and secure installations options.
  • POWERED DEVICE A power supply that allows for an additional option of 110/220 AC. (power supply not included)
  • WHY COOLGEAR? Your Trusted Partner based in the USA Providing Advanced Engineering Highly Reliable and Superior Built Products to handle the most demanding industries for over 20 years. Reach out to us for CAD Mechanical Drawings and Data Sheets.
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Designed to provide quick and easy access the USBG-12U2ML provides four type A downstream ports for connecting USB peripherals devices or other USB hubs. A single type B upstream port connects the USBG-12U2ML to the host computer or another USB hub enabling up to 127 devices to be connected by cascading multiple hubs. Configured directly by the operating system the USBG-12U2ML operates seamlessly with both Microsoft Windows and Apple Macintosh Operating Systems.

Features:

  • LEDs provide port status for each port and power status.
  • Includes a Quick Install Guide a 3-foot Hi-Speed USB 2.0 certified A to B cable and a power plug for the optional 110/220 AC power supply.
  • Compliant with USB Specification Revision 2.0
  • Built-in 4X GL-852 Multi-TT Chip USB2.0 Hub Controller
  • Supports High-speed and or Full-speed Packet
  • Protocol Sequencer for Endpoint 0/1
  • Provides 12 Downstream Facing USB 2.0 Ports
  • Supports 480Mbps 12Mbps and 1.5Mbps Speed
  • Multi Transaction Translator per Hub and Supports 12 Concurrent Non-periodic Transactions
  • Supports Self-powered Mode
  • Supports Downstream Port Status with LED
  • Compliant with USB Specifications 2.0
  • High-speed or Full-speed Packet Protocol Sequencer for Endpoint 0/1
USBG-12U2ML header banner
USBG-12U2ML main
Features:

12 Port USB 2.0 Industrial Grade Hub

This high-speed USB 2.0 hub allows you to connect 12 additional USB devices to your system. The industrial-grade chassis provides lasting durability for rugged use.

  • 12 USB 2.0 Type A Ports
  • Supports 480Mbps, 12Mbps and 1.5Mbps Transfer Rate
  • LEDs provide port status for each port and power status
  • Built-in 4X GL-852 Multi-TT Chip USB2.0 Hub Controller
USBG-12U2ML mechanical
Mechanical:
  • Product Dimensions 6.2 x 2.6 x 2.0 inches (L x W x H)
  • Item Weight 1.23 pounds / Shipping Weight 1.43 pounds
  • Surface Mountable brackets included
  • Din-Rail mountable (optional bracket required)
  • Rugged Metal Enclosure
USBG-12U2ML power
Power Specifications:
  • Variable Voltage input: +7 ~ 36V DC
  • 3 pin Phoenix power input connector
  • *Full 500mA power to each port
  • Supports Self-powered Mode
USBG-12U2ML package contents

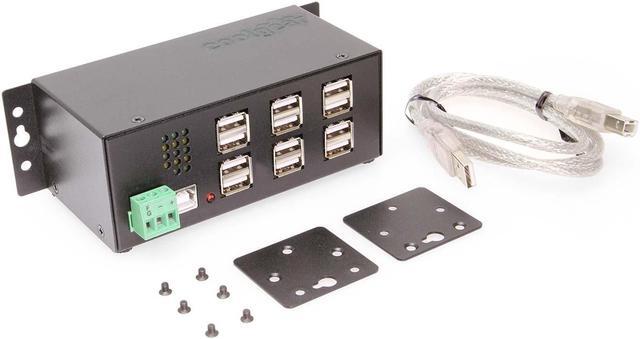

Package Contents:
  • USBG-12U2ML USB 2.0 Hub
  • USB 2.0 A-Male to B-Male USB cable (3 Ft)
  • 2x Wall/Surface mounting plates and screws
  • 3 pin Phoenix power connector
  • Quick Install Guide

*Power Supply not included

image for this item
Why Coolgear?

Your Trusted Partner based in the USA, Providing Advanced Engineering, Highly Reliable and Superior Built Products to handle the most demanding industries for over 20 years. Reach out to us for CAD, Mechanical Drawings and, Data Sheets.



image for this item
Advanced Engineering

Extensive on-site research, development, and engineering directly from our Lab in the USA allowing us to provide innovative products ready to handle the most demanding industries.

image for this item
Superior Build Quality

Industrial rugged steel mountable chassis for the most demanding environments. Ready to tackle your office, lab, warehouse, heavy machinery, automation equipment, industrial setting applications, and more.



image for this item
Reliability

Industrial rugged steel mountable chassis for the most demanding environments. Ready to tackle your office, lab, warehouse, heavy machinery, automation equipment, industrial setting applications, and more.
