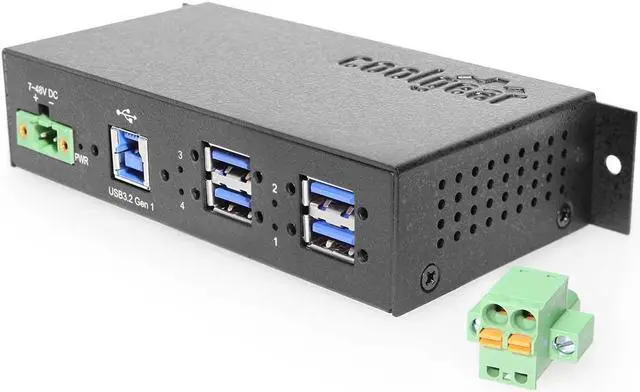

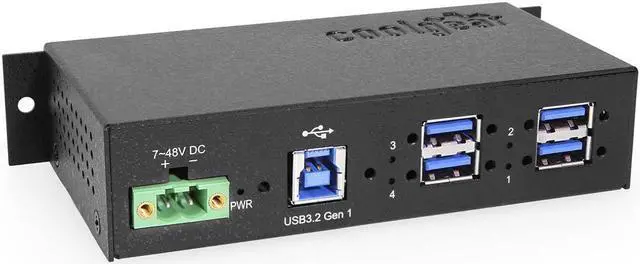

Coolgear 4-Port Industrial USB 3.0 Hub w/ 1.5Amp Output GL Chip DIN-Rail Mounting

In stock.
Ships from United States.
  • Compliant with USB3.0 Specification Revision 1.0
  • 4 Down-stream Ports (Type-A) Support Super-Speed, High-speed , Full-speed and Low-speed Traffic
  • Supports Screw Lock Features for both U
Overview
Specs
Reviews
header
feature
4 USB 3.2 Gen 1 Ports:

The USBG-4U3ML Hub complies with the Universal Serial Bus 3.2 Gen 1 (USB 3.2 Gen 1) Specifications Revision 1.0 and works up to 5Gbps. It provides 4 downstream facing ports with standard Type-A USB 3.0 connectors. It also supports screw lock features for both upstream (USB type B) and downstream (USB type A) connectors with the screw lock USB cables.Compliance: USB 3.2 Gen 1/2.0 compliant

  • Upstream: 1 USB port, Type B connector, Screw Lock
  • Downstream: 4 USB ports, Type A connectors, Screw Lock
  • LED Indicators: 4 LEDs for each downstream port to indicate the current bus power states
  • Speed: 5Gbps (Super-speed), 480Mbps (High speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed)
  • Supply Current: 900mA USB Bus Power for Each Down-stream Port
mechanical
Mechanical:
  • Housing: SECC (Galvanized Steel)
  • Form Factor: 15.20 x 5.96 x 2.35 cm (L x W x H)
  • Item Weight: .569 lbs.

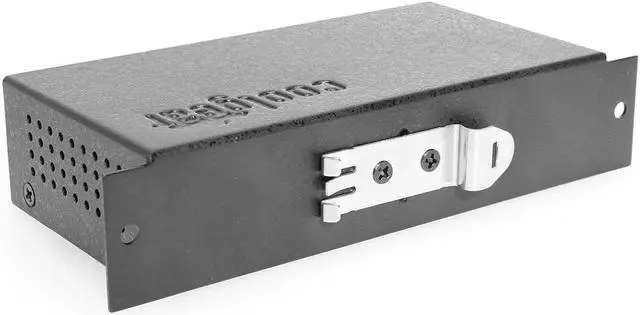

  • Mountin Options: Surface, Wall, and DIN Rail
  • Supports USB Screw-lock Mechanism for Secure Cable Connection
power
Power Specifications:
  • Input Voltage: 7 ~ 24 VDC
  • Power Connector: 3-Pin Terminal Block
contents

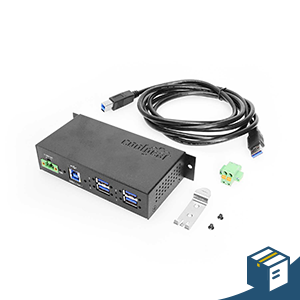

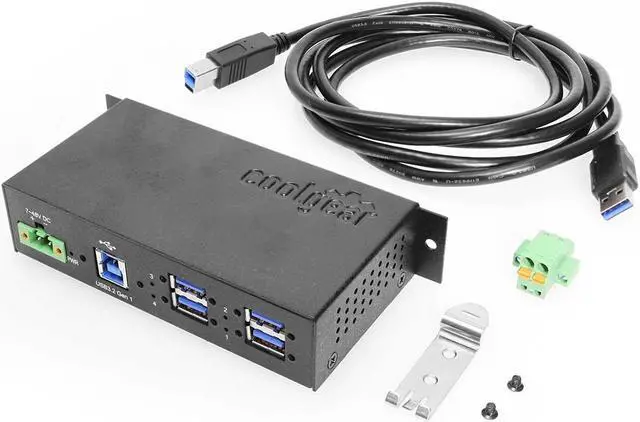

What's in the Box:
  • 4 Port USB 3.2 Gen 1 Hub
  • 6ft. USB 3.2 Gen 1 A to B cable
  • DIN Rail Mounting Clips
  • Screw Pack
  • User Manual/Instruction Guide
