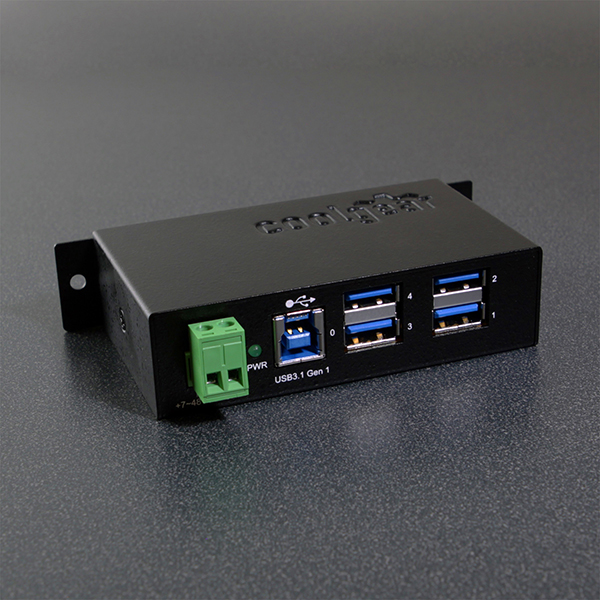

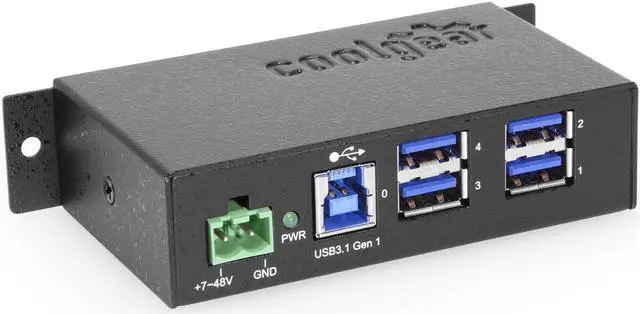

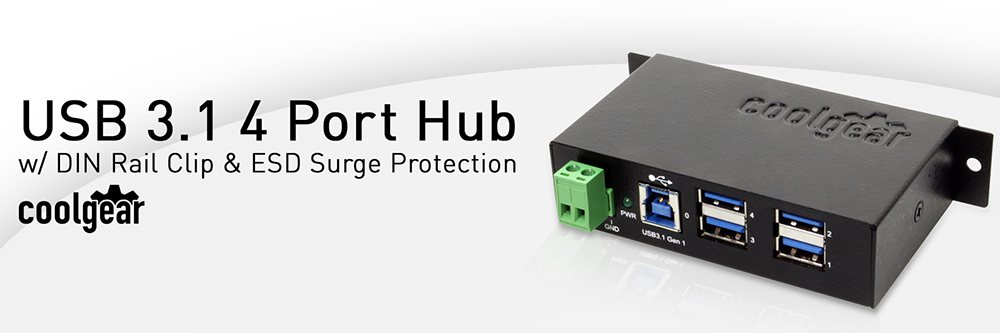

Coolgear USB 3.1 4 Port Metal Hub w/DIN Rail Clip & ESD Surge Protection

Ships from United States. Most customers receive within 6-8 days.

Sold and Shipped by CoolDrives a-seller

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • USB 3.1 Gen1 compliant – allows up to 5Gbps of data transfer
  • Accepts 7-48V additional power through the 2-wire terminal connector
  • BC 1.2 compliant for normal charging

  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

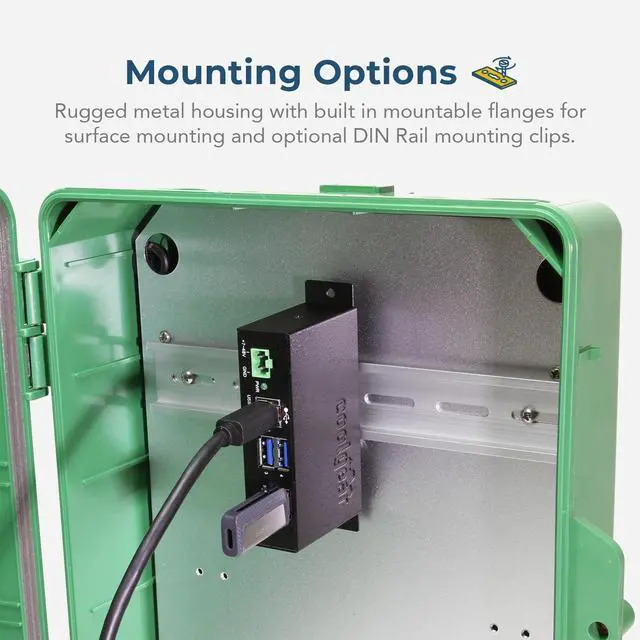

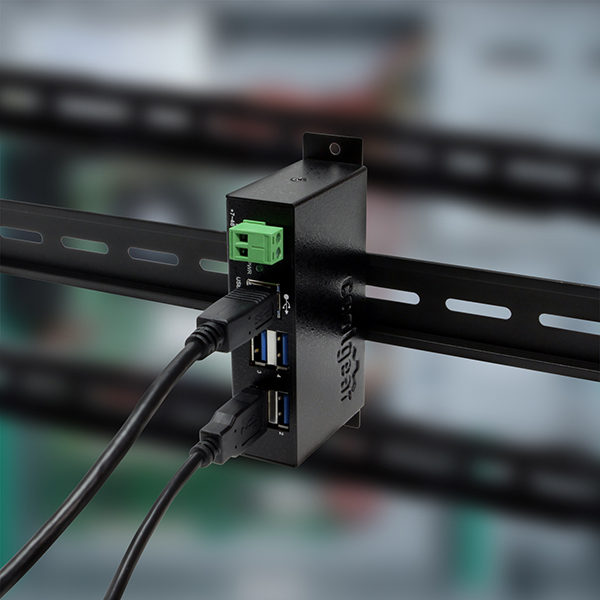

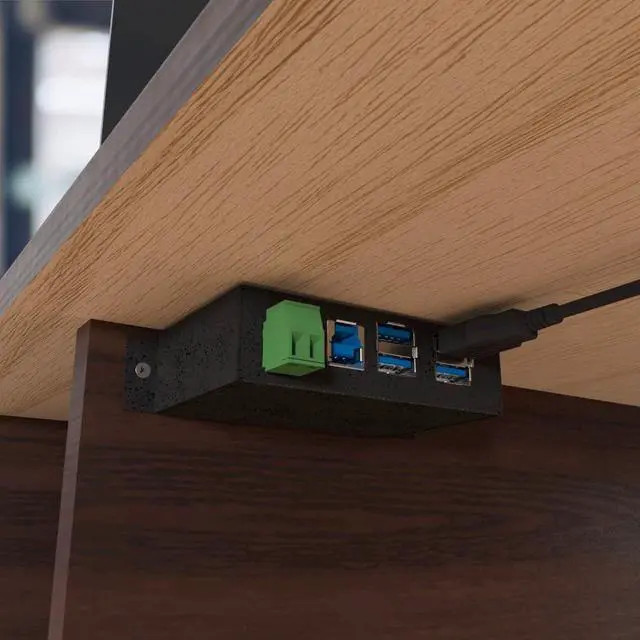

The Coolgear USB 3.1 Gen1 hub is a 4 port industrial hub with a small form factor that accommodates up to 5Gbps of data transmission. It’s both surface and DIN Rail mountable with its included DIN Rail clips and screws. It supports Windows 7 8 8.1 10 Linux and Mac OS10.X operating systems and supports 5 hops to cascade with other hubs.

The USB 3.1 4 port hub is small enough to fit in the palm of your hand yet can handle large amounts of super-speed data from its downstream ports. Each of the USB 3.1 ports supports the battery charging specification 1.2 for normal charging at .900mA per port. Normal charging allows the USB hub to charge low power devices that depend on charging to operate. Operating USB equipment such as printers scanners portable drives virtual reality gear and others are not a problem with this USB 3.1 Gen1 hub.

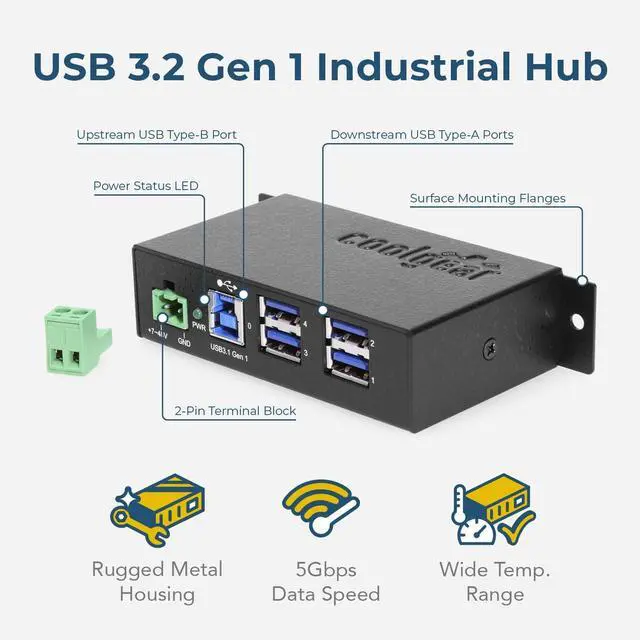

USB 3.1 4 Port Hub Features

  • Supports systems with USB 3.0 2.0 1.1 ports

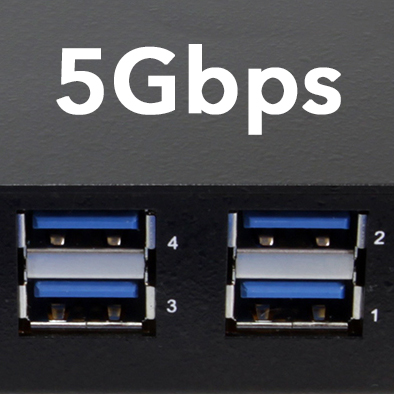

  • Provides 4 downstream ports supporting 5Gbps data speeds
  • Compliant with USB 3.1 Gen1 specifications
  • Provides 1 upstream port to the host computer
  • Backward compatible with data speeds of up to 5Gbps Super-Speed 480Mbps High-Speed and 12Mbps Full-Speed and 1.5Mbps Low-Speed
  • BC 1.2 compliant for normal charging

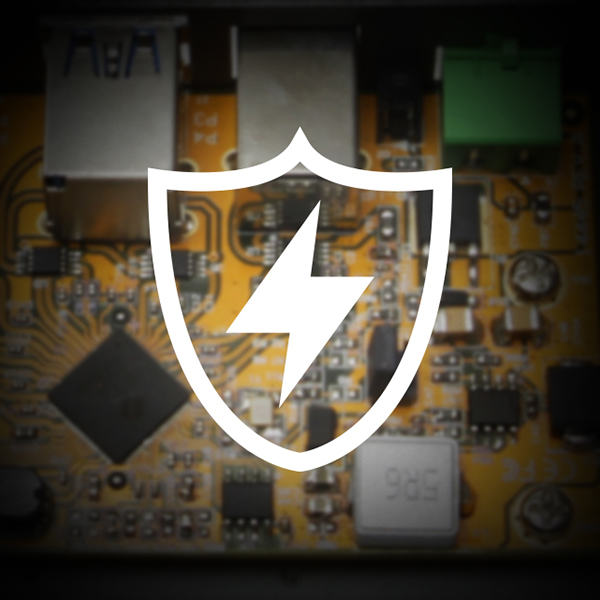

  • Supports 15KV ESD surge protection for each port

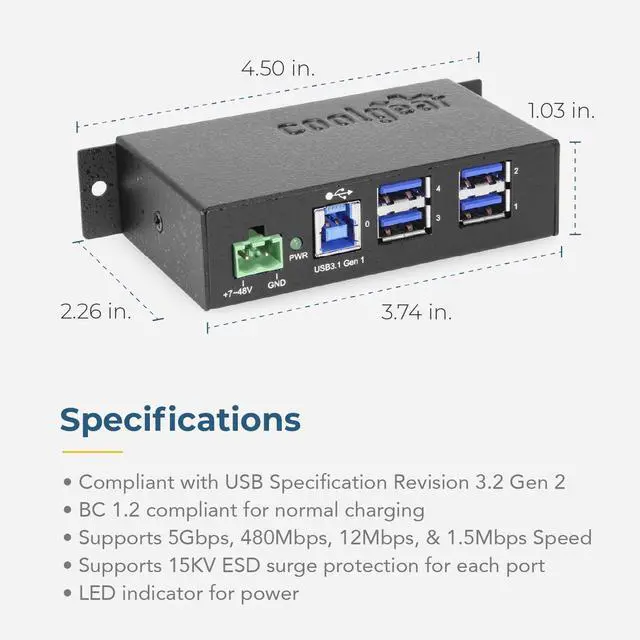

  • Dimensions: 3.74in(L) x 2.26in(W) x 1.03in(H) (11.45 x 5.73 x 2.63 cm) (length with ears 4.50in)
  • Hub Weight: .431 lbs.
  • Multi transaction translators (TT) per hub
  • Supports +7 – 48V DC wide range self-power input (power adapter sold separately)
  • Supports a 2-pin Terminal Block Connector for External power input from AC adapter

Environmental Information

  • Operating Temp.: 0 – 70 C (32 to 150 F)
  • Storage Temp.: -20 to 85 C (-4 to 185 F)
  • Operating Humidity: 5 to 95% RH


Learn more about the CoolGear USBG-4U3MLR2

Model

|
Brand
Coolgear
Model
USBG-4U3MLR2

Details

|
Type
USB
Standards
USB 3.1
Ports
4 x USB 3.1
Transfer Rate
Up to 5 Gbps
Color
Black

Group

|
HUB Ports
4 Ports

Additional Information

|
Date First Available
March 28, 2018
