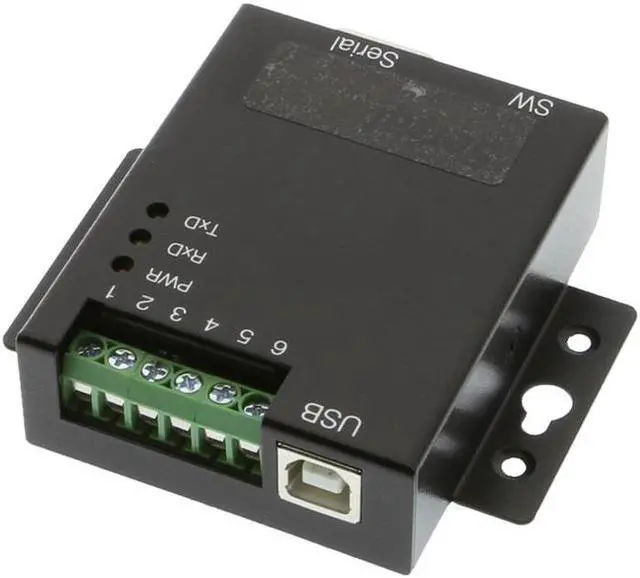

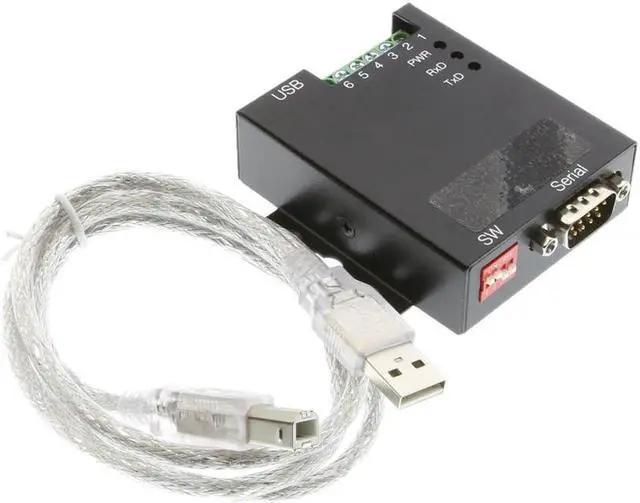

Coolgear USB-to-Optical isolated RS-422/485 Industrial Adapter

In stock.
Ships from United States.
Most customers receive within 7-9 days.
  • Adds one RS-422 or RS-485 serial port by connecting to a USB port
  • 2000V DC optical isolation/25KV ESD surge protection
  • No need to open chassis to set operation modes- one external DIP switch for easy RS-422, RS-485 mode settings
Overview
Specs
Reviews

Now Supports RS-232

The USB-to-RS-232/422/485 Serial Adapter provides instant connectivity to RS-422 RS-485 communication devices for POS factory automation equipment multi-drop data collection devices bar code readers time clocks scales data entry terminals PC to PC long distance communications ATMs and serial communication in harsh environments. The USB-to-Optical isolated RS-422/485 Industrial USB to Industrial I/O provides industrial solution requiring single node or multi-drop communications over short and long distance.

Features:

  • Adds one RS-422 or RS-485 serial port by connecting to a USB port
  • 2000V DC optical isolation
  • 25KV ESD surge protection

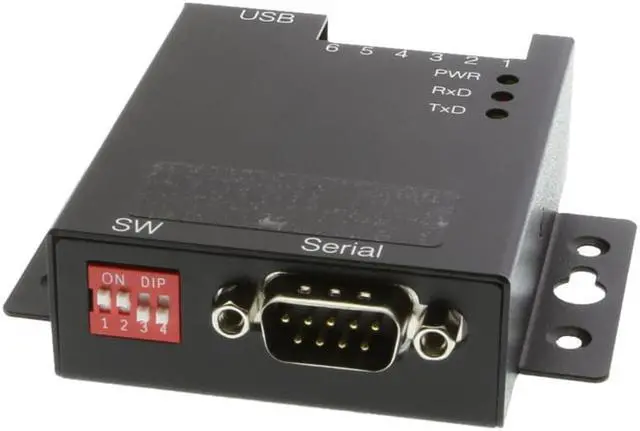

  • No need to open chassis to set operation modes- one external DIP switch for easy RS-232 422 RS-485 mode settings
  • Installed as standard Windows COM port
  • SECC metal chassis with DIN rail bracket
  • RS-232 data signals: RxD TxD GND RTS CTS
  • RS-422 data signals: TxD- TxD+ RxD+ RxD- GND RTS- RTS+ CTS+ CTS-
  • RS-485 4-wire data signals: TxD- TxD+ RxD+ RxD-
  • RS-485 2-wire data signals: Data- Data+
  • Automatic transmit and receive control for 2-wire RS-485 half-duplex mode
  • High speed serial port with the baud rate up to 921.6K bps
  • Non-standard baudrates supported
  • LEDs of Power TxD and RxD for easy port monitoring and diagnostics
  • Powered by USB port no external power adapter required
  • Easy plug and play installation and RS-422/RS-485 device connection
  • COM port number assigned can be changed to any COM port number required
  • Works with USB 1.1 & 2.0 host port
  • Dimensions: 57mm x 76mm x 23mm (with DIN rail bracket)
  • OS Support: Windows 7 8 and 10 Linux and Mac OS 10.X
