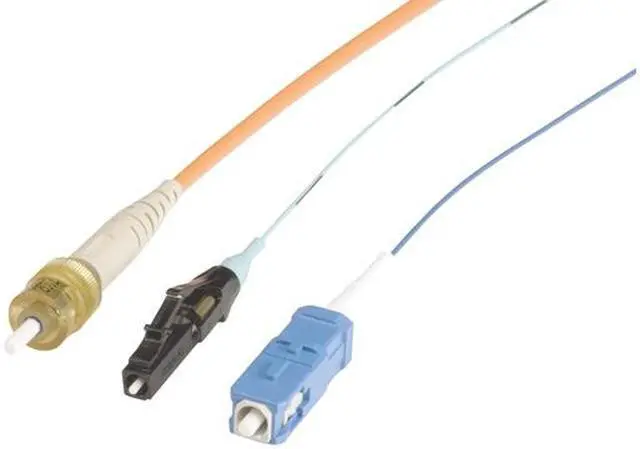

Corning - 95-050-99-X-Z - UniCam Connector, LC, Organizer Pack, Organizer Pack, 50 m multimode (OM3/OM4 compatible)

Corning's UniCam® high-performance connectors offer best-in-class optical performance in a fast, easy field-termination solution. These high-precision zirconia ceramic ferrule connectors provide an exceptional insertion loss – 0.2 dB typical/ 0.5 dB maximum per connector pair for multimode, 0.3 dB typical/ 0.5 dB maximum per connector pair for single-mode. Installation of an LC, SC or ST® compatible connector can be accomplished in about 50 seconds to one minute with the UniCam high-performance toolkit 2. The hand-held installation tool, animated step-by-step guidance and high-performance precision cleaver virtually eliminate human variability during installation, ensuring terminations are right the first time, every time.

This kit was designed with consideration for network installers from the intuitive, hand-held precision cleaver with dual-clamp arms, to the installation tool, with its immediate go/no-go feedback signal indicating proper mating of the field fiber to the fiber stub. Installation is as easy as strip, clean, cleave, cam and crimp with exceptional optical performance assured. Every UniCam® connector is assured to meet the published specification at the time of installation or Corning will replace it. Organizer packs include 900 µm boots only. Swipe left and right to view the table General Specifications Technology No-Epoxy/No-Polish Keyed No Product Type Field-Installable Connectors Corning Logo Yes Packaging Organizer Pack Fiber Category 50 µm MM (OM3/OM4) Swipe left and right to view the table Standards Approvals and Listings Passed EIA/TIA 568-B.

3 Intermateability Connectors are FOCIS compliant with TIA/EIA 604-10A and IEC61754-20 Swipe left and right to view the table Temperature Range Operation -40 °C to 75 °C exceeding EIA/TIA 568-B. 3 (-40 °F to 167 °F exceeding EIA/TIA 568-B. 3) Swipe left and right to view the table Design - Connector Connector Type LC Ferrule Material Ceramic Housing Material Composite Housing Color Black Boot Color Aqua Swipe left and right to view the table Mechanical Specifications - Connector Durability? 0.2 dB change by 500 rematings, FOTP-21 Temperature Cycling? 0.3 dB IL, -40° to +75°C, 21 cycles Nominal Fiber Outer Diameter 125 µm Tensile Strength Jacketed Cable 50 N, change? 0.2 dB, FOTP-6 (11 lb, change? 0.2 dB, FOTP-6) Tensile Strength 900 µm Cable 4.9 N, change? 0.2 dB, FOTP-6 ( 1.1 lb, change? 0.2 dB, FOTP-6) Swipe left and right to view the table Optical Specifications - Connector Insertion Loss, Typical 0.2 dB Insertion Loss, Maximum 0.5 dB Reflectance? -26 dB Swipe left and right to view the table Chemical Characteristics RoHS Free of hazardous substances according to RoHS 2011/65/EU Swipe left and right to view the table Shipping Information Units per Delivery 25/1 Package Contents 25 connectors, 25 triggers, 25 boots (900 µm)
