High static pressure for efficient radiator or heatsink cooling Cooling today’s high-performance PCs is a complex task, and a single fan design can’t meet every need. The fan you use to pull hot air out of your case might not be the best fan to mount flush against a heatsink or radiator. Static pressure is the measure of how well a fan can push air in this type of highly restrictive environment, and this is where the SP120 excels. It’s an ideal solution for radiator and heatsink use, as well as drive bay intakes, and other locations where you’re mounting a fan directly adjacent to a heat source. For high-volume cooling in less restrictive environments, like case exhaust or side intakes, check out our AF series of high-volume fans. Performance SP120 High Performance Edition SP120 Quiet Edition Size 120mm x 25mm Operating Voltage 7V - 12V Performance at 12V Airflow 62.74 CFM 37.85 CFM Static Pressure 3.1 mm/H20 1.29 mm/H20 Sound Level 35 dBA 23 dBA Speed 2350 RPM 1450 RPM Power Draw 0.18 A 0.08 A Contents and Specifications Package contents Two SP120 Quiet Edition High Static Pressure Fans Three colored rings in red, blue, and white Mounting Screws Voltage step-down adapter for lower speed operation System requirements Motherboard with an open standard 3-pin fan connector
Learn more about the Corsair CO-9050006-WW
Model
Brand
Corsair
Series
Air Series SP120 Quiet Edition
Model
CO-9050006-WW
Details
Type
Case Fan
Compatibility
Case
Bearing Type
Hydraulic
RPM
1450 RPM
Air Flow
37.85 CFM
Noise Level
23 dBA
Color
Black Blades
Features
Features
Static Pressure (mm/H2O): 1.29 mm/H2O

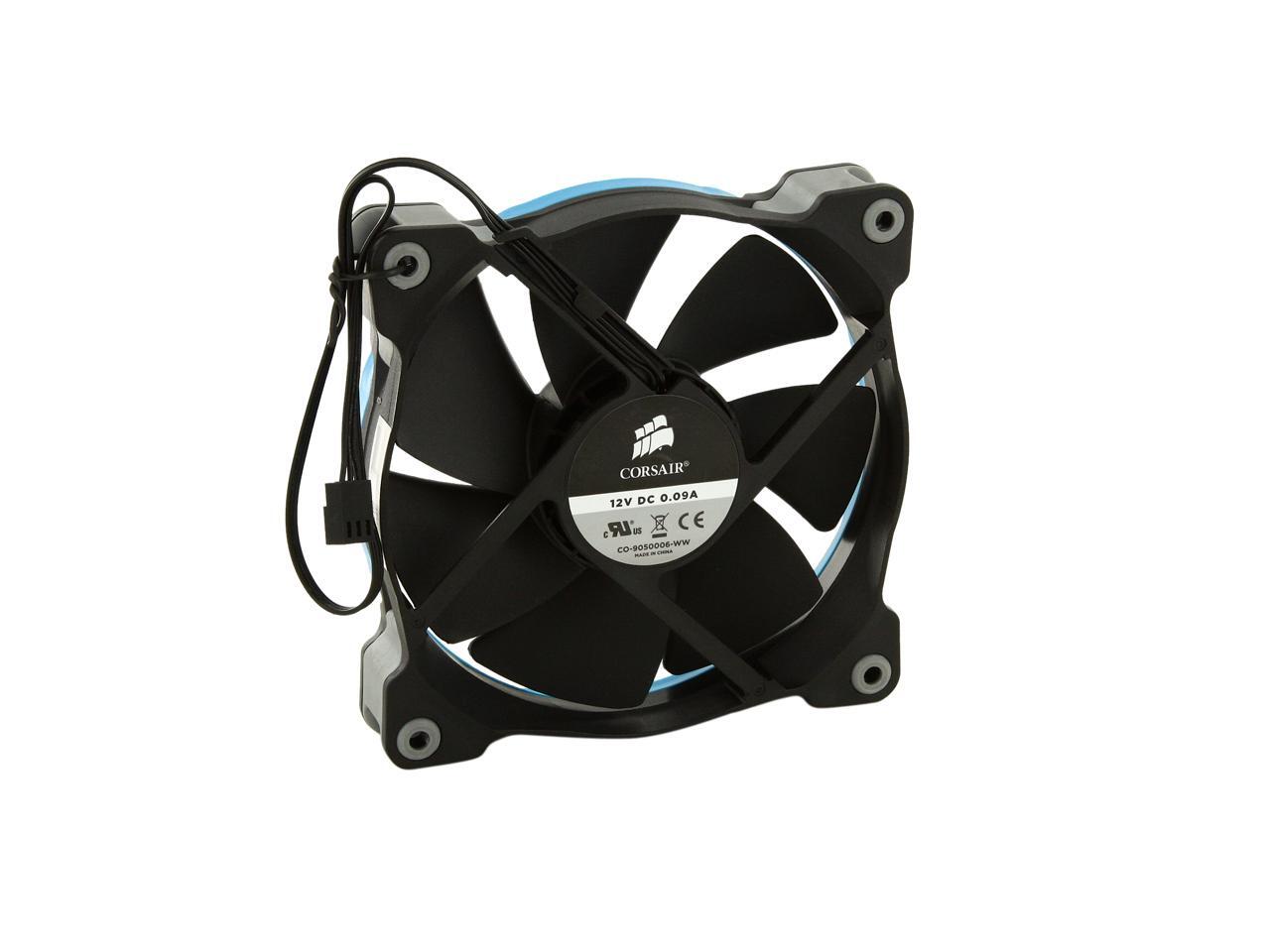

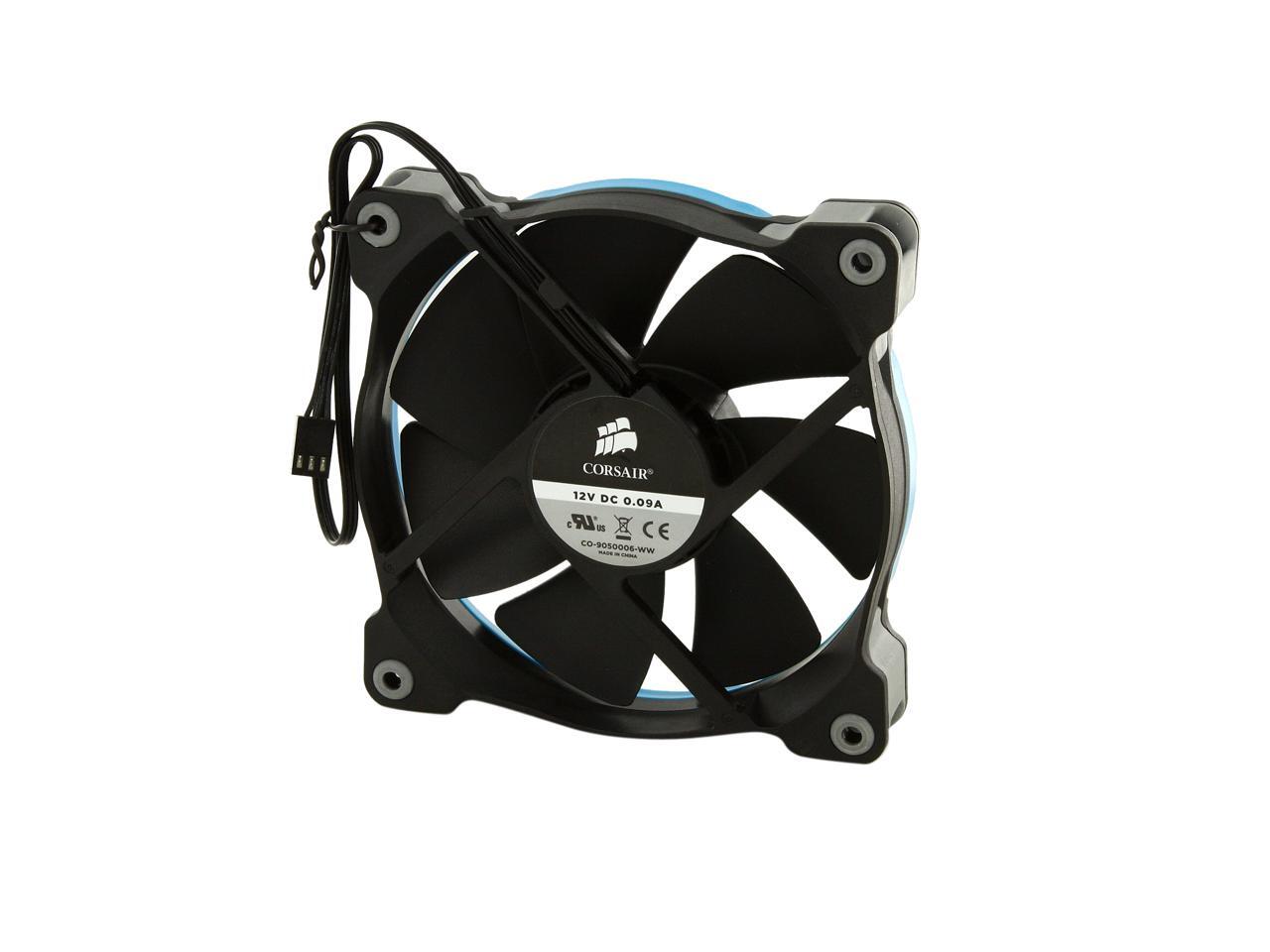

Power Draw (@ +12V): 0.08A

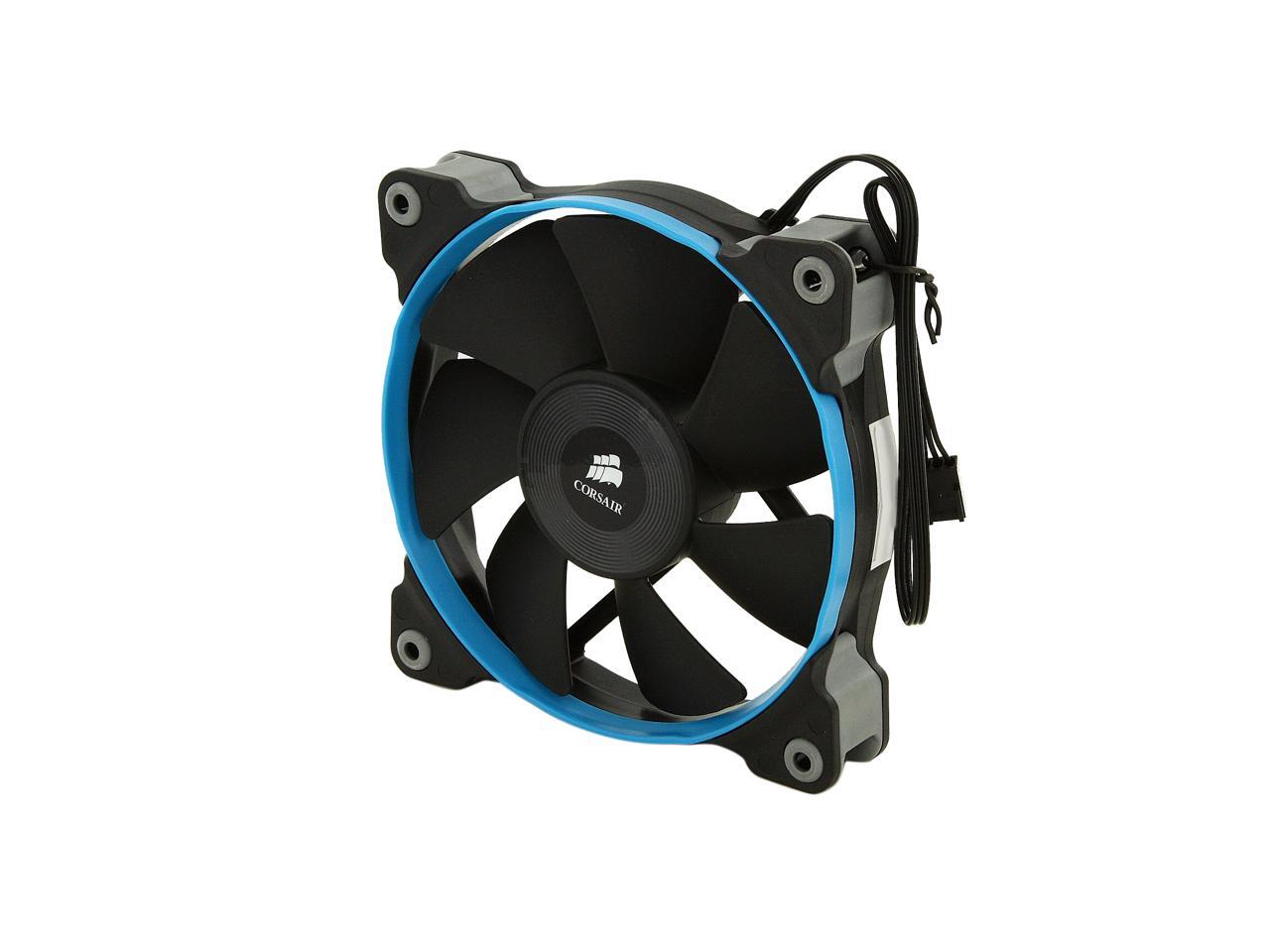

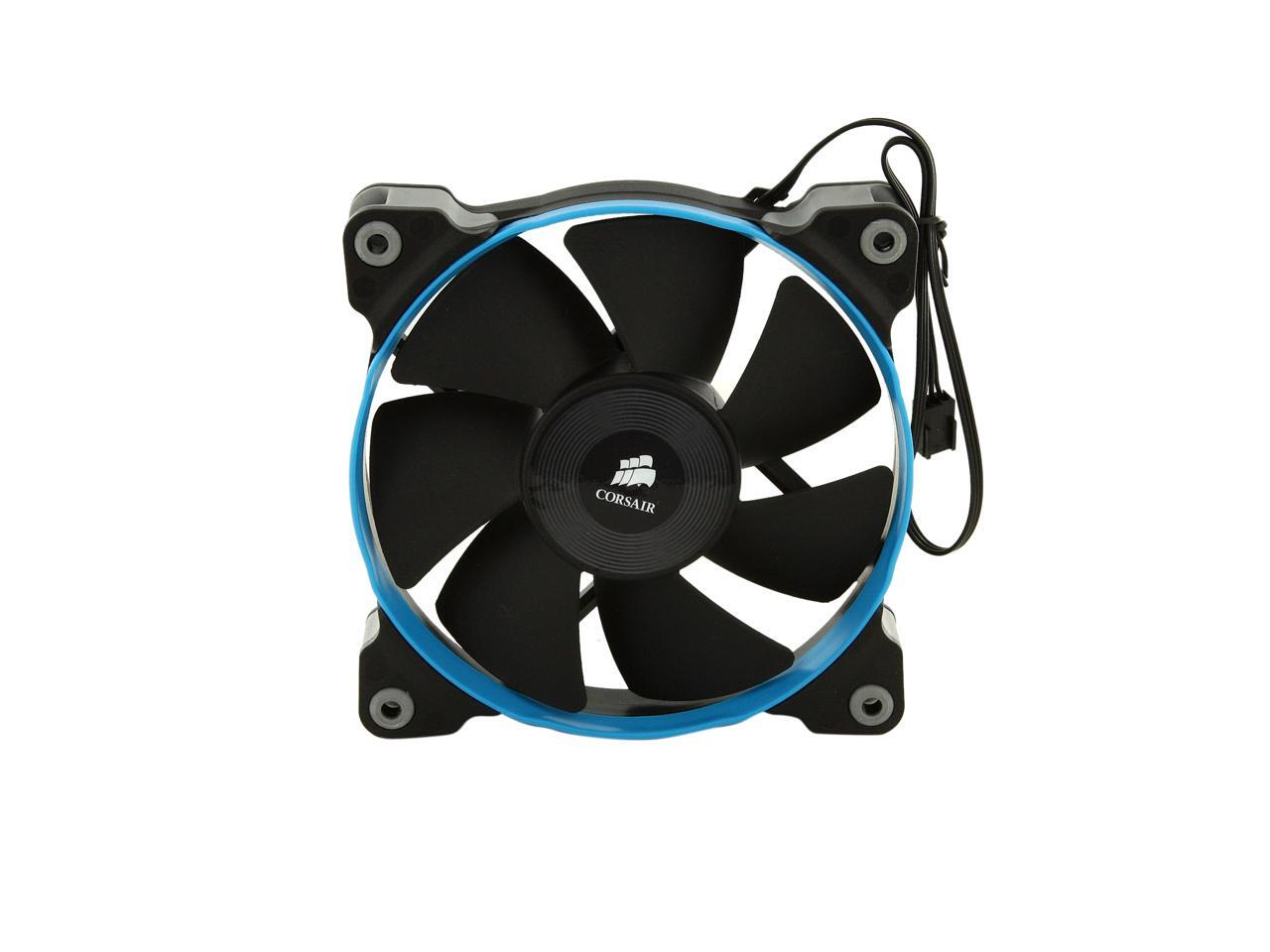

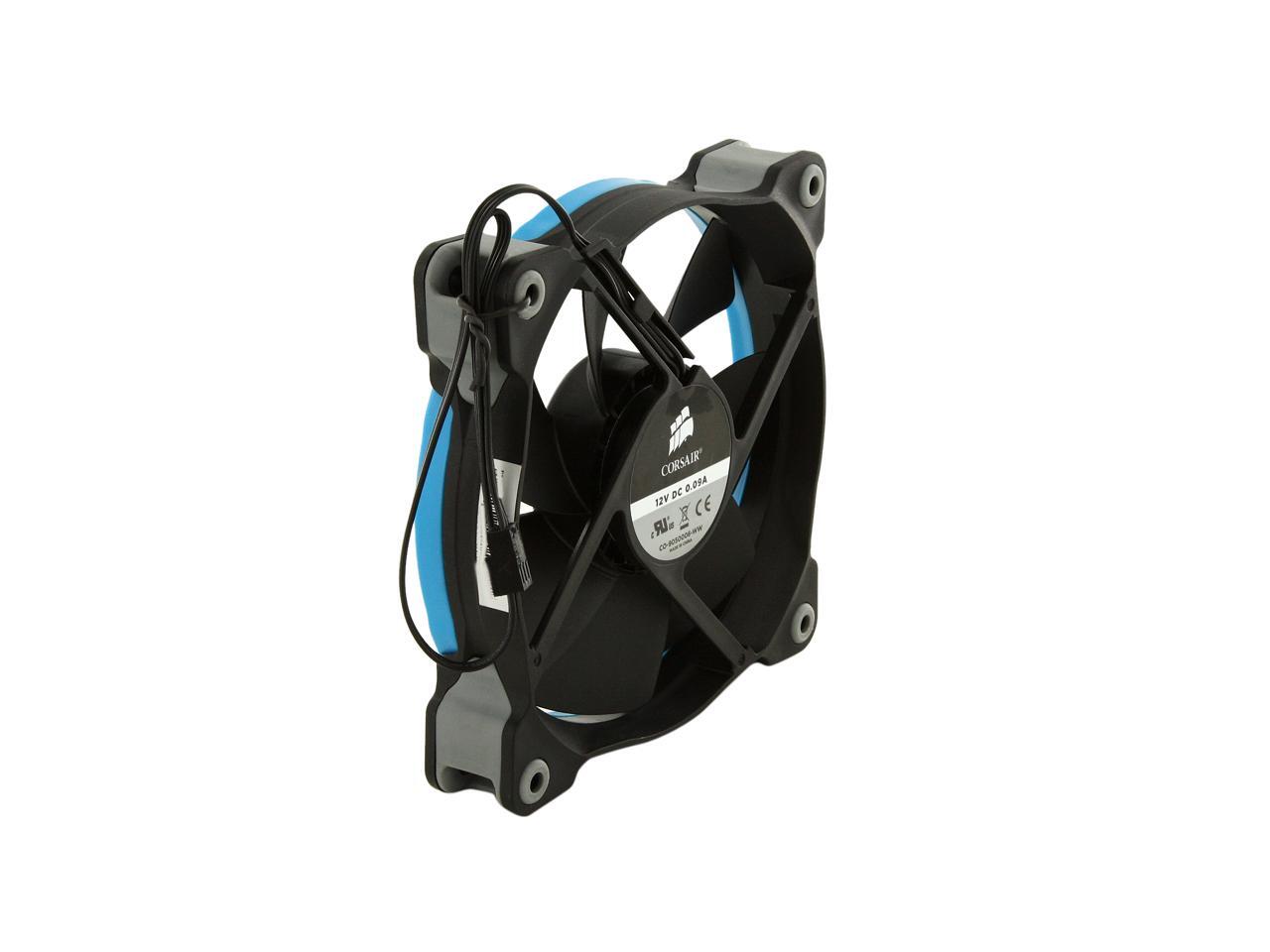

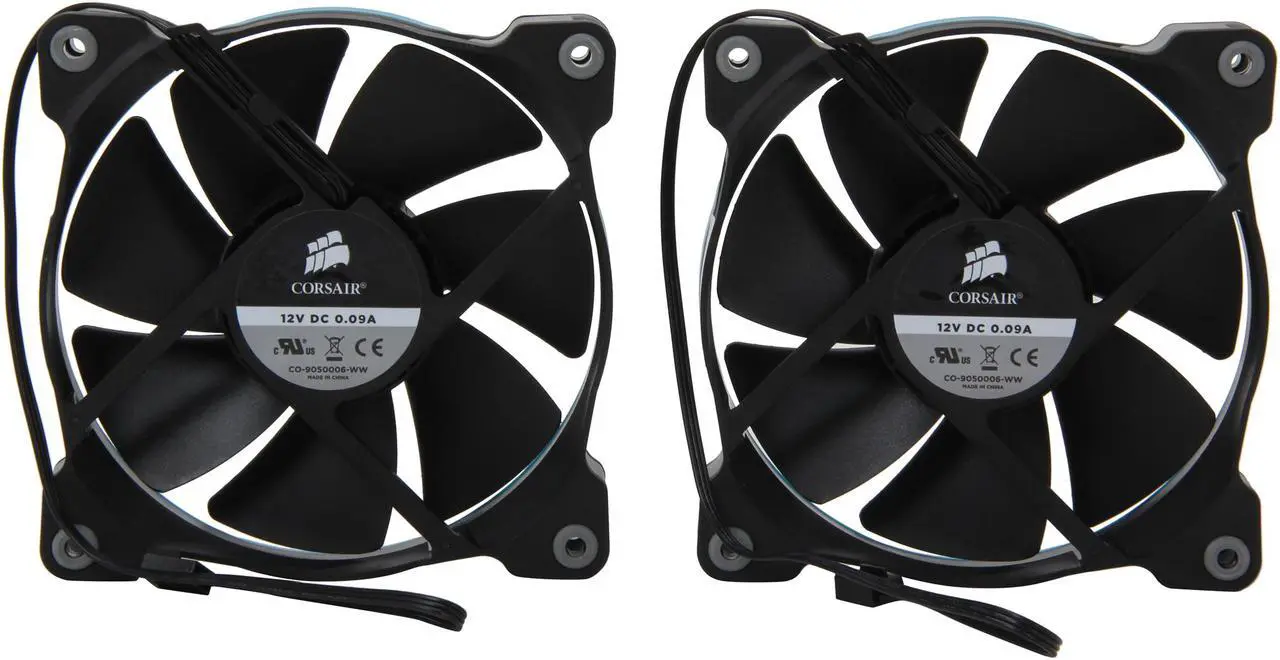

The SP120 Quiet Edition, at full RPM, is an extremely quiet 23 dBA while maintaining an impressive 1.29 mm/H2O static pressure level

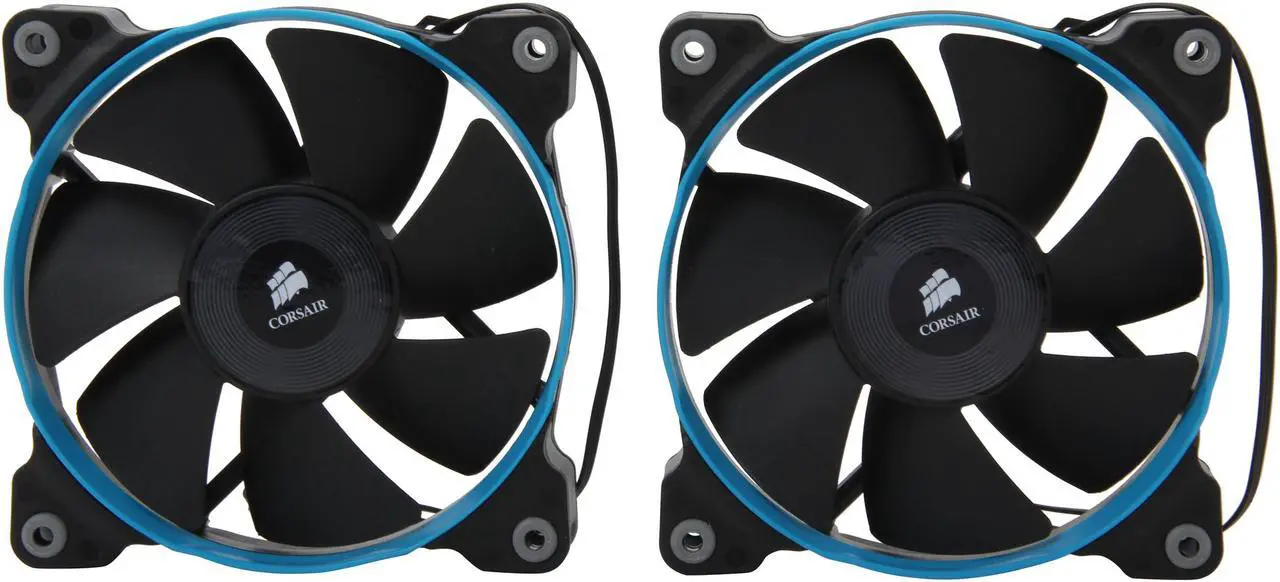

Seven wide body, low-pitch custom blades for optimal static pressure at very low noise levels
Custom fan enclosure for ducting air in the right direction with minimal interference
Advanced Hydraulic Bearing for reliable, quiet operation

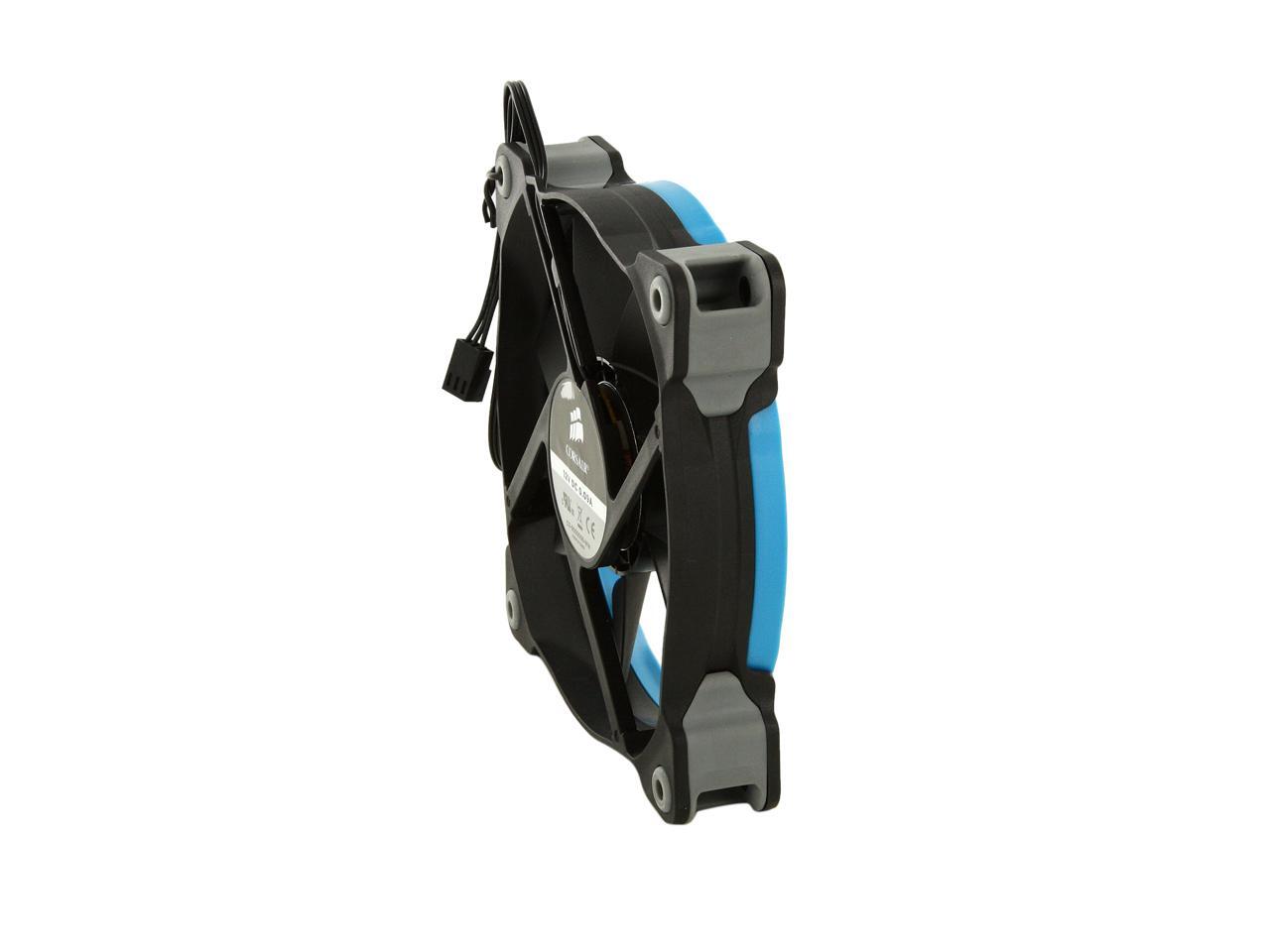

Rubberized corners for sound damping when installed with standard screws

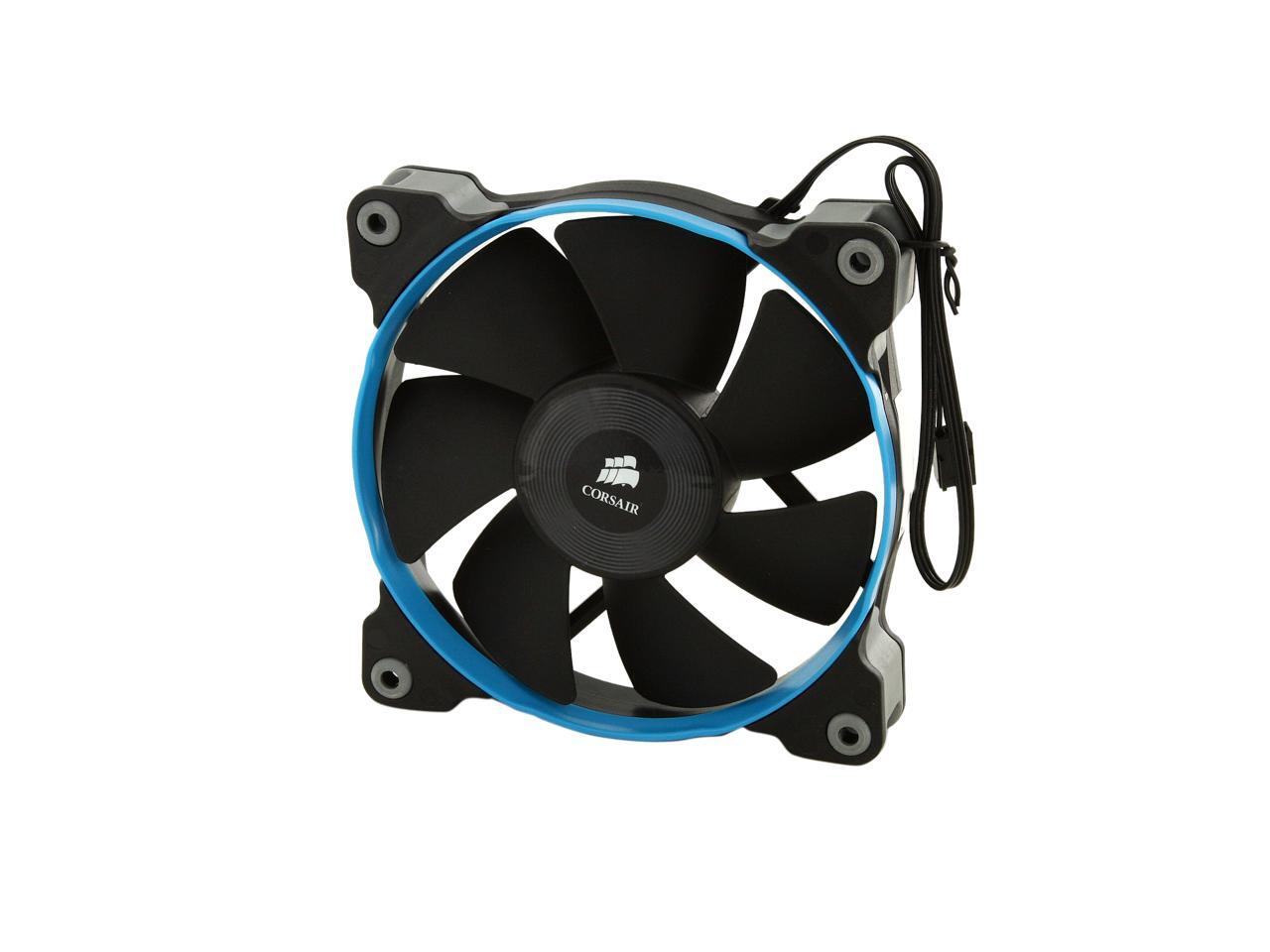

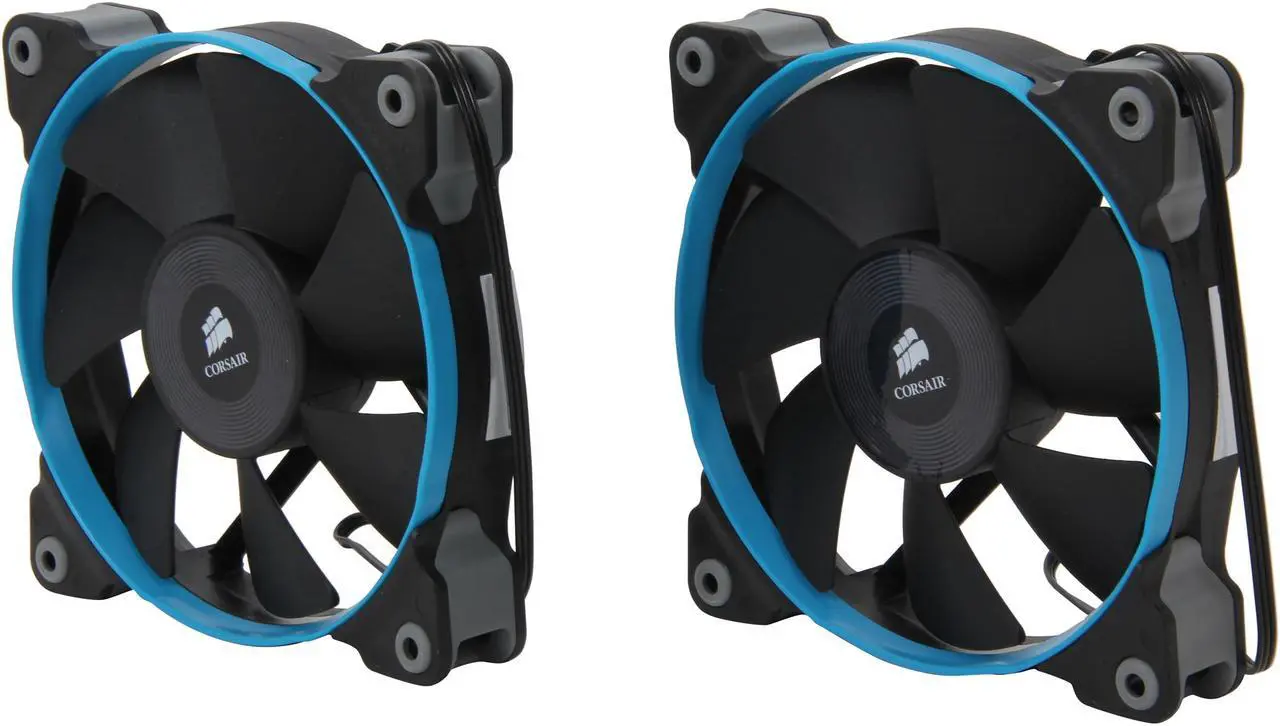

User-replaceable colored rings so you can match your fans to your case
Included voltage step-down adapter for even quieter operation
Dimensions & Weight
Dimensions

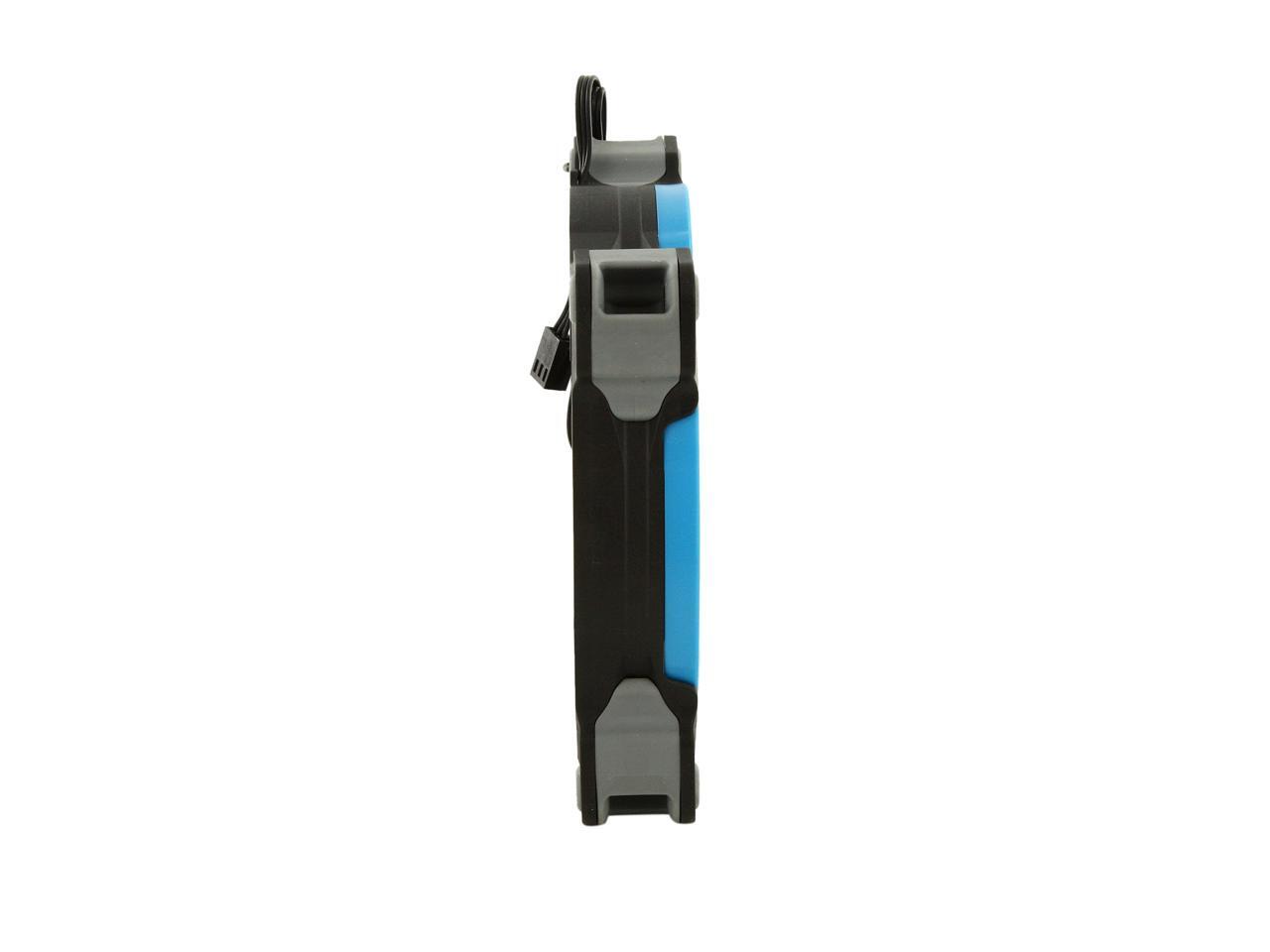

120mm x 25mm
Package Contents
Package Contents

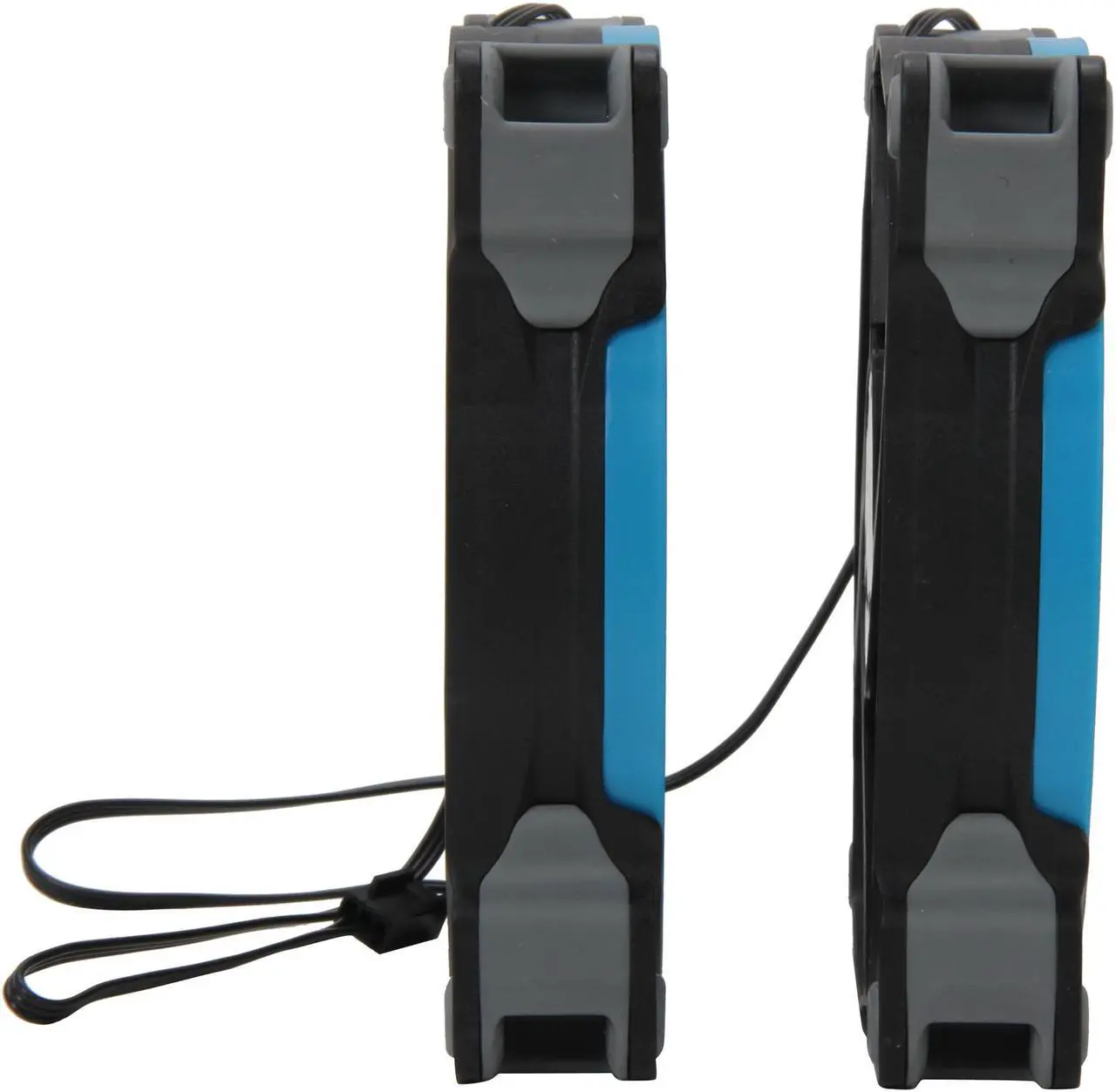

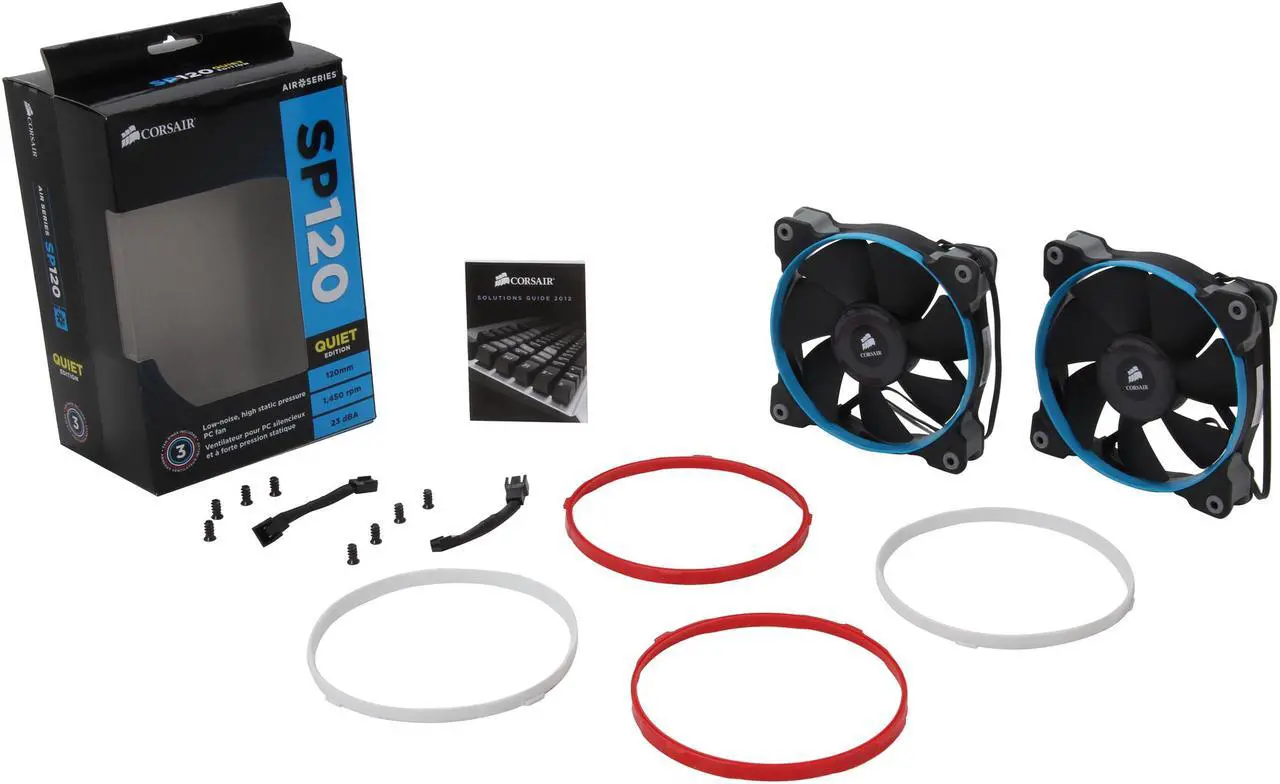

2 x SP120 Quiet Edition Airflow Fan 2 x Three colored rings in red, blue, and white 2 x Voltage step-down adapter for lower speed operation Mounting Screws
