What materials are used in the construction of the cold plate in this CPU water block?

The cold plate is made of nickel-plated copper and features over 120 high-efficiency micro-cooling fins.

What is the resolution and frame rate of the LCD screen on the CORSAIR XC7 RGB ELITE LCD White CPU Water Block?

The LCD screen has a resolution of 480x480 and supports a frame rate of 30 FPS.

$194^.99

Limit 5 per customer.

Price alert

Add to wish list(Found on 1 wish list)

Sold by Newegg

Shipped by Newegg

Main image of CORSAIR XC7 RGB ELITE LCD WHITE CPU Water Block - 480x480 IPS LCD Screen - 31 RGB LEDs - USB-C - Temperature sensor - Fits Intel LGA 1700, AMD AM5 and older - White

Alt view image 2 of 6 - CORSAIR XC7 RGB ELITE LCD WHITE CPU Water Block - 480x480 IPS LCD Screen - 31 RGB LEDs - USB-C - Temperature sensor - Fits Intel LGA 1700, AMD AM5 and older - White

Alt view image 3 of 6 - CORSAIR XC7 RGB ELITE LCD WHITE CPU Water Block - 480x480 IPS LCD Screen - 31 RGB LEDs - USB-C - Temperature sensor - Fits Intel LGA 1700, AMD AM5 and older - White

Alt view image 4 of 6 - CORSAIR XC7 RGB ELITE LCD WHITE CPU Water Block - 480x480 IPS LCD Screen - 31 RGB LEDs - USB-C - Temperature sensor - Fits Intel LGA 1700, AMD AM5 and older - White

Alt view image 5 of 6 - CORSAIR XC7 RGB ELITE LCD WHITE CPU Water Block - 480x480 IPS LCD Screen - 31 RGB LEDs - USB-C - Temperature sensor - Fits Intel LGA 1700, AMD AM5 and older - White

Alt view image 6 of 6 - CORSAIR XC7 RGB ELITE LCD WHITE CPU Water Block - 480x480 IPS LCD Screen - 31 RGB LEDs - USB-C - Temperature sensor - Fits Intel LGA 1700, AMD AM5 and older - White

Shop All Corsair Products

CORSAIR XC7 RGB ELITE LCD WHITE CPU Water Block - 480x480 IPS LCD Screen - 31 RGB LEDs - USB-C - Temperature sensor - Fits Intel LGA 1700, AMD AM5 and older - White

Be the first to review this product...

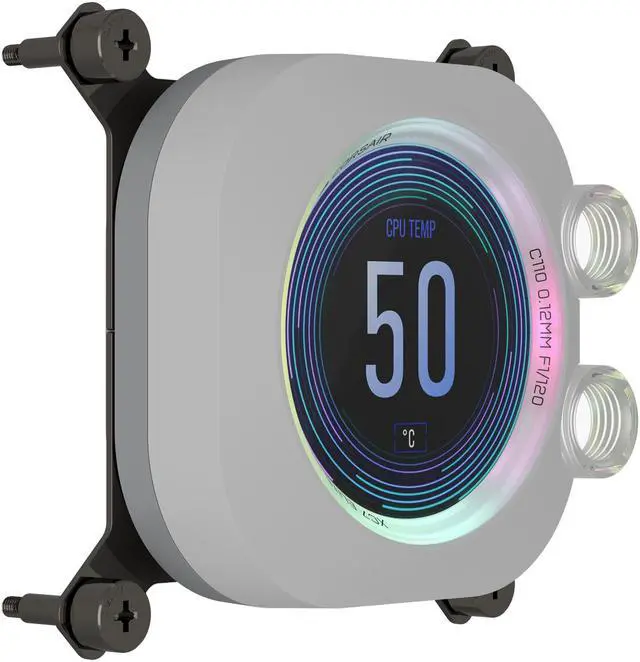

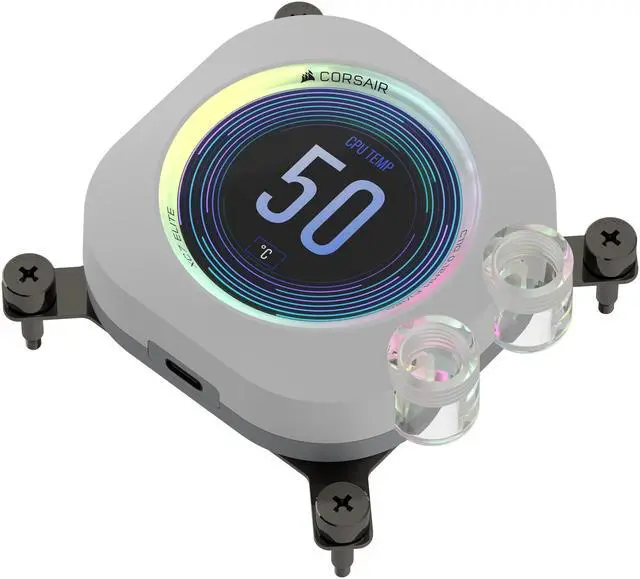

Customizable 30 FPS 480x480 LCD screen with over 16.7M colors
31 addressable RGB LEDs for enhanced aesthetics

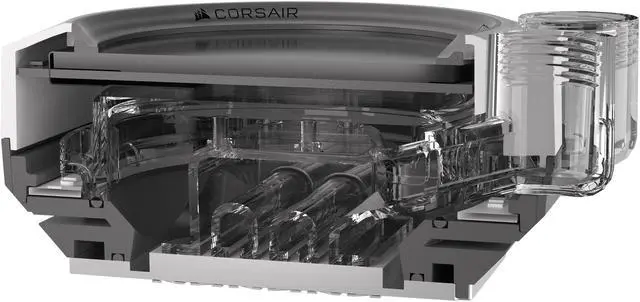

Hexa-Flow Cooling engine for more evenly cooled CPU cores

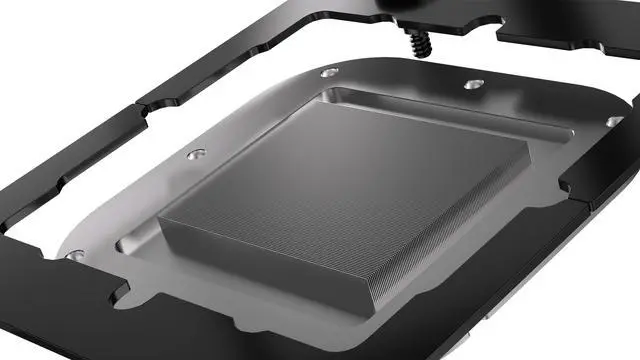

Ultra-Fine copper cold plate with over 120 micro-cooling fins
Built-in cold plate temperature sensor
USB-C connectivity for easy setup and control
Tool-less installation with captive screws
Pre-applied high-performance XTM70 thermal paste
Broad Socket Compatibility with Intel and AMD brackets included
A built-in temperature sensor for sophisticated control options
Cool white diecast aluminum top trim

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	CORSAIR
Series	XC7 RGB ELITE LCD WHITE
Model	CX-9010024-WW
Type	CPU Water Block

Block
Block Compatibility	AMD Socket AM4 / AMD Socket AM5 / Intel LGA 1700

Fan
Color	White
LED Color	RGB

Other Specification
Specification	Product Type: CPU Water Block Cold Plate Fins: 120+ Cold Plate Material: Nickel-Plated Copper Fluid Chamber Material: Nylon Socket Compatability: Intel 1700 \| AMD AM5 \| AMD AM4 Compatible Materials: Only mix with other copper / brass products Compatible Coolants: CORSAIR XL or equivalent Port Thread: G1/4" BSPP Max Operating Temperature: 60°C coolant temperature Thermal Material: Pre-applied XTM70 thermal paste Required Controller For iCUE Support: CORSAIR iCUE

Features
Features	Brilliant IPS LCD Display: Showcase your creativity and personalize your build like never before with real-time CPU temperature, animated GIFs, memes, or your team’s logo on a custom 30 FPS IPS LCD screen with 480x480 resolution, ultra-bright 600cd/m² backlight, 24-bit true color depth. Vivid Integrated RGB Lighting: Enhance your PC's aesthetics with stunning customizable lighting that can be tailored to your preferences using 31 individually addressable RGB LEDs. Hexa-Flow Cooling engine: Hexa-Flow cooling engine mitigates laminar flow and ensures that all CPU cores are more evenly cooled, delivering exceptional cooling performance on cutting-edge multi-chip package CPUs. Ultra-Fine Copper Cold Plate: With a nickel-plated copper cold plate and over 120 high-efficiency micro-cooling fins, your CPU stays cool for maximum overclocking. USB-C Connectivity: The first CPU water block to feature true USB-C connectivity for easy installation and automatic iCUE setup, providing a streamlined and hassle-free experience without the need for a separate controller unit. Smart Temperature Control: A built-in cold plate temperature sensor allows precise cooling control. Enable a new level of control over the performance of your system with iCUE. Tool-less Installation: The captive mounting screws and slot-in hold-down plate provide installation flexibility, allowing for a 90° rotation per step, making it easy to install and customize. Pre-Applied XTM70 Thermal Paste: The high-performance thermal compound ensures optimal heat transfer and cooling efficiency, providing peace of mind and maximum performance for your CPU. Wide Socket Compatibility: Easy and fast installation on Intel LGA 1700, and AMD Socket AM5 and AM4 ensures compatibility with most modern motherboards, making it easy to upgrade your PC without needing to change your water block.

Package Contents

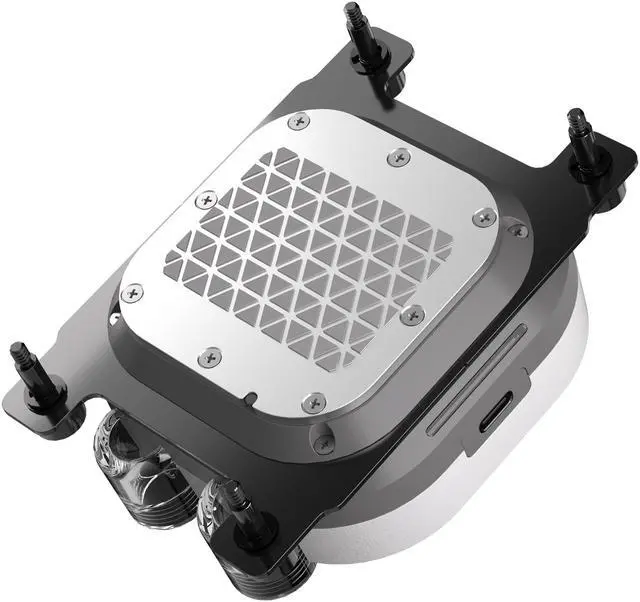

Package Contents	XC7 ELITE CPU Water Block Intel LGA 1700 bracket with pre-installed mounting screws AMD AM5/AM4 bracket with pre-installed mounting screws Backplate

Additional Information
First Listed on Newegg	August 15, 2023

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
