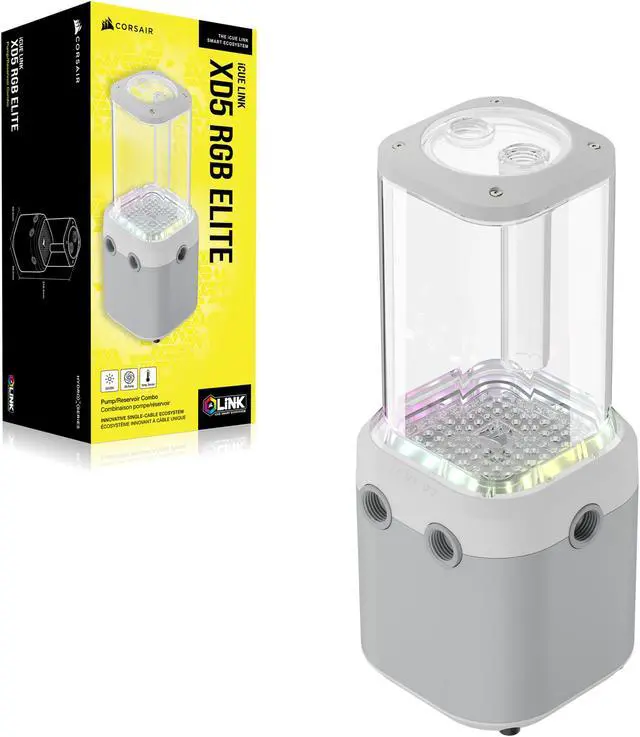

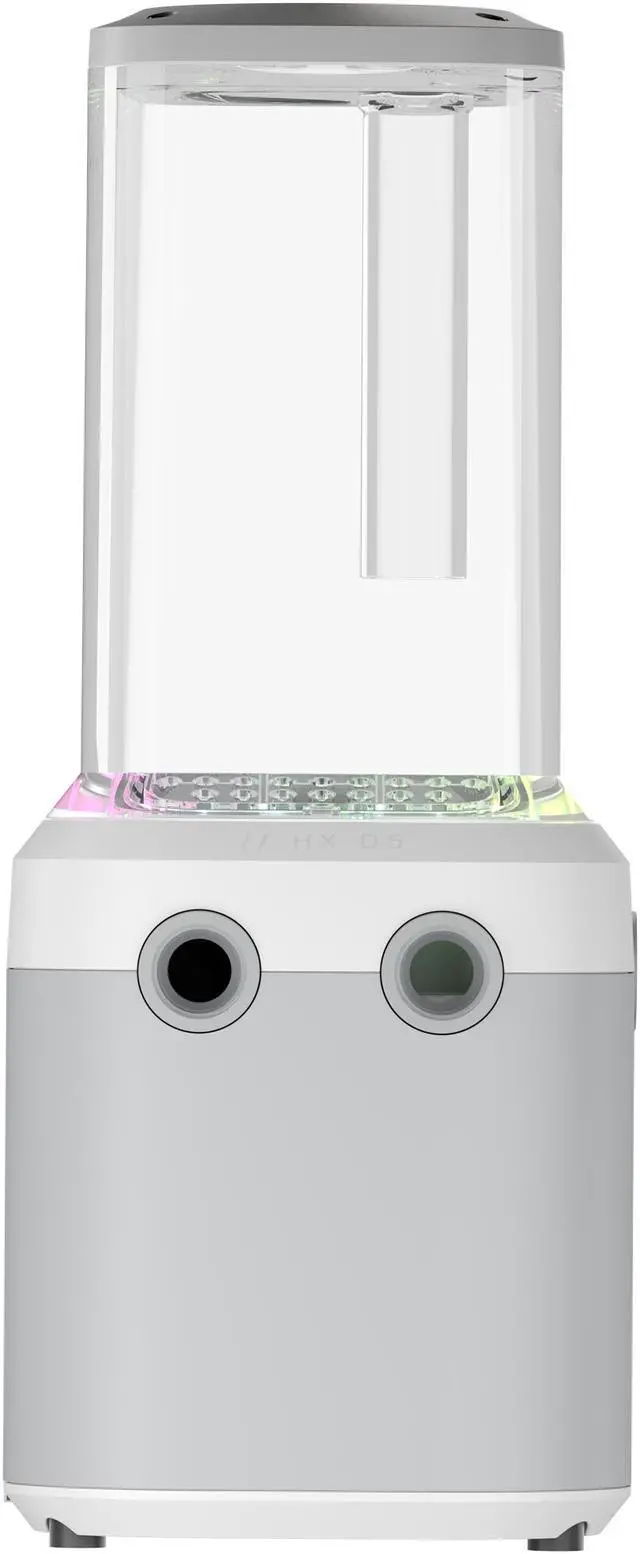

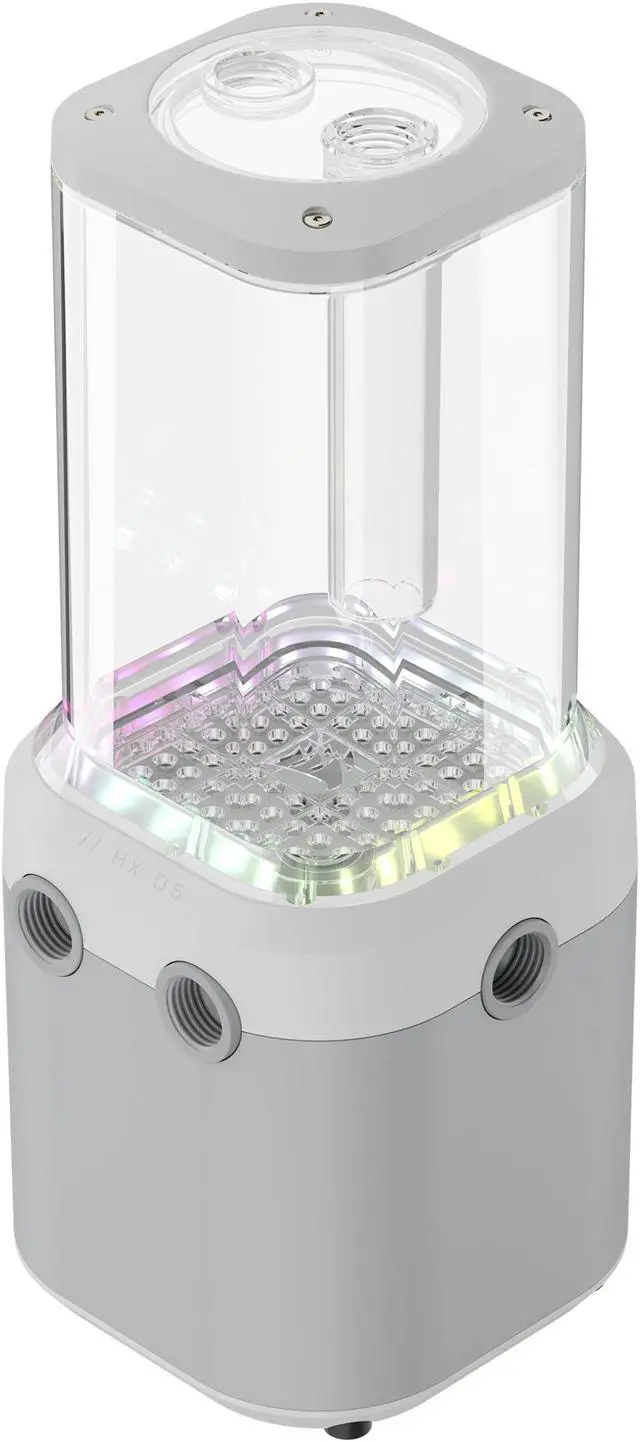

Main image of CORSAIR iCUE LINK XD5 RGB ELITE WHITE Pump-Reservoir Unit - D5 PWM Pump - Effortless iCUE Connectivity - 22 Addressable RGB LEDs - 440ml Transparent Reservoir – White Metallic Body

Alt view image 2 of 11 - CORSAIR iCUE LINK XD5 RGB ELITE WHITE Pump-Reservoir Unit - D5 PWM Pump - Effortless iCUE Connectivity - 22 Addressable RGB LEDs - 440ml Transparent Reservoir – White Metallic Body

Alt view image 3 of 11 - CORSAIR iCUE LINK XD5 RGB ELITE WHITE Pump-Reservoir Unit - D5 PWM Pump - Effortless iCUE Connectivity - 22 Addressable RGB LEDs - 440ml Transparent Reservoir – White Metallic Body

Alt view image 4 of 11 - CORSAIR iCUE LINK XD5 RGB ELITE WHITE Pump-Reservoir Unit - D5 PWM Pump - Effortless iCUE Connectivity - 22 Addressable RGB LEDs - 440ml Transparent Reservoir – White Metallic Body

Alt view image 5 of 11 - CORSAIR iCUE LINK XD5 RGB ELITE WHITE Pump-Reservoir Unit - D5 PWM Pump - Effortless iCUE Connectivity - 22 Addressable RGB LEDs - 440ml Transparent Reservoir – White Metallic Body

Alt view image 6 of 11 - CORSAIR iCUE LINK XD5 RGB ELITE WHITE Pump-Reservoir Unit - D5 PWM Pump - Effortless iCUE Connectivity - 22 Addressable RGB LEDs - 440ml Transparent Reservoir – White Metallic Body

Alt view image 7 of 11 - CORSAIR iCUE LINK XD5 RGB ELITE WHITE Pump-Reservoir Unit - D5 PWM Pump - Effortless iCUE Connectivity - 22 Addressable RGB LEDs - 440ml Transparent Reservoir – White Metallic Body

Alt view image 8 of 11 - CORSAIR iCUE LINK XD5 RGB ELITE WHITE Pump-Reservoir Unit - D5 PWM Pump - Effortless iCUE Connectivity - 22 Addressable RGB LEDs - 440ml Transparent Reservoir – White Metallic Body

Alt view image 9 of 11 - CORSAIR iCUE LINK XD5 RGB ELITE WHITE Pump-Reservoir Unit - D5 PWM Pump - Effortless iCUE Connectivity - 22 Addressable RGB LEDs - 440ml Transparent Reservoir – White Metallic Body

Alt view image 10 of 11 - CORSAIR iCUE LINK XD5 RGB ELITE WHITE Pump-Reservoir Unit - D5 PWM Pump - Effortless iCUE Connectivity - 22 Addressable RGB LEDs - 440ml Transparent Reservoir – White Metallic Body

Alt view image 11 of 11 - CORSAIR iCUE LINK XD5 RGB ELITE WHITE Pump-Reservoir Unit - D5 PWM Pump - Effortless iCUE Connectivity - 22 Addressable RGB LEDs - 440ml Transparent Reservoir – White Metallic Body

Shop All Corsair Products

CORSAIR iCUE LINK XD5 RGB ELITE WHITE Pump-Reservoir Unit - D5 PWM Pump - Effortless iCUE Connectivity - 22 Addressable RGB LEDs - 440ml Transparent Reservoir – White Metallic Body

Be the first to review this product...

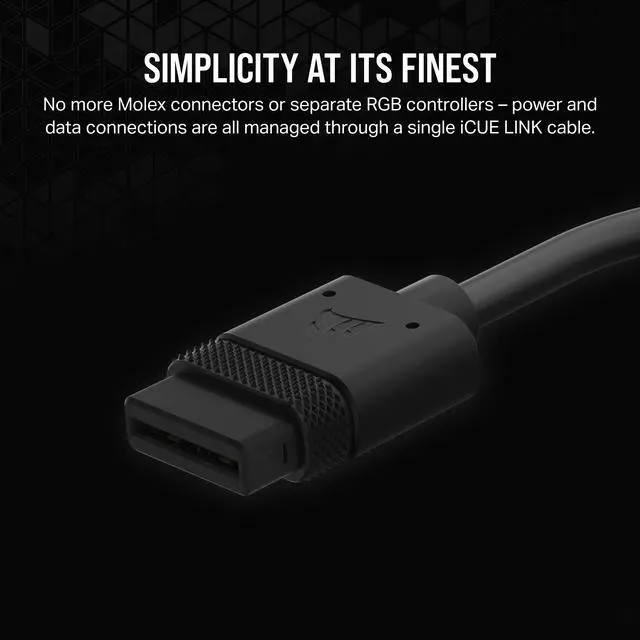

Effortless iCUE LINK single cable connectivity

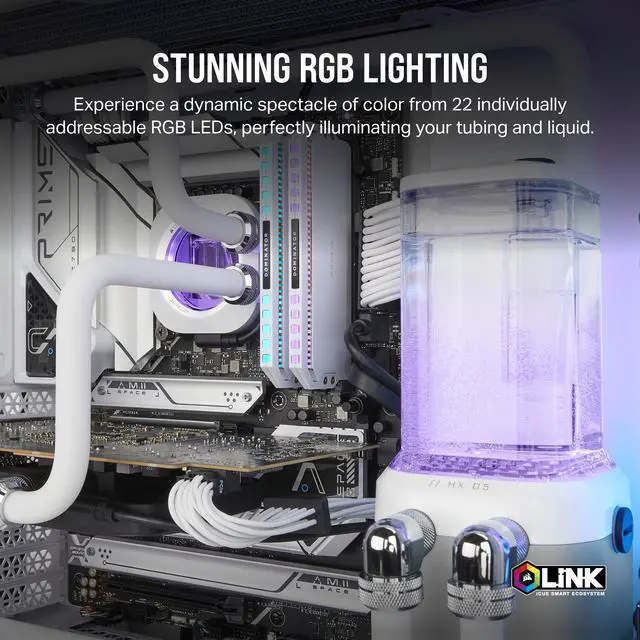

Stunning 22 Individually addressable RGB LEDs
440ml transparent nylon reservoir with anti-vortex mesh and fill port

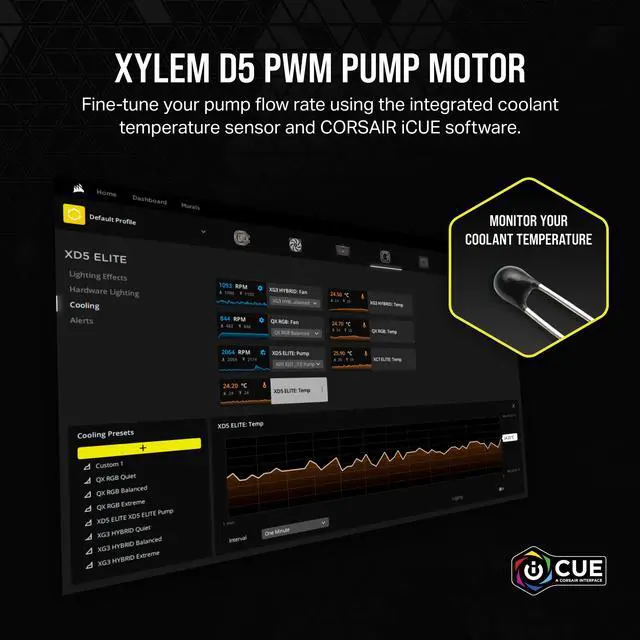

Control pump flow with integrated coolant temperature sensor
Rubberized mounting system for less pump vibrations
All-inclusive installation accessories for a hassle-free setup
Multiple G1/4 inlet ports for versatile designs
Robust nylon and metallic construction with standard G1/4" fitting threads

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	CORSAIR
Series	iCUE LINK XD5 RGB ELITE WHITE
Model	CX-9040010-WW
Type	Pump-Reservoir Unit

Fan
Color	White
LED Color	RGB

Other Specification
Specification	Product Type: Pump/Reservoir Combo Pump Type: Xylem D5 PWM Coolant Capacity: 440mL Max Hydraulic Performance: 800L/h at 2.1m pressure head (1500L/h theoretical max) Max RPM: 4800RPM PWM Duty Cycle Range: 20-100% Pump Voltage: 12V Max Power Draw: 34W Fluid Chamber Material: Nylon Compatible Materials: Only mix with other copper / brass products Compatible Coolants: CORSAIR XL or equivalent Port Thread: G1/4" BSPP Max Operating Temperature: 60°C coolant temperature Required Controller For iCUE Support: CORSAIR iCUE LINK Product Dimensions: 8.6" x 3.5" x 3.5" Product Weight: 0.51 lb.

Features

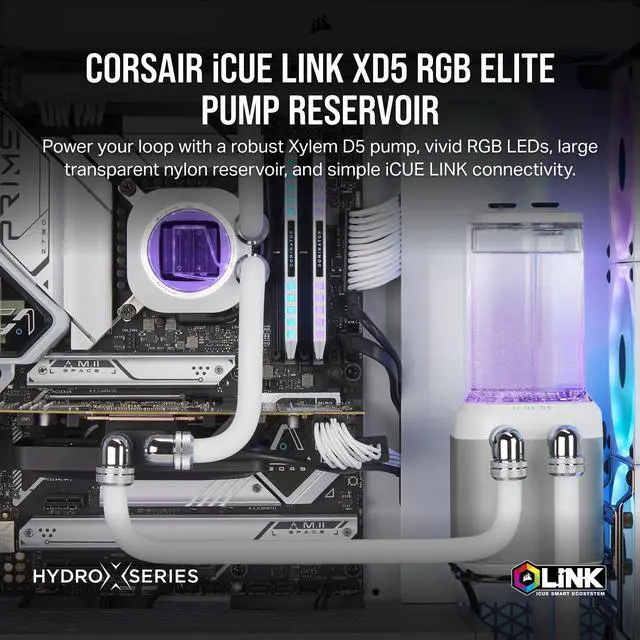

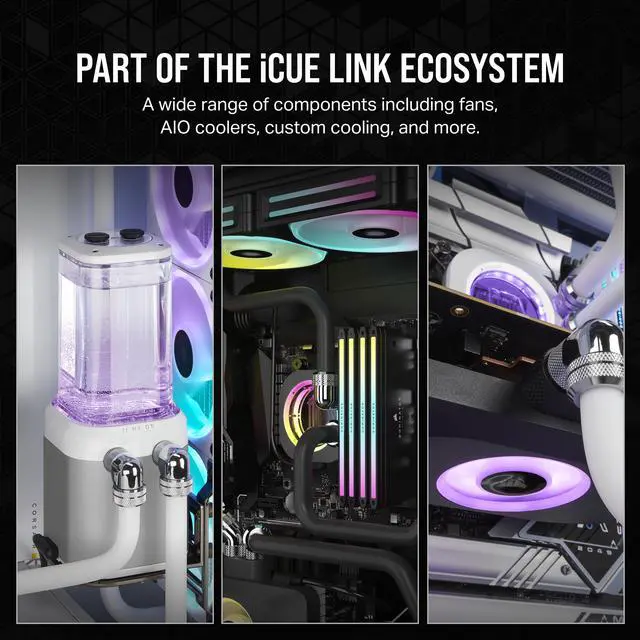

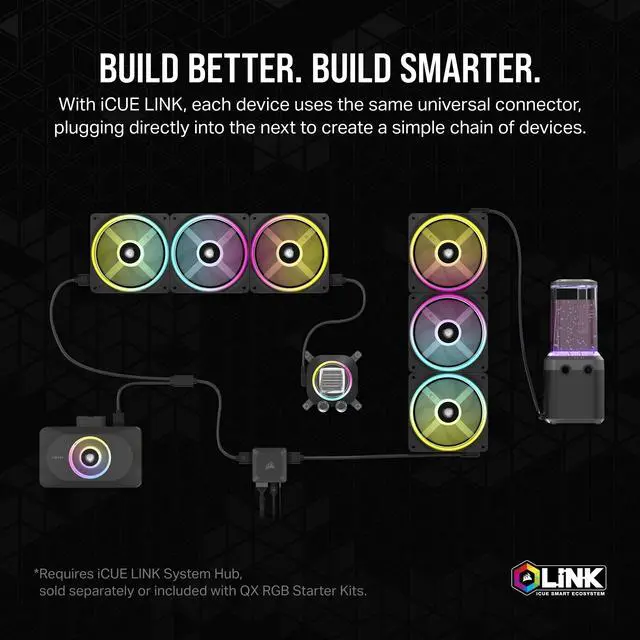

Features	Controlled Cooling: High-performance Xylem D5 PWM pump delivers optimal flow in any situation. Effortless Connectivity and Intelligent Design: Take your build to the next level with the patent-pending iCUE LINK ecosystem, letting you daisy-chain all your components together using universal connectors, all plugged into a single port on the iCUE LINK System Hub (sold separately). Build faster, reduce cable clutter, and create a more intelligent, cohesive system setup. Stunning RGB Lighting: 22 Individually addressable RGB LEDs deliver customizable, immersive visual experience enhanced by the powerful CORSAIR iCUE software. Transparent Nylon Reservoir: The integrated 440ml reservoir with an anti-vortex mesh puts your coolant front-and-center, with stunning angular design and an integrated fill port that makes filling easy. Smart In-Loop Temperature Control: Fine-tune your pump flow rate using the integrated coolant temperature sensor and CORSAIR iCUE software. Rubberized Mounting System: Experience quiet, stable performance with the rubberized mounting system that reduces pump vibrations, ensuring your custom cooling loop is visually impressive yet discreetly silent. Diverse Port Configurations: Utilize multiple G1/4 inlet ports and an integrated fill port for versatile installation and customization to suit your unique cooling loop design. Multiple Installation Brackets: Easily mount the unit to a 120mm or 140mm fan mount or fan for wide chassis compatibility. Standard G1/4" Threads: All inlet/outlet ports provide universal fitting compatibility.

Package Contents
Package Contents	1 x XD5 Pump Res Combo 120 mm fan bracket 140 mm fan bracket 3 x G1/4" stop plugs ATX 24-pin plug Plug tool Mounting screws

Additional Information
First Listed on Newegg	August 15, 2023

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
