Customizable 30 FPS 480x480 LCD screen with over 16.7M colors

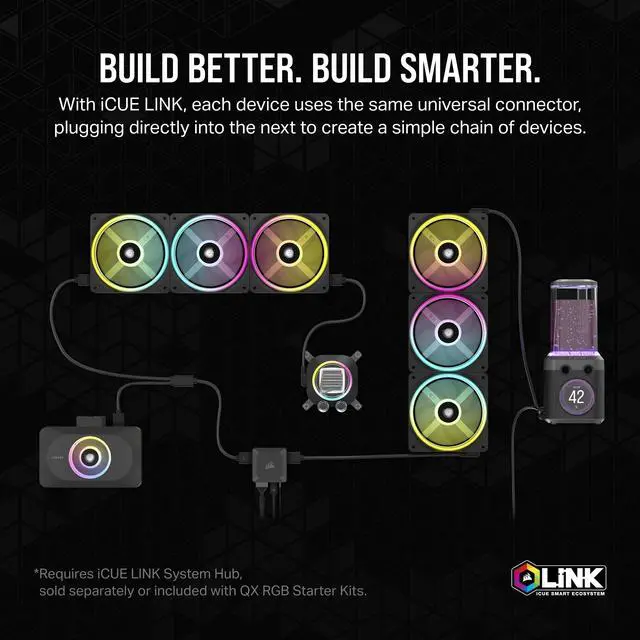

Effortless iCUE LINK single cable connectivity
Stunning 22 Individually addressable RGB LEDs
440ml transparent nylon reservoir with anti-vortex mesh and fill port
Xylem D5 PWM pump motor with 3-year warranty
Robust nylon and metallic construction with standard G1/4” fitting threads

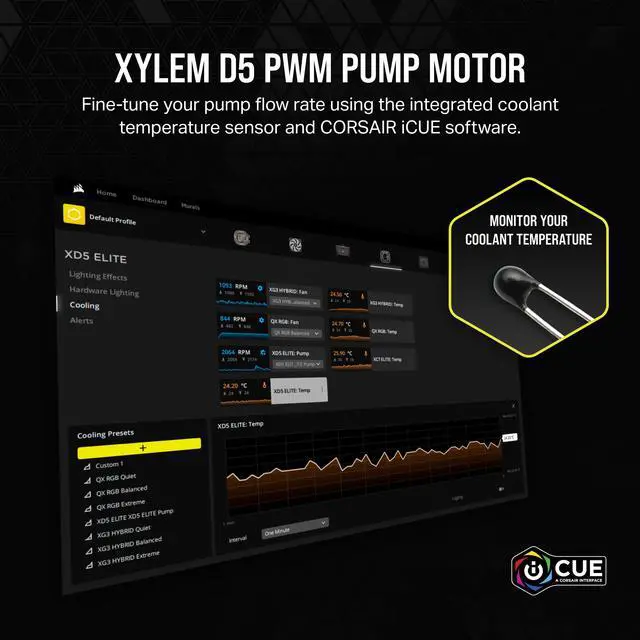

Control pump flow with integrated coolant temperature sensor
Multiple G1/4 inlet ports for versatile designs
Rubberized mounting system for less pump vibrations
Brilliant IPS LCD Display: Showcase your creativity and personalize your build like never before with real-time coolant temperature, animated GIFs, memes, or
your team’s logo on a custom 30 FPS IPS LCD screen with 480x480 resolution, ultra-bright 600cd/m² backlight, 24-bit true color depth.
Controlled Cooling: High-performance Xylem D5 PWM pump delivers optimal flow in any situation. Benefit from consistent performance, longevity
Overview
Specs
Reviews (3)
Learn more about the Corsair CX-9040012-WW
Model
Brand
CORSAIR
Series
iCUE LINK XD5 RGB ELITE LCD WHITE
Model
CX-9040012-WW
Type
Pump-Reservoir Unit
Other Specification
Specification
Product Type: Pump/Reservoir Combo Pump Type: Xylem D5 PWM Coolant Capacity: 440mL Max Hydraulic Performance: 800L/h at 2.1m pressure head (1500L/h theoretical max) Max RPM: 4800RPM PWM Duty Cycle Range: 20-100% Pump Voltage: 12V Max Power Draw: 34W Fluid Chamber Material: Nylon Compatible Materials: Only mix with other copper / brass products Compatible Coolants: CORSAIR XL or equivalent Port Thread: G1/4" BSPP Max Operating Temperature: 60°C coolant temperature Required Controller For iCUE Support: CORSAIR iCUE LINK Lighting: RGB via iCUE Color: White Product Dimensions: 8.6" x 3.5" x 3.5" Product Weight: 1.79 lbs.
Features
Features
Customizable 30 FPS 480x480 LCD screen with over 16.7M colors Effortless iCUE LINK single cable connectivity Stunning 22 Individually addressable RGB LEDs 440ml transparent nylon reservoir with anti-vortex mesh and fill port Control pump flow with integrated coolant temperature sensor Multiple G1/4 inlet ports for versatile designs Rubberized mounting system for less pump vibrations All-inclusive installation accessories for a hassle-free setup Robust nylon and metallic construction with standard G1/4" fitting threads
Package Contents
Package Contents
1 x iCUE LINK XD5 RGB ELITE LCD Pump Res Combo 120 mm fan bracket 140 mm fan bracket 3 x G1/4" stop plugs ATX Jumper Bridge Plug tool Mounting screws 1x iCUE LINK Cable 1x USB Cable 1x L-bracket
