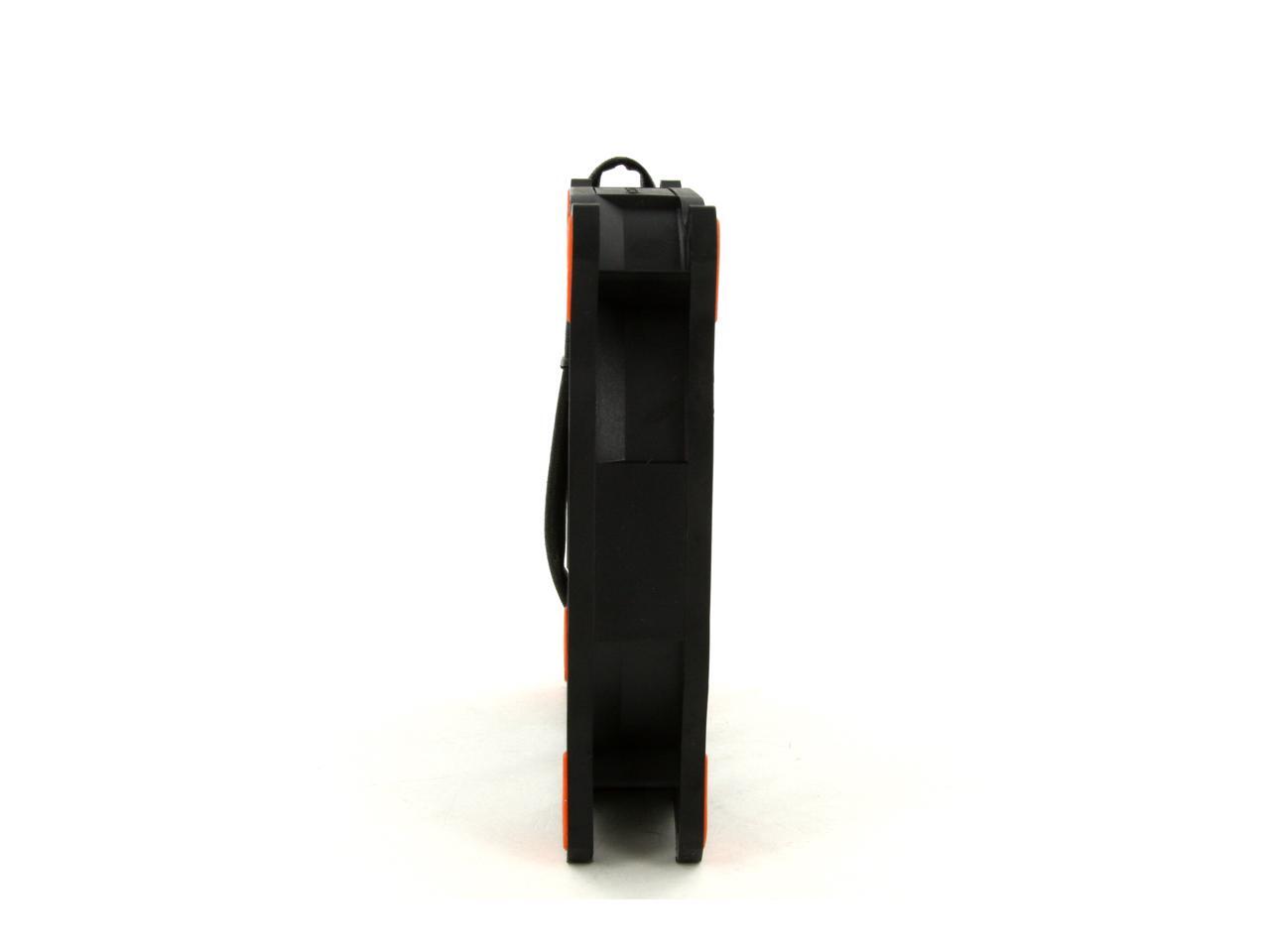

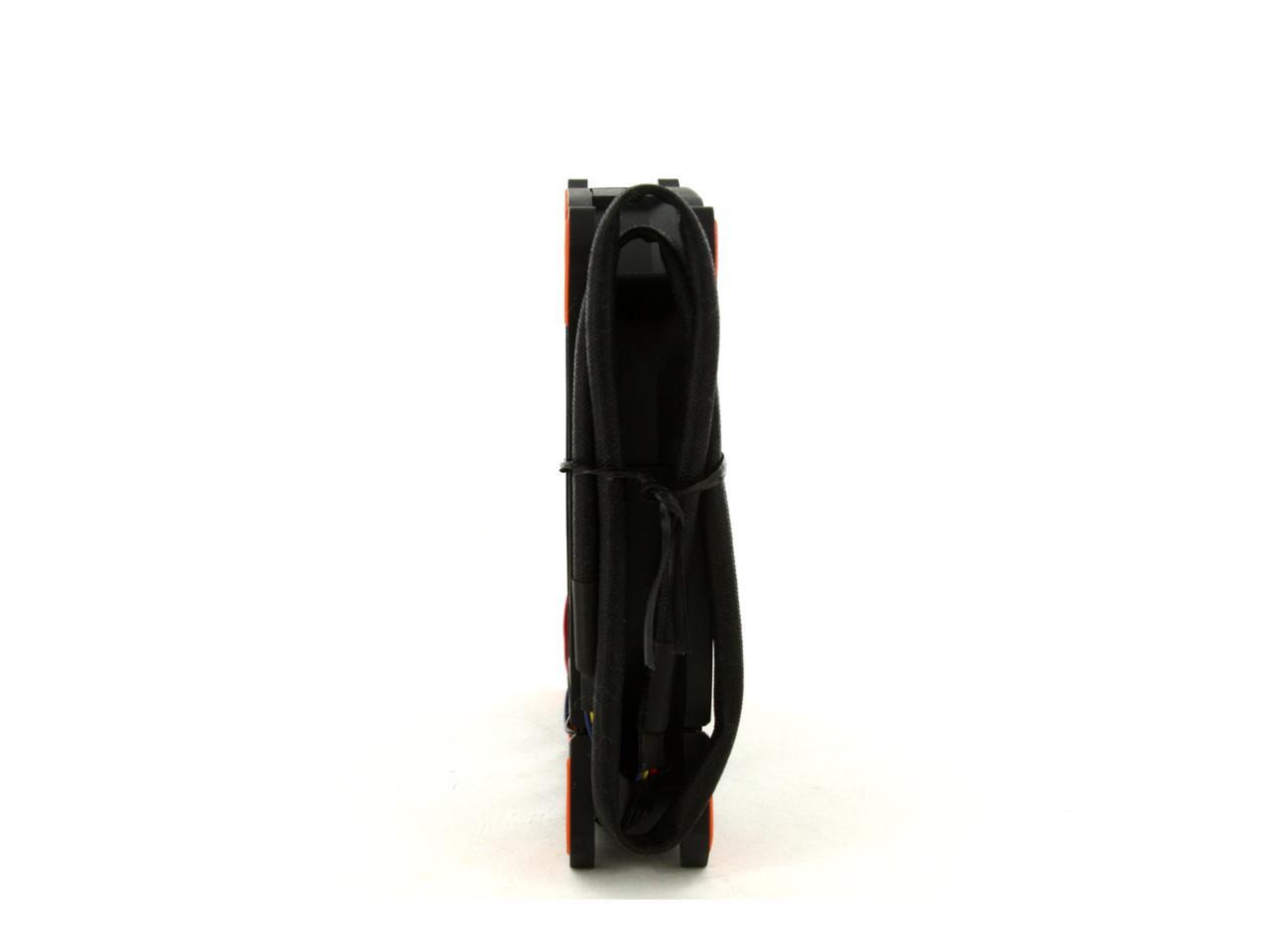

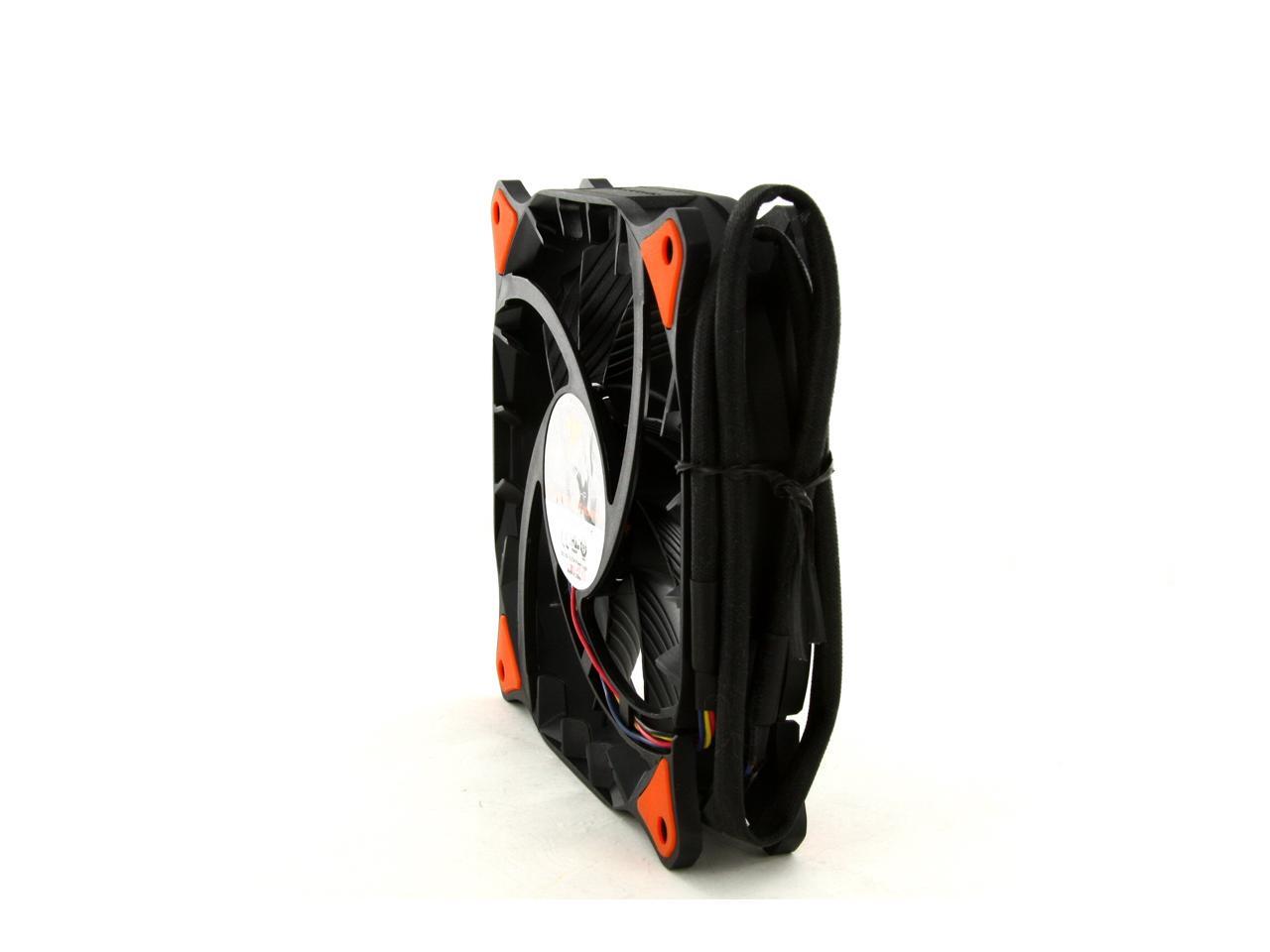

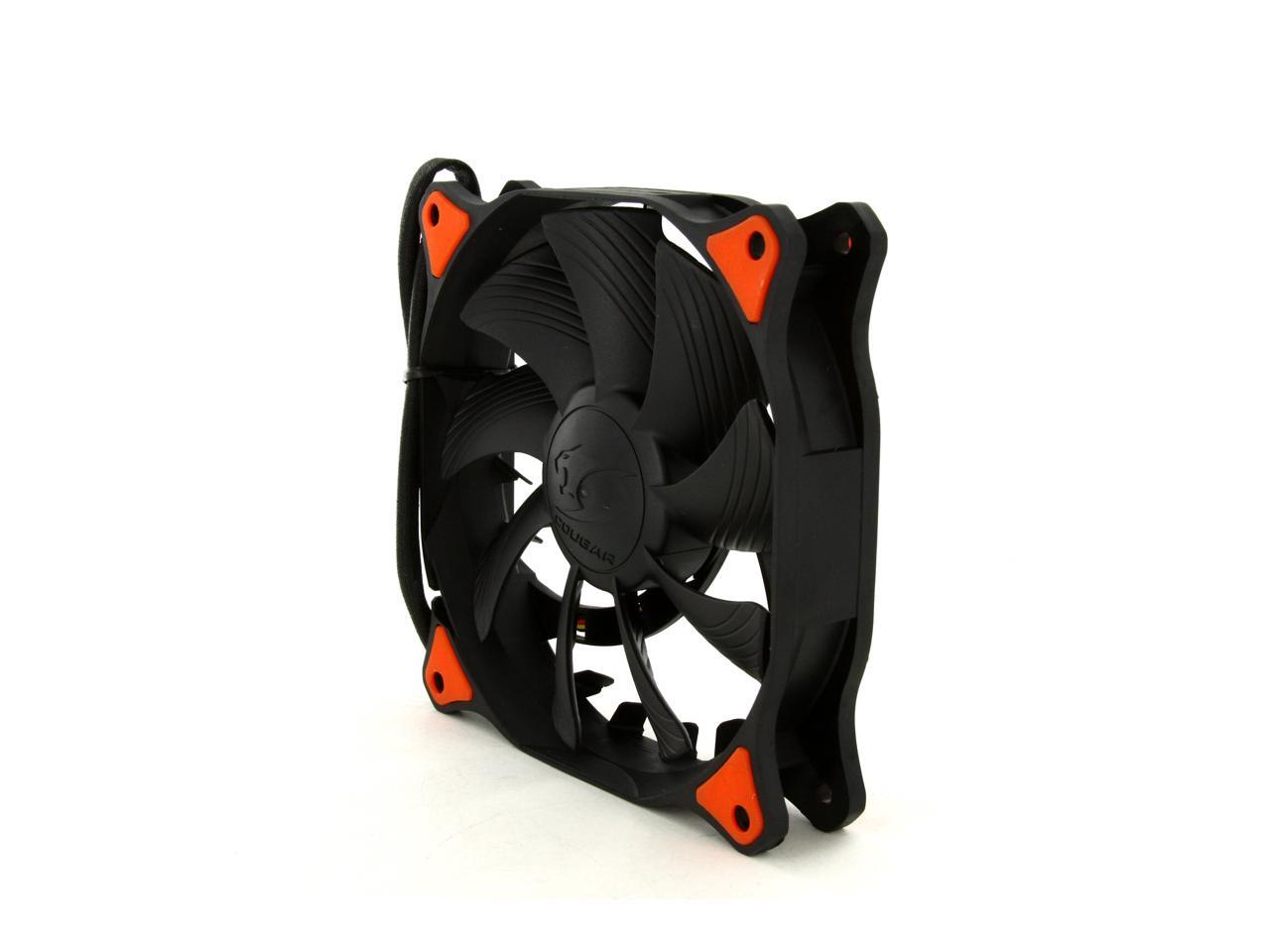

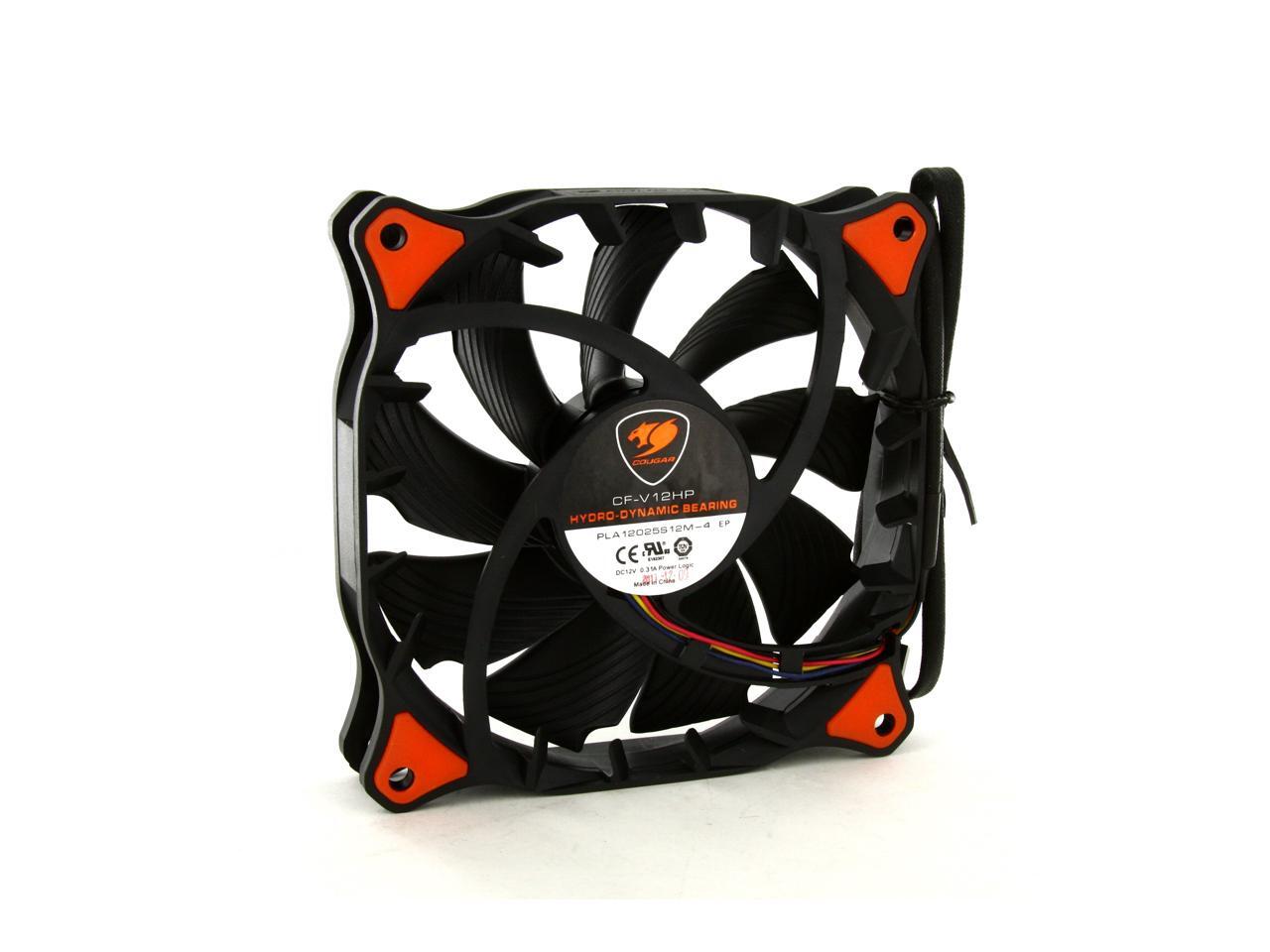

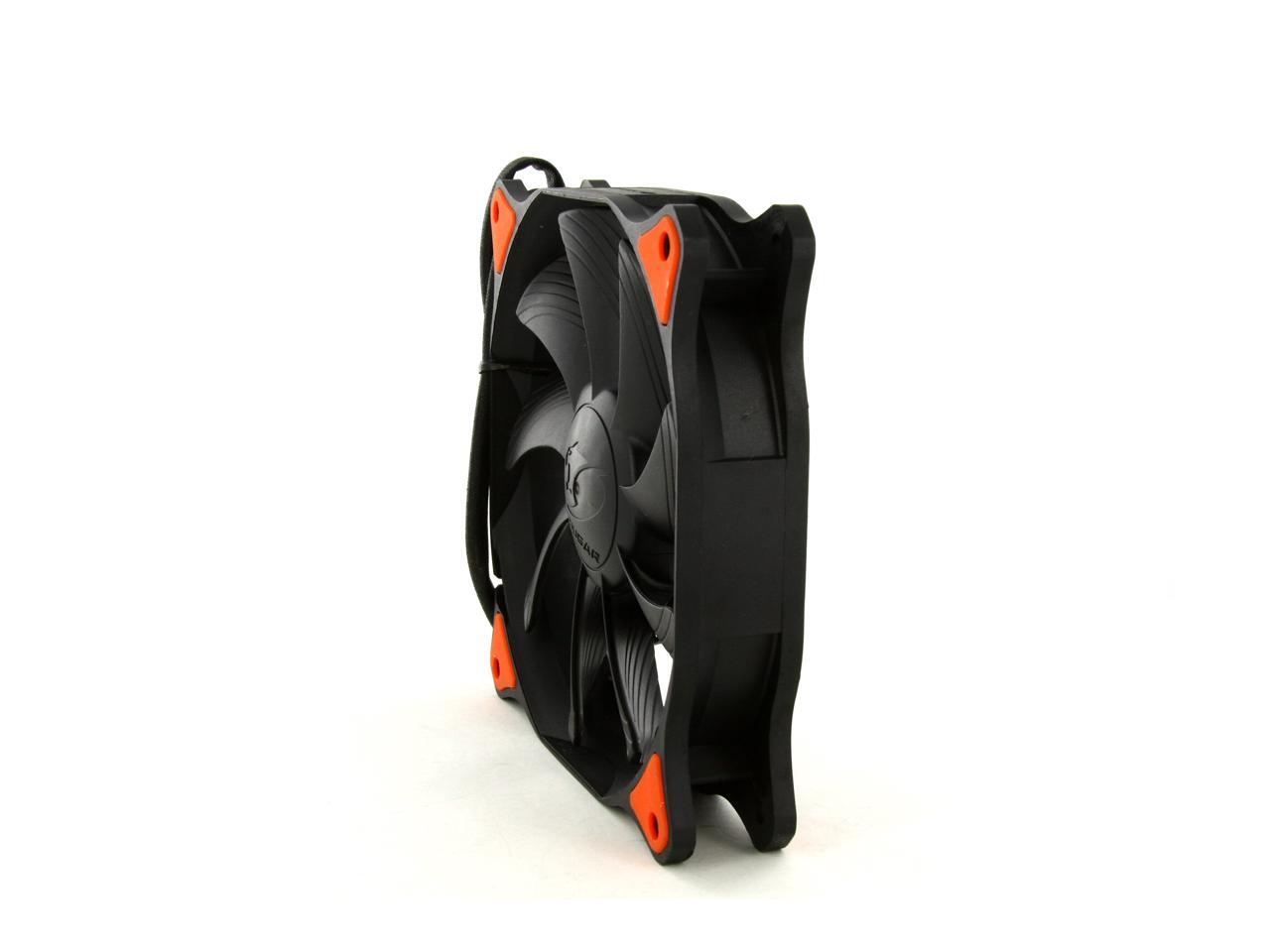

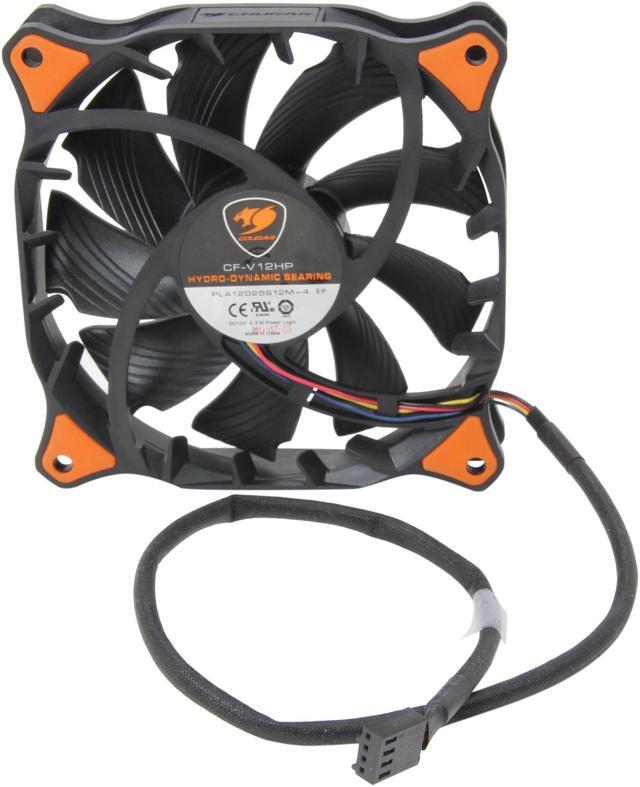

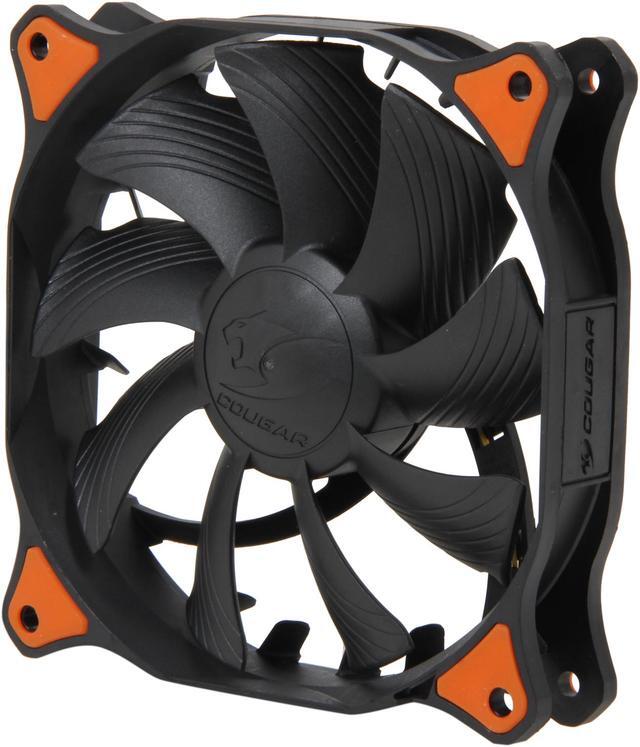

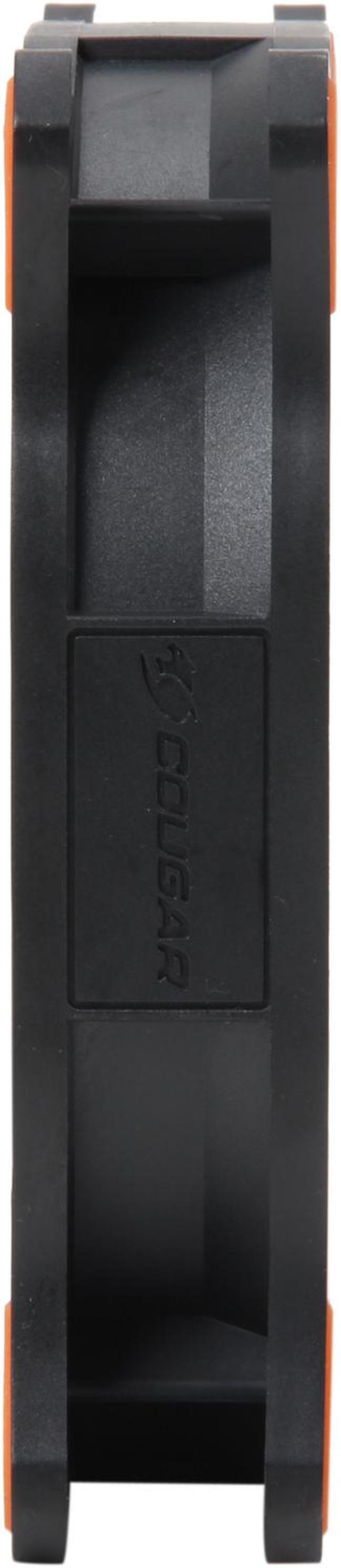

COUGAR Vortex PWM 120mm (CF-V12HPB) Cooling Fan with Hydro-Dynamic Bearing and Pulse Width Modulation (Black Version)

PWM-FUNCTION

PWM stands for Pulse Width Modulation. The 4-Pin connector allows the mainboard to control the fan speed from 800-1500RPM. Fan speed is controlled by the PWM-signal, which delivers a value between 0-100%, the operating voltage remains a constant 12V

HIGH-VORTEX-AIRFLOW WITH TURBINE BLADE & FRAME PATENTED DESIGN

Optimum airflow, air pressure & extremely silent performance

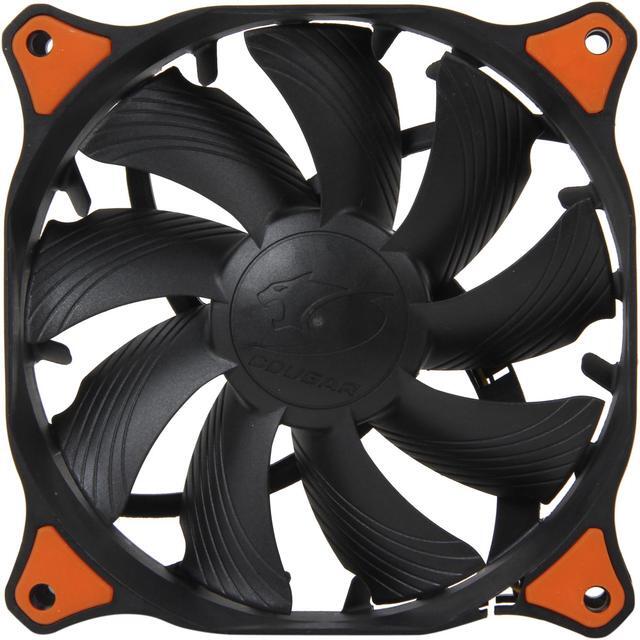

DIVERSION GROOVE BLADE DESIGN

Innovative blade design focus air flow & optimum cooling efficiency (Patent)

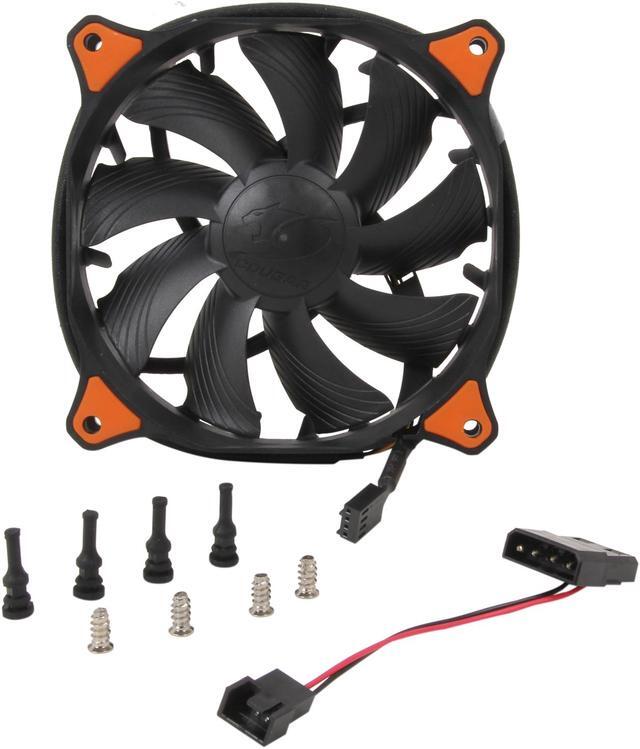

ANTI-VIBRATION PAD DESIGN

Reduce the vibrations efficiently & silent operation

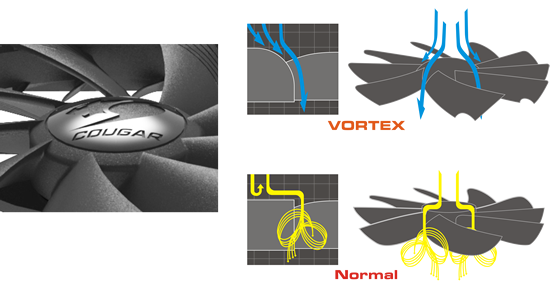

AERO-DYNAMICAL DESIGN

Air-inlet with optimal aero-dynamical design reducing noisy air turbulences

Oil surface tension and hydrodynamic pumping forces provided by grooves, no friction, extremely quiet

HYDRO-DYNAMIC-BEARING TECHNOLOGY

We defined HDB to Hydro Dynamic Bearing. An oil seal design that has a higher reliability and advantage than conventional fan motor design.
1. High revolution precision, low vibration noise
2. Fluid seal design provide extremely long life span
3. Surface tension effect, runs more smoothly with no friction, extremely quiet
Fluid seal design is achieved through the use of oil surface tension and hydrodynamic pumping forces provided by grooves. Bend area is centralized oil and prevented oil leakage out of motor (oil leakage is main problem of sleeve bearing, short life time) . Friction between shaft and HDB will be down due to herringbone structure reaction(friction between the metal is disadvantage of ball bearing, noise & waste heat problem). So HDB conquer sleeve & ball bearing disadvantage to become more reliable & quiet technology for Top-notch fan. Such design concept is successful and applicative on HDD, and we can see a reliability application in it.

HDB, Ball, & Sleeve comparison
