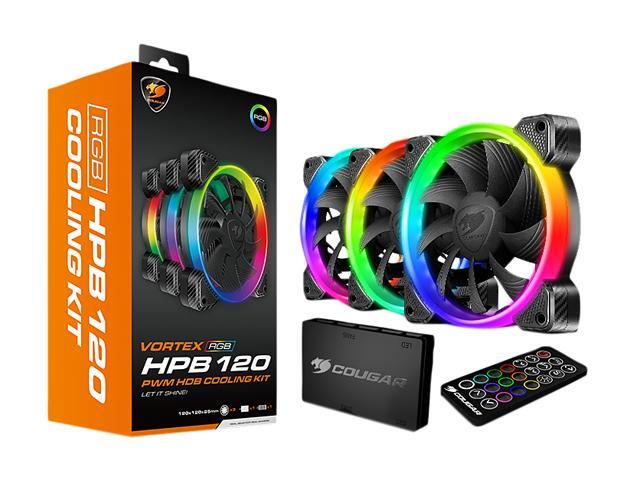

The VORTEX RGB HPB 120 Cooling Kit brings you first-class silent cooling with amazing tri-directional RGB lighting. This powerful package includes the COUGAR Core Box. a remote controller and three Vortex RGB HPB 120 fans, everything you need to create a wonderful RGB build!

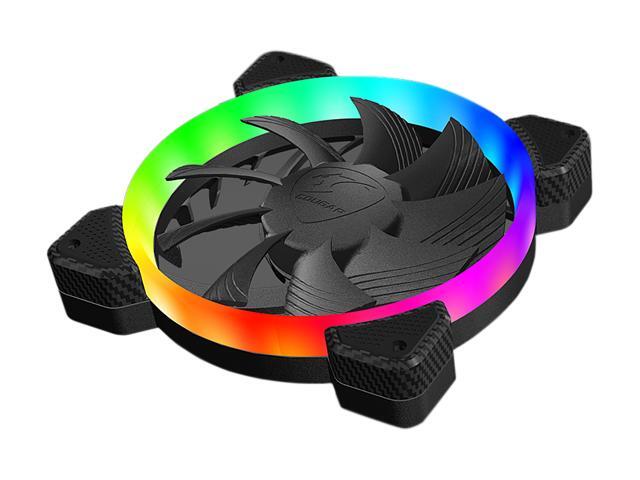

Tri-Directional Lighting

In, Front, Out. The VORTEX RGB HPB 120 fans' 18 LEDs produce a bright spectacle in three directions. While most other backlit fans project their light only inwards and forward, VORTEX RGB HPB 120 gives you a 180° viewing angle, covering all the area visible from outside your PC case.

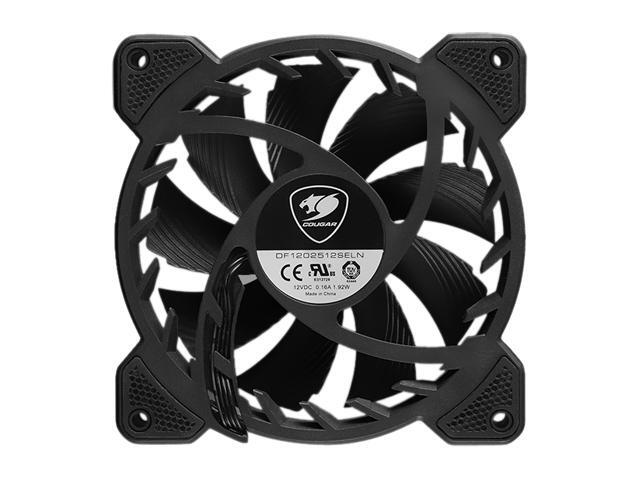

Patented Frame Design

Our patented frame design shapes the airflow into a vortex that works wonders when it comes to keeping your computer’s key components cooled.

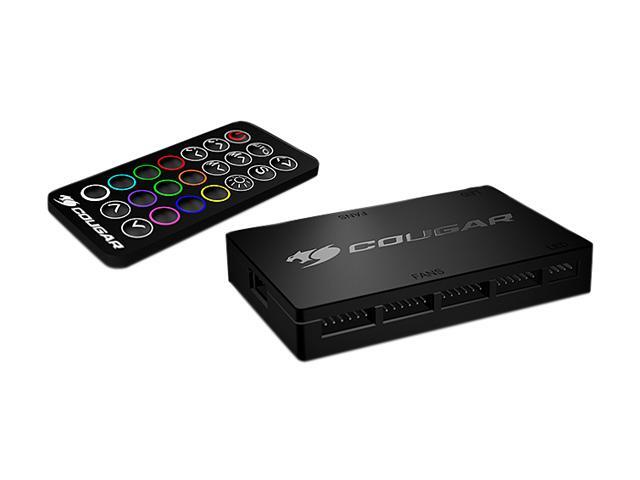

100 Effects with Remote Control

Customize your build’s appearance and change it at will with more than 100 impressive lighting effects. Choose colors, lighting patterns, brightness and speed with the included wireless controller and make your build truly yours!

Make it Bigger

The 3 included VORTEX RGB HPB 120 fans can by themselves create a truly magical atmosphere, but some users want even more. Fear not! The COUGAR Core Box supports up to 8 RGB fans, and 4 RGB LED strips, enough to make your PC overflow with light.

Support for Direct Motherboard Connection

Connect the VORTEX RGB HPB 120 fans directly to the 5V RGB connectors of compatible motherboards and control them through its RGB system.

Optimized Cooling (PWM)

Pulse-width Modulation is a technology that allows the mainboard, through the 4-pin connector, to adjust the fan speed in a range that goes from 600 to 1500 R.P.M., reaching the optimal balance between cooling and audible output while keeping a constant 12V operating voltage. The cooling you need without the noise you don’t want!

Hydro-Dynamic Bearing (HDB)

The hydro-dynamic bearing technology brings a triple benefit: increases the fan’s useful life, allows it to operate with less noise and minimizes heat generation.

Safety Certification

Gallery

Specifications

Model	CF-V12HB-RGB
Marketing Name	VORTEX RGB HPB 120 PWM HDB
Dimensions	120 x 120 x 25mm
Bearing Type	Hydro-Dynamic Bearing
Speed	PWM 600-1500 R.P.M
Air Flow	43.54 CFM 73.94 m3/h
Air Pressure	1.17mm H2O
Fan Voltage	12 VDC
LED Voltage	5 VDC
Acoustical Noise	26 dBA
Cable Length	600mm
LED Lights	18
LED Power Consumption	1.8W
Package Content	VORTEX RGB HPB 120 x 3 RGB Core Box & Power Connector Wireless Controller 4 Pin Fan to PSU Connector 5V Addressable Header Adapter x 3 Fan Screws User Manual
