Crestron UC-SB1-CAM (6511281) UC Video Conference Smart Soundbar & Camera
OPEN BOX Product Type
- Microphone: Linear quad-element far-field adaptive beamforming microphone array
- Pickup Range: 15 ft. (4.6m)
- Pickup Angle: 180° horizontal and 180° vertical
- Frequency Response: 20 Hz to 8 kHz
- Speakers:
- Woofers: (2) 3 in. (76 mm) polypropylene cone w/rubber surround
- Passive Radiators: (2) 3 x 4-3/8 in. (76 x 112 mm) polypropylene cone w/rubber surround
- Tweeters: (2) 1 in. (25 mm) polyester dome
- Amplifier Power: 20 W RMS per channel, stereo
- Frequency Response: 80 Hz to 20 kHz (+/-3 dB)
- Effective Output Level: 91 dB SPL @ 1 m, both channels driven at full power
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Crestron Electronics, Inc UC-SB1-CAM (6511281)
| Brand | Crestron |
|---|---|
| Model | UC-SB1-CAM (6511281) |
| Type | UC Video Conference Smart Soundbar & Camera |
| Camera | Model: Huddly IQ (mounted internally) Image Sensor: 12 megapixel 1/2.3 CMOS sensor Lens: High precision, ultra wide angle, six element aspherical glass lens Field of View: 150º diagonal, 120º horizontal, 90º vertical Aperture: f/2.8 Processor: Neural Compute Engine based on Intel Movidius Myriad X video processing unit Pan/Tilt/Zoom: 4x lossless digital zoom, pan, and tilt Autozoom: Genius Framing automatic lossless digital zoom intelligently frames people in the room Dynamic Light Optimization: Auto-adjusts light levels and white balance Noise Reduction: 3D noise reduction, bias compensating spatio-temporal filtering, wide area chroma filtering, flicker elimination Scaling: Real-time scaling, dewarping, and perspective correction People Counting: Detects and reports the number of people in frame |
|---|
| Specification | Audio: DSP: Acoustic echo cancellation, dereverberation, automatic gain control, dynamic noise suppression, adaptive beamforming, speaker volume control, speaker EQ and limiting (fixed); Full-duplex IEEE 1329 Type 1 compliant NOTE: DSP affects USB audio in/out only unless noted otherwise USB Audio In/Out: USB 3.0, UAC 1.0 & HID, AEC-enabled USB speakerphone, 2-channel stereo far-end/content signal input, 2-channel mono microphone signal output; Plug & play compatible with the computer, or other USB Audio Class host Analog Input: 2-Channel stereo, fixed level (bypasses DSP), for in-room amplification of an external audio source Analog Input Sensitivity: 1 Vrms per channel for full rated output Analog Output: 2-Channel stereo, fixed level, feeds amplified audio content to an assistive listening system NOTE: Output level varies for USB input signal only according to the speaker volume control setting; analog input signal passes through without volume control or DSP. Video: USB Video Out: USB 3.0, UVC 1.1 & HID, conferencing camera; Plug & play compatible with a computer, or other USB Video Class host Output Resolution: HD 1080p @ 30 fps Color Space: YCbCr 4:2:0, YCbCr 4:2:2, MJPEG Indicators: Status Bar: (1) Multi-segment RGBY LED zero-center mutually-diverging linear bargraph; Indicates the speaker volume, microphone mute, and speaker mute in red and green LEDs Environmental: Temperature: 41° to 104° F (5° to 40° C) Humidity: 10% to 90% RH (non-condensing) Heat Dissipation: 75 BTU/hr Construction: Enclosure: Lightly textured gunmetal black finish, plastic housing, perforated stainless steel grilles, die-cast aluminum rear cover, integral steel hinged mounting bracket Mounting: Freestanding or surface wall mount at ear/face level (adhesive feet included, mounting bracket attached) |
|---|
| Microphone | Microphone: Linear quad-element far-field adaptive beamforming microphone array Pickup Range: 15 ft. (4.6m) Pickup Angle: 180° horizontal and 180° vertical Frequency Response: 20 Hz to 8 kHz |
|---|---|
| Speakerphone | Speakers: Woofers: (2) 3 in. (76 mm) polypropylene cone w/rubber surround Passive Radiators: (2) 3 x 4-3/8 in. (76 x 112 mm) polypropylene cone w/rubber surround Tweeters: (2) 1 in. (25 mm) polyester dome Amplifier Power: 20 W RMS per channel, stereo Frequency Response: 80 Hz to 20 kHz (+/-3 dB) Effective Output Level: 91 dB SPL @ 1 m, both channels driven at full power |
| Power | Power Consumption: 22 W |
|---|
| Connections | Connectors: AUDIO IN: (1) 3.5 mm TRS mini-phone jack; Unbalanced stereo line-level audio input; Input Level: 1 Vrms maximum; Input Impedance: 10k Ohms AUDIO OUT: (1) 3.5 mm TRS mini-phone jack; Unbalanced stereo line-level audio output; Output Level: 1 Vrms maximum; Output Impedance: 100 Ohms PC: (1) USB 3.0 Type-B connector, female; USB 3.0 device port; Connects to computer; 6 ft (1.83 m) USB 3.0 Type B to Type A cable included CAMERA: (1) USB 3.0 Type-A connector, female; USB 3.0 host port; Connects to the internal camera output via a 6 in. (13 cm) USB Type-C to USB 3.0 Type A cable 24 VDC 2.5 A: 24 VDC via external 100-240 VAC, 50/60 Hz power pack, model PW-2420RU (included) |
|---|---|

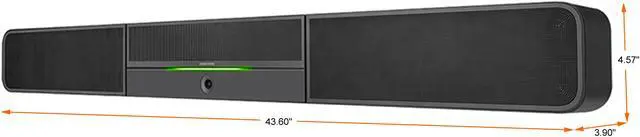

| Dimensions | Height: 4.57 in. (117 mm), 4.64 in. (118 mm) with feet Width: 43.60 in. (1108 mm) Depth: 3.90 in. (100 mm) |
| Weight | 13.56 lbs. |
| First Listed on Newegg | October 04, 2022 |
|---|
