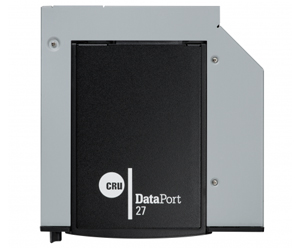

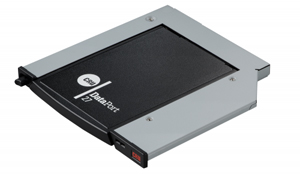

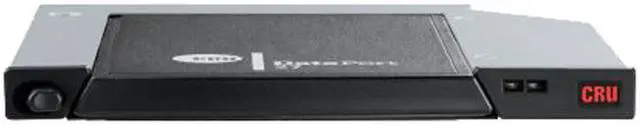

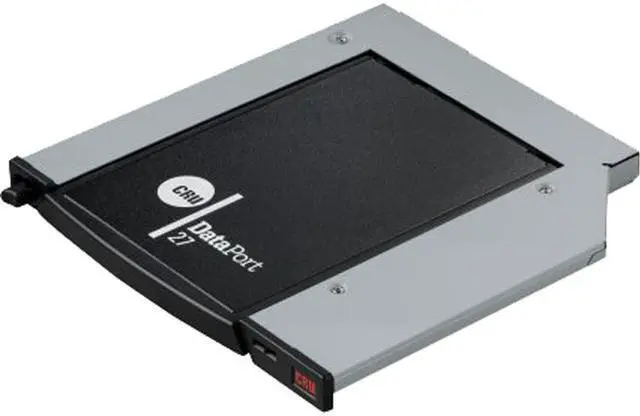

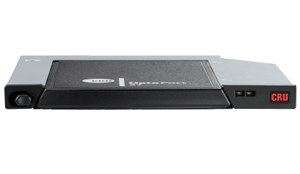

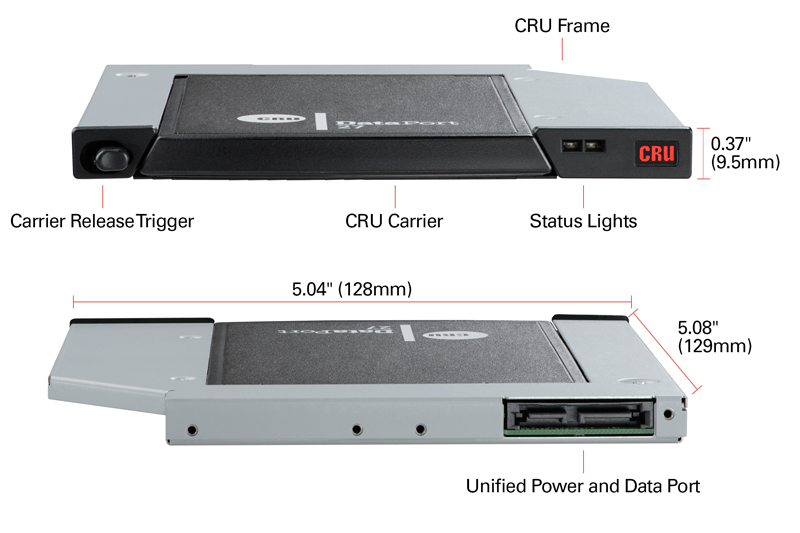

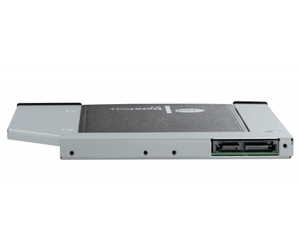

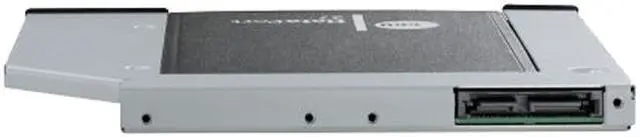

Consisting of a carrier and a frame, the CRU DataPort 27 storage module offers a quick and easy-to-use solution for storage expansion. The carrier accommodates any capacity 2.5-inch low profile (7mm height) SATA hard drives and solid-state drives (SSD). The frame mounts in 9.5mm slimline optical bays found in many laptops and small form factor desktop computers. The carrier is removable, which allows easy drive swapping. And with a push-button release, the carrier can be easily ejected with a simple press by your finger.
The DP27 enables fast drive swapping for additional storage. The frame mounts meet standard SFF-8552 (rev 1.4) specifications for 9.5mm slimline optical drives.
A fully enclosed metal hard-drive carrier provides rugged protection. These enclosures are engineered for heavy use. The drive receiving interface is rated for up to 50,000 drive insertions.
The DP27 operates at speeds up to 6 Gbps using 6 Gbps hard drives and host controllers.
The DP27 push-button frame includes a latch to secure the carrier in place during operation.
