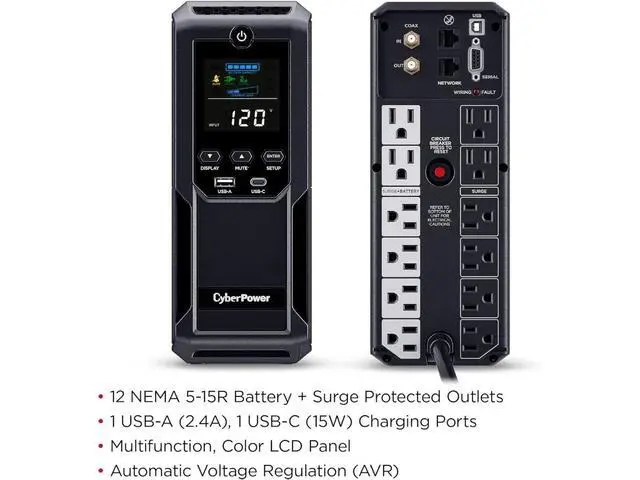

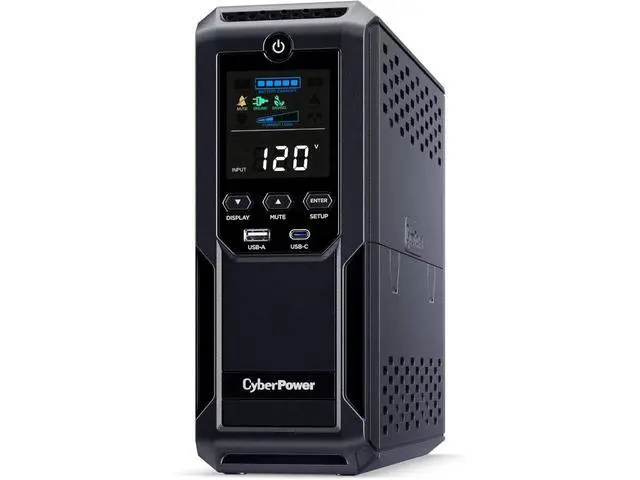

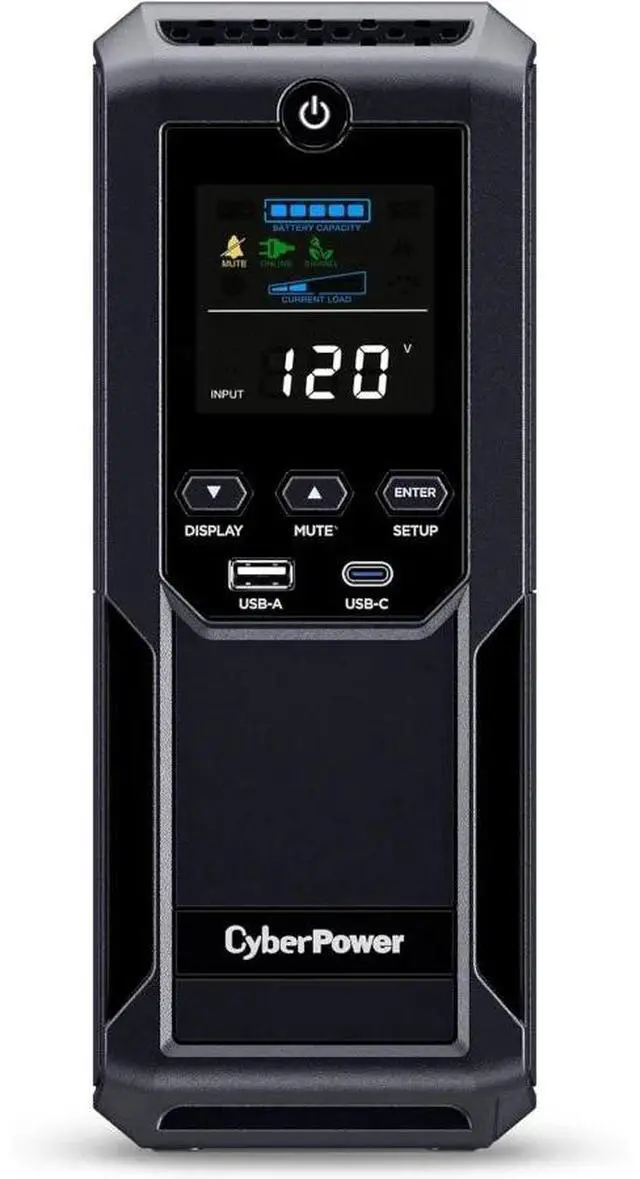

CyberPower CP1500AVRLCD3 Intelligent LCD UPS Systems - 1500VA/900W

A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD CP1500AVRLCD3 provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The CP1500AVRLCD3 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500AVRLCD3 comes with a three-year warranty (including coverage of batteries) and a $500, 000 Connected Equipment Guarantee.


Capacity: 1500 VA / 900 W

Topology: Line Interactive

Waveform: Simulated Sine Wave

Output: 120 VAC 5%

Runtime (half/full): 12 minutes / 3 minutes

Plug type cord: NEMA 5-15P, 6ft. cord

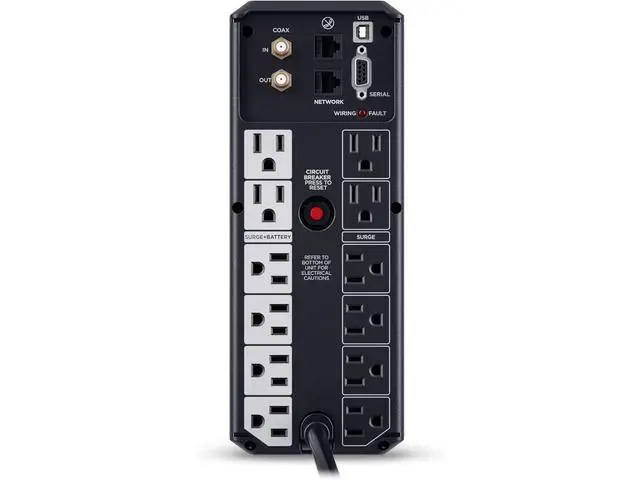

Outlets: 12 (6 surge, 6 surge + battery backup)

USB Charge Ports: 2 (1 USB-A 2.4A, 1 USB-C 15W)

Communication: USB, Serial

Data line protection: Ethernet, Coaxial

Management software: PowerPanel Personal

ENERGY STAR certified: Yes

Warranty: 3 year

Connected Equipment Guarantee: $500, 000









Controls/Indicators





Status Indicators



LED Indicators:


Power On

Wiring Fault






Display Graphics





Display



LCD





Warranty





Additional Warranty Information



Three-year warranty (including coverage of batteries)





Environmental Conditions





Minimum Operating Temperature



32F (0C)





Maximum Operating Temperature



104F (40C)





Maximum Operating Elevation



10000 ft





Maximum Storage Elevation



50000 ft





Miscellaneous





Additional Information



Energy Saving: GreenPower UPS Bypass Technology

Energy Star Certified: Yes

UPS Topology: Line Interactive

Battery Quantity: 2

Battery Size: 12 V / 9 Ah

Battery Type: Sealed Lead-Acid Battery

Replacement Battery Cartridge: RB1290X2E

Replacement Battery Cartridge Quantity: 1

Runtime at Full Load: 3 min

Runtime at Half Load: 12 min

Typical Recharge Time: 8 Hours

User Replaceable Battery: Yes

Physical Dimensions - (WxHxD) (cm): 10.01 x 25.91 x 35.0 (cm)

Physical Dimensions - (WxHxD) (in): 3.94 x 10.2 x 13.78 (in)

Physical Dimensions - (WxHxD) (mm): 100 x 259 x 350 (mm)

Weight (kg): 10.8

Weight (lb): 23.8

Shipping Dimensions - (WxHxD) (cm): 19.0 x 36.8 x 45.01 (cm)

Shipping - Dimensions (WxHxD,
in): 7.48 x 14.49 x 17.72 (in)

Shipping - Dimensions (WxHxD,
mm): 189.99 x 368.05 x 450.09 (mm)

Shipping - Weight (kg): 11.5

Shipping - Weight (lb): 25.35

Circuit Breaker: 15 A

Cord Length: 6 ft ( 1.8 m)

Input Frequency Range: 57 Hz - 63 Hz

Input Plug Type: NEMA 5-15P

Nominal Input Voltage: 120 VAC

Plug Style: Right Angle - 45 Offset

Automatic Voltage Regulation: Single Boost

On AC WaveForm: Sine Wave

On Battery Frequency: 60 Hz 1%

On Battery Voltage: 120 VAC 5%

On Battery Waveform: Simulated Sine Wave

Outlets - Battery Surge Protected: 6

Outlets - Surge-Only Protected: 6

Outlets - Total: 12

Outlet Type COMPUTED: 12 - NEMA 5-15R

Output Power Factor: 0.6

Overload Protection: Internal Circuitry Limiting

Typical Transfer Time: 4 ms

USB Charge Port Type COMPUTED: 1 Type A

USB Charge Port Voltage COMPUTED: 5 VDC

USB Charge Port Watts COMPUTED: 20 Watts

VA: 1500 VA

Watts: 900 W

Coax Protection RG6 COMPUTED: 1 in

EMI/RFI Filtration COMPUTED: Yes

Network Protection RJ45: 1-in / 1-Out (10/100/1000)

Surge Suppression (Joules): 1500 J

Coax Protection RG6 COMPUTED: 1 in

EMI/RFI Filtration COMPUTED: Yes

Network
