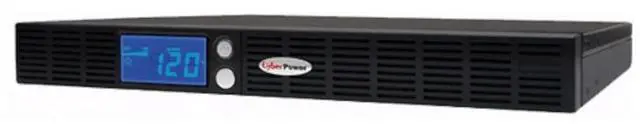

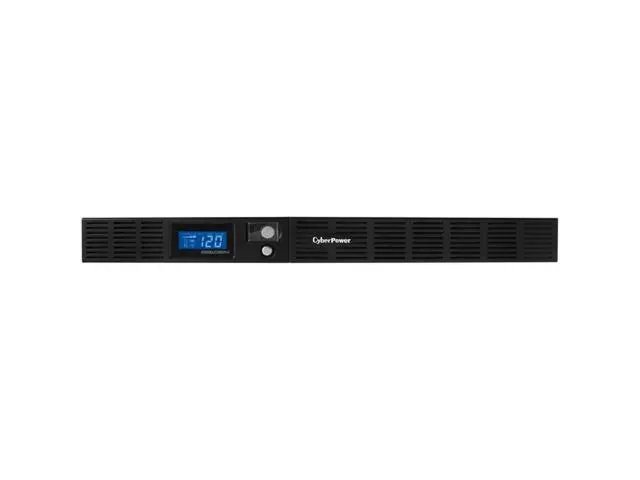

CyberPower OR500LCDRM1U Smart App LCD UPS Systems - 500VA/300W, 120 VAC, NEMA 5-15P, 1U, Rackmount, 6 Outlets, LCD, Powe

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR500LCDRM1U comes with a three-year warranty and a $300, 000 Connected Equipment Guarantee.

Capacity: 500VA / 300W

Topology: Line Interactive

Waveform: Simulated Sine Wave

Output: 120Vac 10%

Plug type cord: NEMA 5-15P, 10 ft. cord

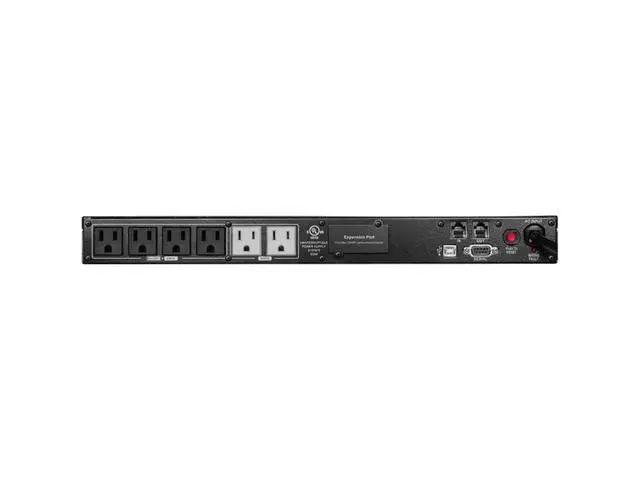

Outlet types: 6 NEMA 5-15R

Communication: USB, Relay, SNMP

Management software: PowerPanel Business

Remote management: Yes, with optional RMCARD205

ENERGY STAR certified: Yes









Controls/Indicators





Status Indicators



On Unit:


Power On

Wiring Fault

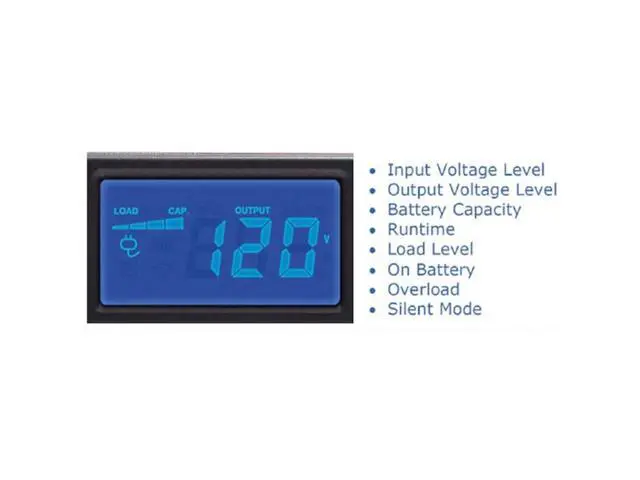

LCD Panel:


Input Voltage

Output Voltage

Battery Capacity

Load Level

Runtime

On Battery

Overload

Silent Mode






Warranty





Additional Warranty Information



CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge.





Interfaces/Ports





Serial Port



Yes





USB (HID Compliant) Port



Yes





Environmental Conditions





Maximum Operating Temperature



104F (40C)





Maximum Operating Elevation



10000 ft





Maximum Storage Elevation



60





Management





Alarm



Overload







Battery Mode







On Battery





Power Description





Input Voltage



120 V AC





Output Voltage



120 V AC





Surge Energy Rating



1150 J





Waveform Type



Simulated Sine Wave





Input Voltage Range



90 V AC - 140 V AC





Input Frequency



63 Hz





Load Capacity (VA)



500 VA





General Information





Product Type



Line-interactive UPS





Manufacturer Part Number



OR500LCDRM1U





Manufacturer Website Address



https: //www. cyberpowersystems. com/





Manufacturer



CyberPower Systems, Inc





Product Model



OR500LCDRM1U





Product Name



OR500LCDRM1U Smart App LCD UPS Systems





Product Series



Smart App LCD UPS





Brand Name



CyberPower





Miscellaneous





Additional Information



Energy Saving: GreenPower UPS Bypass Technology

Energy Star Certified: Yes

UPS Topology: Line Interactive

Battery Quantity: 2

Battery Size: 6 V / 7 Ah

Battery Type: Sealed Lead-Acid Battery

Hot Swappable: Yes

Replacement Battery Cartridge: RB0670X2

Replacement Battery Cartridge Quantity: 1

Runtime at Full Load: 3 min

Runtime at Half Load: 12 min

Typical Recharge Time: 8 Hours

User Replaceable Battery: Yes

Physical Dimensions - (WxHxD) (cm): 43.31 x 4.45 x 23.5 (cm)

Physical Dimensions - (WxHxD) (in): 17.05 x 1.75 x 9.25 (in)

Physical Dimensions - (WxHxD) (mm): 433 x 44 x 235 (mm)

Weight (kg): 8.16

Weight (lb): 18

Shipping Dimensions - (WxHxD) (cm): 31.75 x 14.61 x 52.07 (cm)

Shipping - Dimensions (WxHxD,
in): 12.5 x 5.75 x 20.5 (in)

Shipping - Dimensions (WxHxD,
mm): 317.5 x 146.05 x 520.7 (mm)

Shipping - Weight (kg): 9.34

Shipping - Weight (lb): 20.6

Adjustable Voltage Range: 88 - 144 VAC

Circuit Breaker: 15 A

Cord Length: 10 ft ( 3.0 m)

Input Frequency Range: 57 Hz - 63 Hz

Input Plug Type: NEMA 5-15P

Input
