CyberPower CP1500PFCLCD PFC Sinewave UPS Systems - 1500VA/1000W, 120 VAC, NEMA 5-15P, Mini-Tower, Sine Wave, 12 Outlets,

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1500PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility.

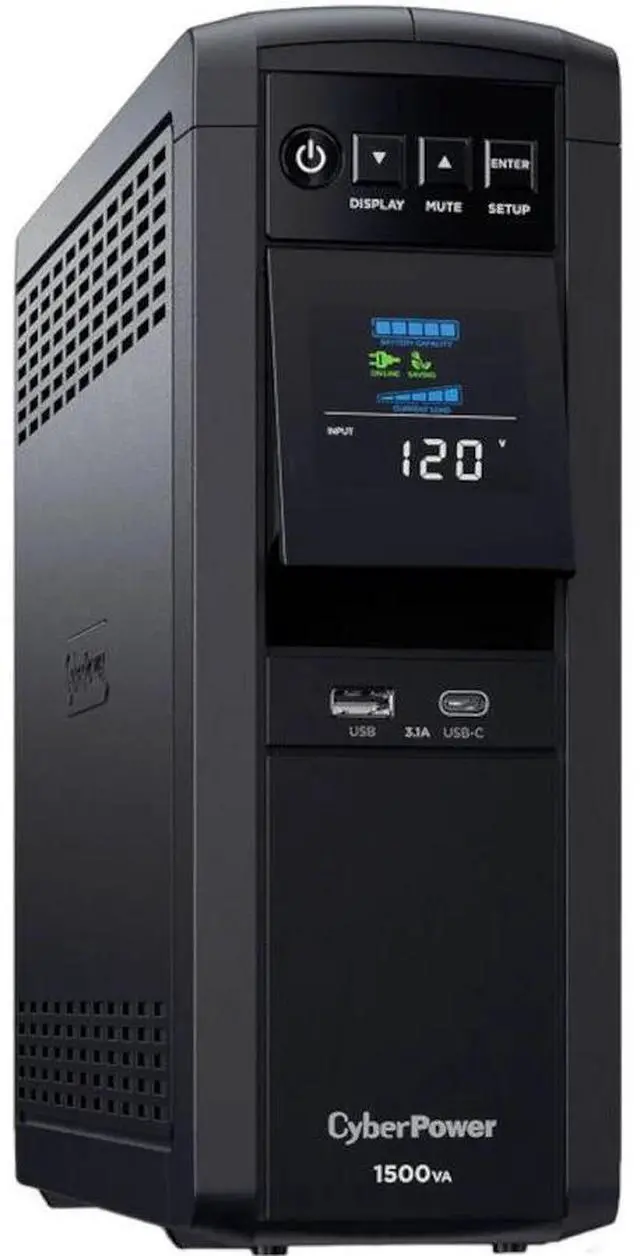

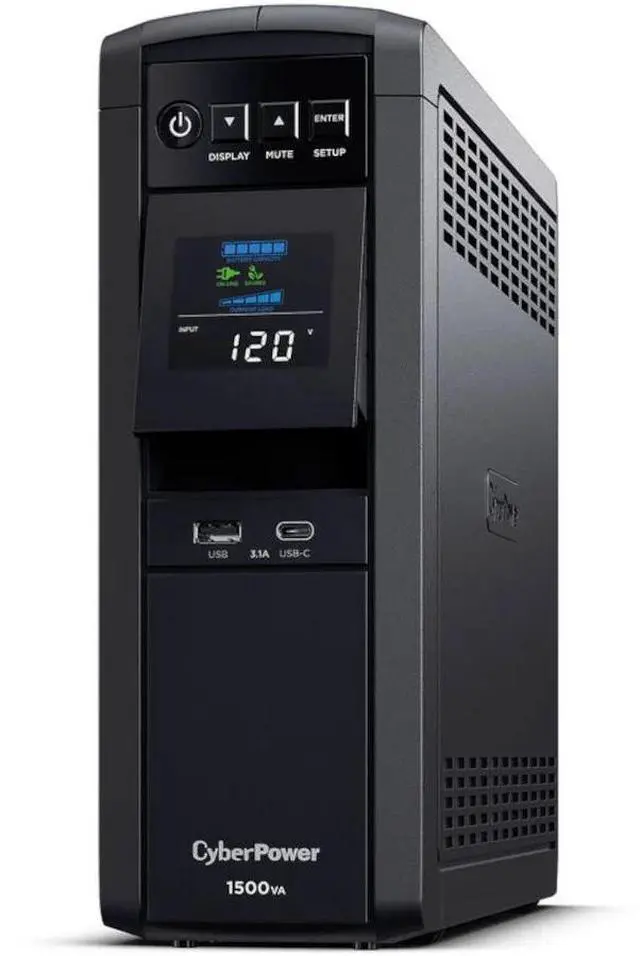

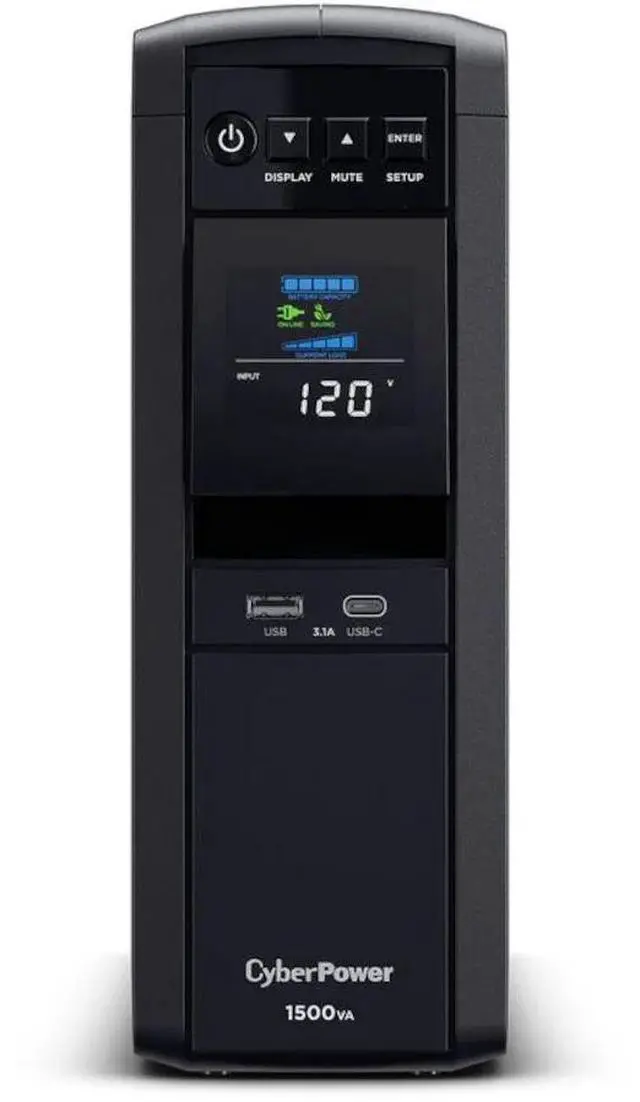

The CP1500PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk. Two USB charge ports (one Type-A and one Type-C) power portable devices such as mobile phones and tablets, even during a utility power failure.

The CP1500PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500PFCLCD comes with a three-year warranty (including coverage of batteries) and a $500, 000 Connected Equipment Guarantee.


Capacity: 1500VA / 1000W

Topology: Line Interactive

Waveform: Sine Wave

Output: 120Vac 5%

Plug type cord: NEMA 5-15P, 5 ft. cord

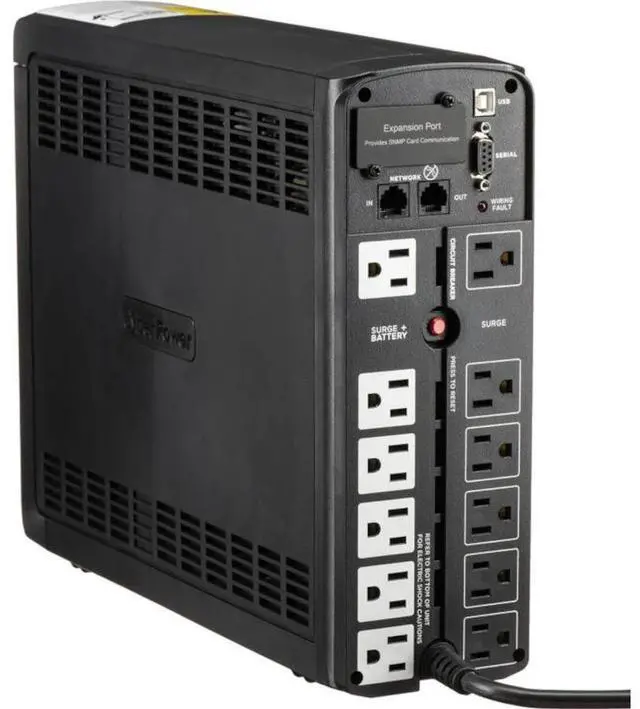

Outlet types: 12 NEMA 5-15R

USB charge ports: 2

Communication: USB, Relay, SNMP

Data line protection: Network

Management software: PowerPanel Business

Remote management: Yes, with optional RMCARD205

ENERGY STAR certified: Yes

Warranty: 3 year

Connected Equipment Guarantee: $500, 000






Controls/Indicators





Status Indicators




Power On

Wiring Fault






Display Graphics





Display



LCD





Environmental Conditions





Minimum Operating Temperature



32F (0C)





Maximum Operating Temperature



104F (40C)





Maximum Operating Elevation



10000 ft





Interfaces/Ports





USB



Yes





Serial Port



Yes





EPO Port



No





USB (HID Compliant) Port



Yes





Management





Network Management



SNMP/HTTP Remote Monitoring







Dry Contact





Alarm



Low Battery







On Battery







Overload







Fault







Battery Mode





Physical Characteristics





Weight (Approximate)



24.90 lb





Form Factor



Mini-tower





Height



11





Width



3.9





Depth



14





Product Color



Black





Color Family



Black





General Information





Product Type



Line-interactive UPS





Manufacturer Part Number



CP1500PFCLCD





Manufacturer Website Address



https: //www. cyberpowersystems. com/





Manufacturer



CyberPower Systems, Inc





Product Model



CP1500PFCLCD





Product Name



CP1500PFCLCD PFC Sinewave UPS Systems





Product Series



PFC Sinewave UPS





Brand Name



CyberPower





Miscellaneous





Additional Information



Active PFC Compatible: Yes

Energy Saving: GreenPower UPS Bypass Technology

Energy Star Certified: Yes

UPS Topology: Line Interactive

Battery Quantity: 2

Battery Size: 12 V / 9 Ah

Battery Type: Sealed Lead-Acid Battery

Hot Swappable: No

Replacement Battery Cartridge: RB1290X2 (for serial numbers beginning with CXX)

Replacement Battery Cartridge Quantity: 1

Runtime at Full Load: 2.5 min

Runtime at Half Load: 10 min

Typical Recharge Time: 8 Hours

User Replaceable Battery: Yes

Physical Dimensions - (WxHxD) (cm): 9.91 x 27.94 x 35.56 (cm)

Physical Dimensions - (WxHxD) (in): 3.9 x 11.0 x 14.0 (in)

Physical Dimensions - (WxHxD) (mm): 99 x 279 x 356 (mm)

Weight (kg): 11.29

Weight (lb): 24.9

Shipping Dimensions - (WxHxD) (cm): 19.69 x 36.83 x 44.45 (cm)

Shipping - Dimensions (WxHxD,
in): 7.75 x 14.5 x 17.5 (in)

Shipping -
