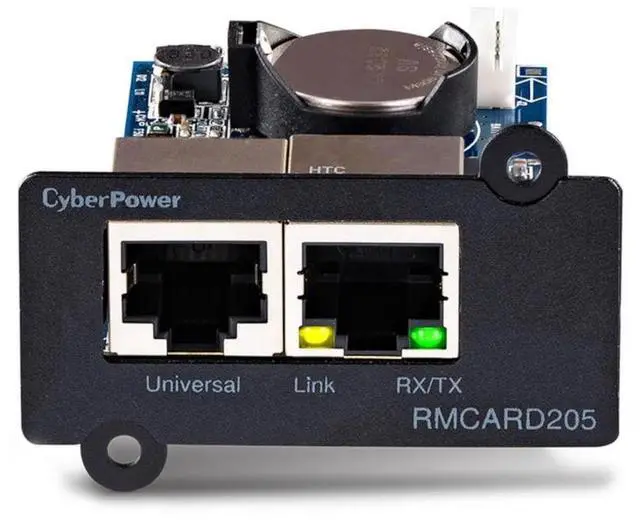

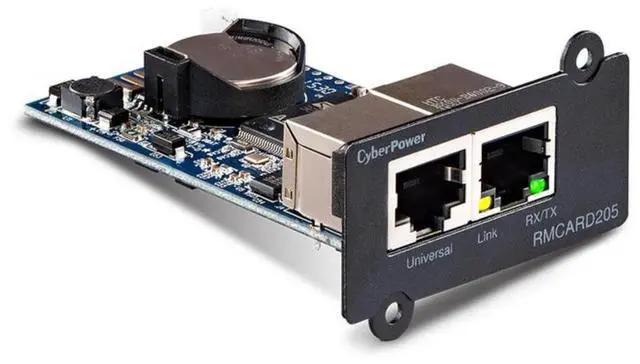

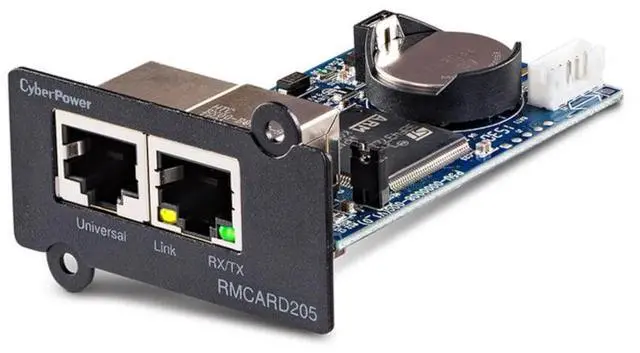

CyberPower RMCARD205 Remote Management Card - Black

A full-featured network management card, the CyberPower RMCARD205 remotely manages, monitors and controls select CyberPower UPS systems and ATS PDUs via a standard web browser, command line interface (CLI), SNMP or network management system (NMS). Especially suited to enterprise installations, the RMCARD205 provides scheduling for UPS shutdown, startup, and rebooting, along with event action settings, event logging, status recording, and automatic event notifications via email, SMS, SNMP traps, or Syslog. PowerPanel Business Edition Client software protects servers and workstations from data loss due to power failure by initiating auto-shutdown command from a UPS when a power loss event occurs.


Supported Protocols: TCP/IP, UDP, FTP, SCP, DHCP, DNS, SSH, Telnet, HTTP/HTTPS, SNM
Pv1/v3, IPv4/v6, NTP, SMTP, and Syslog

Remote management: Web browser, CLI, SNMP or NMS

Auto shutdown: Workstations, multiple servers

Auto shutdown clients: 50

Auto event notification: Email, SMS, SNMP Traps, Syslog

Remote scheduling: Shutdown, startup, reboot

Ethernet speeds: 10/100 Mbps

Environmental Sensor compatible: Yes

Upgradable firmware: Yes, via FTP or SCP

Warranty: 3 year









Network Communication





Ethernet Technology



Fast Ethernet





Interfaces/Ports





Number of Network (RJ-45) Ports



2





Network (RJ-45)



Yes





Physical Characteristics





Weight (Approximate)



1.28 oz





Height



1.4





Width



2.1





Depth



3





Product Color



Black





Color Family



Black





Miscellaneous





Additional Information



Data Link Protocol: Ethernet 100Base-TX, Ethernet 10Base-T

Unversal Port: Optional ENVIROSENSOR

Physical Dimensions - (WxHxD) (cm): 5.41 x 3.61 x 7.62 (cm)

Physical Dimensions - (WxHxD) (in): 2.13 x 1.42 x 3 (in)

Physical Dimensions - (WxHxD) (mm): 54 x 36 x 76 (mm)

Weight (kg): 0.04

Weight (lb): 0.08

Shipping Dimensions - (WxHxD) (cm): 5.84 x 16.51 x 16.76 (cm)

Shipping - Dimensions (WxHxD,
in): 2.3 x 6.5 x 6.6 (in)

Shipping - Dimensions (WxHxD,
mm): 58.42 x 165.1 x 167.64 (mm)

Shipping - Weight (kg): 0.26

Shipping - Weight (lb): 0.57

USB Charge Port: No

Network Protection RJ45: Ethernet RJ45

Network Protection RJ45: Ethernet RJ45

LED Indicators: Tx/Rx

Cisco EnergyWise: v 1.2. 0 and newer

DHCP: RFC 2131

DNS: RFC 1035

FTP: RFC 959

HTTP: v 1.1: RFC 2616

HTTPS: RFC 2818

LDAP: v3: RFC 2251

LDAPS: v3: RFC 4513

MIB: RFC 1213, RFC 1628

NTP: RFC 958

RADIUS: RFC 2865

SCP: v2: RFC 4253, RFC 4254

SMTP: RFC 2821

SMTPS: RFC 3207

SNMP:
v1: RFC 1155, RFC 1156, RFC 1157

SSH: v2: RFC 4253, RFC 4254

SSL: v3: RFC 6101

SysLog: RFC 5424

TCP/IP: v4: RFC 791

Telnet: RFC 854

TLS: v 1.1: RFC 4346

Color: Black

Operating Elevation: 0 - 10000 ft (0 - 3048 m)

Operating Relative Humidity: 0 - 90 % (non-condensing)

Operating Temperature: 32 - 104 F (0 - 40 C)

Storage Elevation: 0 - 50000 ft (0 - 15239 m)

Storage Relative Humidity: 0 - 95% (non-condensing)

Storage Temperature: 14 - 122 F (-10 - 50 C)

Environmental: RoHS Compliant

Safety: FCC DoC Class A|CE

Extended Warranty Option: WEXT5YR-ACC1A

Product Warranty: 3 Year Limited Warranty





Package Contents




RMCARD205 UPS ATS PDU Remote Management Card - SNMP/HTTP/NMS/Enviro Port

Quick Start Guide

Spare
