Question 1

If the unit weighs in at 59 lbs. How are the little rack mount braces pictured supposed to support it?

If they can't support it, are their rails available to pick up the slack?

Accepted Answer

I have rack bolted to the floor and it is mounted securely using all 4 screws without a problem. (I have 3 of these in 3 different racks)
You will need two people to install it and I would suggest putting it at the bottom of the rack, which is what I do on most installs.

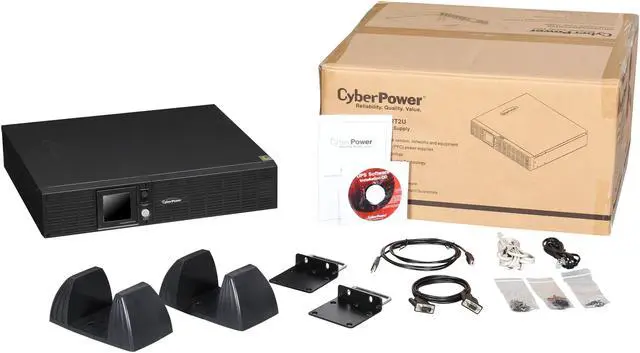

If are concerned with your rack supporting it, it does come with floor stands so you can put it up on end next to the rack.
Hope this information helps.

Question 2

Would this work on my 15 amp circuit? with a NEMA 5-15/20R to the NEMA 5-15P standard plug converter?

Accepted Answer

This particular model is a 20 Amp and should be used on a 20 Amp circuit. There is a version that will operate on a 15 Amp circuit (OR1500PFCRT2U or OR1500PFCLCD). If you need 2000VA you will need to use a 20 Amp circuit. I hope this helps.

Question 3

Can I connect more than one of these units to a computer at the same time via USB and control/monitor them independently via the management software?

Accepted Answer

I doubt you can hook up the USB that way. However, I assume these machines are on the same network, it is possible for one machine advising the other of an issue (push notification).

Question 4

Is this the OR2200PFCRT2Ua (a model) or OR2200PFCRT2U? Big difference in wattage and runtime.

Accepted Answer

It's the non-a.  It requires a 20 AMP input versus the a-model requiring a 30 AMP input.

Question 5

will I need a 30 amp breaker for this unit?

Accepted Answer

No.  A 20 AMP circuit is sufficient.  The plug type is NEMA 5-20P.

Question 6

How many 120 volt outlets does this product have?
How many usb ports does this product have?
Thanks

Accepted Answer

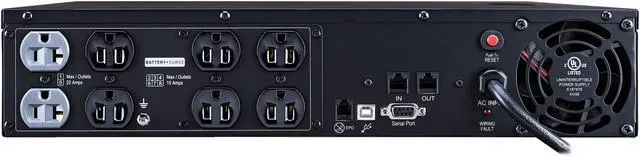

8 Outlets ((2) NEMA 5-20R, (6) NEMA 5-15R). There is 1 USB connection to control the device from a computer. The USB connection is not to provide USB power or connectivity to other USB devices.

Brand	CyberPower
Model	OR2200PFCRT2U

Input Voltage Range	90 - 140V
Input Frequency	47 - 63 Hz

VA Rating	2000 VA
Watts	1320 Watts
Output Voltage	120Vac +/- 5%
Outlets	8
Outlet Type	NEMA 5-20R

Battery Type	Sealed Lead Acid
Battery Run Time	Runtime at Half Load: 20 minutes Runtime at Full Load: 8 minutes
Battery Recharge Time	8 Hour(s)
Battery Replaceable	BB Battery - HR9-12 or Yuasa Battery NPW45-12FR

Alarms	Audible Alarms: On battery, low battery, overload
Management Software	PowerPanel Business Edition
Approvals	UL1778, cUL 107.3, FCC DOC Class B

Best Sellers

CyberPower OR2200PFCRT2U PFC Sinewave UPS Systems - 2000VA/1540W, 120 VAC, NEMA 5-20P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business

Learn more about the CyberPower OR2200PFCRT2U

Customer Reviews of the CyberPower OR2200PFCRT2U

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

Manufacturer Contact Info

Dimensions & Weight
Dimensions	17.00" x 3.50" x 15.30"
Weight	59.30 lbs.
