MAIN OVERVIEW FEATURES:
Input Receptacles: NEMA L5-20P
Output Receptacles: 14 x NEMA 5-20R
Protection Type: Overload Protection
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Mounting Orientation: Vertical
Placement: Rack
Rack Height: 1U
Height: 1.8"
Width: 17.5"
Length: 2.3"
Weight (Approximate): 4.89 lb
Package Contents:
Metered PDU20MT2F12R 14-Outlets PDU
Cord Retention Tray
Energy Star: No
Environmentally Friendly: Yes
Environmental Certification: RoHS
Limited Warranty: Lifetime
Learn more about the CyberPower PDU20MT2F12R
Model
Brand
CyberPower
Model
PDU20MT2F12R
Details
Type
Metered
Rack Size
1U
Style
Rackmount, Vertical Rackmount, Under-Counter
Certifications
UL1363 certified by ETL (USA), CSA C22.2 (Canada)
ROHS
Yes
Input
Input Voltage
120V
Input Frequency
50/60 Hz
Maximum Input Current
20A
Input Connector(s)
NEMA L5-20P
Cord Length
15 ft
Output
Output Voltage
120V
Output Connector(s)
14 x NEMA 5-20R
Overload Protection
20A
Environmental
Operating Environment
0 - 35 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0 - 3000 m
Storage Temperature
-15 - 45 °C
Storage Elevation
0 - 15000 m
Feature
Features

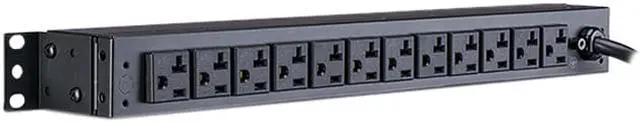

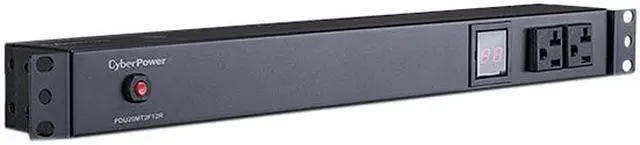

14 NEMA 5-20R (2 Front/12 Rear) output receptacles Single NEMA L5-20P twist lock plug 20-amp electrical capacity with circuit breaker 120V AC - 50/60Hz 1U rack mount Front LCD for real-time load monitoring 15-ft. power cord
Dimensions & Weight
Dimensions
1.75" x 17.50" x 2.25" (H x W x D)
Weight
5.00 lbs.
Additional Information
First Listed on Newegg
October 30, 2013
