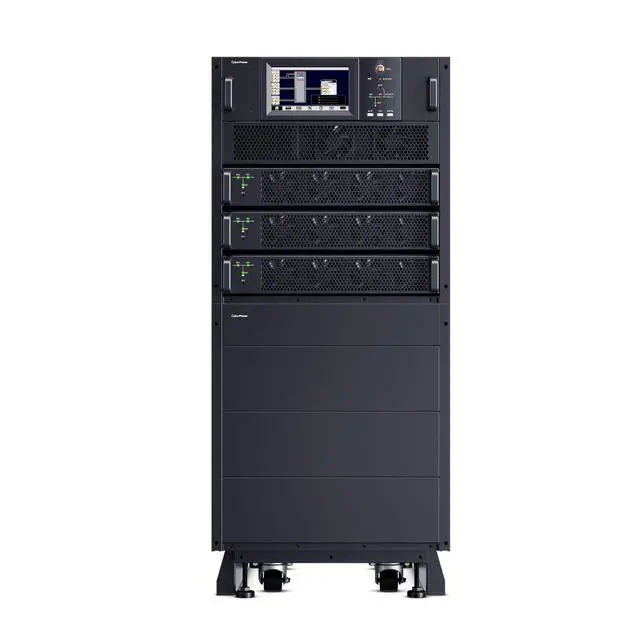

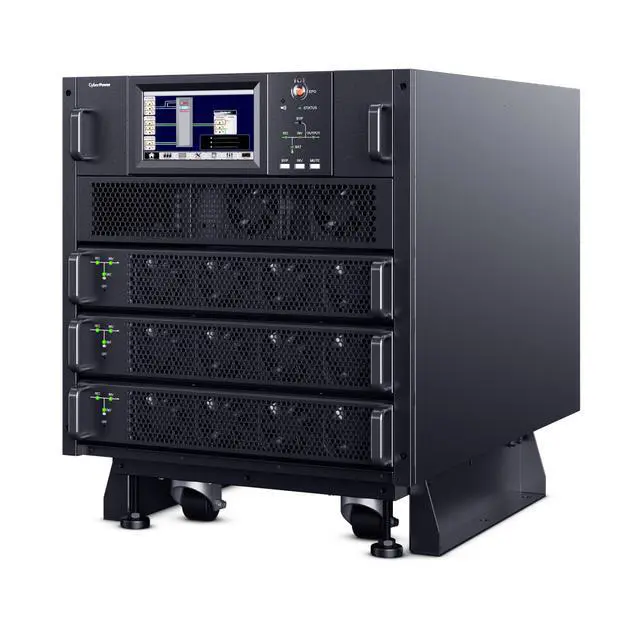

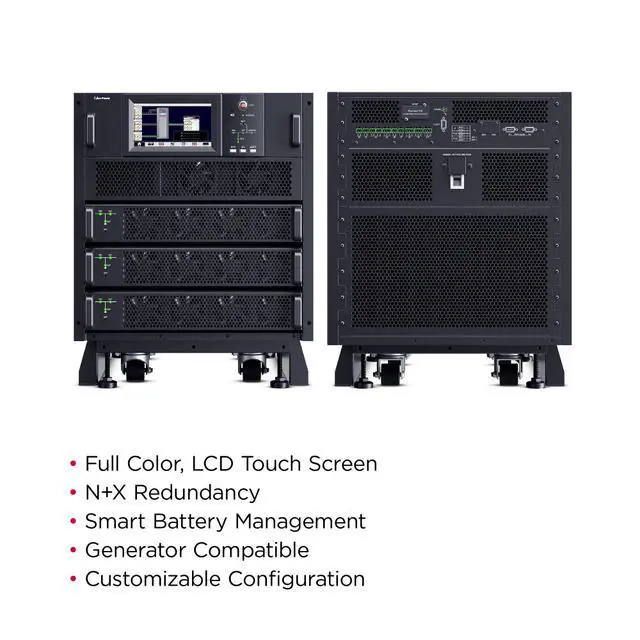

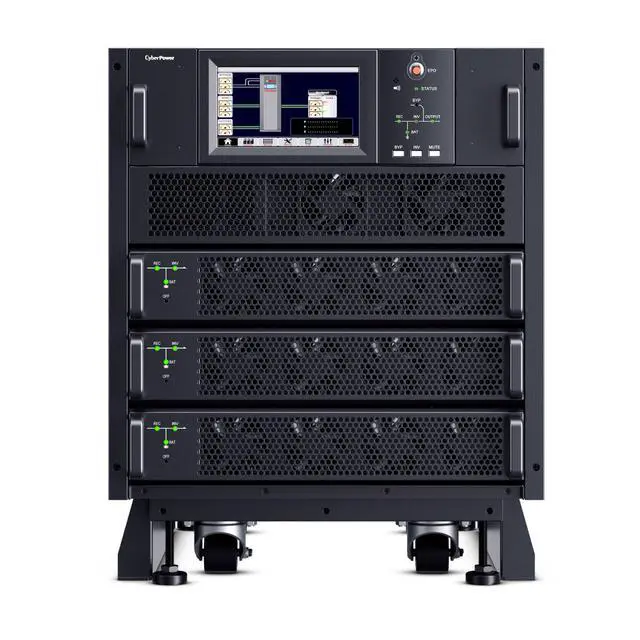

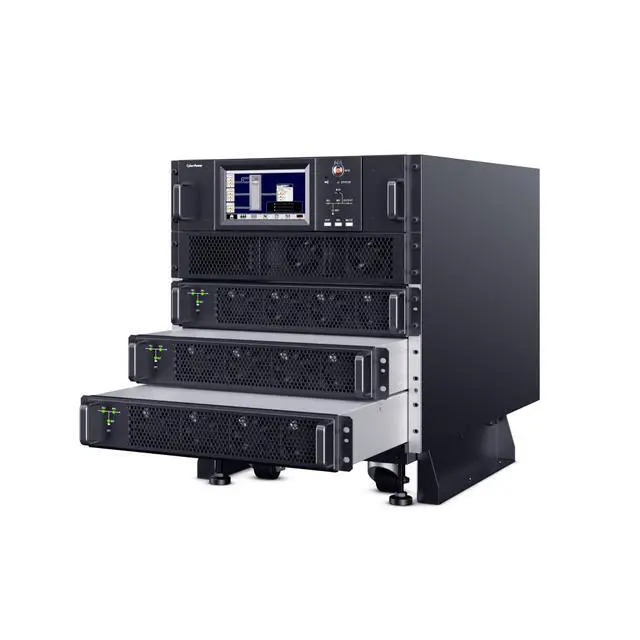

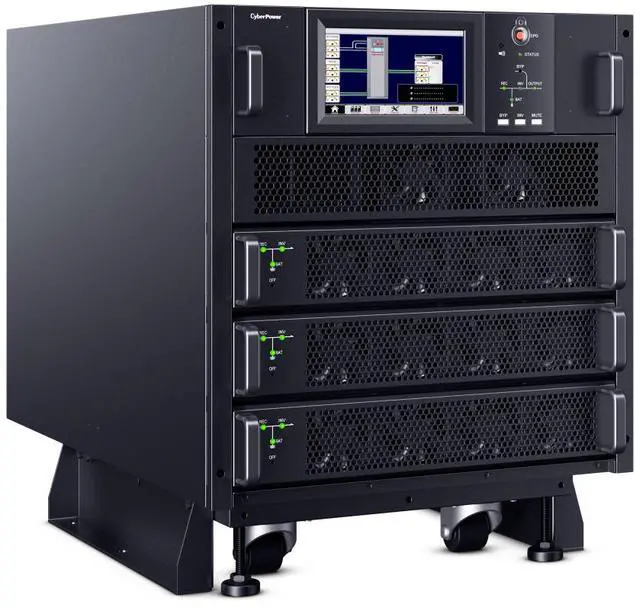

    CyberPower SM020KAMFA 3-Phase Modular Smart App Online UPS System - 10-20K UPS Cabinet - Modular - AC 208/120V 220/127V - 11U - SM020KAMFA

    • Capacity: 10-20 kVA / 10-20 kW
    • Redundancy: (N+X)
    • Power Factor (PF): 1.0
    • Topology: Double-Conversion
    • Waveform: Sine Wave
    • Output: 208/120V or 220/127V VAC Configurable
    • Communication Ports: USB, Serial, Modbus, SNMP, EPO
    • Management Software: PowerPanel Business
    • Energy Saving: ECO Mode Efficiency >97.5%
    This item is covered under the Manufacturer Only Return Policy.
    +
    +
    Overview
    Specs
    Reviews
    See all Q & A

    Any questions? Ask CelesteSM will help you find out quickly.

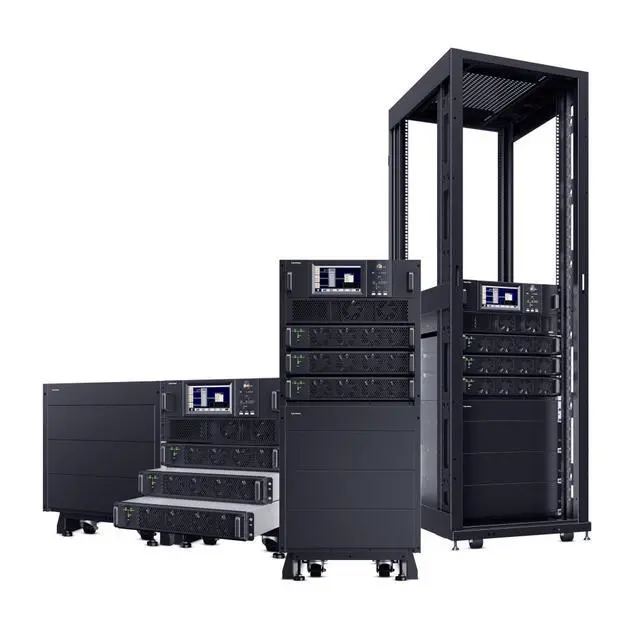

    The CyberPower SM020KAMFA Smart App Online 3-Phase Modular UPS System brings flexibility, space savings, and efficiency to 3-Phase power protection technology. Configurable for N+N system or N+1 power module redundancy, the system can intelligently manage individual modules to achieve higher efficiency. The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack. The high-density, scalable 10kVA/10kW power modules are 2U in height, saving space while providing more options for capacity expansion.The SM020KAMFA features double

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 2 years
    • Limited Warranty period (labor): 2 years
    • Read full details

    Return Policies

    LOADING...

    The CyberPower SM020KAMFA is an 11U, 3-phase modular online UPS rated for 10–20 kVA/kW, designed for data centers, server rooms, and other facilities that need configurable 208/120V or 220/127V power protection with N+X redundancy.

    Recommended For

    • Data-center and server-room operators protecting dense, critical IT loads who need three-phase online power, modular capacity, and the option to add redundancy as requirements grow.
    • Facility teams in industrial plants or power-generation environments that need centralized backup for three-phase equipment and remote UPS monitoring.
    • Organizations planning staged power growth that want to expand a modular UPS setup or configure power-module redundancy without replacing the whole system.
    • Infrastructure and emergency-system operators protecting high-capacity loads where online double-conversion power and generator compatibility fit the site’s electrical design.

    Spec Summary

    AttributeValue
    Best ForBackup power for equipment requiring up to 20 kVA/20 kW and configurable 208/120V or 220/127V output
    Capacity And Output20,000 VA / 20,000 W output at 208/120V or 220/127V, with 50/60 Hz auto-sensing or configurable output frequency
    Input Requirements187–260 VAC input at 40–70 Hz

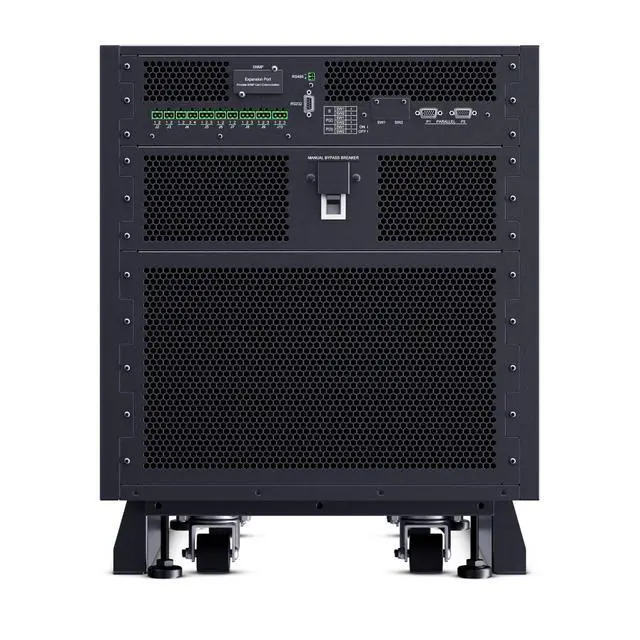

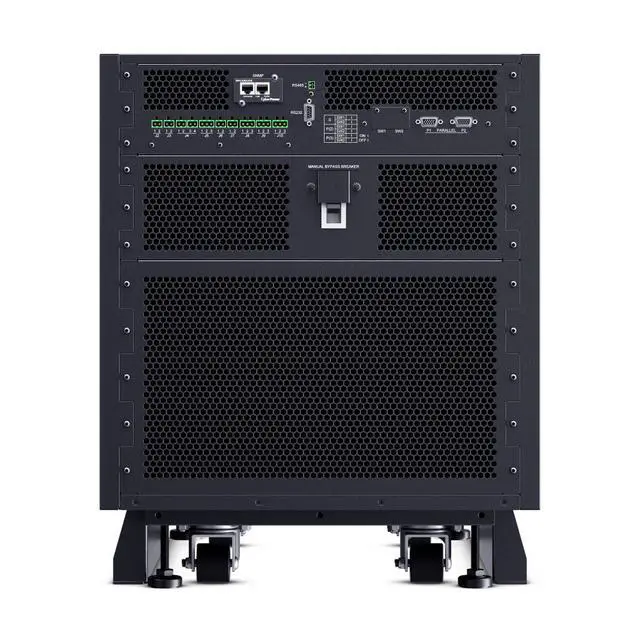

    Connectivity And ManagementRS232 and RS485 interface ports; managed with PowerPanel Business
    Installation And Connection11U rackmountable cabinet with one hardwire terminal-block outlet
    Overload ProtectionSupports 110% load for 10 minutes, 125% for 1 minute, 150% for 30 seconds, and loads above 150% for 200 milliseconds
    Environmental LimitsOperating temperature: 32–104°F (0–40°C); storage temperature: −4–158°F (−20–70°C); operating and storage relative humidity: 0–95%, non-condensing

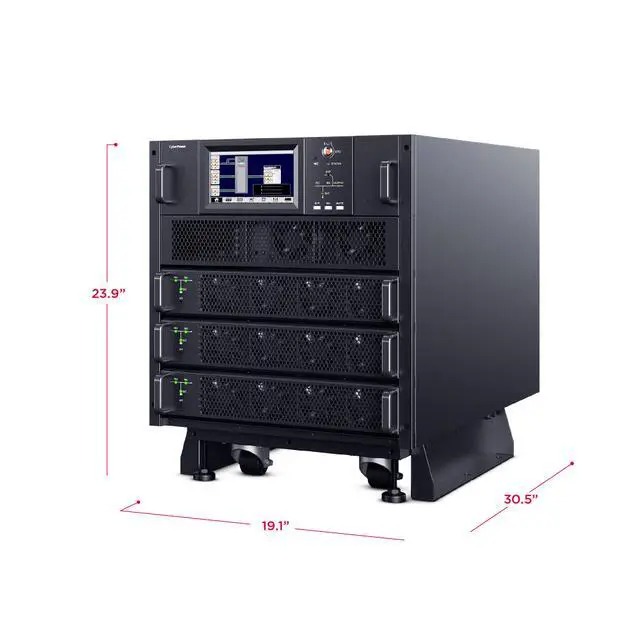

    Dimensions And Weight23.9 × 19.1 × 30.5 in; 133.8 lb
    Model IdentifiersCyberPower SM020KAMFA
