D-Link DFL-800 Desktop Firewall

Name: D-Link DFL-800 VPN Wired Desktop Firewall
Brand: D-Link
SKU: N82E16833127066
Rating: 5 (1 reviews)

10/100 Mbps Wired Speed
Wired

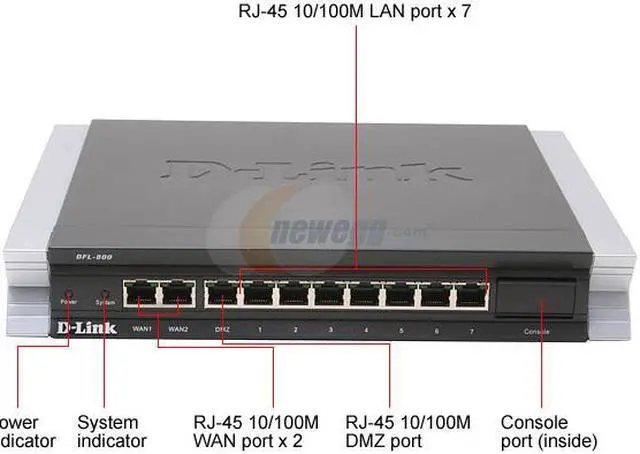

WAN Ports:2 x 10/100Mbps LAN Ports:7 x 10/100Mbps DMZ Ports:1 x 10/100Mbps RJ-45 port Console Port:1 x serial COM port

Specs

Reviews (1)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the D-Link DFL-800

Model
Brand	D-Link
Model	DFL-800

Details
Type	Wired
Ports	WAN Ports:2 x 10/100Mbps LAN Ports:7 x 10/100Mbps DMZ Ports:1 x 10/100Mbps RJ-45 port Console Port:1 x serial COM port
Wired Speed	10/100 Mbps
LEDs	Power System WAN (Link/Activity per Port) (2) LAN (Link/Activity per Port) (7) DMZ (Link/Activity per Port) (1)
Security	Stateful Packet Inspection (SPI) Policy-Based User Authentication Internal User Database (500 Records) RADIUS Client HTTP Traffic Filter: Keyword, URL, Exempt List Script Filter: Java Applet, Java Scripts, VB Scripts, Cookies, ActiveX
VPN	VPN Tunnels: 300 (IPSec, PPTP, L2TP) IPSec LAN-to-LAN / Roaming User PPTP/L2TP Server/Client IPSec/PPTP/L2TP Pass-through IPSec NAT-Traversal DHCP over IPSec Encryption Transform: DES, 3DES, AES, Twofish, Blowfish, CAST-128 XAUTH (Extended Authentication) for IPSec Authentication

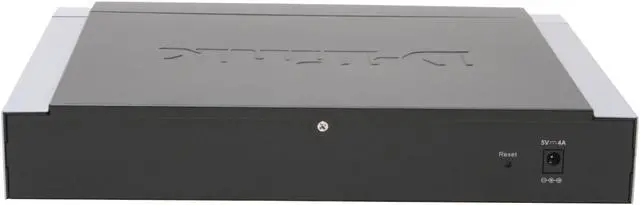

Power Input	5VDC, 4.0A switching external power supply

Features
Features	Multi-Function VPN/Firewall Security Solution Dual WAN Ports, 7 LAN Ports Manage Up to 300 VPN Tunnels Firewall Mode of Operation: Layer 3 Mode: Route Mode, NAT Mode Layer 2 Mode: Transparent Mode Network Address Translation (NAT) Port Address Translation (PAT) Policy-Based NAT Port Forwarding Server Load Balancing Time Scheduled Policies Network Service: Static IP address PPPoE for xDSL PPTP Client for xDSL DHCP Client for WAN Interface BigPond Cable, Telia Compliance Internal DHCP Server DHCP Relay DHCP over IPSec IP Alias Static Routes OSPF Dynamic Routing Policy-Based Routing DNS Resolving of Remote Gateway Dynamic DNS Poster Custom Application Layer Gateway Support IEEE 802.1q VLAN Tag (16) Firewall Policies per VLAN Tag DHCP Server per VLAN Tag Bandwidth Management: Guaranteed Bandwidth Maximum Bandwidth Priority-Bandwidth Utilization Policy-Based Traffic Shaping Time-Scheduled Traffic Shaping Bandwidth Management in VPN Tunnel System: SYSLog Support Firmware configuration Backup E-mail alerts Remote Management – WAN Simple Network Time Protocol (SNTP) Simple Network Management Protocol (SNMP) Configuration Consistency Checks Intrusion Detection System: NIDS Pattern Auto Update DoS/DDoS Attack Protection Attack Alarm via E-mail Notification

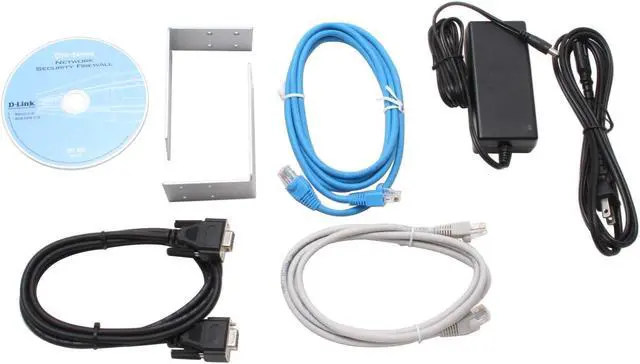

Package Contents	DFL-800 Resource Disk 2 x RJ45 Cable Power Cord Console Cable Power Adapter Rack mount kit

Dimensions & Weight
Dimensions	11.0" x 8.4" x 1.7"
Weight	2.8 lbs.(Device Only)

Additional Information
First Listed on Newegg	November 08, 2005
