PoE + Data Port (out): Supports half / full-duplex operation 10/100/1000BASE-T port IEEE 802.3 compliant IEEE 802.3u compliant IEEE 802.3at compliant IEEE 802.3af compliant IEEE 802.3ab compliant
Data Port (in): Supports half / full-duplex operation IEEE 802.3 compliant IEEE 802.3u compliant IEEE 802.3ab compliant 10/100/1000BASE-T port

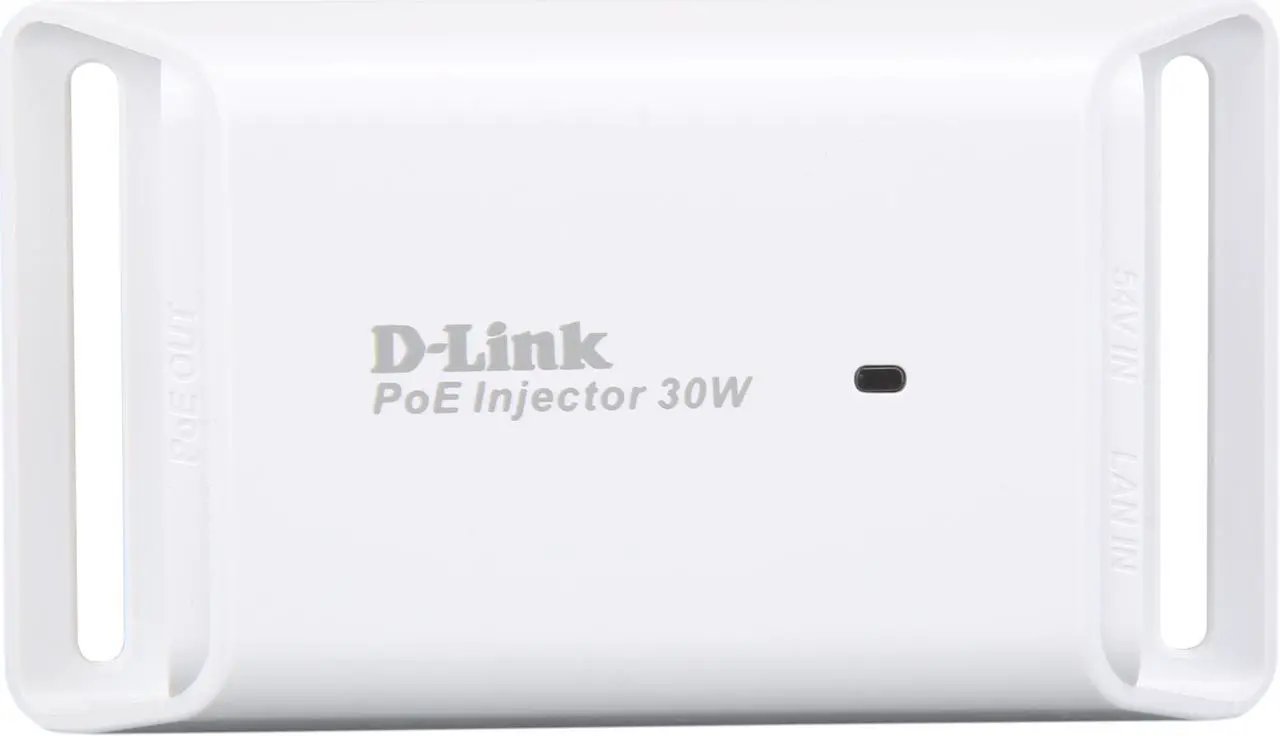

LED Indicators: Blue: Power On Green: Link On
Power: Power Adapter: 54 V / 0.6 A Max Consumption: 32.4 watts Output: 0.6 A at 54 V
Temperature: Operating: 0 to 50 degree C (32 to 122 degree F) Storage: -30 to 70 degree C (-4 to 158 degree F)
Humidity: Operating: 5% to 95% non-condensing Storage: 5% to 95% non-condensing
Features
Features

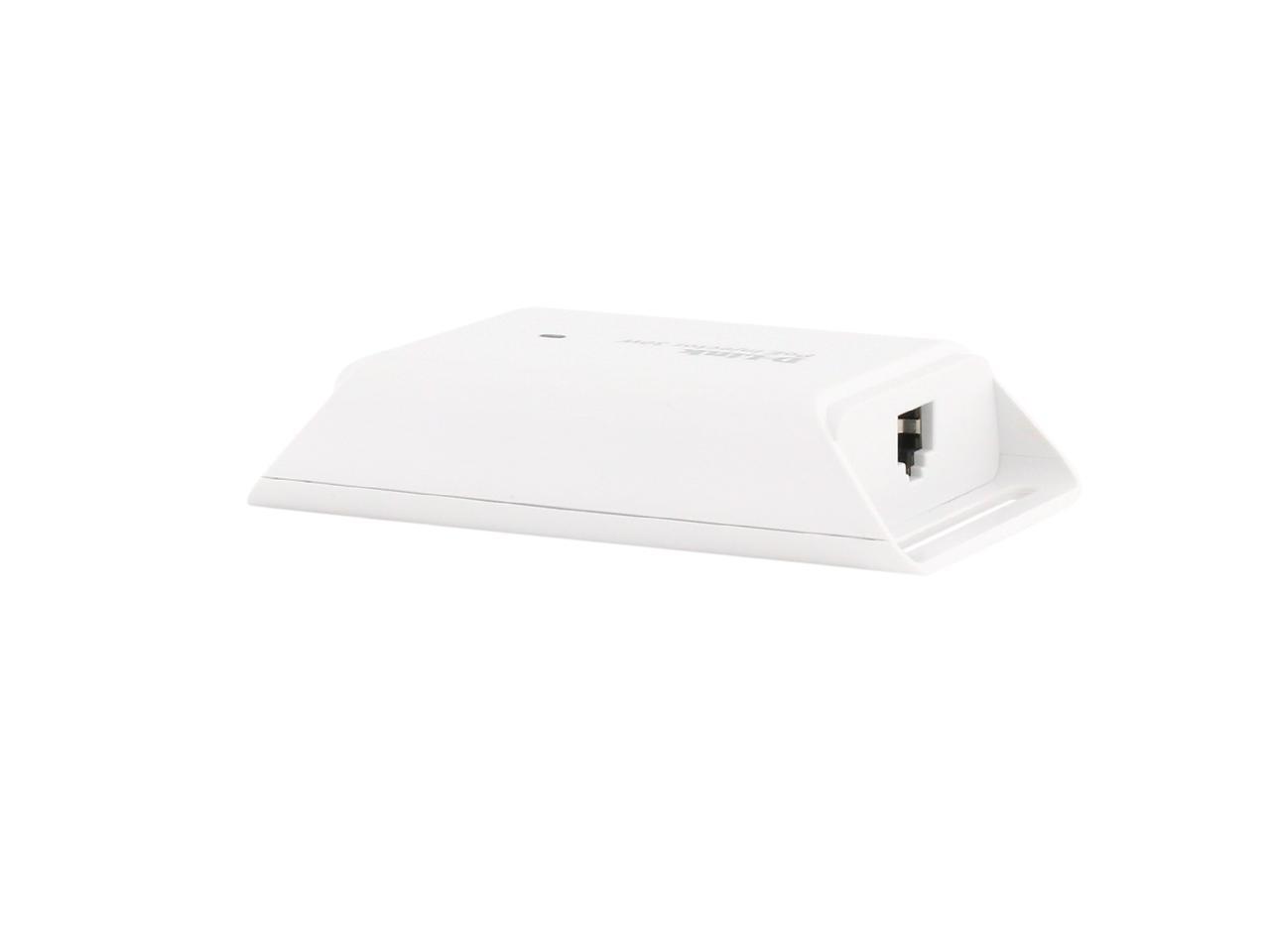

D-Link’s DPE-301GI 1-Port PoE Injector is used to provide I.T. Professionals with the benefits of Power over Ethernet (PoE), even when other devices in the network do not support it. With PoE technology, low voltage DC power and Ethernet data signals are combined on a single network cable, which facilitates powering of end devices like IP Cameras, wireless Access Points (APs), and VoIP Phones. This reduces cable clutter, eliminates the need for dedicated electrical outlets on the wall, ceiling, or other unreachable places, reduces installation time, and lowers costs.

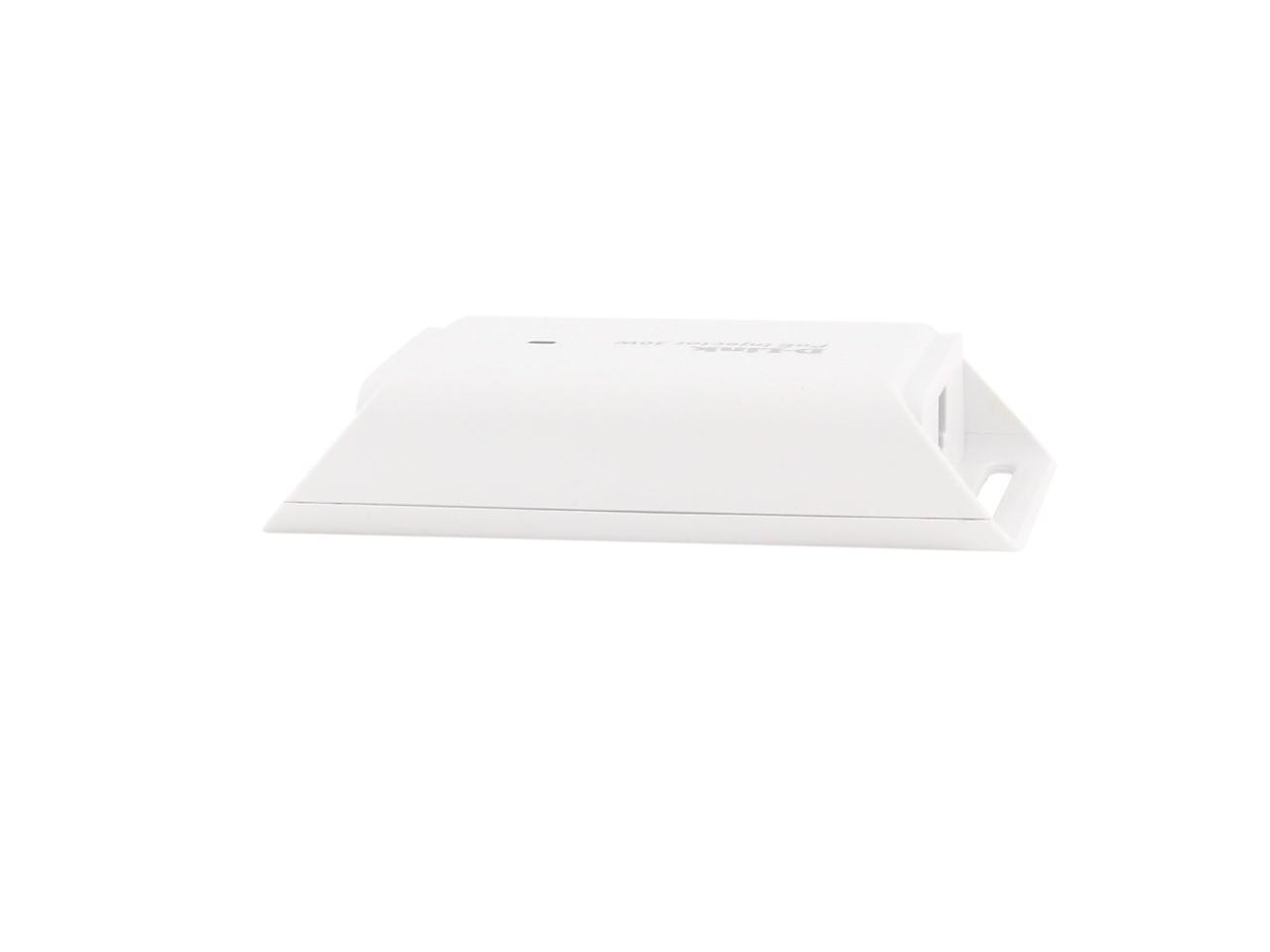

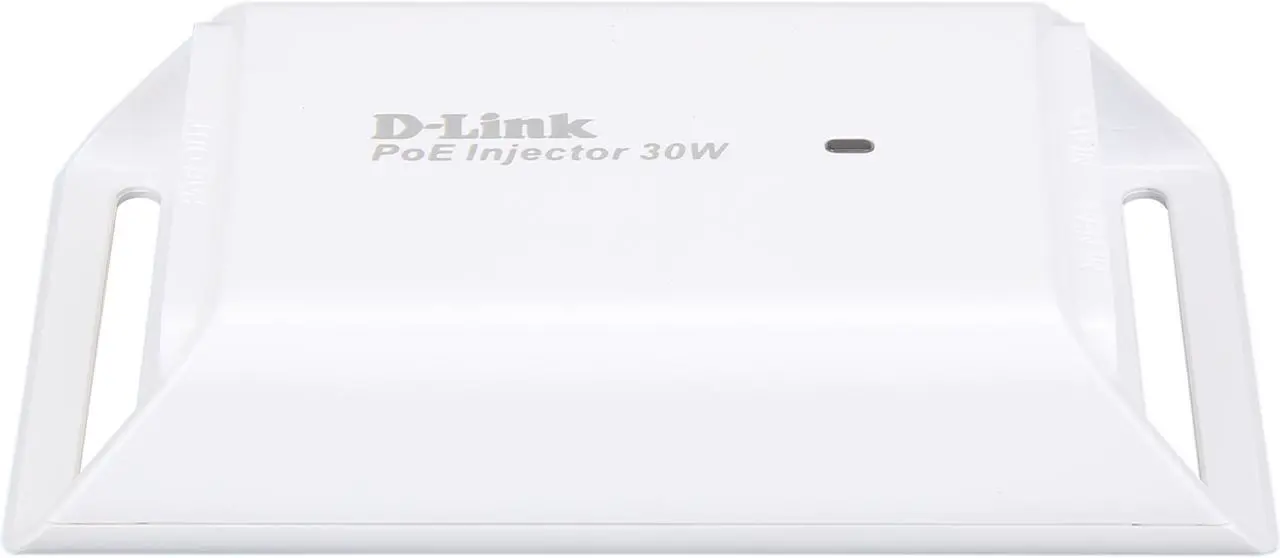

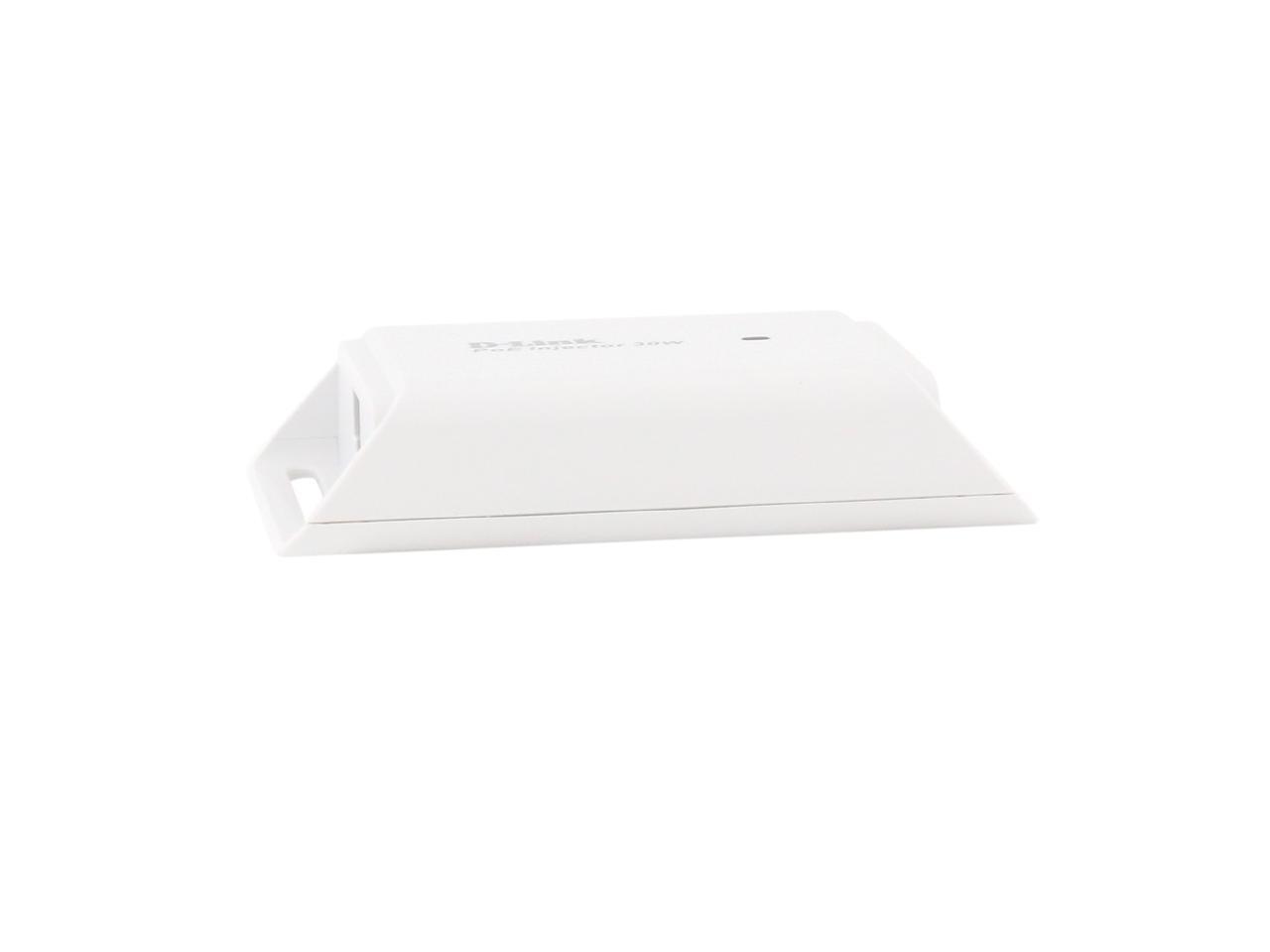

The DPE-301GI device supports Gigabit speeds, and can connect to 10Mbps, 100Mbps or 1000Mbps through the RJ-45 interface. This device also supports the IEEE 802.3af and 802.3at PoE/PoE+ standards, which ensures interoperability with other standards-based PoE and PoE+ devices. Small and compact, the DPE-301GI is lightweight, has integrated mounting slots, and is easy to install.
The DPE-301GI provides a power and data connection to a PoE device over a single network cable. It allows I.T. Professionals to mount their PoE devices virtually anywhere in a building, such as on ceilings or near entryways, and eliminates the need for nearby power outlets and attached power supplies. The DPE-301GI combines electrical power with a Gigabit network connection and produces a Gigabit PoE signal, allowing a single Ethernet cable to carry both data and power to a device.

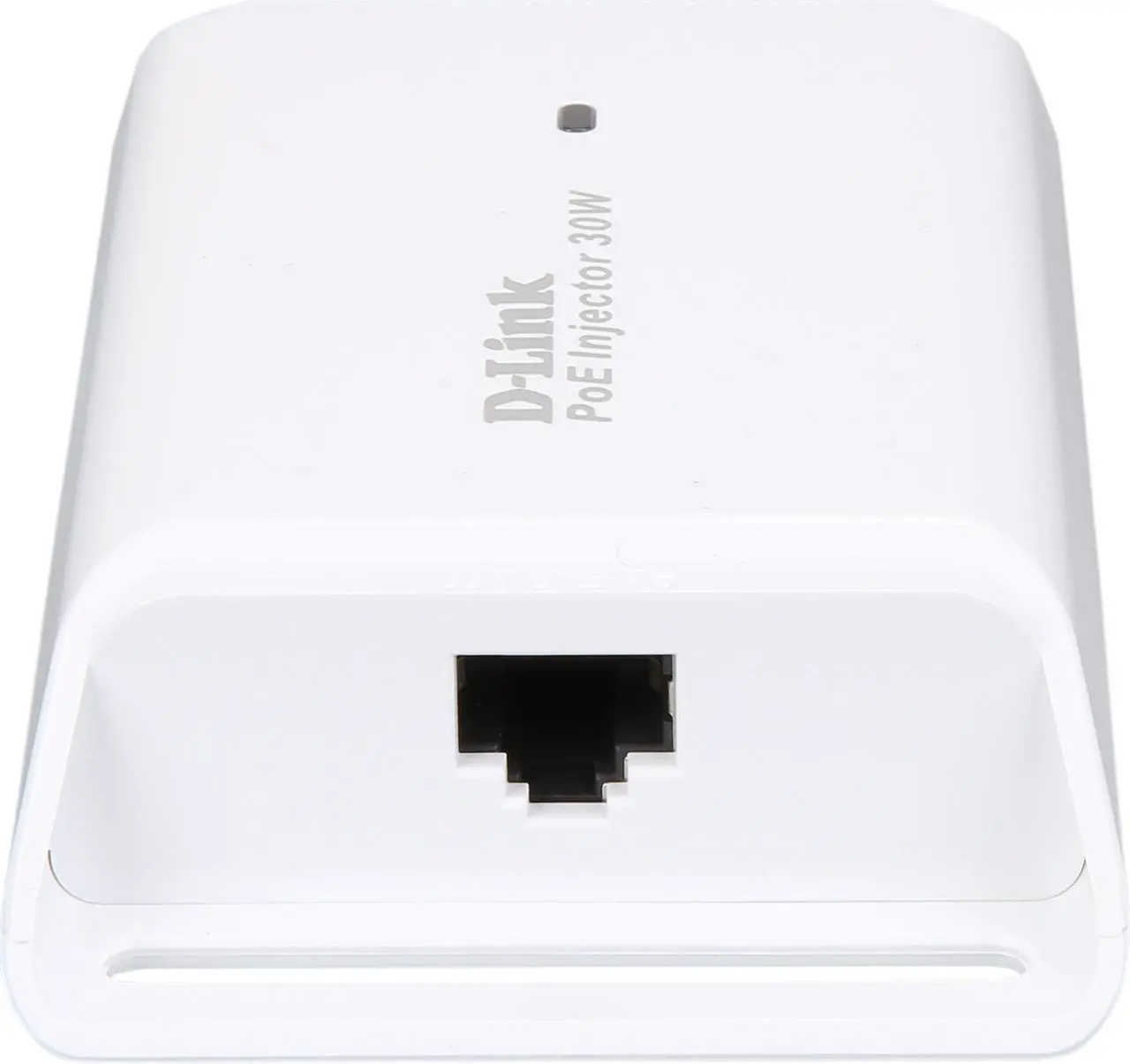

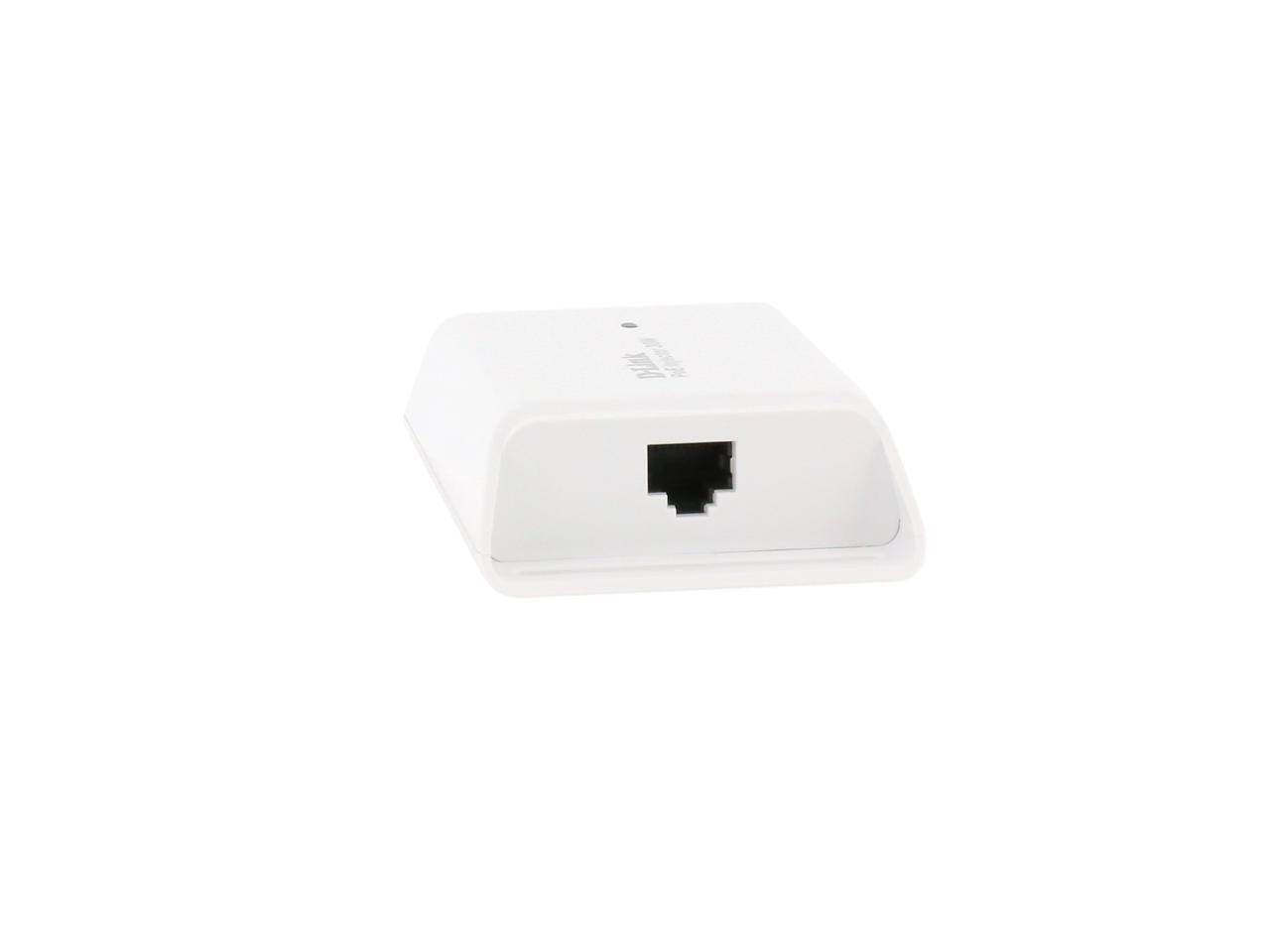

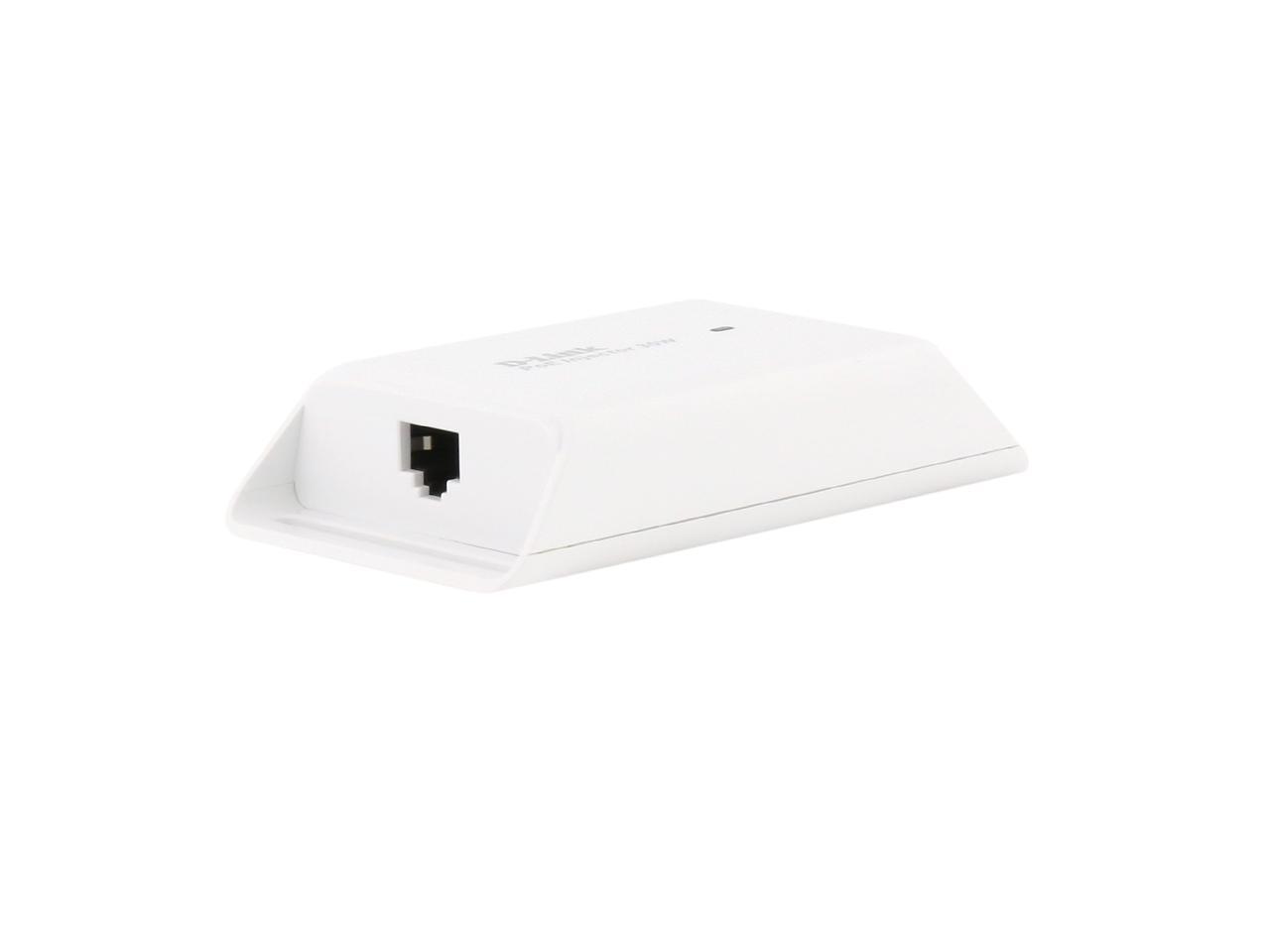

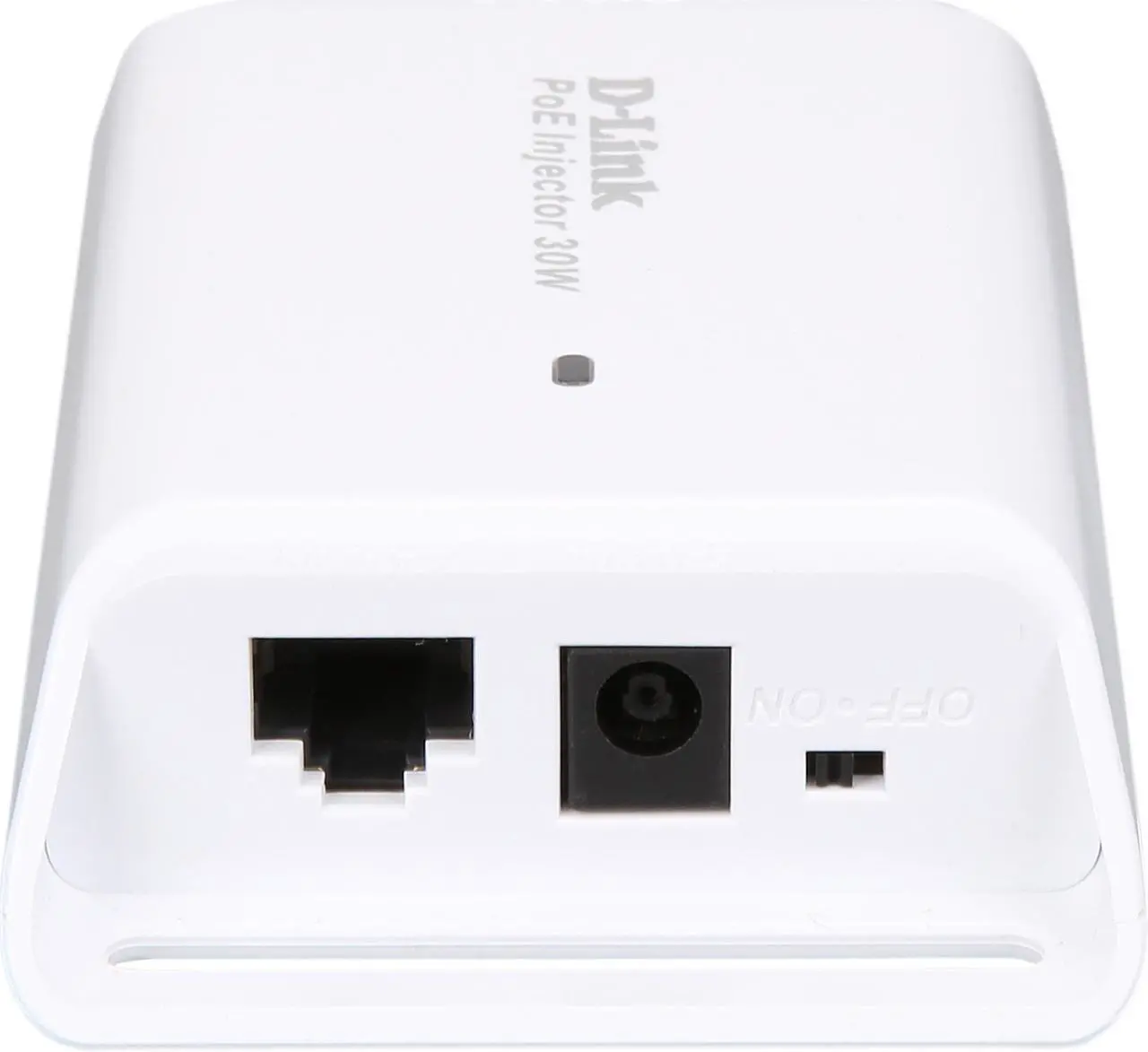

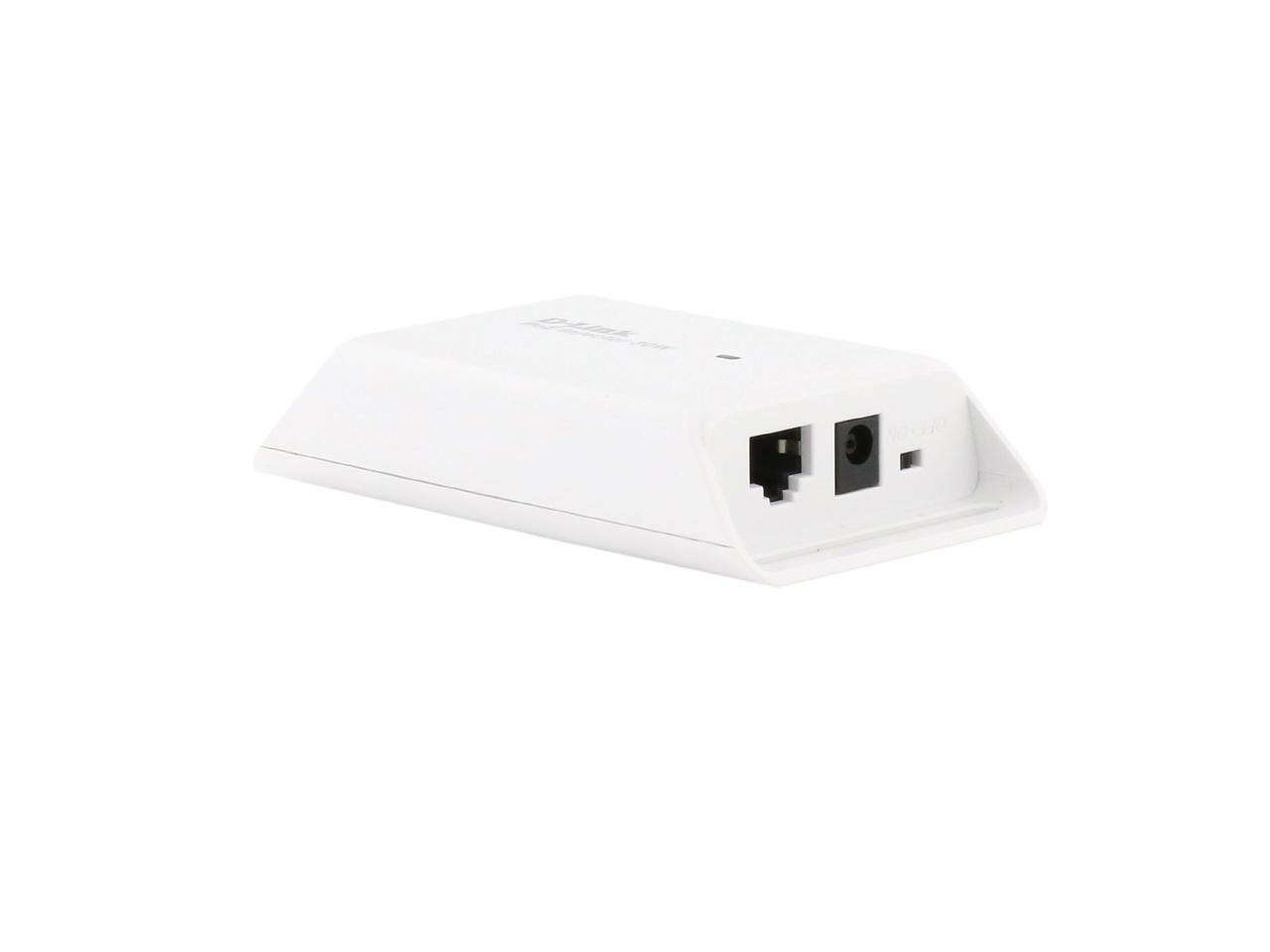

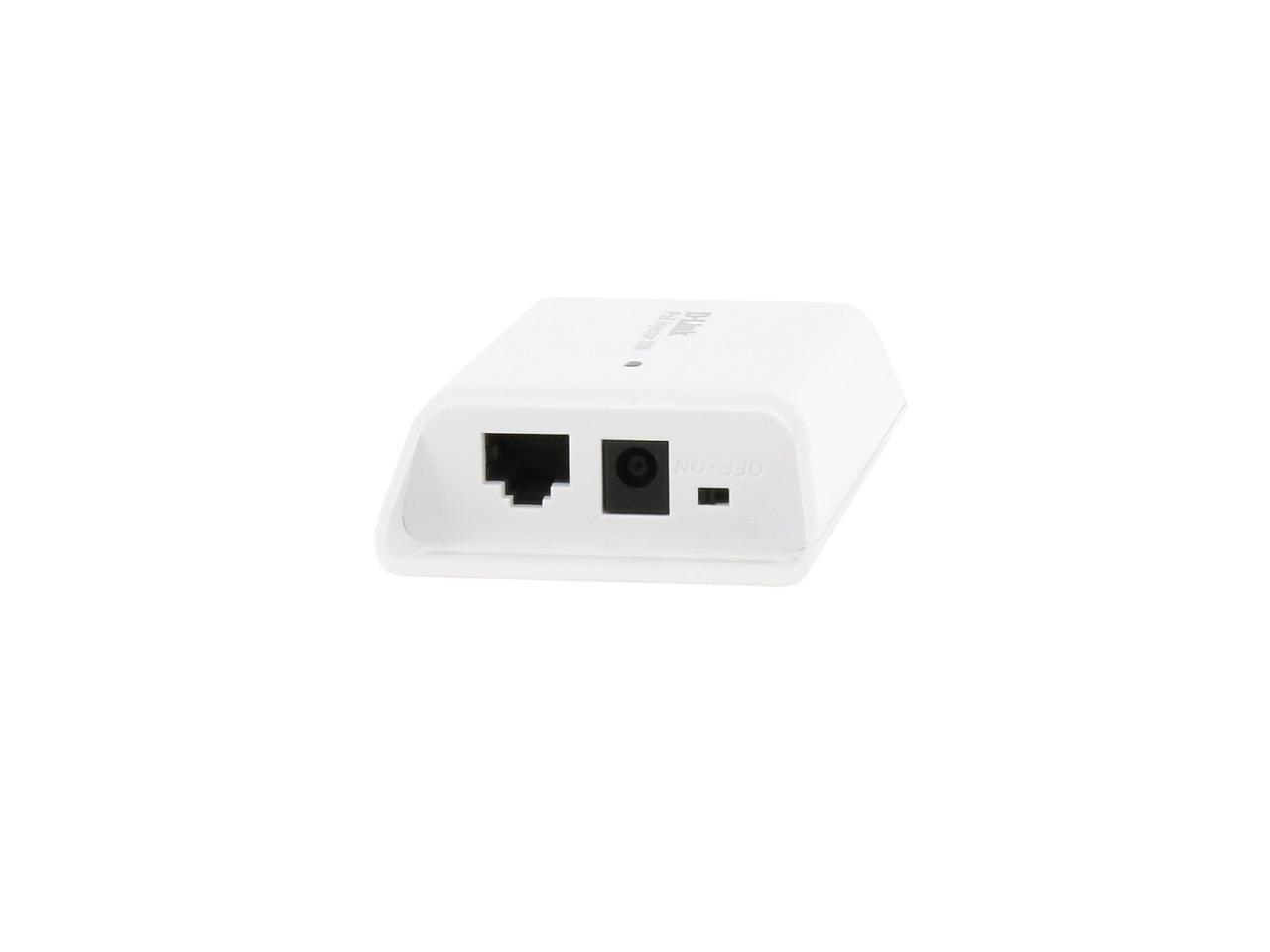

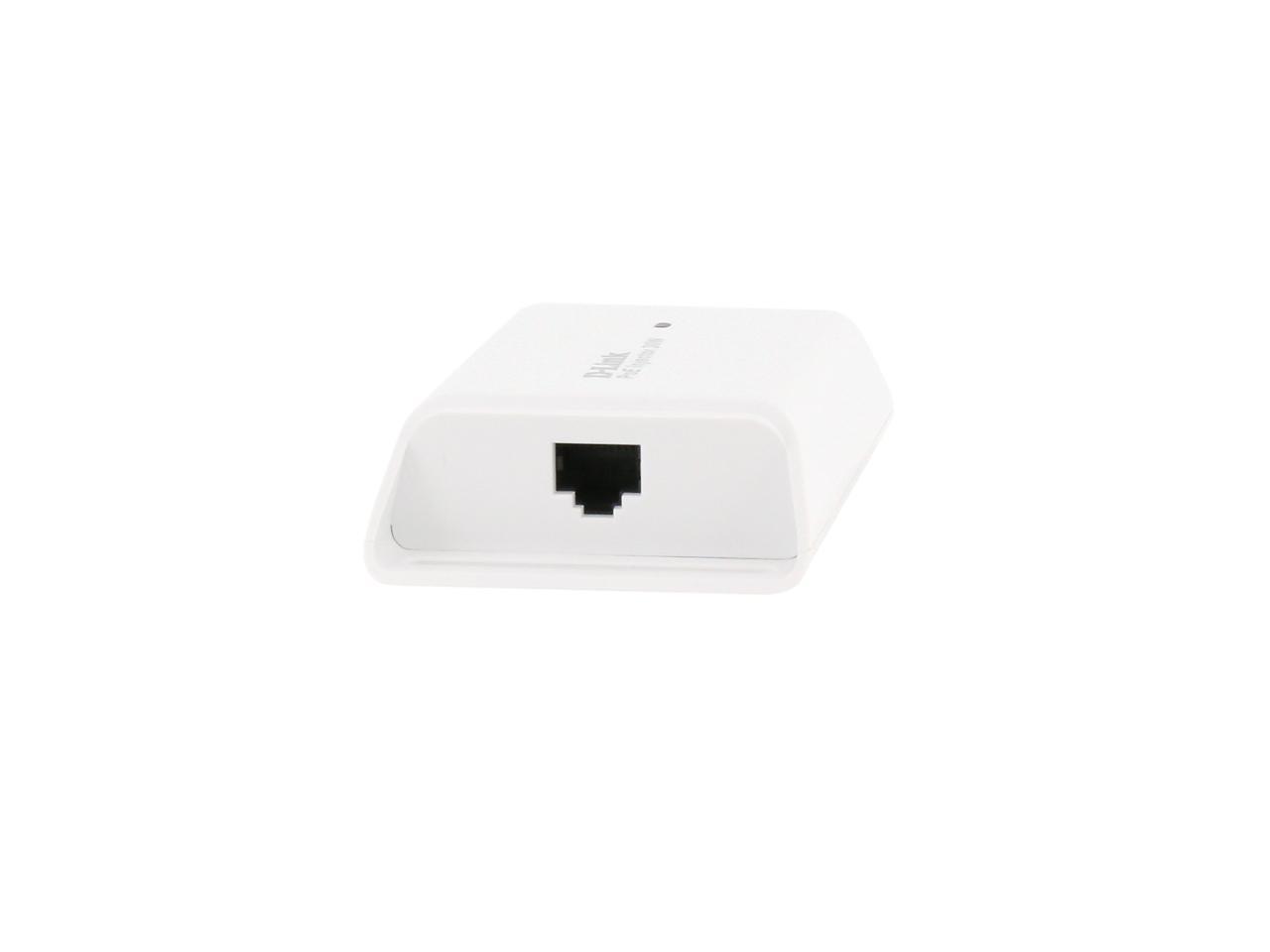

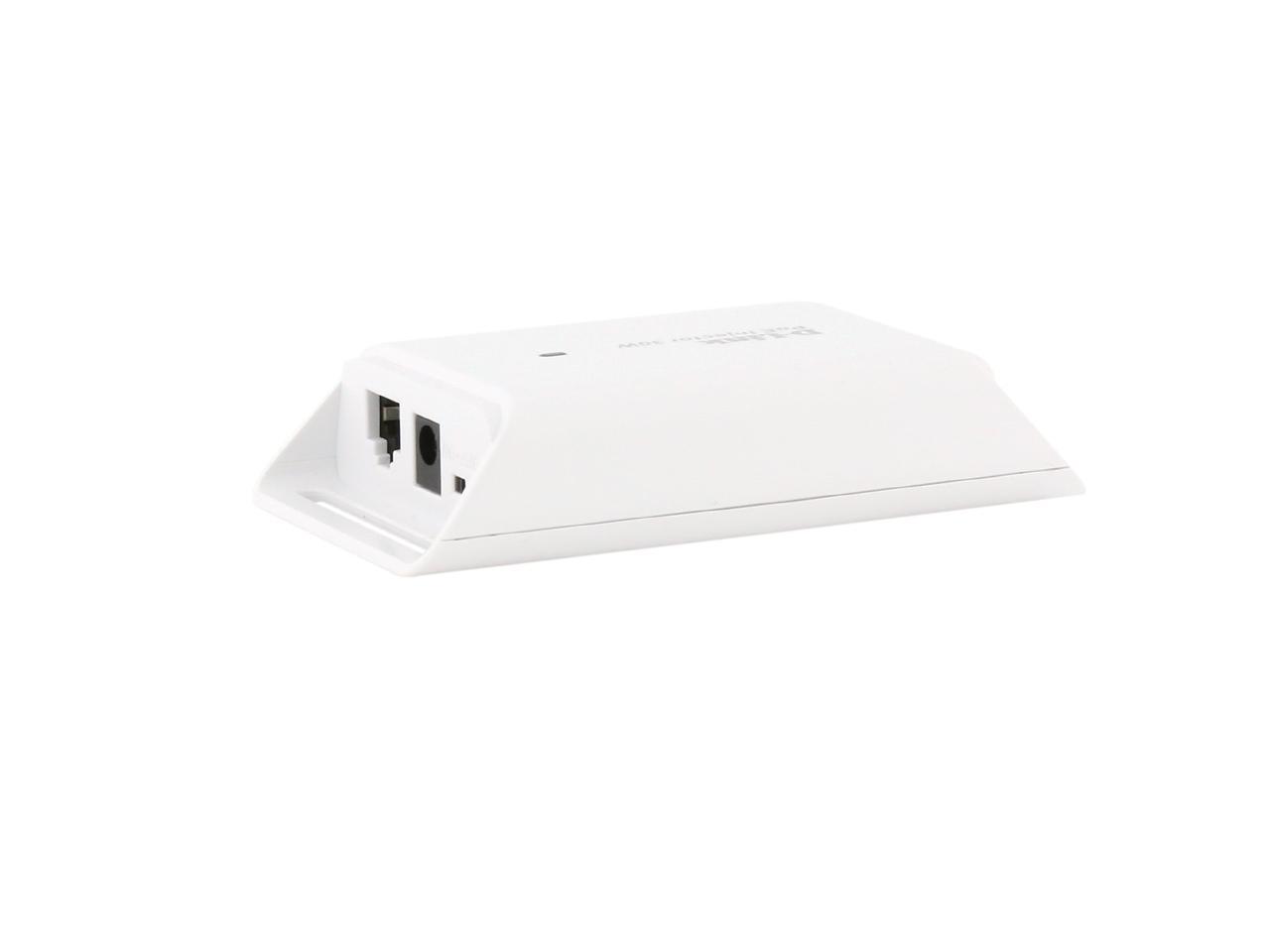

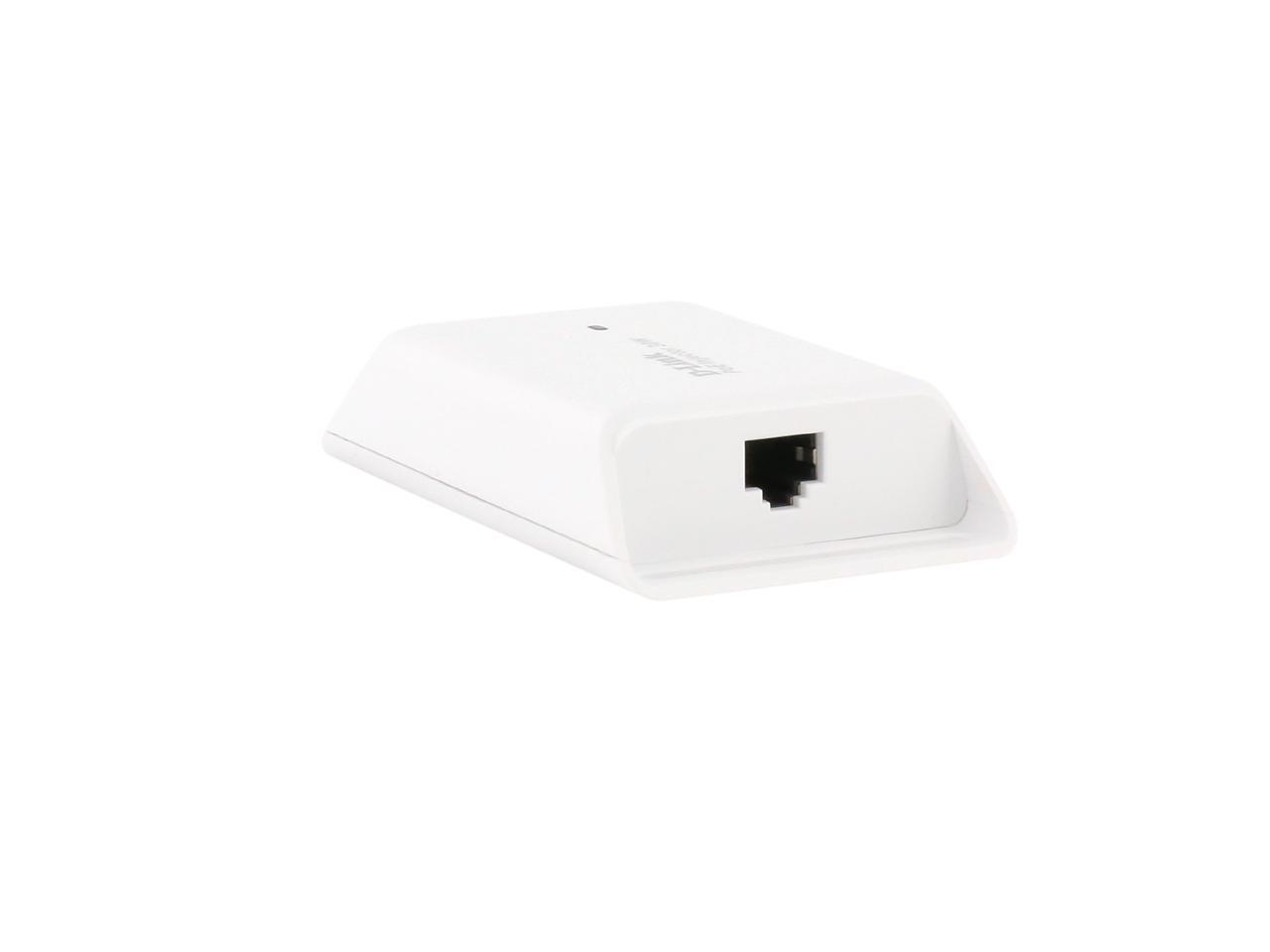

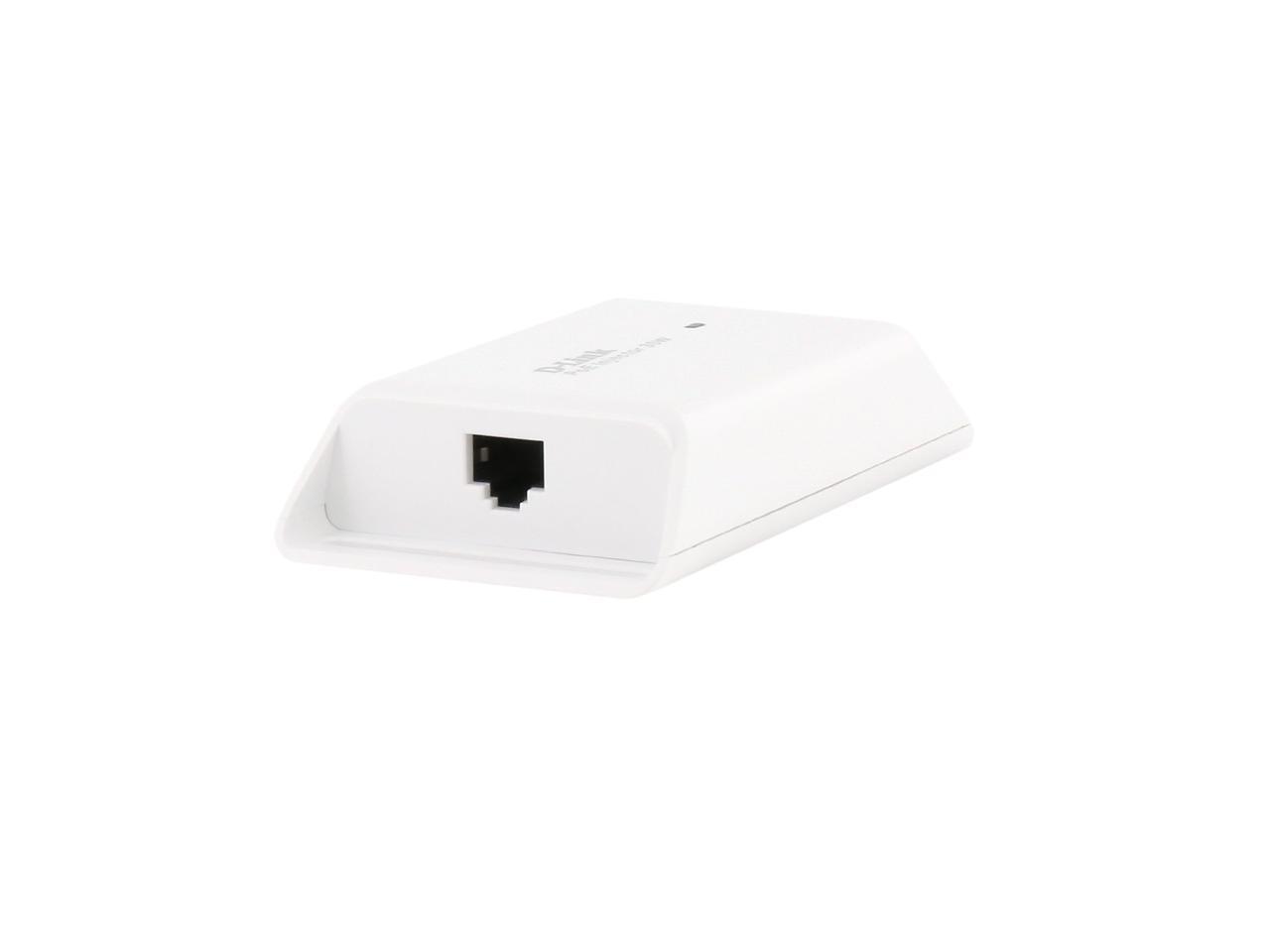

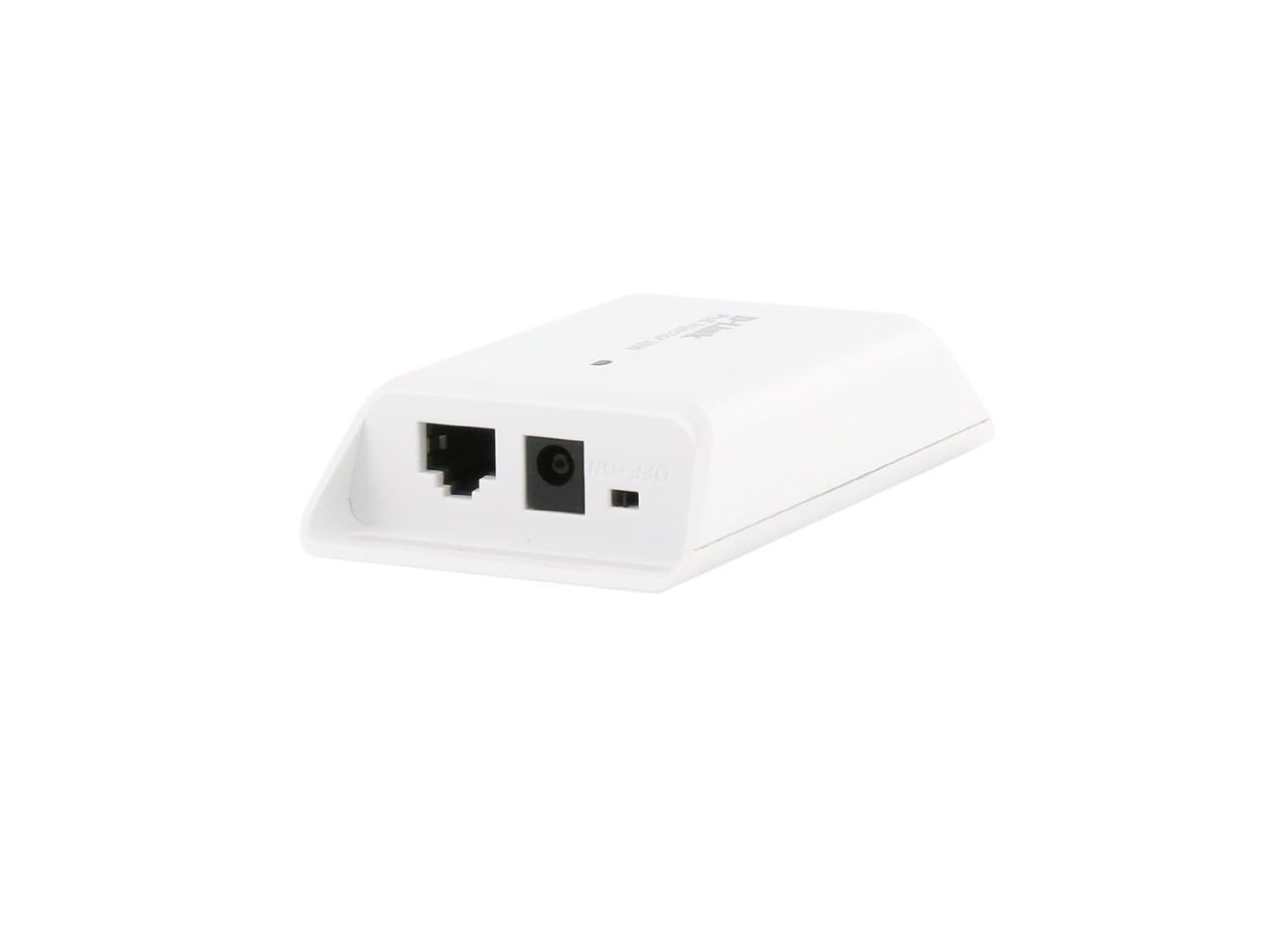

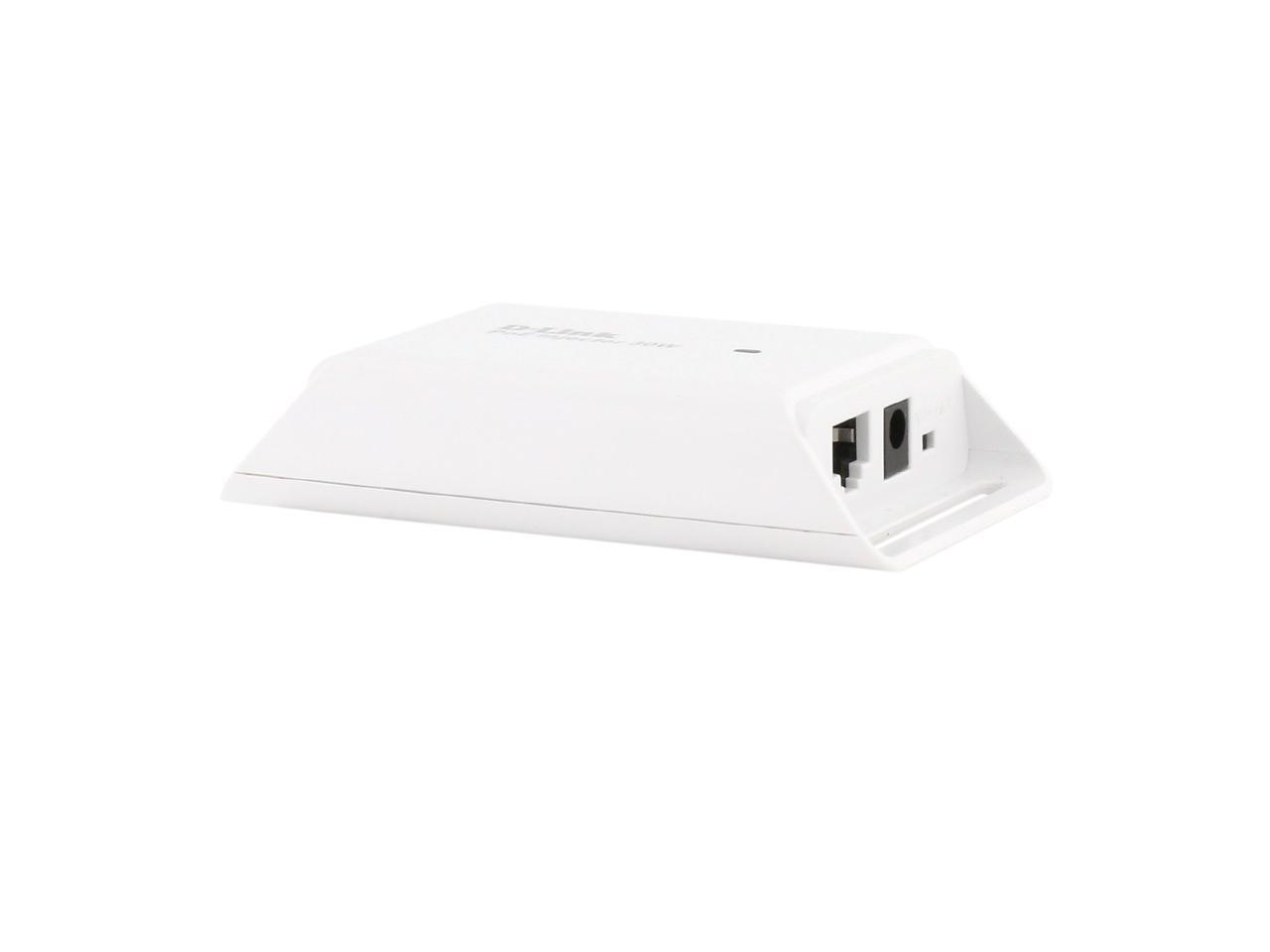

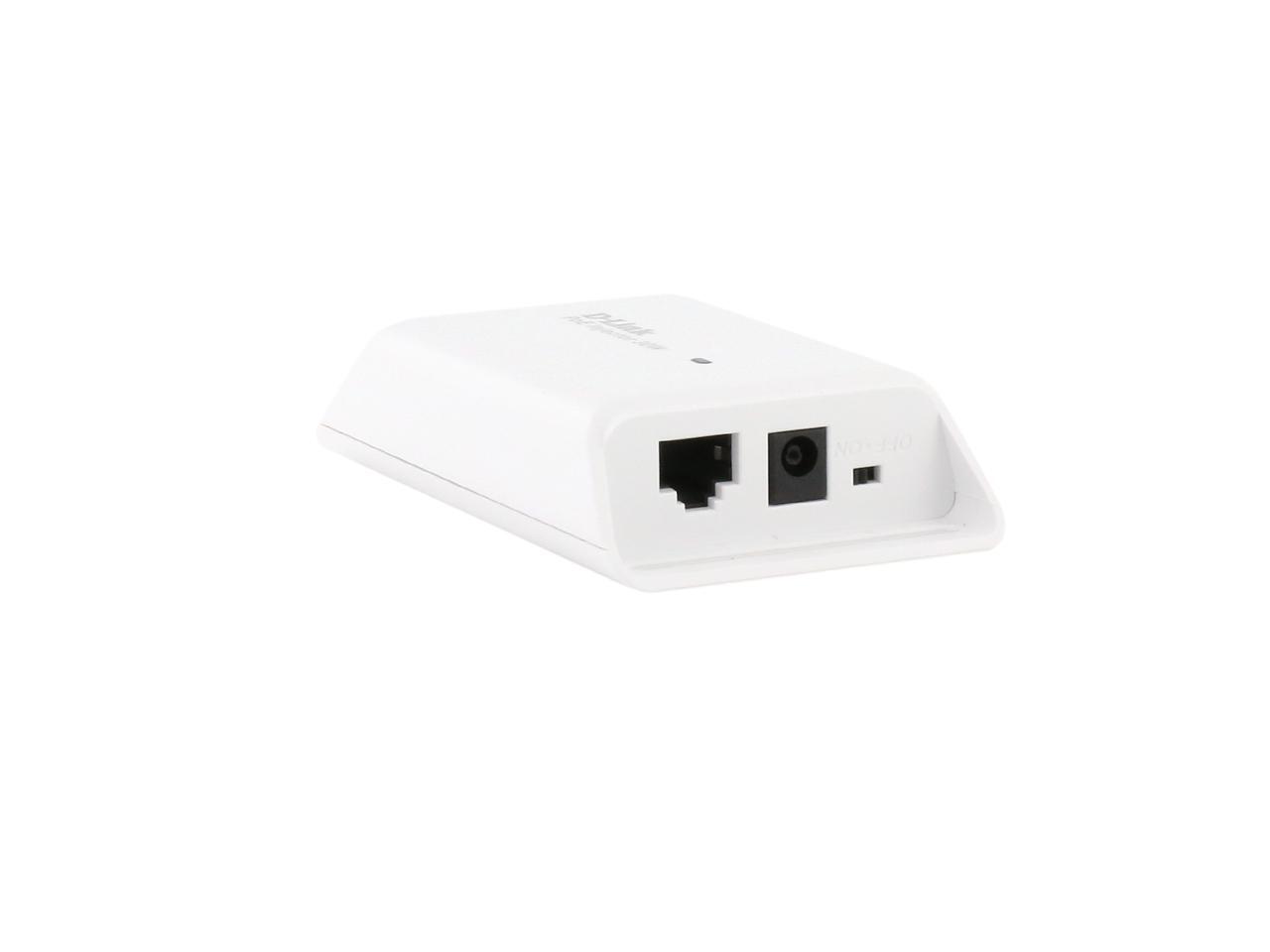

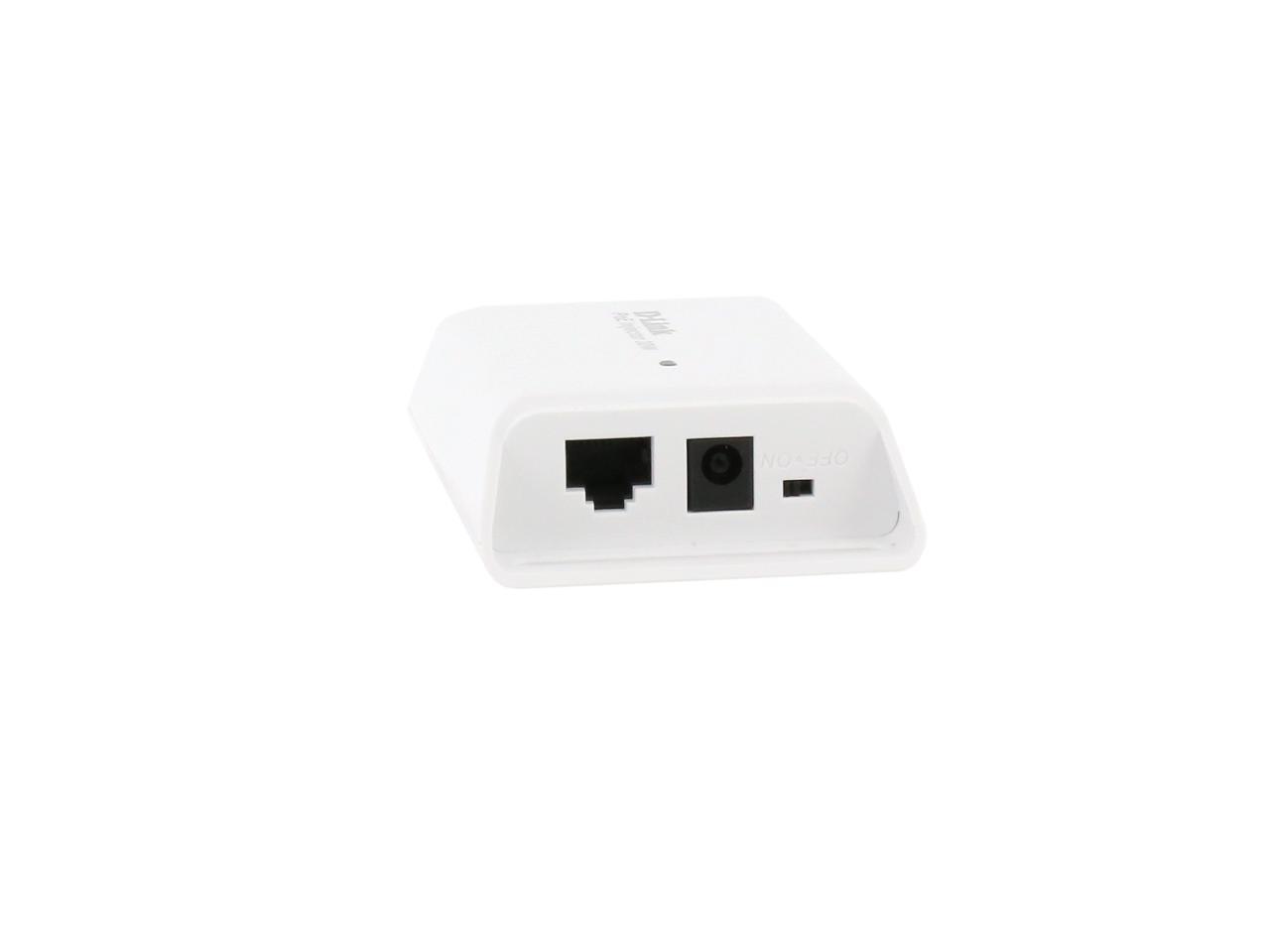

Also known as a "midspan PSE", the DPE-301GI PoE injector can be used when deploying a multi-port PoE switch is impractical or not feasible. It has two 10/100/1000 RJ-45 ports. One port is for LAN IN, which is the network connection,typically connected to a non-PoE switch or router. The other port isfor PoE OUT, which is the connection that provides both power and data signal to the end device (PD). The DPE-301GI can be located anywhere on the Ethernet link, although it’s typically placed near the switch/router.
