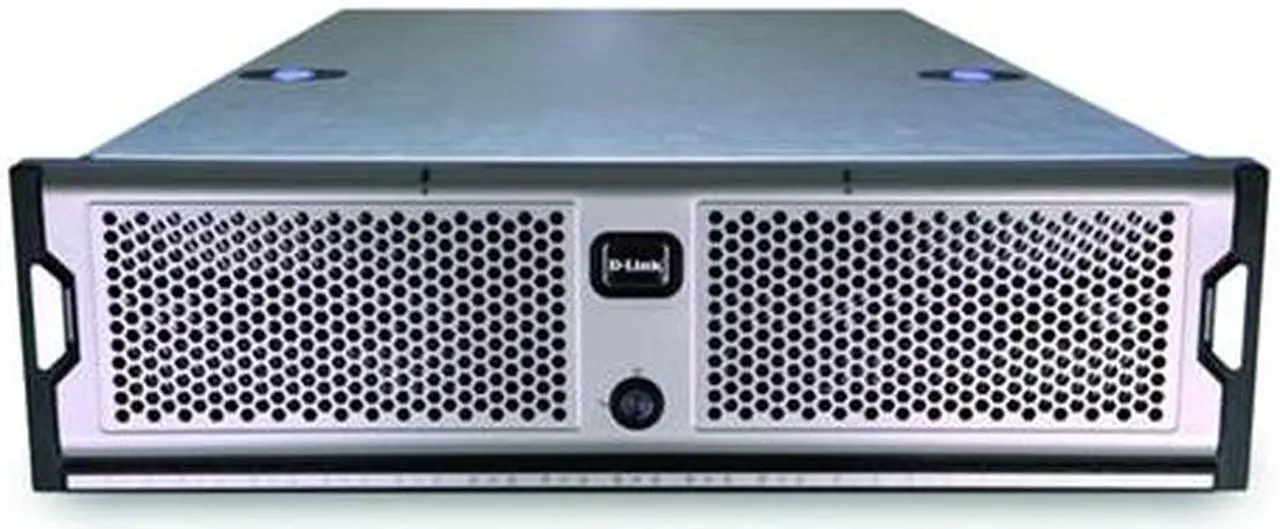

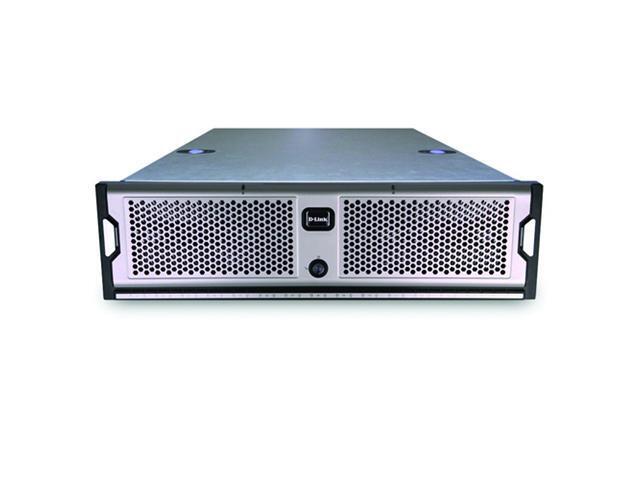

D-Link DSN-3200-10 Diskless System xStack Storage 8x1GbE iSCSI SAN Array with 15 SATA Bays
- 3U
- Diskless System
- 8 x 10/100/1000M
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
iSCSI for IP NetworksStorage Area Network (SAN) has been traditionally reserved for Fibre Channel networks until the recent introduction of iSCSI that extends this powerful yet simple centralized backend (behind server-based) storage system to IP networks. By utilizing existing Ethernet technology, the cost associated with separate host bus adapters and the per-Gigabyte cost for storage is significantly reduced. iSCSI SANs leverage the Ethernet infrastructure and standards that are already familiar to most IT personnel.
Host Interface – Eight 1GbEThe DSN-3200-10 supports Multi-path I/O (MPIO), Multiple Connections per Session (MCS), and Link Aggregation Groups (LAG) for unmatched network flexibility, performance and resiliency, allowing its eight 1GbE data ports to be grouped together for up to 850MB/s bandwidth.
System-on-a-Chip (SoC) ImplementationBy utilizing a SoC design, the DSN-3200-10 SAN Array combines both networking and storage functions into a single specialized Application Specific Integrated Circuit (ASIC). The SoC solution combines 10Gbps iSCSI, TCP & IP offload, embedded processors, and a storage virtualization firmware stack onto a single chip. The tight integration of these functions eliminate interoperability, timing, and support issues found in competitive products that offer “discrete implementation” wherein a chassis, a main motherboard, a RAID storage controller, iSCSI software or controller, network interface cards, and operating system software are picked separately and then assembled.
RAID for EfficiencyThe DSN-3200-10 SAN Array platform features 15 hot swappable Serial ATA (SATA) disk drive bays supporting 30TB raw capacity using 2TB hard drives (and even higher capacity hard drives as they are introduced) in RAID level 0, 1, 1+0 and 5 configurations (striped sets, mirrored sets, striped mirrored sets and parity sets) for data protection and performance.
Embedded Centralized Storage ManagementThe embedded user-friendly IP-SAN Device Manager (IDM) provides comprehensive storage network management. Boasting a rich set of management features, this suite of utilities allows monitoring and control of your SAN via the SMI-S (Storage Management Initiative) command set. Combined with an embedded secure server, users will be able to remotely configure and monitor their SAN storage subsystems.
Advanced Management FeaturesThe DSN-3200-10 SAN Array provides additional advanced features including Cache Management, VLAN Zoning, Volume Virtualization, Online Capacity Expansion & RAID Level Migration and Micro Rebuild for efficient management of network storage and optimal performance.
iSCSI for IP NetworksStorage Area Network (SAN) has been traditionally reserved for Fibre Channel networks until the recent introduction of iSCSI that extends this powerful yet simple centralized backend (behind server-based) storage system to IP networks. By utilizing existing Ethernet technology, the cost associated with separate host bus adapters and the per-Gigabyte cost for storage is significantly reduced. iSCSI SANs leverage the Ethernet infrastructure and standards that are already familiar to most IT personnel.
Host Interface – Eight 1GbEThe DSN-3200-10 supports Multi-path I/O (MPIO), Multiple Connections per Session (MCS), and Link Aggregation Groups (LAG) for unmatched network flexibility, performance and resiliency, allowing its eight 1GbE data ports to be grouped together for up to 850MB/s bandwidth.
System-on-a-Chip (SoC) ImplementationBy utilizing a SoC design, the DSN-3200-10 SAN Array combines both networking and storage functions into a single specialized Application Specific Integrated Circuit (ASIC). The SoC solution combines 10Gbps iSCSI, TCP & IP offload, embedded processors, and a storage virtualization firmware stack onto a single chip. The tight integration of these functions eliminate interoperability, timing, and support issues found in competitive products that offer “discrete implementation” wherein a chassis, a main motherboard, a RAID storage controller, iSCSI software or controller, network interface cards, and operating system software are picked separately and then assembled.
RAID for EfficiencyThe DSN-3200-10 SAN Array platform features 15 hot swappable Serial ATA (SATA) disk drive bays supporting 30TB raw capacity using 2TB hard drives (and even higher capacity hard drives as they are introduced) in RAID level 0, 1, 1+0 and 5 configurations (striped sets, mirrored sets, striped mirrored sets and parity sets) for data protection and performance.
Embedded Centralized Storage ManagementThe embedded user-friendly IP-SAN Device Manager (IDM) provides comprehensive storage network management. Boasting a rich set of management features, this suite of utilities allows monitoring and control of your SAN via the SMI-S (Storage Management Initiative) command set. Combined with an embedded secure server, users will be able to remotely configure and monitor their SAN storage subsystems.
Advanced Management FeaturesThe DSN-3200-10 SAN Array provides additional advanced features including Cache Management, VLAN Zoning, Volume Virtualization, Online Capacity Expansion & RAID Level Migration and Micro Rebuild for efficient management of network storage and optimal performance.Warranty & Returns
