Can anyone get the blocked keyword list to upload? It always says operation failed. I am on firmware 2.02_WW.

reset it and try with factory default...

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

More Resources

Manufacturer Brochure

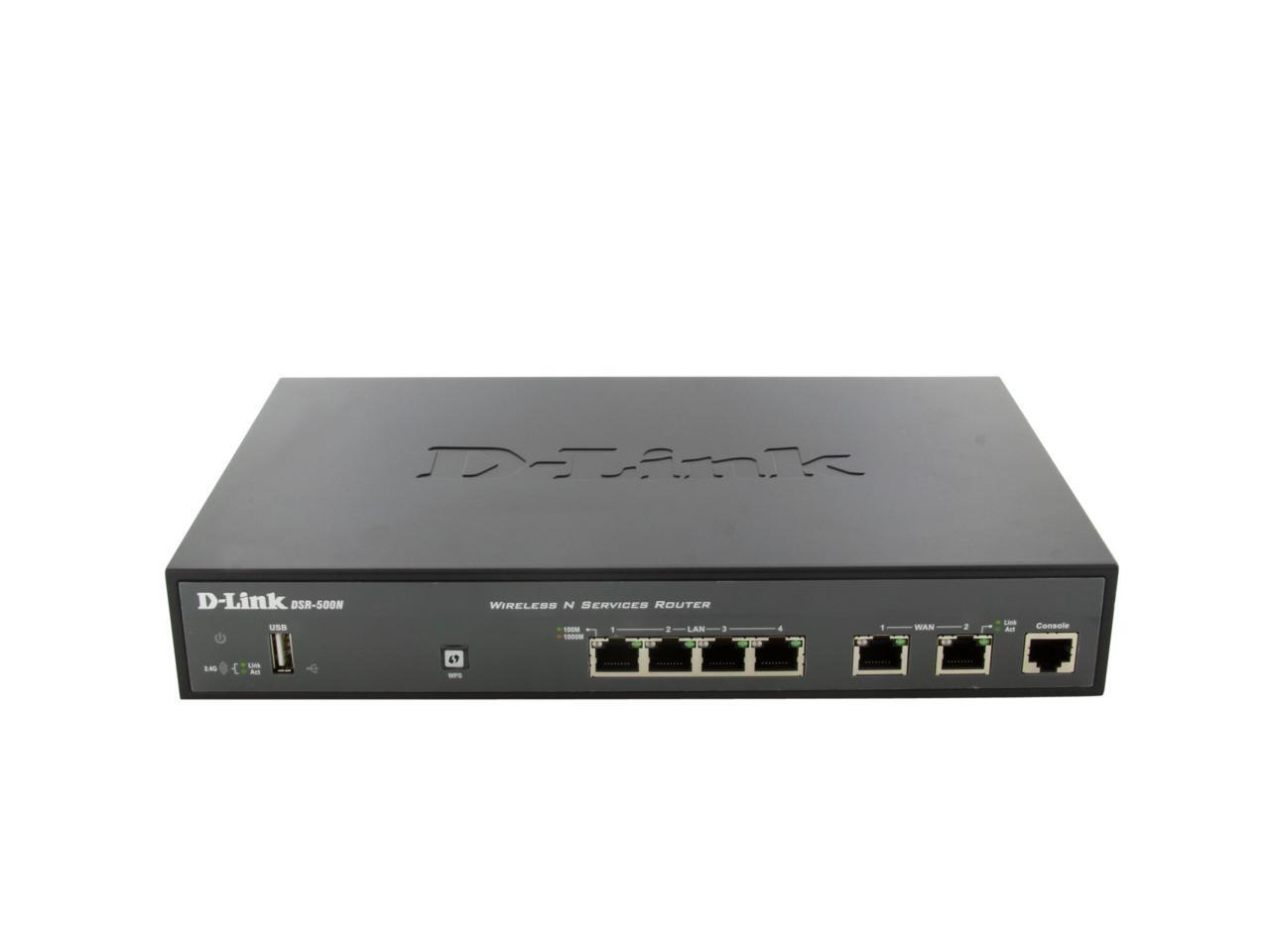

Main image of D-Link DSR-500N Dual Wan 4-Port Gigabit Wireless VPN Router with Dynamic Web Content Filtering

100%

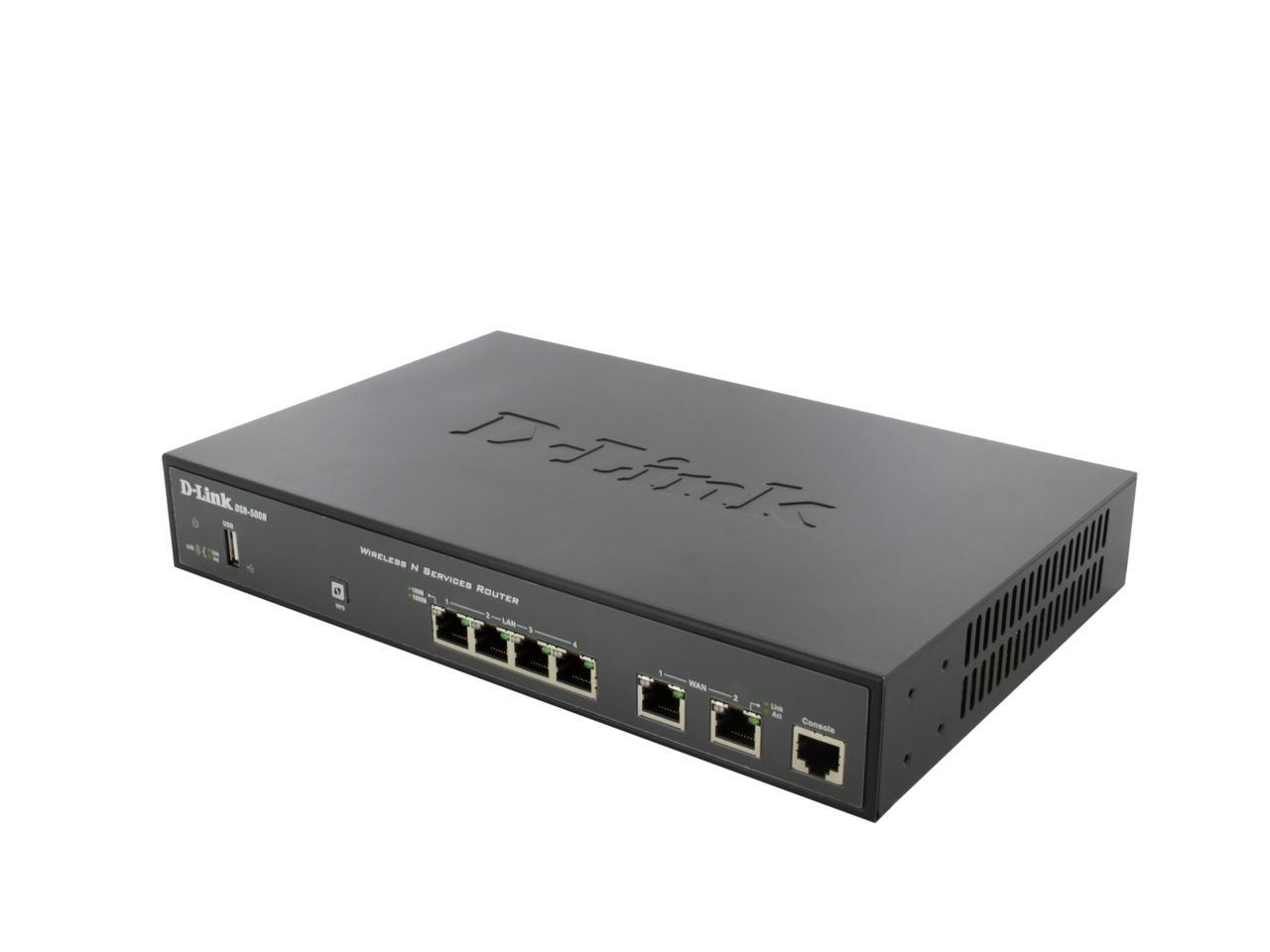

Alt view image 2 of 5 - D-Link DSR-500N Dual Wan 4-Port Gigabit Wireless VPN Router with Dynamic Web Content Filtering

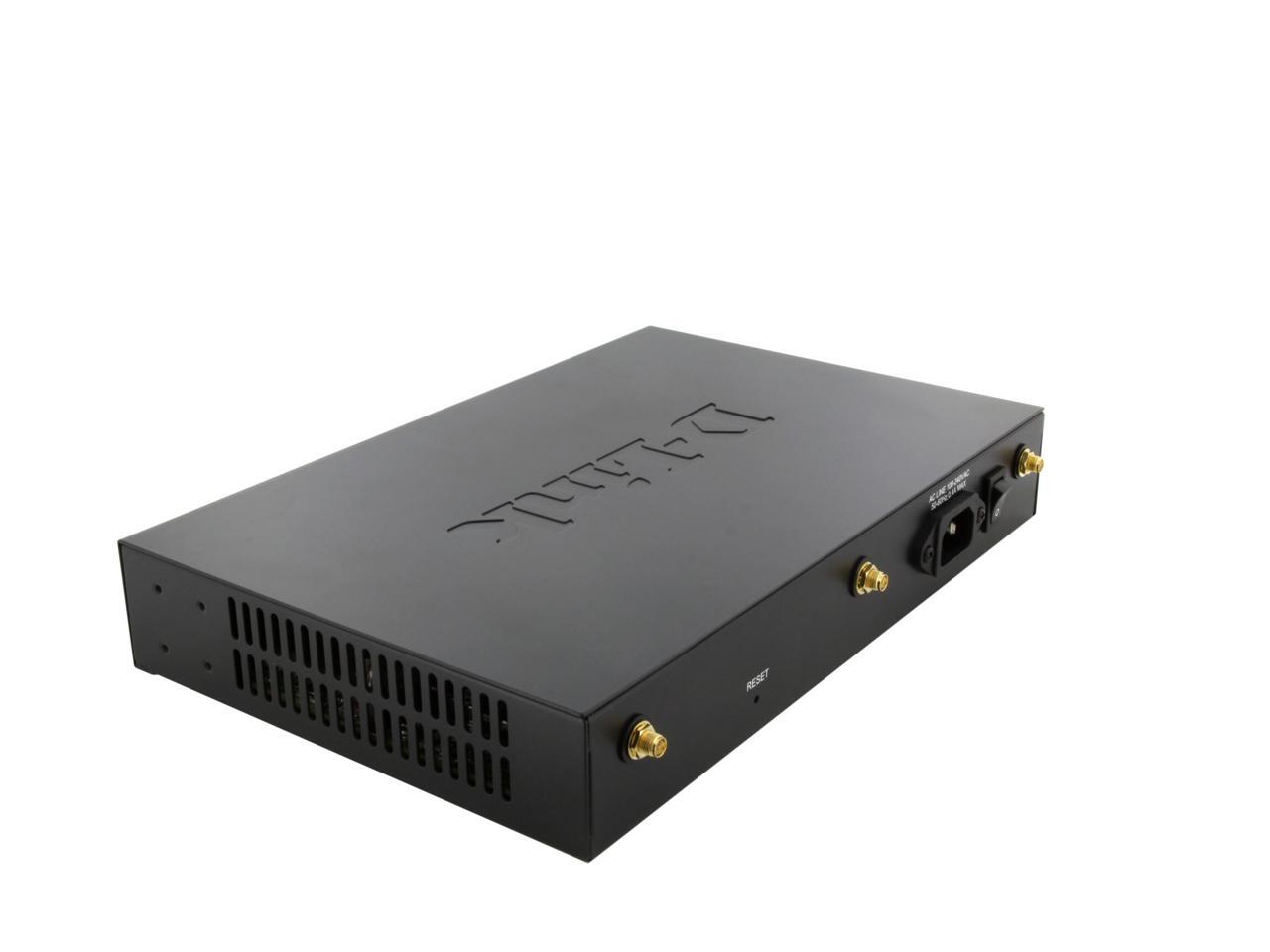

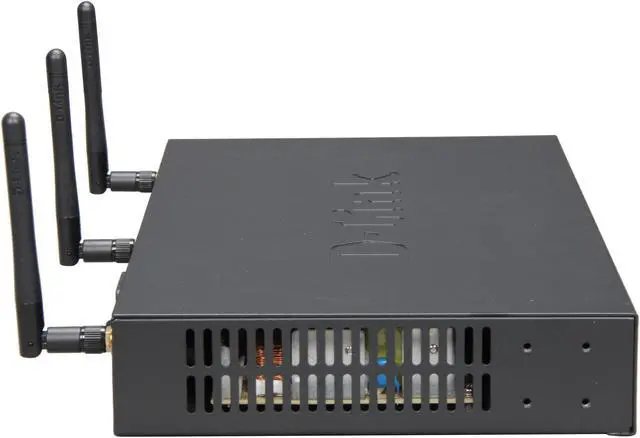

Alt view image 3 of 5 - D-Link DSR-500N Dual Wan 4-Port Gigabit Wireless VPN Router with Dynamic Web Content Filtering

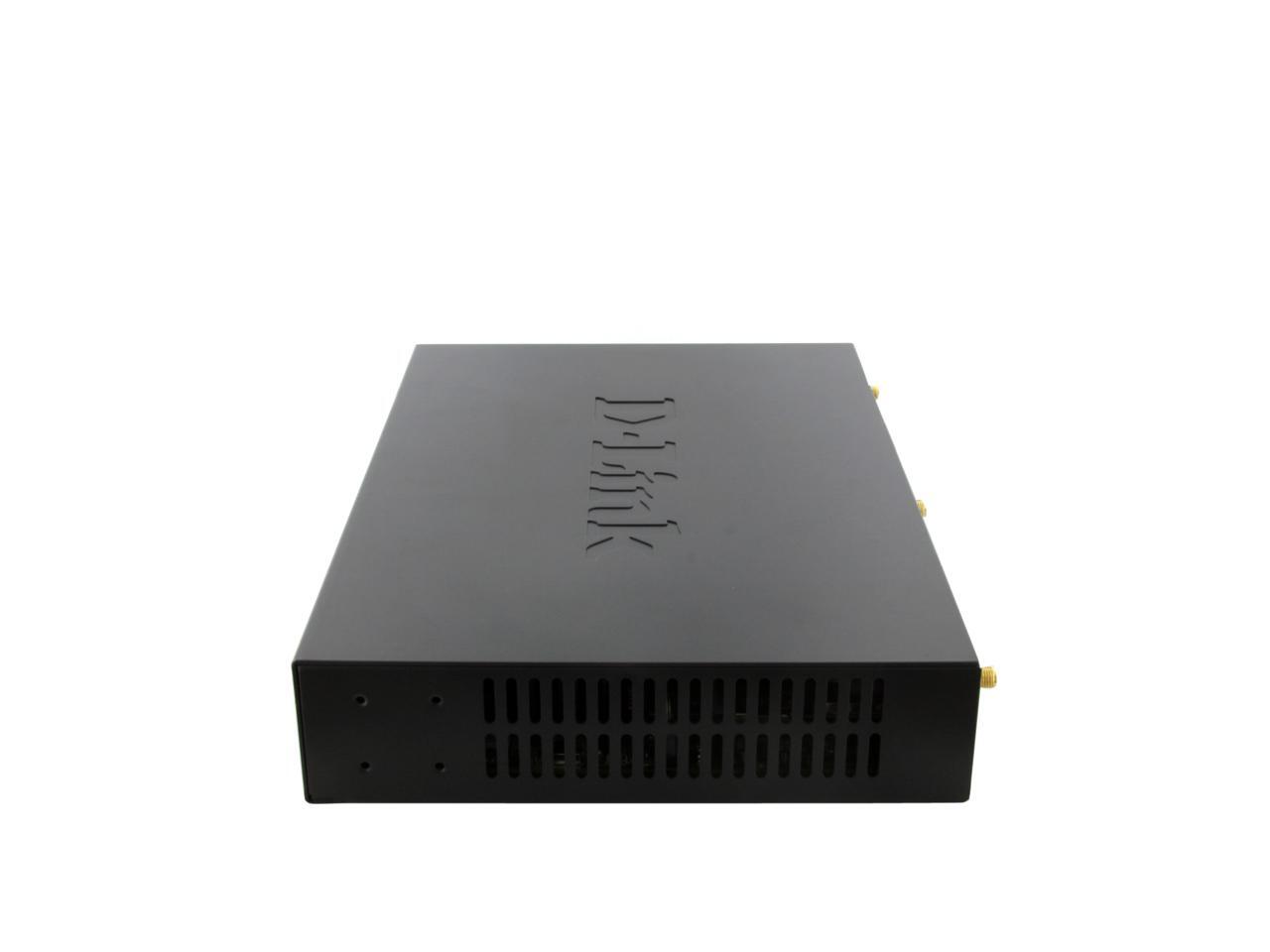

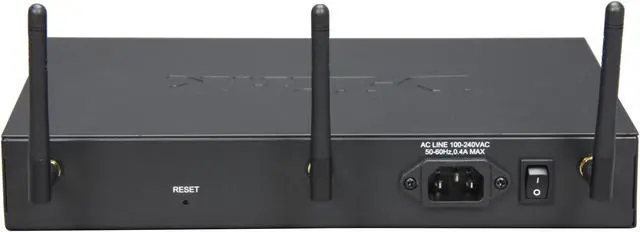

Alt view image 4 of 5 - D-Link DSR-500N Dual Wan 4-Port Gigabit Wireless VPN Router with Dynamic Web Content Filtering

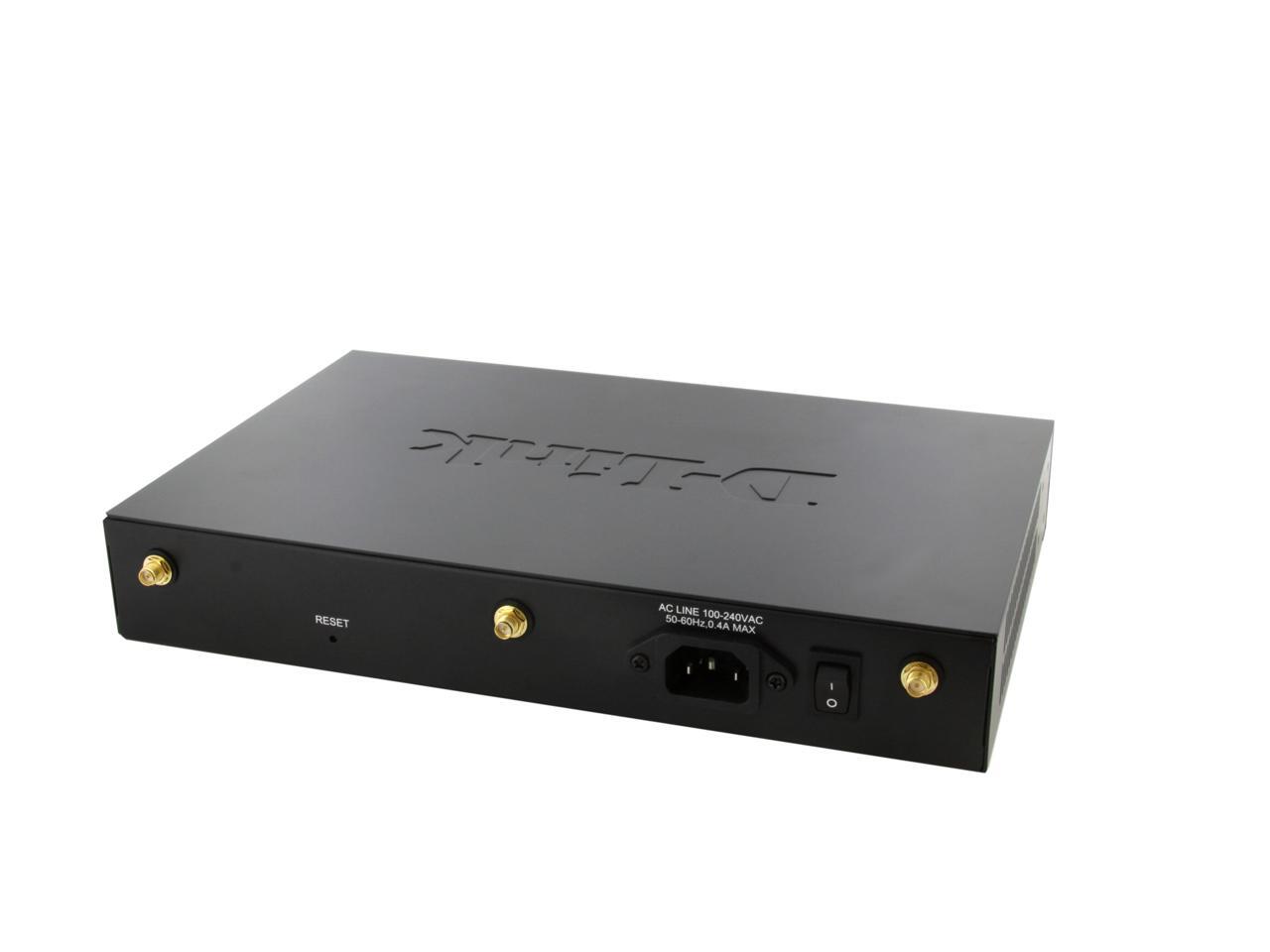

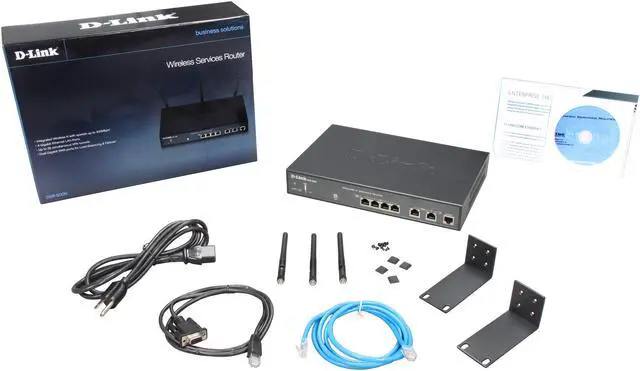

Alt view image 5 of 5 - D-Link DSR-500N Dual Wan 4-Port Gigabit Wireless VPN Router with Dynamic Web Content Filtering

360^°

Shop All D-Link Products

D-Link DSR-500N Dual Wan 4-Port Gigabit Wireless VPN Router with Dynamic Web Content Filtering

(7) Write a Review

Integrated 802.11b/g/n wireless up to 300Mbps
4 Gigabit Ethernet LAN Ports, Dual Gigabit WAN Port
Load Balancing and Failover
Up to 85 VPN Tunnel (35 IPSec; 25 PPTP/L2TP; 10 SSL; 15 GRE)

Overview

Specs

Reviews (7)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	D-Link
Model	DSR-500N

Details
Standards	IEEE 802.11b/g/n
Security	WEP, WPA-PSK, WPA-EAP, WPA2-PSK, WPA2-EAP
WPA	WPA2
WAN Ports	2 x 10/100/1000M
LAN Ports	4 x 10/100/1000M
Wireless Data Rates	Up to 300Mbps
Frequency Band	2.4 GHz
Antenna	3 x Detectable 2dBi Omni-Directional Antennas
Interface	USB 2.0, 1 x RJ-45 Console
VPN support	PPTP, L2TP, IPSec
Power Supply	Internal Power Supply Unit DC 12 V/ 2.5A
Dimensions	1.73" x 11" x 7.09"
Weight	2.0 lbs.
Temperature	0°C - 40°C (32°F - 104°F)
Humidity	5% - 95%, Non-Condensing

Features
Features	Firewall Throughput: 70Mbps VPN Throughput: 35Mbps Concurrent Sessions: 30000 Static / Dynamic IP: Yes PPPoE/ L2TP/ PPTP: Yes Multiple PPPoE: Yes Firewall System: Static Route: Yes Dynamic Route: RIPv1, RIP v2, OSPF Inter-VLAN Route: Yes Dynamic DNS: Yes NAT, PAT: Yes Web Content Filtering: Static URL, Keywords Intrusion Prevention System (IPS): Signature package included in Firmware DHCP Server/ Client: Yes DHCP Relay: Yes IEEE 802.1q VLAN: Yes VLAN: Port Based IP Multicast: IGMP Proxy IPv6: Yes Route Failover: Yes Outbound Load Balancing: Yes (Available with future firmware upgrade) Multiple Service Set Identifier (SSID) Service Set Identified (SSID) to VLAN Mapping VPN: VPN Tunnels: 35 Encryption Methods: DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL IPSec/PPTP/L2TP Server IPSec NAT Traversal Dead Peer Detection IP Encapsulating Security Payload (ESP) IP Authentication Header (AH) VPN Tunnel Keep Alive Hub and Spoke SSL VPN Tunnels: 10 Max. Bandwidth Control: Yes Priority Bandwidth Control: Port-Based QoS (3 Classes)

Additional Information
First Listed on Newegg	February 09, 2011
