D-Link DWL-2100AP High Speed Wireless 108Mbps Access Point

Name: D-Link DWL-2100AP High Speed Wireless 108Mbps Access Point
Brand: D-Link
SKU: N82E16833127138
Rating: 4 (42 reviews)

Overview

Specs

Reviews (42)

Any questions? Our AI beta will help you find out quickly.

Try me now

Warranty & Returns

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

Standards	IEEE 802.3/3u, IEEE 802.11b/g
Device Management	Web-Based – Internet Explorer v6 or later; Netscape Navigator v6 or later; or other Java- enabled browsers. SNMP v.3
Wireless Data Rates	Up to 108Mbps
Security	64, 128, 152-bit WEP. 802.1X (EAP-MD5, EAP-TLS, EAP-TTLS and EAP-PEAP). WPA —Wi-Fi Protected Access. MAC Address Access Control (WPA-TKIP and WPA-AES).
Frequency Band	2.4 GHz - 2.4835 GHz
Antenna	1 x detachable antenna
Transmitted Power	15dBm (32mW) ± 2dB (Control TX power level from full, 50%, 25%, 125% and min.)
Receiver Sensitivity	54Mbps OFDM, 10% PER,-66dBm) 48Mbps OFDM, 10% PER,-71dBm 36Mbps OFDM, 10% PER,-76dBm 24Mbps OFDM, 10% PER,-80dBm 18Mbps OFDM, 10% PER,-83dBm 12Mbps OFDM, 10% PER,-85dBm 11Mbps CCK, 8% PER,-83dBm 9Mbps OFDM, 10% PER,-86dBm 6Mbps OFDM, 10% PER,-87dBm 2Mbps QPSK, 8% PER,-89dBm
Operating Range	Indoors: Up to 328 ft (100 meters) Outdoors: Up to 1312 ft (400 meters)
Modulation	Orthogonal Frequency Division Multiplexing (OFDM) Complementary Code Keying (CCK) DQPSK DBPSK
Interface	Ethernet Port

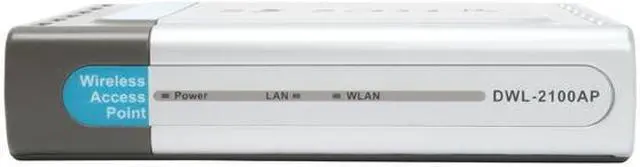

LEDs	Power, LAN (10/100), WLAN (Wireless Connection)
WAN Ports	1 x 10/100M
Power Supply	Ext. Power Supply DC 5V, 2.0A

Temperature	0°C - 40°C (32°F - 104°F)
Humidity	95% Maximum, Non-Condensing

Dimensions	5.6" x 4.3" x 1.2"
Weight	0.44 lbs.

Model
Brand	D-Link
Model	DWL-2100AP
