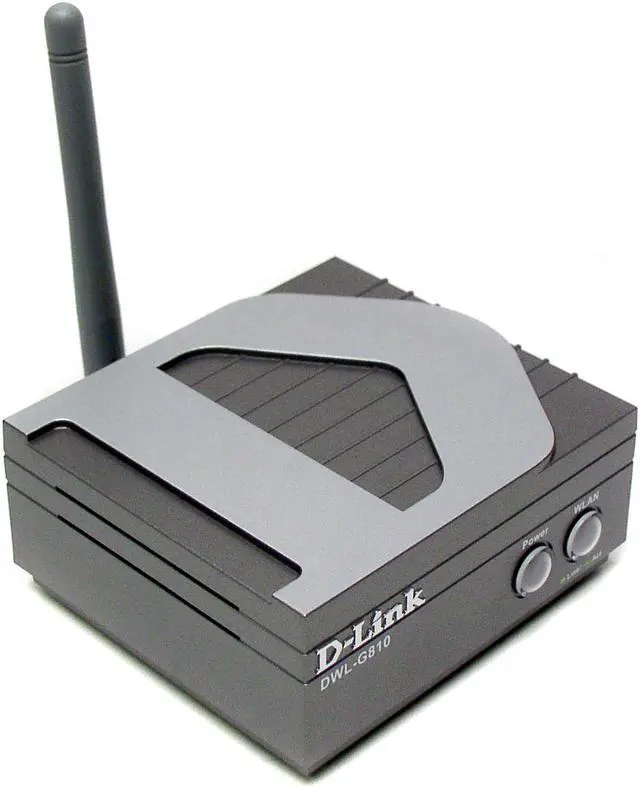

D-Link DWL-G810 AirPlus XtremeG High-Speed 802.11g Wireless Bridge

Name: D-Link DWL-G810 AirPlus XtremeG High-Speed 802.11g Wireless Bridge
Brand: D-Link
SKU: N82E16833127131
Rating: 3 (6 reviews)

Specs

Reviews (6)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the D-Link DWL-G810

Model
Brand	D-Link
Model	DWL-G810

Details
Standards	IEEE 802.11g IEEE 802.11b IEEE 802.11 IEEE 802.3 IEEE 802.3u
Device Management	Web-Based – Internet Explorer v6 or later; Netscape Navigator v6 or later; or other Java- enabled browsers.
Wireless Data Rates	Super G: 108Mbps
Security	64-128 WEP WPA2 Wi-Fi Protected Access (WPA-PSK)
Frequency Band	2.4 GHz - 2.4835 GHz
Antenna	1.0dB gain with reverse SMA connector
Transmitted Power	15 dBm (32 mW) ± 2dB
Receiver Sensitivity	54 Mbps OFDM, 10% PER, -68 dBm 48 Mbps OFDM, 10% PER, -68 dBm 36 Mbps OFDM, 10% PER, -75 dBm 24 Mbps OFDM, 10% PER, -79 dBm 18 Mbps OFDM, 10% PER, -82 dBm 12 Mbps OFDM, 10% PER, -84 dBm 11 Mbps CCK, 8% PER, -82 dBm 9 Mbps OFDM, 10% PER, -87 dBm 6 Mbps OFDM, 10% PER, -88 dBm 5.5 Mbps CCK, 8% PER, -85 dBm 2 Mbps QPSK, 8% PER, -86 dBm 1 Mbps BPSK, 8% PER, -89 dBm
Operating Range	Indoor: Up to 328 feet, Outdoor: Up to 1312 feet
Modulation	Orthogonal Frequency Division Multiplexing (OFDM) Complementary Code Keying (CCK)
Power Supply	Ext. Power Supply DC 5V, 2.0A

Environmental
Temperature	0°C to 55°C
Humidity	95% Maximum, Non-Condensing

Dimensions & Weight
Dimensions	3.5" x 3.2" x 1.6"
Weight	0.34 lbs

Features
Features	Adds 802.11g Wireless Connectivity to Ethernet-enabled Devices No Software Installation Required Ideal for Ethernet-enabled Media Set-Top Boxes and Network Printers Backward Compatible with 802.11b

Additional Information
Date First Available	November 24, 2003
