Datalogic Gryphon GBT4430 2D General Purpose Cordless Handheld Area Imager Barcode Reader with Bluetooth, USB Kit, Black - GBT4430-BK-BTK1

Be the first to review this product...

Top reading performance on 1D, 2D, postal codes, stacked & composite codes, up to 30m/98ft range
User-replaceable & long lasting Lithium-Ion battery
Datalogic’s Motionix motion-sensing technology enables the scanner to intuitively switch between handheld and stand modes, eliminating the need to scan a code or to rely on a mechanical switch to make this change
The scanner also features Datalogic’s patented ‘Green Spot’ for additional good read confirmation by placing a green spot directly on the code
Lightweight & comfortable to use, the steady, dim, deep red illumination light is much easier on the eyes than other similar products with flicker illumination, even during extended periods of use
The highly visible 4-Dot aimer clearly defines the reading zone of the scanner & the center cross provides a locator for targeting when scanning a sheet or product with multiple bar codes

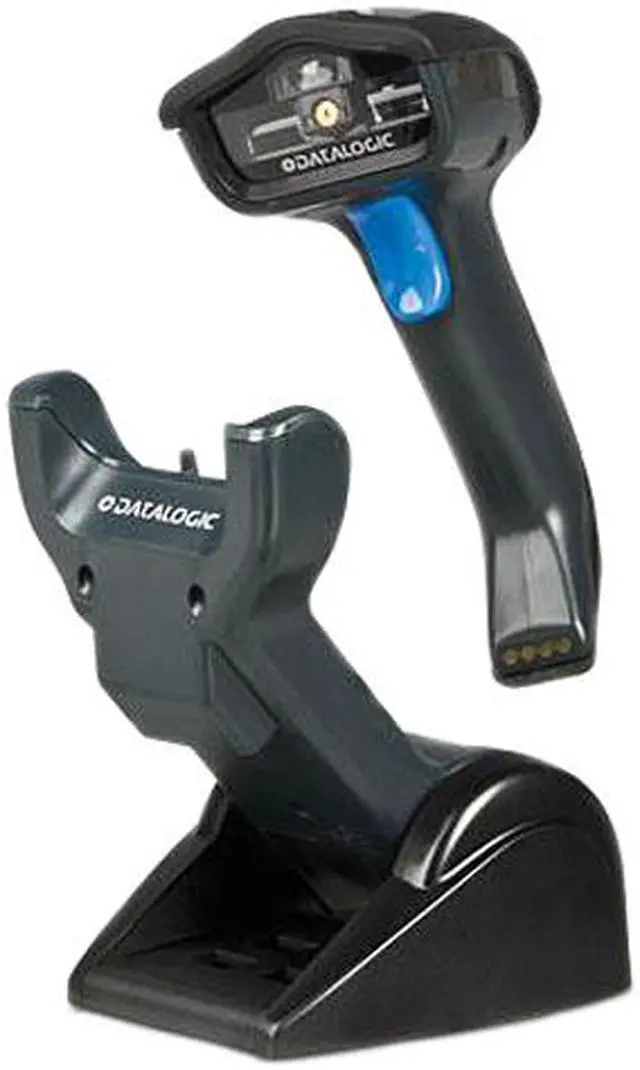

Includes Base/Charger BC4030-BK-BT & Cable 90A052065

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Gryphon I GBT4400 2D

Imaging Technology

With rich feature sets, the Gryphon™ Series from Datalogic ADC represents the premium level of data collection equipment for general purpose applications. The Gryphon I GBT4400 2D scanner blends advanced reading technology with the ability to detect the natural actions of the operator to produce user-friendly features and outstanding performance.

Lightweight and comfortable to use, the steady, dim, deep red illumination light is much easier on the eyes than other similar products with flicker illumination, even during extended periods of use. The highly visible Four-Dot aimer clearly defines the reading zone of the scanner and the center cross provides a locater for targeting when scanning a sheet or product with multiple bar codes.

Modern Features

The Gryphon GBT4400 2D reader is designed with Datalogic's Motionix™ motion-sensing technology, which enables the scanner to intuitively switch into handheld mode when the device is picked up. When placed back into the stand, it seamlessly returns to stand mode, eliminating the need to scan a code or to rely on a mechanical switch to make this change. The two-position base station provides the flexibility to use the scanner in presentation or stand mode while it's charging. The scanner also features Datalogic's patented "Green Spot" for additional good read confirmation by placing a green spot directly on the code.

Simple to Use and Deploy

The scanner offers excellent performance when reading bar codes from cell phones or mobile devices for mobile marketing or ticketing applications. High Density (HD) models are available for reading smaller, condensed codes.

Featuring Bluetooth® wireless technology, the reader can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v2.0 compliant device.

FEATURES

Bluetooth Wireless Technology with up to 98 ft. (30m) range
Omnidirectional reading
Advanced motion tolerance optics: 60 frames per second
Image Capture
Reads 1D, 2D and Postal codes plus stacked and composite codes like PDF417 and GS1 DataBar™
Multi-interface options: RS-232 / IBM 46XX / USB or RS-232 / USB / Keyboard Wedge / Wand
Datalogic's patented "Green Spot" for good-read feedback plus the 4-dot Aimer
Point-to-point and multi-point transmission
Two-position cradle with Scan-While-Charging capability
Batch Mode capability: +1200 codes stored in memory
User-replaceable, long lasting lithium-ion battery
Drop resistance to 5.9 ft. (1.8m)
USB Certified Kits Available
EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

INDUSTRY APPLICATIONS

Retail: Point of Sale; Age Verification; Reading of 2D Codes, Electronic Coupons or Mobile Phones, Warehouse
Light Manufacturing
Access Control, Transportation and Entertainment
Commercial Services: Postal, Banks, Public Administration, Utilities, Document Handling

The Gryphon GBT4400 2D reader is designed with Datalogic's Motionix motion-sensing technology, which enables the scanner to intuitively switch into handheld mode when the device is picked up. When placed back into the stand, it seamlessly returns to stand mode, eliminating the need to scan a code or to rely on a mechanical switch to make this change. The two-position base station provides the flexibility to use the scanner in presentation or stand mode while it's charging. The scanner also features Datalogic's patented 'Green Spot' for additional good read confirmation by placing a green spot directly on the code. Host Interface: USB Barcode Symbology Supported: 1D / Linear Codes: Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linear Codes 2D Codes: Aztec Code China Han Xin Code Data Matrix MaxiCode QR Code Postal Codes: Australian Post China Post IMB Japanese Post KIX Post Korea Post Planet Code Postnet Royal Mail Code (RM4SCC) Stacked Codes: EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites Package Contents: Gryphon GBT4430 Handheld Bar Code Reader Base/Charger Cable Host Interface: USB Product Type: Handheld Barcode Scanner Kit Image Sensor: Imager Product Type: Handheld Barcode Scanner Kit Image Sensor: Imager Manufacturer Part Number: GBT4430-BK-BTK1 Limited Warranty: 3 Year Weight (Approximate): 8.64 oz Color: Black Connectivity Technology: Wireless Color: Black Connectivity Technology: Wireless Manufacturer: Datalogic S.p.A Product Model: GBT4430 Product Name: Gryphon GBT4430 Handheld Barcode Scanner Kit Product Line: Gryphon Brand Name: Datalogic Light Source: Laser Brand Name: Datalogic Light Source: Laser Height: 7.1 Width: 2.8 Depth: 3.9 Bluetooth: Yes Barcode Dimension: 2D Barcode Dimension: 1D Scan Pattern: Omni-directional Product Family: Gryphon Environmentally Friendly: Yes Environmental Certification: RoHS Environmental Certification: China RoHS Bluetooth: Yes Barcode Dimension: 2D Barcode Dimension: 1D

General
Brand	Datalogic
Series	Gryphon
Model	GBT4400
Part Number	GBT4430-BK-BTK1
Form Factor	Handheld
Connectivity	Cordless
Scan Engine	2D Area Imager

Connectivity
Included Cables	USB Cable and Base/Charger Included
Interfaces Supported	USB

Scan Performance
Light Source	650 nm Visible LED
Depth of Scan Field	High Density (HD) Code 39: 3 mils: 2.4 to 9.1 cm / 0.9 to 3.6 in Code 39: 5 mils: 0.8 to 11.3 cm / 0.3 to 4.5 in Data Matrix: 5 mils: 2.8 to 6.1 cm / 1.1 to 2.4 in EAN-13: 13 mils: 1.1 to 17.2 cm / 0.4 to 6.8 in PDF417: 4 mils: 1.8 to 6.8 cm / 0.7 to 2.7 in PDF417: 10 mils: 0 to 14.3 cm / 0 to 5.6 in QR Code: 6.7 mils: 2.1 to 4.2 cm / 0.8 to 1.7 in Standard Range (SR) Code 39: 5 mils: 4.0 to 19.0 cm / 1.6 to 7.5 in Code 39: 10 mils: 1.0 to 30.0 cm / 0.4 to 11.8 in Data Matrix: 10 mils: 2.0 to 16.0 cm / 0.8 to 6.3 in Data Matrix: 15 mils: 0 to 23.6 cm /0 to 9.3 in EAN-13: 13 mils: 1.5 to 40.0 cm / 0.6 to 15.7 in PDF417: 10 mils: 0.5 to 22.0 cm / 0.2 to 8.6 in QR Code: 3.0 to 12.5 cm / 1.2 to 4.9 in
Pitch	±40 degree
Roll	±360 degree
Yaw	±40 degree
Print Contrast Ratio (Minimum)	25%
Decoding Capability	Aztec Code China Han Xin Code Data Matrix MaxiCode QR Code

Electrical
Battery	Battery Type: Lithium-Ion, 2100 mAh Charge Time: External Power: 4 Hours @ 12 VDC Reads per Charge: 50,000
Input Voltage	4.5 – 14.0 VDC
Current	Charging (Typical): < 8 W Operating (Typical): < 2.5 W @ 5 VDC Standby/Idle (Typical): < 2.5 mA @ 5 VDC

Mechanical
Color	Black
Dimensions	7.25" x 3.90" x 2.20" (Cradle) 7.10" x 2.80" x 3.90" (Reader)
Weight	0.54 lb. (Cradle) 0.54 lb. (Reader)

Features
Features	Imaging Technology With rich feature sets, the Gryphon product series from Datalogic ADC represents the premium level of data collection equipment for general purpose applications. The Gryphon I GBT4400 2D scanner blends advanced reading technology with the ability to detect the natural actions of the operator to produce user-friendly features and outstanding performance. Lightweight and comfortable to use, the steady, dim, deep red illumination light is much easier on the eyes than other similar products with flicker illumination, even during extended periods of use. The highly visible 4-Dot aimer clearly defines the reading zone of the scanner and the center cross provides a locator for targeting when scanning a sheet or product with multiple bar codes. Modern Features The Gryphon GBT4400 2D reader is designed with Datalogic's Motionix motion-sensing technology, which enables the scanner to intuitively switch into handheld mode when the device is picked up. When placed back into the stand, it seamlessly returns to stand mode, eliminating the need to scan a code or to rely on a mechanical switch to make this change. The two-position base station provides the flexibility to use the scanner in presentation or stand mode while it’s charging. The scanner also features Datalogic's patented 'Green Spot' for additional good read confirmation by placing a green spot directly on the code. Simple To Use And Deploy The scanner offers excellent performance when reading bar codes from cell phones or mobile devices for mobile marketing or ticketing applications. High Density (HD) models are available for reading smaller, condensed codes. Featuring Bluetooth wireless technology, the reader can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v3.0 compliant device.
Drop	Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface
Ruggedness	General Purpose

Additional Information
First Listed on Newegg	May 16, 2012
