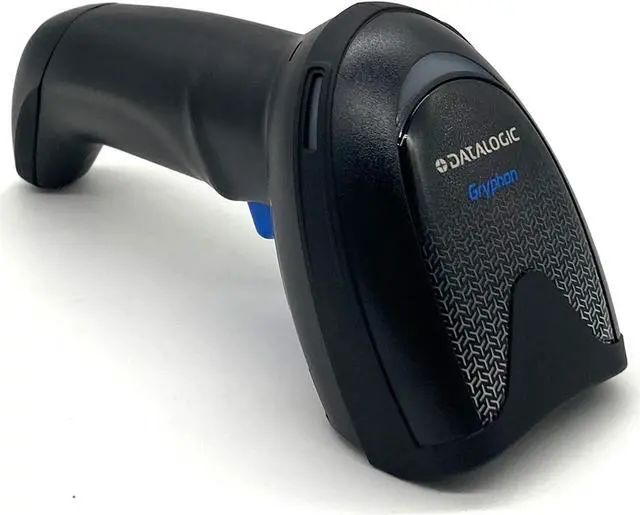

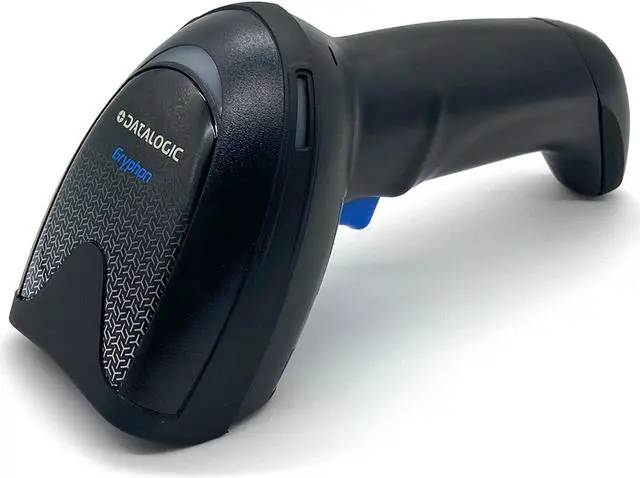

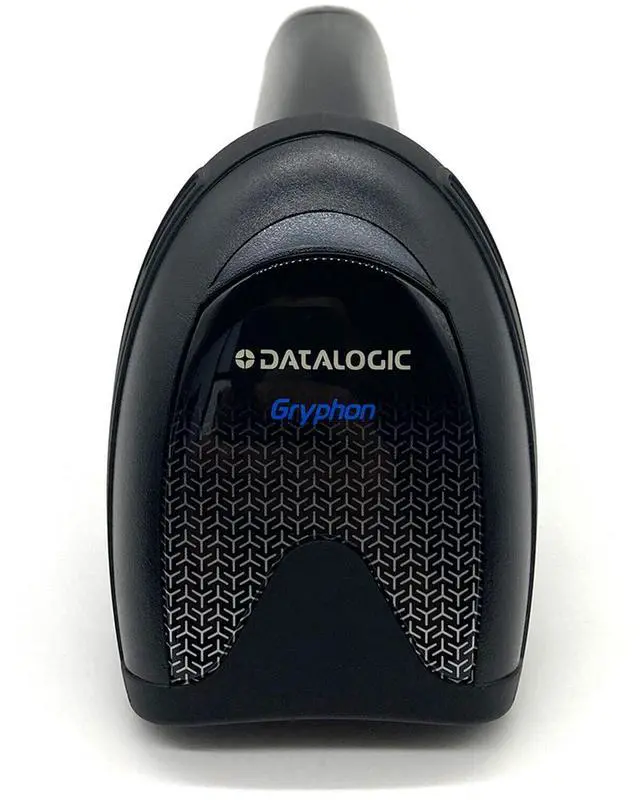

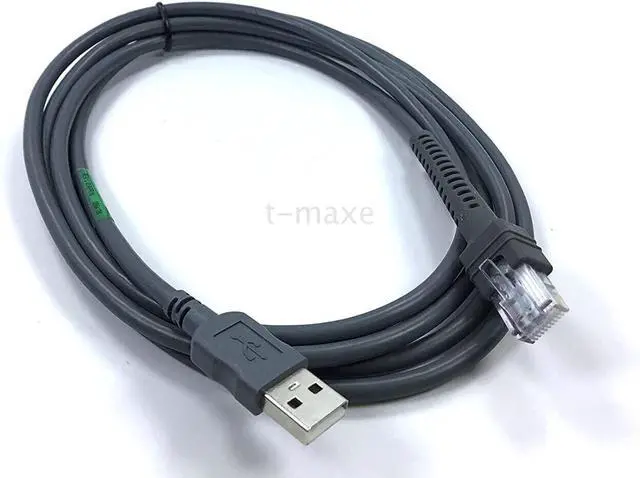

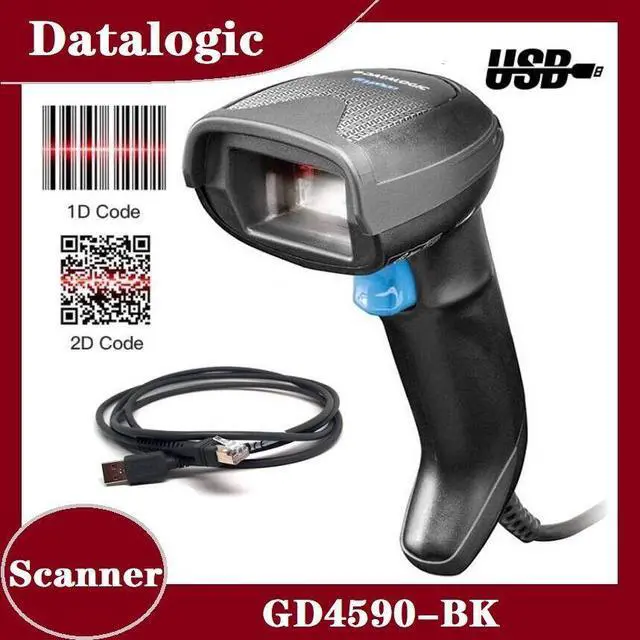

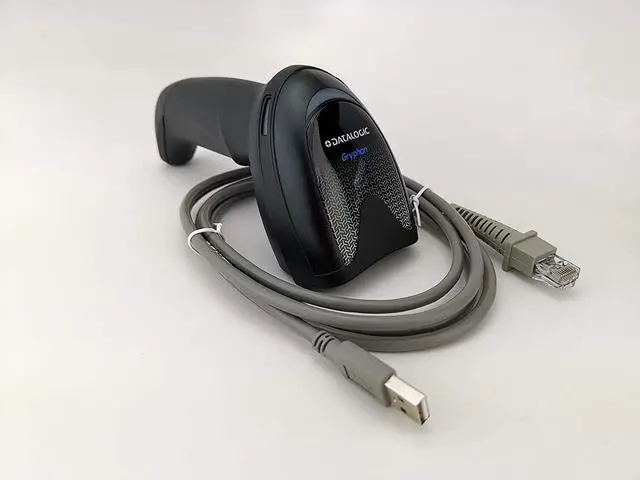

Datalogic Gryphon GD4590-BK 2D Wired Handheld Barcode Scanner Kit With USB Cable

Original Brand New Datalogic GD4590 2D Corded Handheld Barcode Scanner Black





The Gryphon 4500 series represents the premium range of hand held scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon I GD4500 imager stands out for the elegant and trendy design, the unchallenged ergonomics and features the most advanced Megapixel sensor with white-illumination 2D technology for outstanding performance.



Original-Brand-New-Datalogic-GD4590-2D-Corded-Handheld-Barcode-Scanner-Black. jpg_Q90. jpg_. webp. jpg




FEATURES

1 MP optics for superior scanning and Depth Of Field

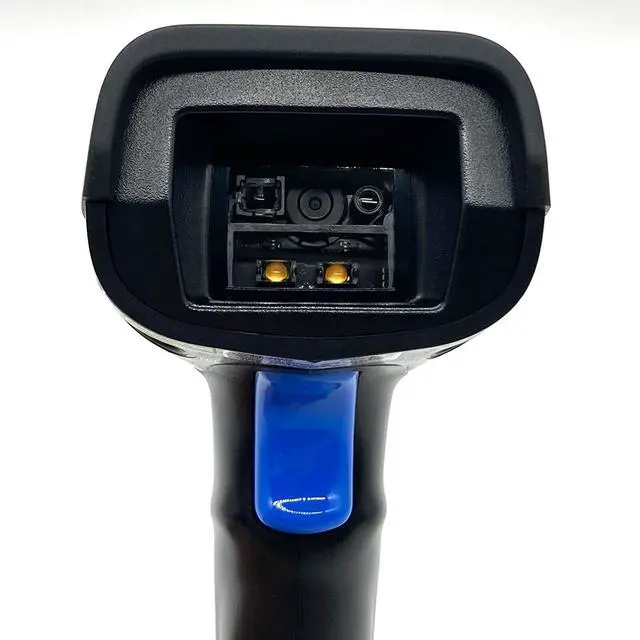

Datalogic distinctive technology with highly visible white-illumination and 4-Dot aimer with center cross for targeted scanning

Datalogics patented Green Spot technology and exclusive 3GL (3 Green Lights) for superior good-read feedback

Motionix motion-sensing technology for seamless reading mode transitions

Omnidirectional reading

Advanced motion tolerance optics

Image capture and document scanning capabilities

Reads 1D, 2D and postal codes plus stacked and composite codes

Digital Watermarking and DPM reading on specific models/applications

EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI



ELECTRICAL

CURRENT:

Operating:: <300 mA @ 5V; < 200 mA @ 12V

Standby/Idle: < 90 mA @ 5V; <50 mA @ 12V

INPUT VOLTAGE: 4.5 - 14.0 VDC

ENVIRONMENTAL

AMBIENT LIGHT: 0 - 100, 000 lux

DROP RESISTANCE: Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface.

ESD PROTECTION (AIR DISCHARGE): 16 kV

HUMIDITY (NON-CONDENSING): 0 - 95%

PARTICULATE AND WATER SEALING: IP52

TEMPERATURE:

Operating: 0 to 50 °C / 32 to 122 °F

Storage/Transport: -40 to 70 °C / -40 to 158 °F

PHYSICAL CHARACTERISTICS

COLORS AVAILABLE: Black

DIMENSIONS: 16.6 x 6.8 x 10.9 cm / 6.5 x 2.7 x 4.3 in

WEIGHT: 161.0 g / 5.7 oz

READING PERFORMANCE

IMAGE CAPTURE: Graphic
Formats: BMP, JPEG, TIFF;
Greyscale: 256, 16, 2

IMAGER SENSOR: 1 Megapixel: 1280 x 800 pixels

LIGHT SOURCE:
Aiming: Red Laser 650 nm
Illumination: Warm White; Hyper Red LED for Digimarc

MOTION TOLERANCE: 35 IPS

PRINT CONTRAST RATIO (MINIMUM): 15%

READING ANGLE:
Pitch: +/- 65°;
Roll (Tilt): 360°; Skew (Yaw): +/- 65°

READING INDICATORS: Beeper (Adjustable Tone); Datalogic Three Green Lights (3GL)
Good Read Feedback: Datalogic Green Spot on the Code, Dual Good Read LEDs

RESOLUTION (MAXIMUM):

1D Linear: 0.102 mm / 4 mils;

PDF 417: 0. 127 mm / 5 mils;

Data Matrix: 0.195 mm / 7.5 mils
