Postal Codes: IMB; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC); China Post Code; Japan Post Code; Australia Post Code; UK Post Code; Korea Post Office Code
electrical appliances
Current: Operating (nominal): < 180 mA 5 VDC
Standby/Idle (nominal):
On-Line and Serial On-Line Mode: 65 mA
Auto Target Sensing Mode: 115 mA
Input voltage 5 VDC +/- 5%
environment
Drop resistance: can withstand multiple impacts from 0.76 m/ 2.50 ft falling to concrete.
Temperature: Storage/Transportation: -20 to 70 °C / -4 to 158 °F
Operating Status: -20 to 50 °C / -4 to 122 °F
Humidity (non-condensing): 5-95%
Ambient Light: 0 to 100.000 Lux
Water and dust sealing: IP54
Interface: USB
physical parameters
Optional colors: other user-specified colors and logos can be selected to meet certain small purchase requirements; gray
Dimensions: 3.9 x 5.7 x 5.8 cm / 1.5 x 2.2 x 2.3 in 39*57*58mm
Standard depth of field: Small depth of field is determined by barcode length and scanning angle. Depends on print resolution, contrast and ambient light.
Code 39: 5 mils: 4.7 to 17.7 cm / 1.8 to 7.0 in Code 39: 10 mils: 1.7 to 33.2 cm / 0.7 to 13.1 in
Data Matrix: 10 mils: 2.7 to 17.1 cm / 1.0 to 6.7 in
Data Matrix: 15 mils: 1.2 to 24.6 cm / 0.5 to 9.7 in
EAN: 13 mils: 2.5 to 41.9 cm / 1.0 to 16.5 in
PDF 417: 10 mils: 2.2 to 23.9 cm / 0.9 to 9.4 in
QR Code: 10 mils: 3.5 to 16.0 cm / 1.4 to 6.3 in
Safety and Regulatory
Agency Certifications: See the Product Quick Reference Manual for the relevant certifications that are complied with. This product meets the necessary safety and regulatory approvals for use

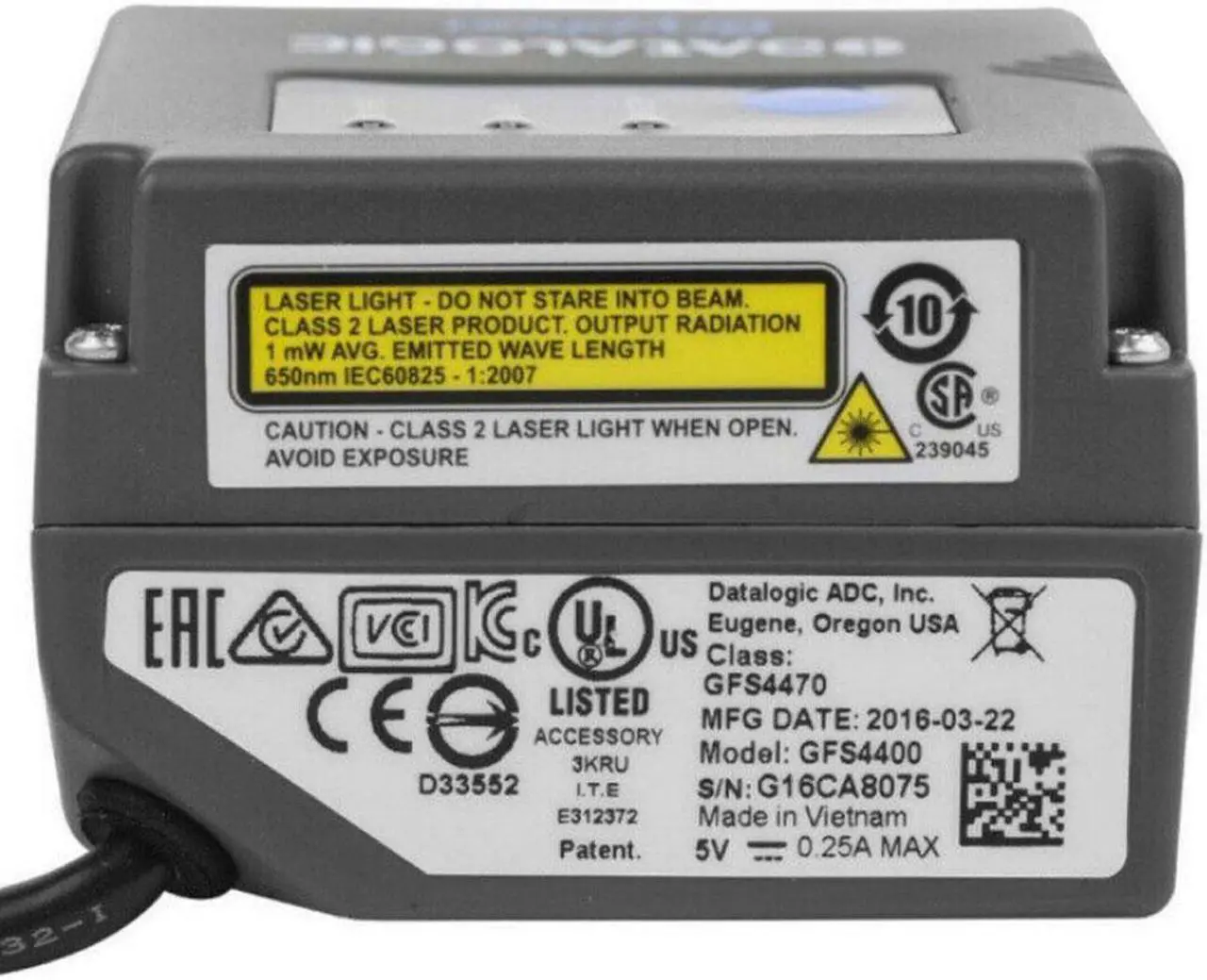

Laser Class: IEC 60825 Class 2; Beware of Laser Radiation - Never look directly into the laser beam

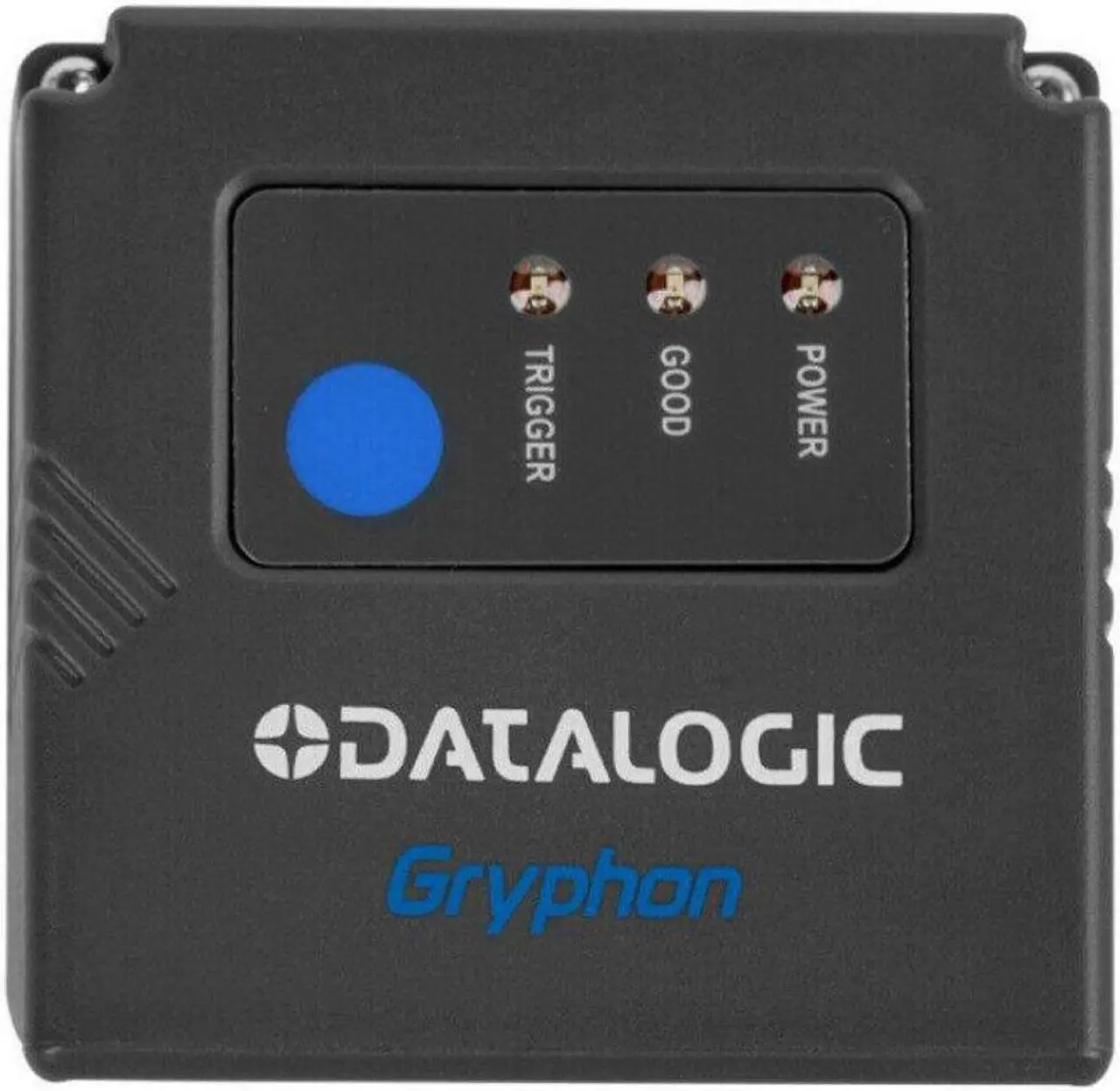

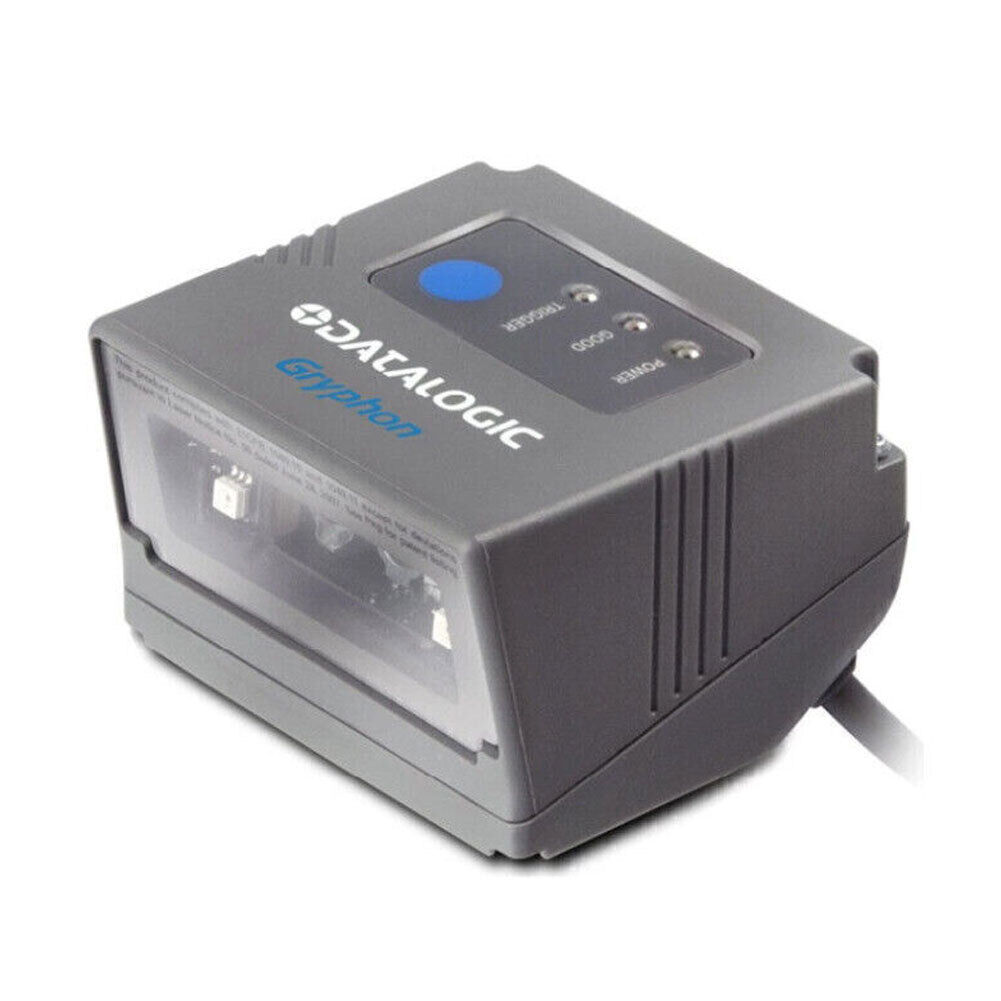

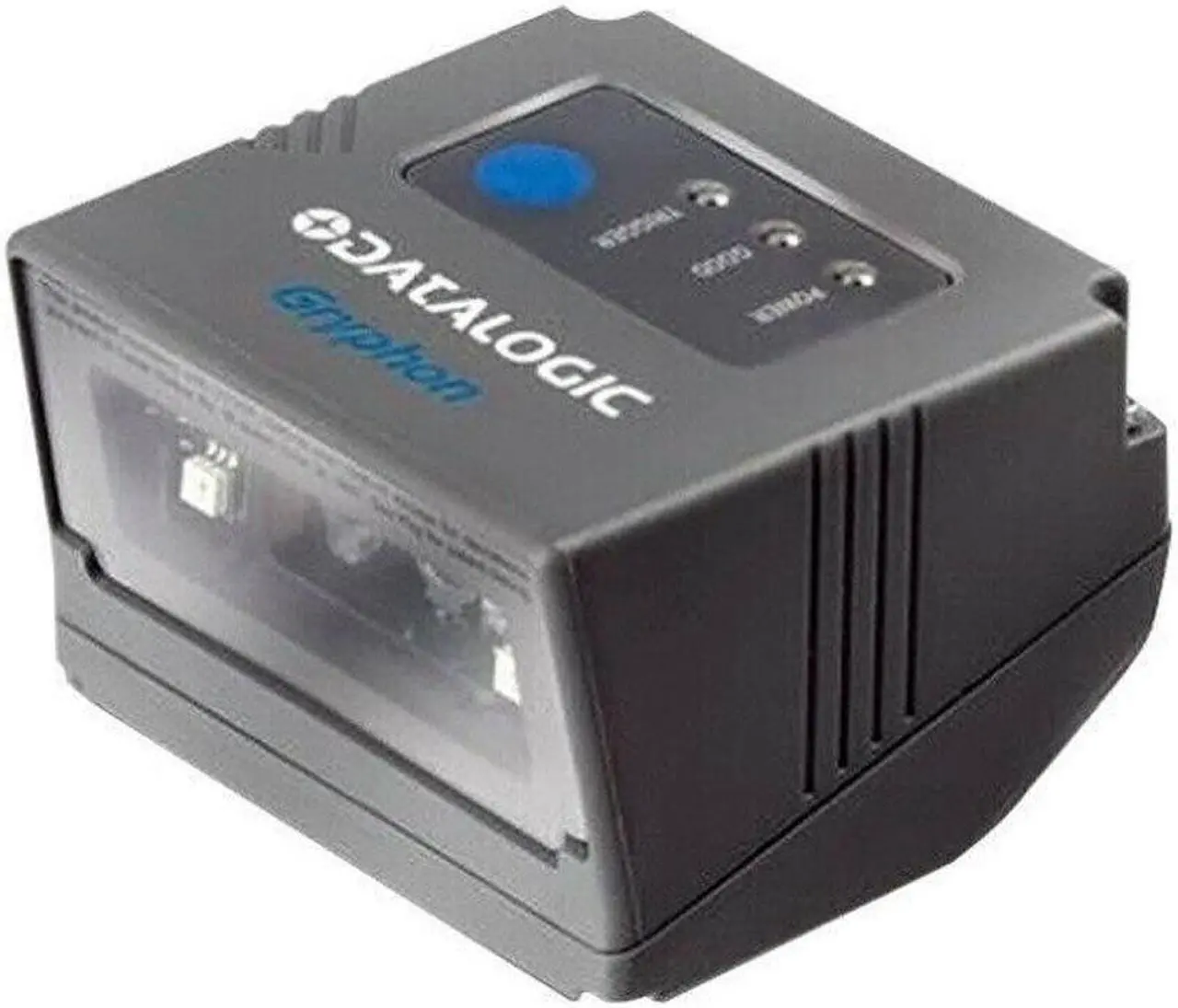

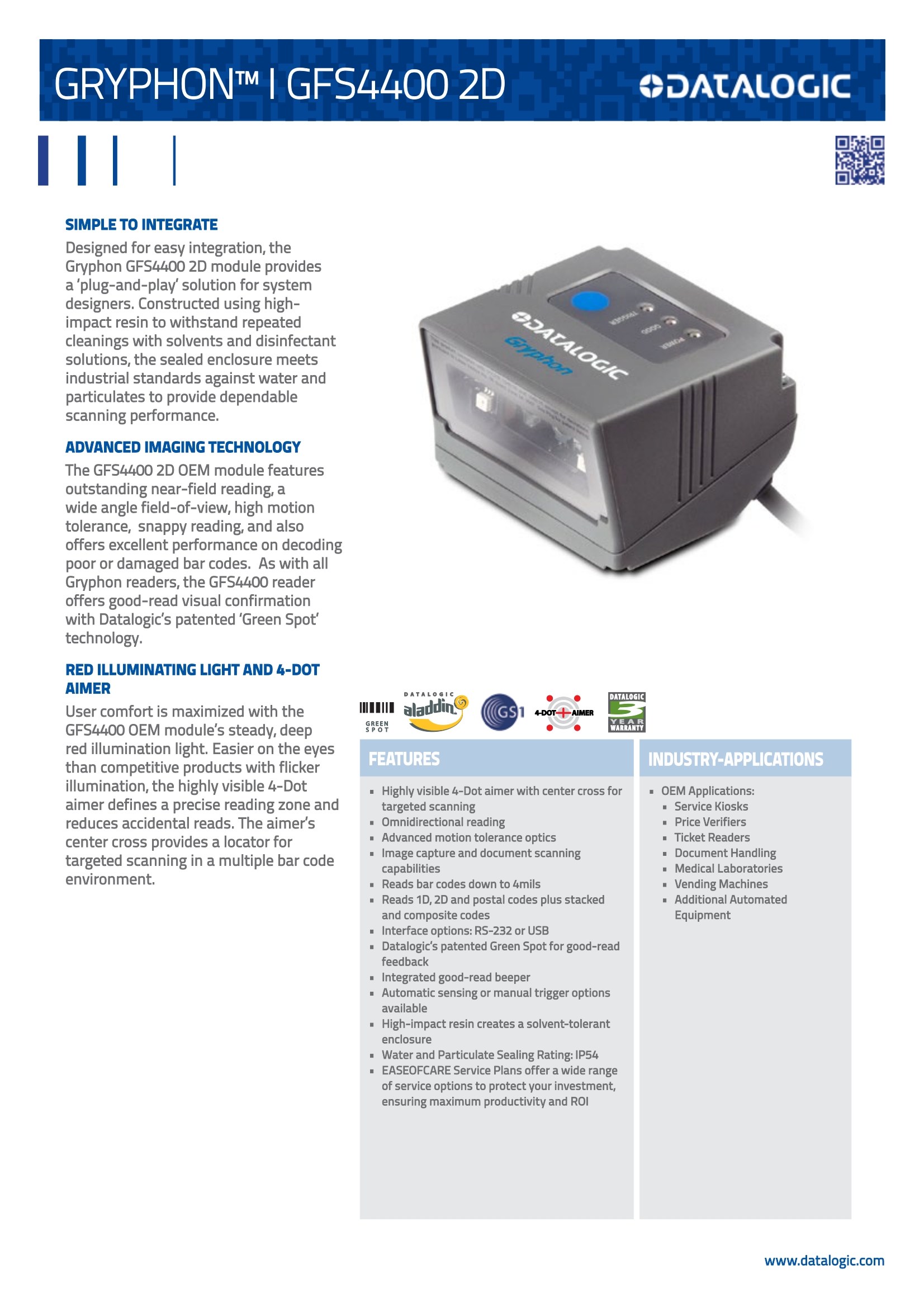

Datalogic Gryphon GFS4470 Desktop Fixed Mount 2D Barcode Scanner Reader USB Port
The Gryphon GFS4470 2D fixed mount bar code reader provides a complete self-contained solution for OEM use into self-service kiosks, price verifiers,
ticket readers, document handling, and medical laboratory applications, as well as vending machines and other automated equipment.
resin to withstand repeated cleanings with solvents and disinfectant solutions, the sealed enclosure meets industrial standards against water and particulates to provide dependable scanning performance.
The GFS4470 2D OEM module features outstanding near-field reading, a wide angle field-of-view, high motion tolerance, snappy reading, and also offers
excellent performance on decoding poor or damaged bar codes. As with all Gryphon readers,
User comfort is maximized with the GFS4470 OEM module's steady, deep red illumination light. Easier on the eyes than competitive products with flicker illumination,

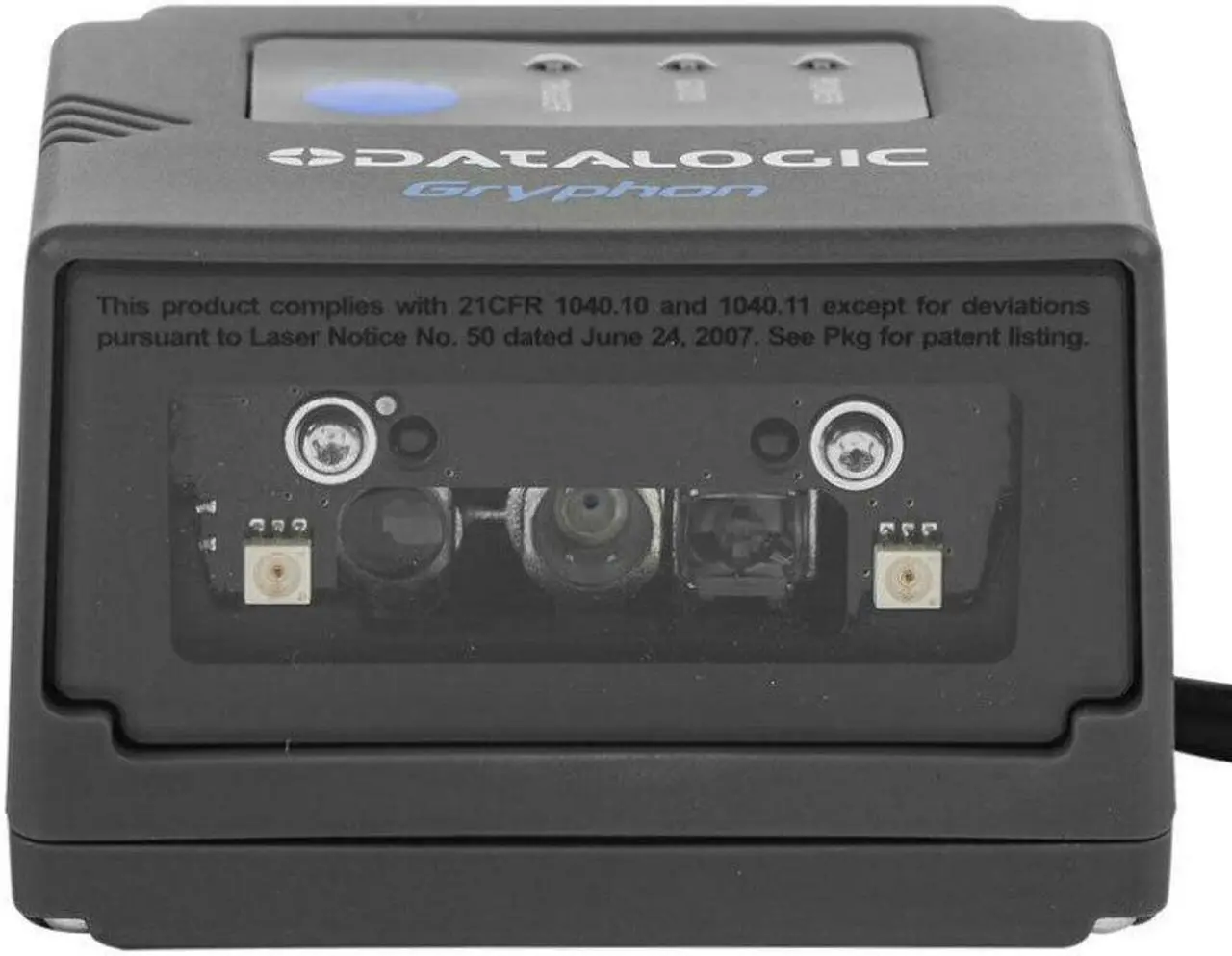

the highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads.
Learn more about the Datalogic GFS4470
General
Brand
Datalogic
Series
GRYPHON
Model
GFS4470
Form Factor
Presentation
Connectivity
Corded
Connectivity
Included Cables

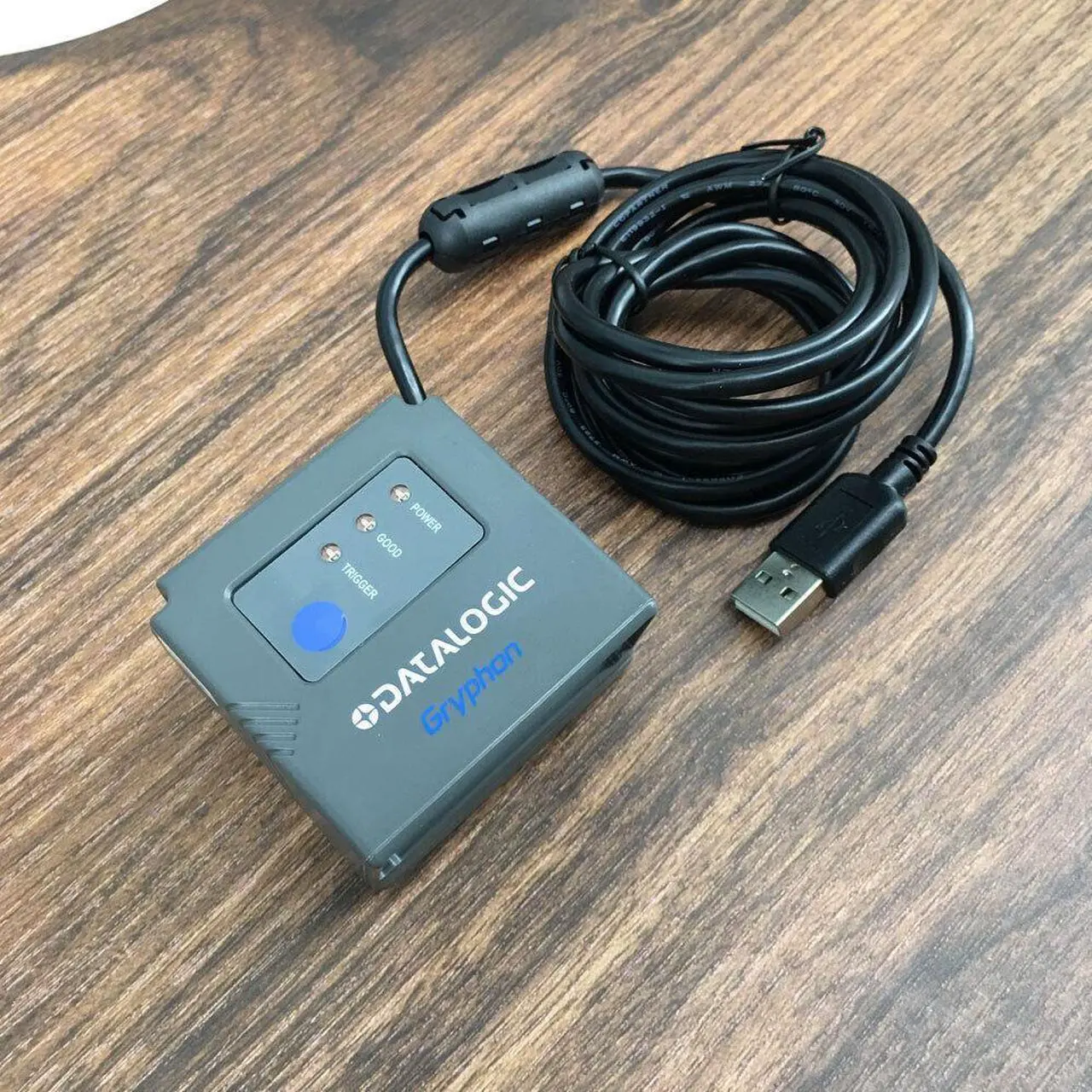

USB Cable Included
Interfaces Supported
USB
Scan Performance
Light Source
650 nm visible laser diode
Imager Field of View
N/A
Pitch
±40 degree
Roll
±180 degree
Yaw
±40 degree
Decoding Capability
1D / LINEAR CODES Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D CODES Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code POSTAL CODES Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) STACKED CODES EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites
Mechanical
Color
Black
Dimensions
1.5 x 2.2 x 2.3 in
Weight
6.3 oz.
Features
Features
Highly visible 4-Dot aimer with center cross for targeted scanning • Omnidirectional reading • Advanced motion tolerance optics • Image capture and document scanning capabilities • Reads bar codes down to 4mils • Reads 1D, 2D and postal codes plus stacked and composite codes • Interface options: RS-232 or USB • Datalogic’s patented Green Spot for good-read feedback • Integrated good-read beeper • Automatic sensing or manual trigger options available • High-impact resin creates a solvent-tolerant enclosure • Water and Particulate Sealing Rating: IP54 • EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Antimicrobial
N/A
Additional Information
Date First Available
October 15, 2024
