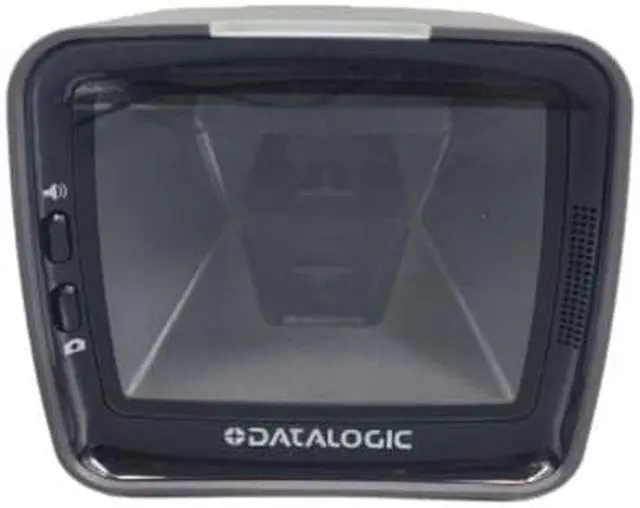

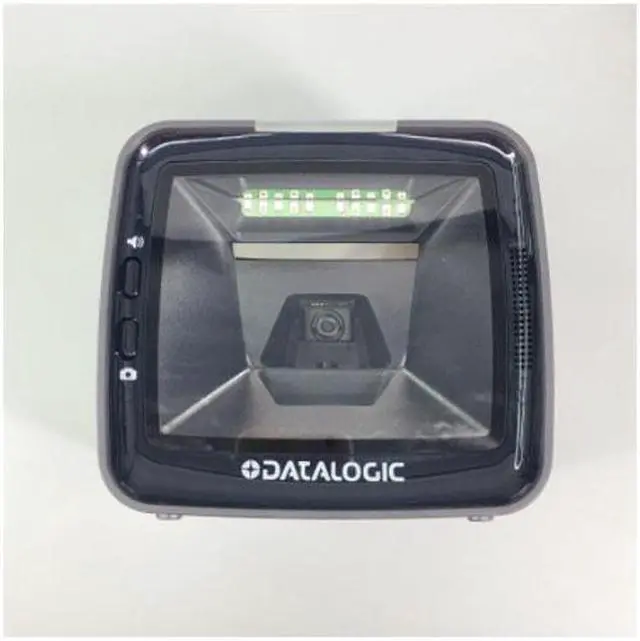

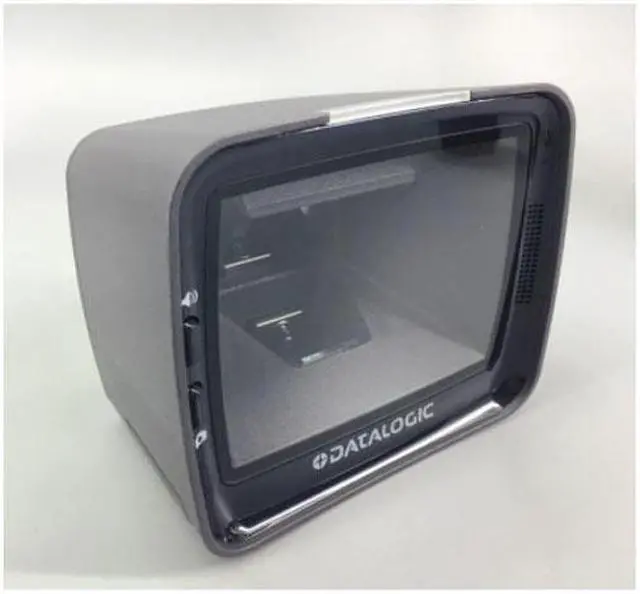

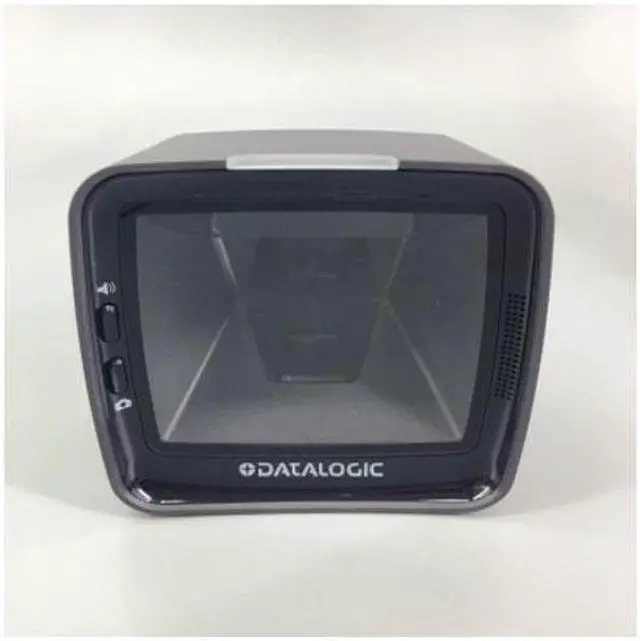

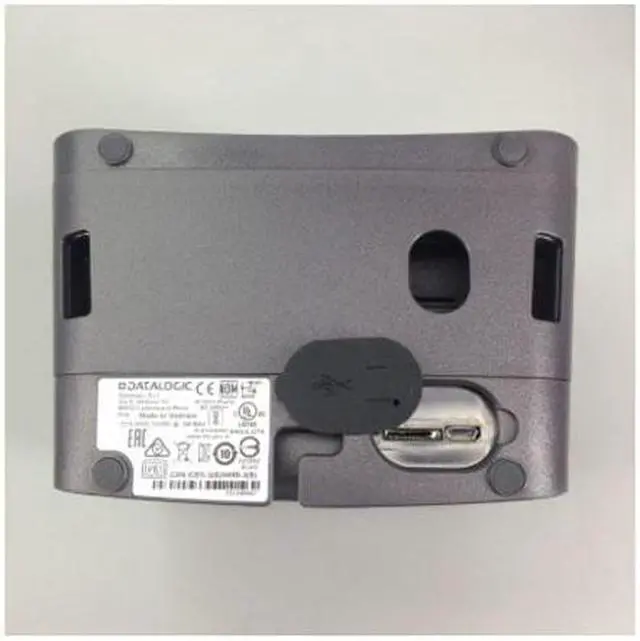

Datalogic Magellan 3450VSI USB Port RS-232 Rugged High Performance Handfree Desktop Mobile Barcode Scanner Laser 1d 2d Qr code With Usb Cable

By duplicating the speed and large field-of-view of laser scanners and expanding the capabilities of imaging, the 3450VSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes.
This Magellan scanner enables both high speed sweep and presentation scanning techniques, ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.

ELECTRICAL
AC POWER REQUIREMENTS:AC Input: 100-240 VAC, 50-60 Hz;
POWER CONSUMPTION:
Operating (Maximum):3.8 Watts;
Operating (Nominal):3.0 Watts
Sleep Mode:2.6 Watts
ENVIRONMENTAL
AMBIENT LIGHT:0 - 86,100 lux
ESD PROTECTION (AIR DISCHARGE):25 kV
HUMIDITY (NON-CONDENSING):5 - 95%
PARTICULATE AND WATER SEALING:IP52
TEMPERATURE:
Operating:0 to 40 °C / 32 to 104 °F
Storage/Transport:-40 to 70 °C / -40 to 158 °F

READING PERFORMANCE
IMAGE CAPTURE:Graphic Formats: BMP, JPEG
IMAGER SENSOR:1280 x 1024
LIGHT SOURCE:Multiple diffused LEDs, orientation and wavelength optimized for eye comfort
PRINT CONTRAST RATIO (MINIMUM) :25%
READ HEIGHT :14.0 cm / 5.5 in
READ RATE (MAXIMUM) :39 Million pixels per second
READING ANGLE:Pitch: +/- 65°; Roll (Tilt): 0 - 360°; Skew (Yaw): +/- 75°
READING INDICATORS :Audio speaker with adjustable tone and volume, supports .wav files; Good Read LED; Good Transmission
RESOLUTION (MAXIMUM) :5 mil
READING RANGES

TYPICAL DEPTH OF FIELD
Printing resolution, symbol length, scan angle, contrast and ambient light dependent.
1D / Linear Codes
5 mils: 3.8 to 8.1 cm / 1.5 to 3.2 in
7.5 mils: 1.3 to 11.4 cm / 0.5 to 4.5 in
10 mils: 0 to 15.2 cm / 0 to 6.0 in
13 mils: 0 to 20.3 cm / 0 to 8.0 in
2D Codes
6.6 mils: PDF: 3.8 to 10.2 cm / 1.5 to 4.0 in
10 mils: PDF: 0 to 12.7 cm / 0 to 5.0 in
10 mils: Data Matrix: 1.3 to 6.4 cm / 0.5 to 2.5 in
20 mils: Data Matrix: 0 to 18.0 cm / 0 to 7.0 in
