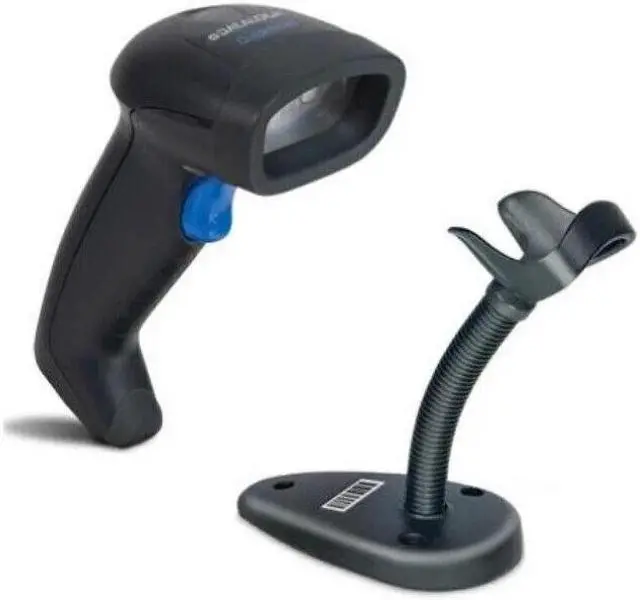

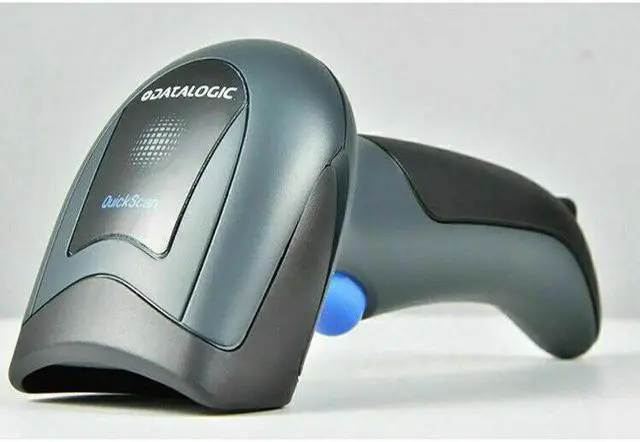

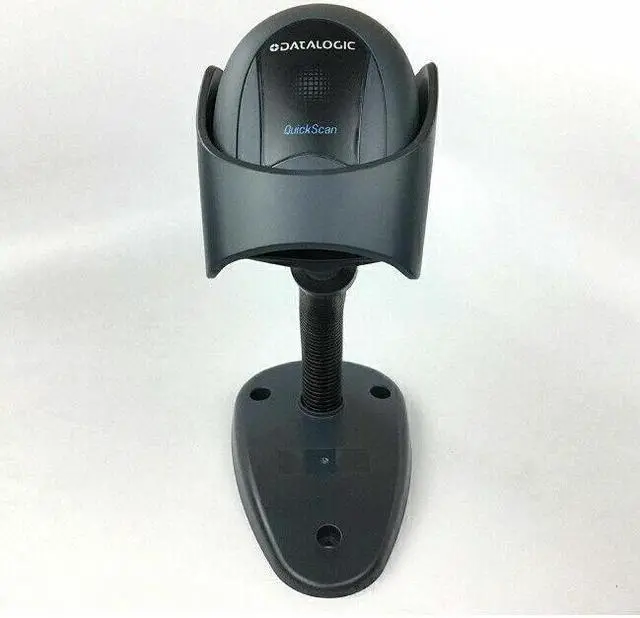

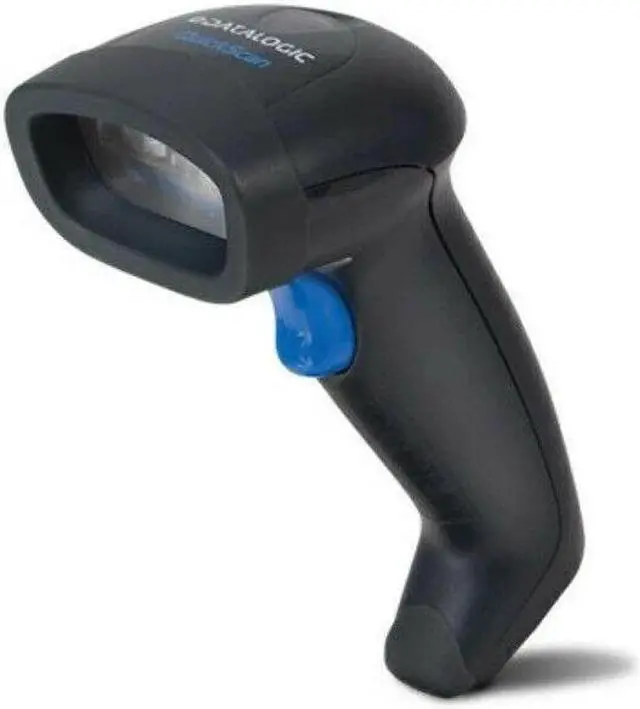

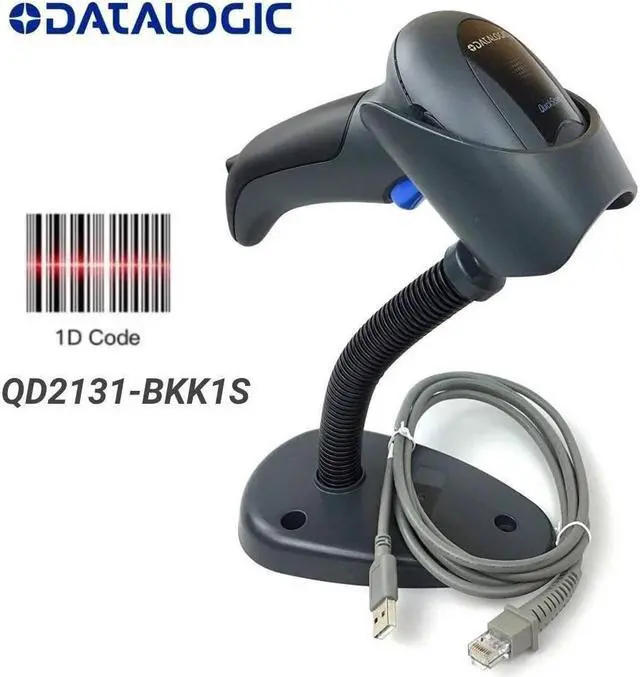

Datalogic QD2131-BKK1S Quickscan I QD2131 Handheld Barcode Scanner, 1D Linear Imager, Cabl

Description:

LINEAR DECODING

Today there is an increased trend towards 2D bar codes, however, linear bar codes are still dominant in the Automatic Data Capture industry. Long linear bar codes are commonly used in a variety of applications including Utility bills, Document Processing and Packaging. These long linear codes are a challenge for full area imagers to read because of their narrow field of view and shorter depth of field.



ENHANCED PERFORMANCE

The QuickScan QD2131 imager is the next generation of the QuickScan 2100 series and features an extra-wide field of view and an extra-long scan line which allows users to read longer bar codes from a closer distance. Additionally, the QD2131 imager has an extended reading range which exceeds the requirements of most general purpose scanning applications. The highly visible scan line makes the imager more user-friendly. The enhanced decoding algorithm enables the QD2131 imager to capture and decode bar codes more quickly. Elegant design details are incorporated into a smaller, lightweight enclosure without sacrificing durability. The QD2131 imager also supports the Remote Management functions using the Host Download application.



PERFECT FOR RETAIL AND DOCUMENT PROCESSING APPLICATIONS

Ideally suited for applications at the point-of-sale (POS), the QuickScan QD2131 imager can also read loyalty cards and codes from a mobile phone screen, which a laser scanner is not capable of doing. This is very useful to meet the needs of emerging mobile marketing applications.



Features:

Light weight and balanced design

Extra-wide scan angle and extra-long scan line

Extended reading range and depth of field (DOF)

Sharp and highly visible scan line

Decent depth of field reading for general purpose scanning applications

Datalogics patented Green Spot technology for good-read feedback

IP42 rating for Particulate and Water Sealing

1.5 m / 5.0 ft drop specification

1-Year standard factory warranty

EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI



Applications:

Retail

Point of Sale Checkout

Shelf Replenishment

Goods Receiving

Inventory

Commercial Services

Banks

Public Administration

Utilities

Entertainment

Specifications

:

Technical Information


Connectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported: 1D / LINEAR CODES
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
POSTAL CODES
China Post
STACKED CODES
GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional
Image Sensor Type: Imager
Scan Rate: 270 scan/s
Scanner Range: Extended Range
Scanning Distance: 29.53"
Cable Type Included: USB
Stand Included: Yes
Reading Angle (Skew): 70°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 45°
Maximum Ambient Light: 120000 lux
Drop Specification: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 4 mil
Maximum Element Resolution (Code 39): 20 mil


Interfaces/Ports

Host Interface:

USB
Physical Characteristics


Color: Black
Weight (Approximate): 4.30 oz

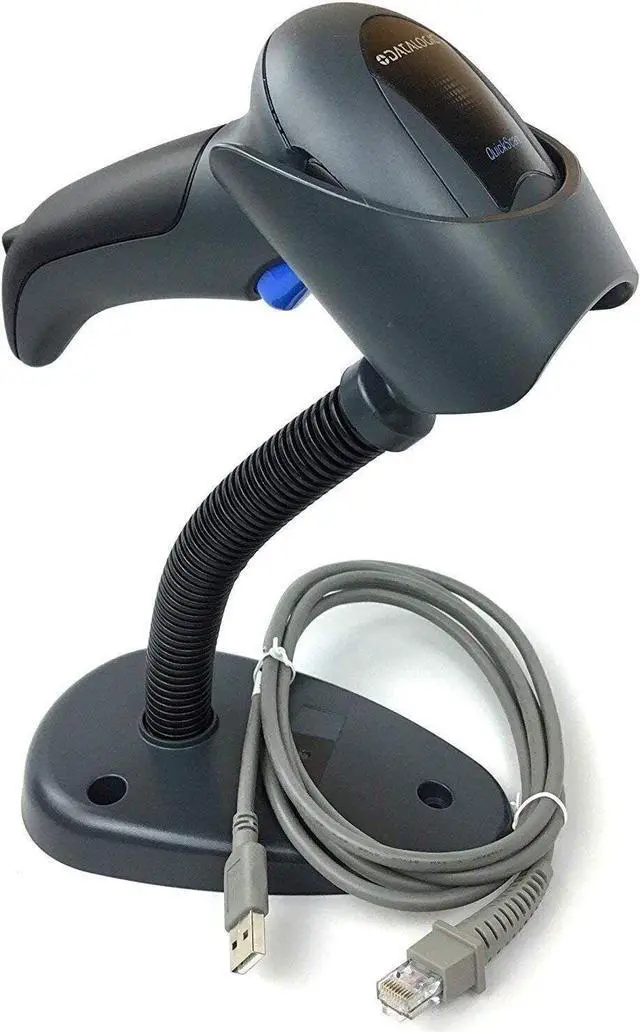

Package included:

1X Barcode Scanner

1X USB Cable

1X Stand

1X Manual
