Datalogic QW2120-BKK1S QuickScan Lite QW2100 Barcode Scanner USB Kit with Stand

Datalogic QuickScan QW2420-BKK1S USB 2D Handheld Barcode Scanner Imager With Stand

The QuickScan reader series is Datalogic ADC's value line of general purpose handheld data collection products.

The QuickScan Lite QW2420 linear imager is an entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world.

It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments.

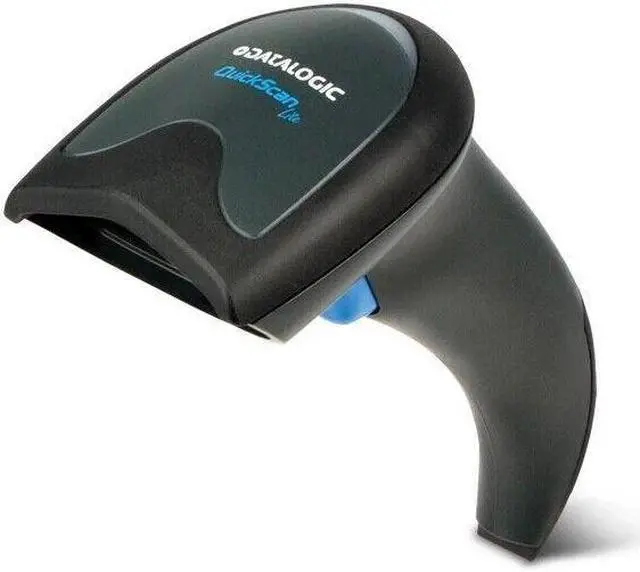

The QW2420 imager is small, lightweight and its ergonomic design is comfortable to use during daily operations.

It offers snappy reading performance on most 1D bar codes and features a wide scanning angle with an extended scanning

line which is perfect for capturing longer and wider bar codes typically found on utility bills and used by manufacturers of electronic parts.

Additionally, the scanning line is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.

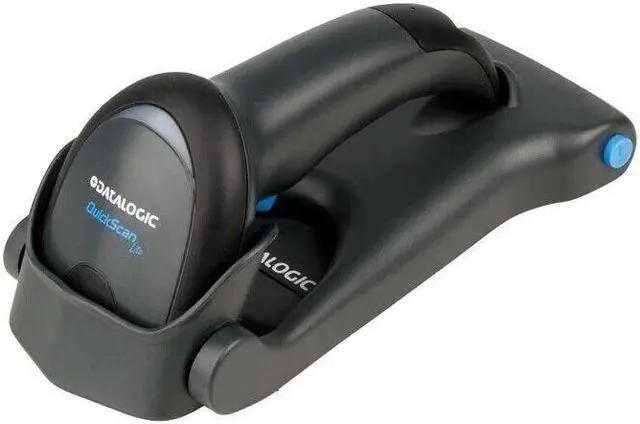

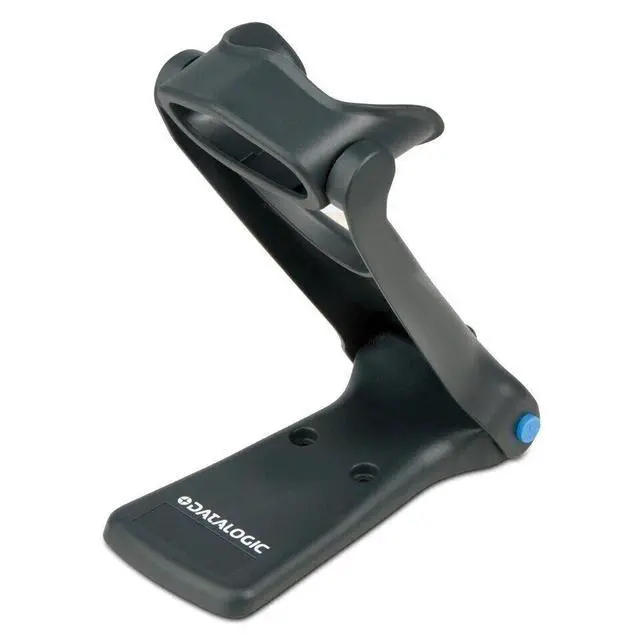

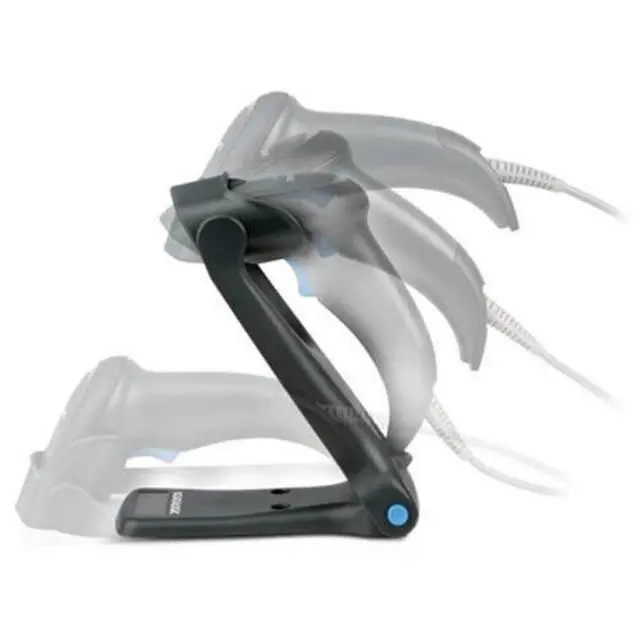

A specially designed stand has been created for the QW2420 imager which is light in weight, collapsible to use as a holder instead of a stand, and also has a 'tiltable head' for various angle settings.

The QW2420 imager is available with two interface options: USB or Keyboard Wedge / RS-232 and includes various packaging options so that

it can be ordered as a scanner only or as a kit equipped with a scanner, cable and stand to facilitate hands-free reading options.

The Datalogic Aladdin configuration software provides user-friendly features that simplify the start-up procedure, even for inexperienced users.



Features:

Wide scan angle and Field of View (FOV)

Blue aiming dot on white illumination

Datalogics patented Green Spot technology for good-read feedback

Excellent performance in reading bar codes displayed on mobile devices

Built with over-molded rubber to protect the imager when dropped

Compact and multi-position stand

Water and Particulate Sealing Rating: IP42

Drop resistance to 1.5 m / 5.0 ft

Uses the same cables and power supplies as the current QuickScan products.

USB certified kits available.

Remote Host Download lowers service costs and improves operations and is available for all models.



ELECTRICAL

CURRENT Operating (Typical): 170 mA @ 5 VDC

Standby/Idle (Typical): 90 mA @ 5 VDC

INPUT VOLTAGE: 5 VDC +/- 10%



ENVIRONMENTAL

AMBIENT LIGHT: Up to 92, 000 lux

DROP RESISTANCE: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.

ESD PROTECTION (AIR DISCHARGE): 16 kV

HUMIDITY (NON-CONDENSING): 0 - 95%

PARTICULATE AND WATER SEALING: IP42

TEMPERATURE:

Operating: 0 to 50 °C / 32 to 122 °F

Storage/Transport: -20 to 70 °C / -4 to 158 °F



PHYSICAL CHARACTERISTICS

COLORS AVAILABLE: Black

DIMENSIONS: 7.1 x 17.1 x 6.6 cm / 2.8 x 6.7 x 2.6 in

WEIGHT: 120.0 g / 4.2 oz



READING PERFORMANCE

IMAGER SENSOR: Field of
View: 48 x 37º (H x V);
Wide VGA: 640 x 480 pixels

LIGHT SOURCE:
Aiming: 1 Blue LED;
Illumination: White LED 350 - 770 nm

MOTION TOLERANCE: 20 IPS

PRINT CONTRAST RATIO (MINIMUM): 20%

READING ANGLE:
Pitch: +/- 65°;
Roll (Tilt): +/- 360°; Skew (Yaw): +/- 65°

READING INDICATORS: Beeper (Adjustable Tone and Volume); Datalogic Green Spot Good Read Feedback; Good Read LED

RESOLUTION (MAXIMUM): Code
39: 4 mils: 0.102 mm PDF 417: 6. 6 mils: 0.168 mm
QR/Data Matrix: 7.5
mils: 0.191 mm.
