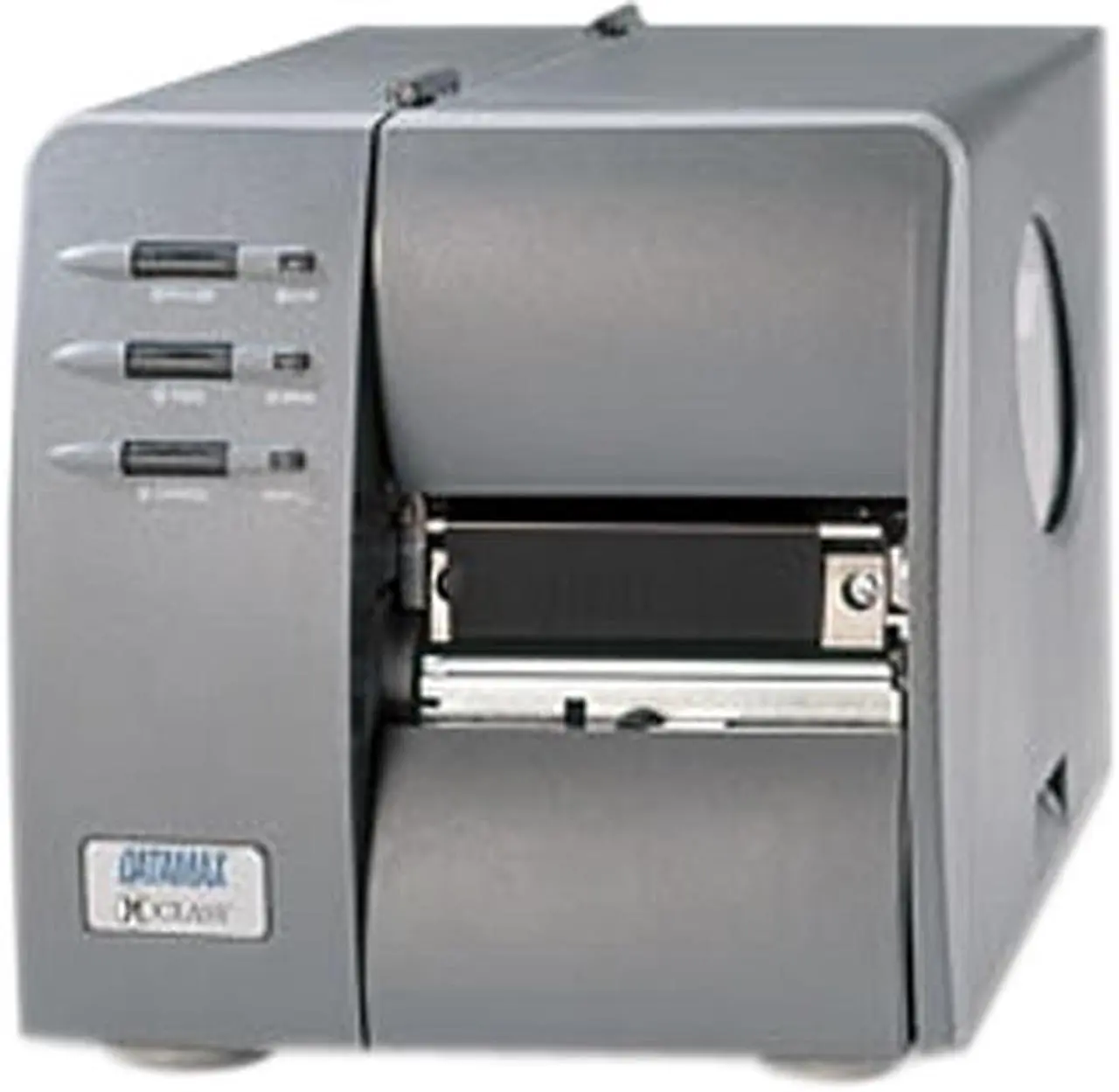

Datamax-O'Neil KD2-00-48000007 M-4206 M-Class Mark II Industrial Label Printer

Be the first to review this product...

Direct Thermal and Thermal Transfer
203 DPI, 6 IPS
No Internal Rewinder
No Cutter
Serial, Parallel, and USB Interface
3" Revolving Convertible Hub

Overview

Specs

Reviews

HONEYWELL, M-4206, PRINTER, 4", DIRECT THERMAL/THERMAL TRANSFER, SER/PAR/USB, RTC, 203DPI, 6IPS, 8MB FLASH, 3" MEDIA HUB, US POWER CORD INCLUDED, THIS IS A DIRECT REPLACEMENT FOR KB2-00-48000007

The new M-Class Mark II M-4206 Thermal Label Printer compact industrial strength printer is a rugged and versatile printer that provides the most accurate printing and flexible standards for today's business requirements. The smaller footprint of the M-Class is ideal for users who need the power of an industrial printer, but must consider space limitations.

General
Brand	Honeywell
Series	M-Class Mark II
Model	M-4206 (KD2-00-48000007)

Printer
Print Technology	Direct Thermal/Thermal Transfer Printer
Printer Type	Industrial
Print Speed	6 ips (152 mm/s)
Max Resolution(B&W)	203 dpi (8 dots/mm)
Memory	16 MB DRAM / 8 MB Flash
Fonts Included	Resident fonts: Ten alphanumeric fonts from 2.5 to 23 point size, including OCR-A, OCR-B, CG Triumvirate smooth font from AGFA Scalable Fonts: CG Triumvirate Bold Condensed, CG Triumvirate & CG Times with Cyrillic, Greek Arabic and Hebrew character support
Barcode Type	Linear: Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5, Industrial 2 of 5, Std 2 of 5, Code 11, Code 93, Code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5 digit addendums, Postnet, UCC/EAN Code 128, Telepen, Planetcode, FIM, USPS-4 State 2D Symbologies: MaxiCode, PDF417, USD-8, Datamatrix, QR Code, Codeablock, Code 16k, Aztec, TLC 39, Micro PDF417, GS1 Databar

Media Handling
Media Type	Roll-fed: 8.00" (203.20 mm) O.D. on a 3.00" (76.20 mm) core; 7.00" (177.80 mm) on a 1.50" (38.10 mm) core Fan-fold stock: accepted from rear and bottom of printer Die-cut or continuous labels Perforated or continuous tag / ticket stock
Media sizes supported	Media width range: 0.75" - 4.65" (19.00 mm - 118.10 mm) Minimum media length: Tear-off and rewind modes: 0.25" (6.35 mm) Ribbon Width Range: 1.00"- 4.50" (25.40 mm - 114.30 mm) Ribbon Lengths: Up to 1476.00 ft. (450.00 m)

Connections
Interface	Serial RS232, Parallel Bi-Directional, USB 2.0 Compatible

Features
Features	Form factor with a small footprint for an industrial printer to fit in tight spaces where work space is a premium Rugged construction features a precision die-cast aluminum frame Real time clock for accurate date-time labeling Multi-language menu available in English, Spanish, German, Italian, and French 5-button, 128x64 LCD graphical backlit display is easy to read, enabling userfriendly label configuration set-up Field installable options such as cutters, peel & present sensors, and thermal transfer option can be added easily to upgrade a base printer Versatile media compatibility coated side in or coated side out ribbons without reconfiguring the printer or purchasing additional options resulting in easier ribbon inventory management IntelliSEAQ printhead: proactive diagnostic tools allow easy access to printhead performance and history Software: The M-Class utilizes widely used DPL and supports MCL designer and 123 Print. With the PL-Z and PL-I printer language emulations, users can easily integrate the printer to existing solutions

Dimensions & Weight
Dimensions	10.21" x 10.10" x 18.19"
Weight	27.00 lbs.

Additional Information
Date First Available	December 19, 2012

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: Non-refundable

Return for replacement within: 30 days

This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
