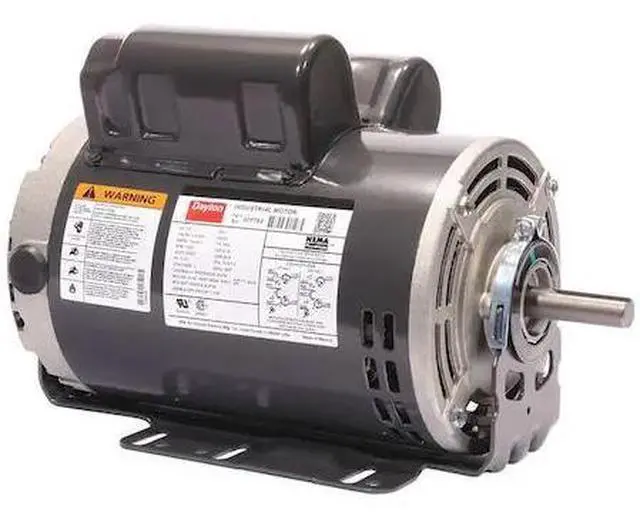

DAYTON 30PT84 MTR,CS/CR,ODP,2 HP,3450RPM,56,EFF 82.9

Be the first to review this product...

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 3, 450 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 17.3 / 8.7 A, 56H Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated Not Inverter Rated.

This item has been restricted from sale in the following state (s): []

General
Brand	DAYTON

Details
Color	N/A
type	Closed Base

General
weight	36.15
