Precise Lighting Control with 0-10V Dimmer
- 0-10V Dimmer is only need to be connected the 0-10V / 1-10V Dimmable LED Driver or Dimmable electronic ballast .
- 0-100% Dimming
- Package include:2 pieces of dimming switch

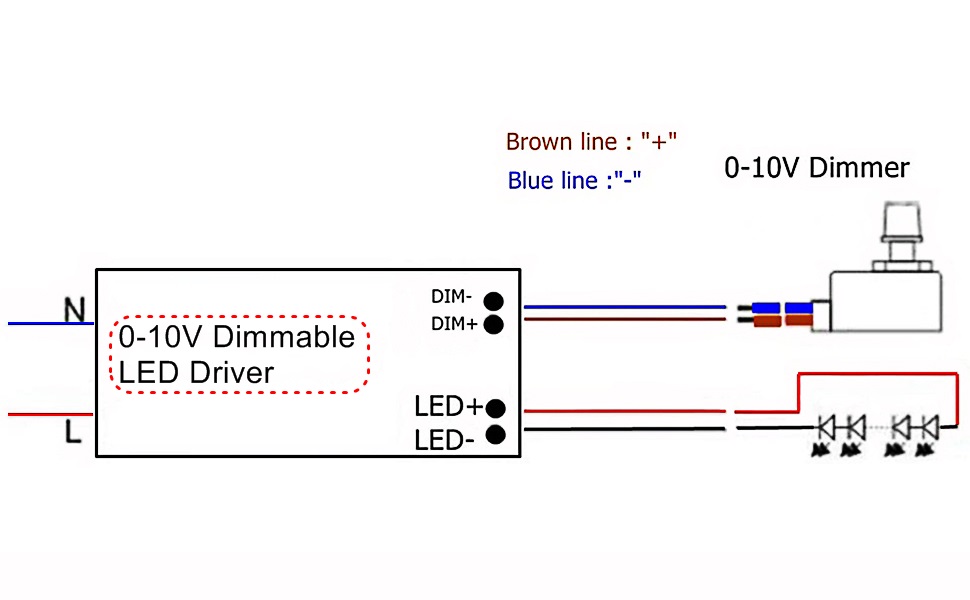

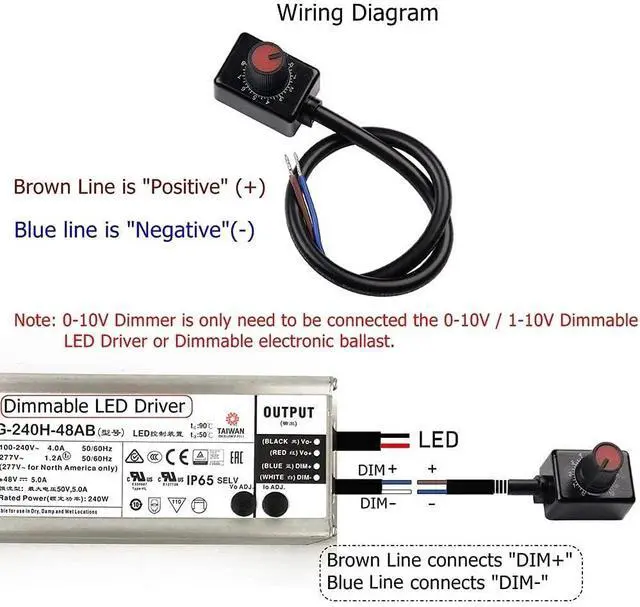

Wiring Diagram
NOTE:
- Brown line connecting "DIM+", Blue line connecting "DIM-"
- Compatible with various 0/1-10V dimming signal drivers
- DO NOT connect it with AC power directly
Specification
- Input Voltage(Max.):10V DC
- Input Voltage(Min.):0.5V DC
- Effective dimming signal current (Max.): 40mA
- Signal Votalge:0-10V
- Dimmer adjustment range: 0-100%(Stepless dimming),no flicking and Anti-interference
- Working Temperature:-15~50 ? ambient operating at full load
- Installation: Surface munted or recessed
Wide range of application
0-10V Dimmer is small and practical, it can be used with downlight, track light, spotlights,ceiling lights,wall washer light, plant light, garage lights,shop lamp etc.
