DEEPCOOL FH-04 PWM Fan Hub, Supports up to 4 Fans (3-pin or 4-pin), Occupying only One 4-pin Motherboard Header (System Fan or CPU Fan)
See more "fan hub"
In stock.
Ships from United States.
- If 3-pin non-PWM fans are connected to this fan hub, this fan hub CANNOT give them extra PWM function. They will run at FULL SPEED.
- If 4-pin PWM fans are connected to this fan hub, DUTY RATIO of all PWM fans can be adjusted at the same time. PLEASE NOTE that all PWM fans will run at the same DUTY RATIO, not the same speed. Only speed of Fan 1 can be identified by the system
- Capable of connecting to 4 PC fans simultaneously for cooling the computer system
- Double-sided adhesive installation
Overview
Specs
Reviews

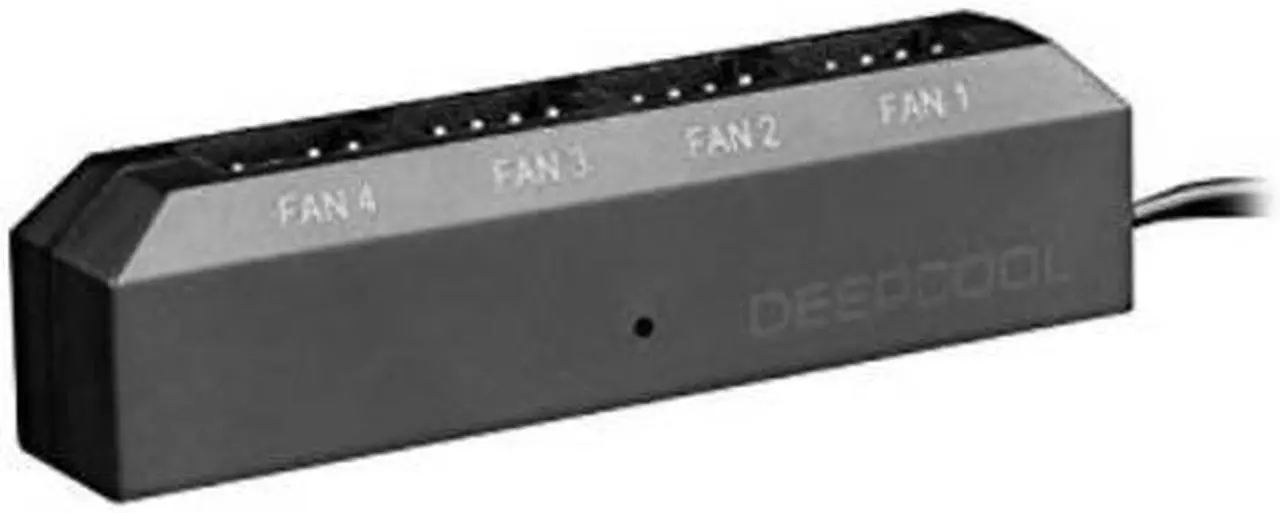

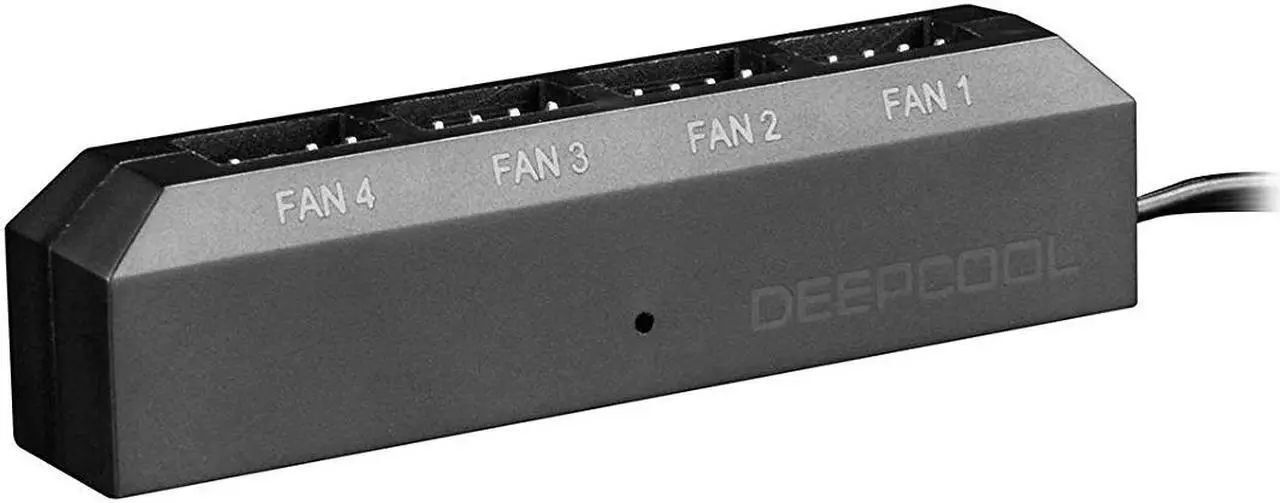

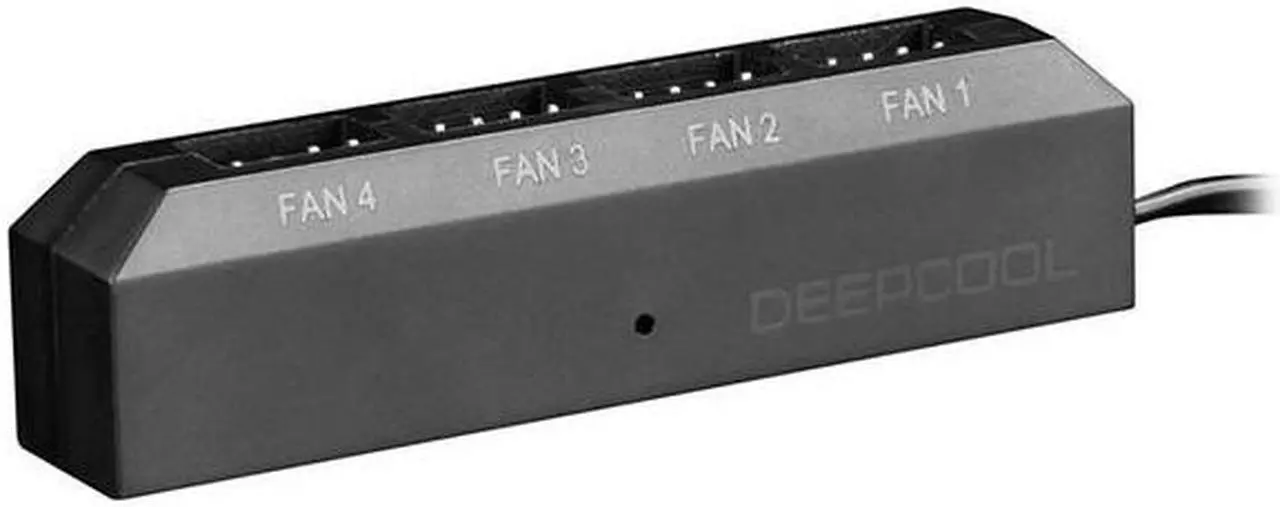

FH-04 enables users to greatly expand cooling capability within the chassis and enjoy enhanced system performance. FH-04 is able to extend up to 4 fans and compatible with 3-pin/4-pin Fans.

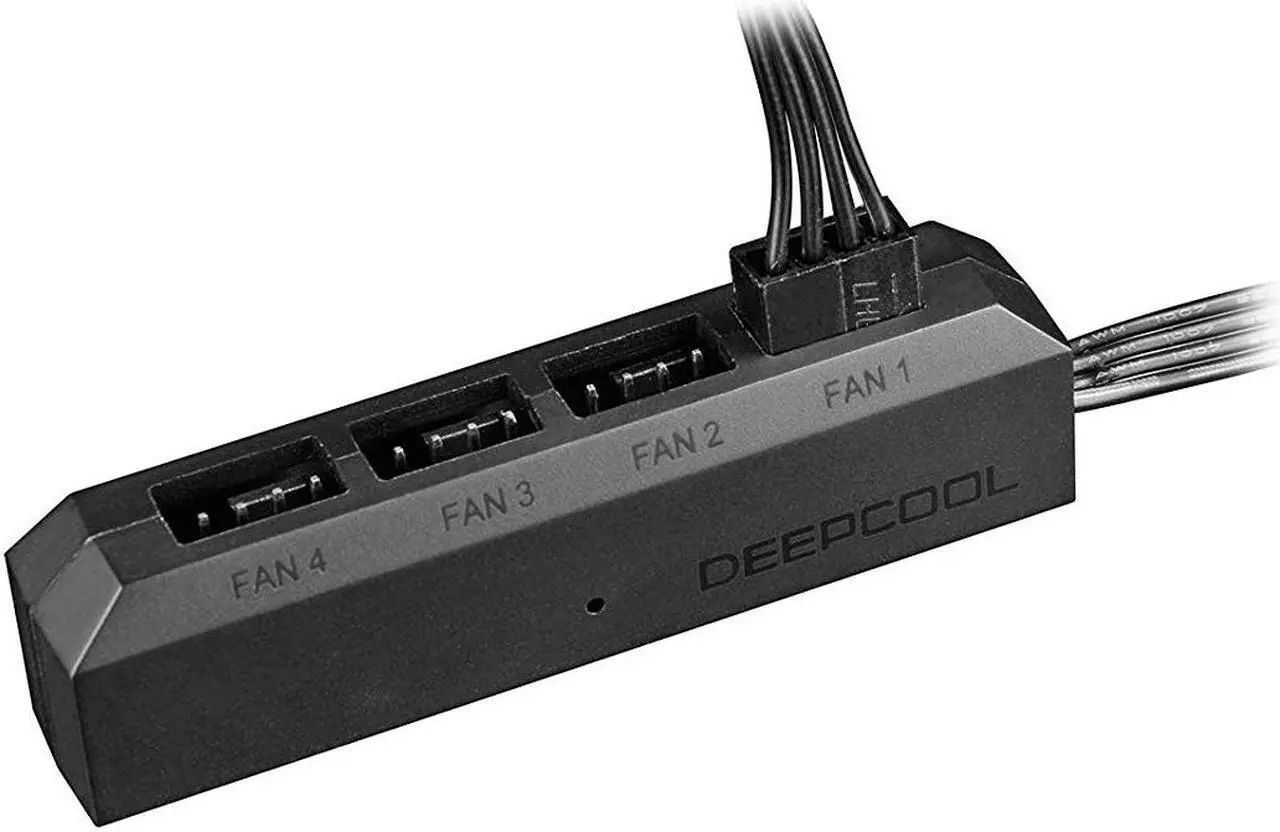

PWM Function
If non-PWM fans are connected to this fan hub, this fan hub CANNOT give them extra PWM function. They will run at full speed.
If PWM fans are connected to this fan hub, speed of all PWM fans can be adjusted at the same time.
PLEASE NOTE that all PWM fans will run at the same DUTY RATIO, not the same speed.
Only speed of Fan 1 can be identified by the system.
Easy to Install

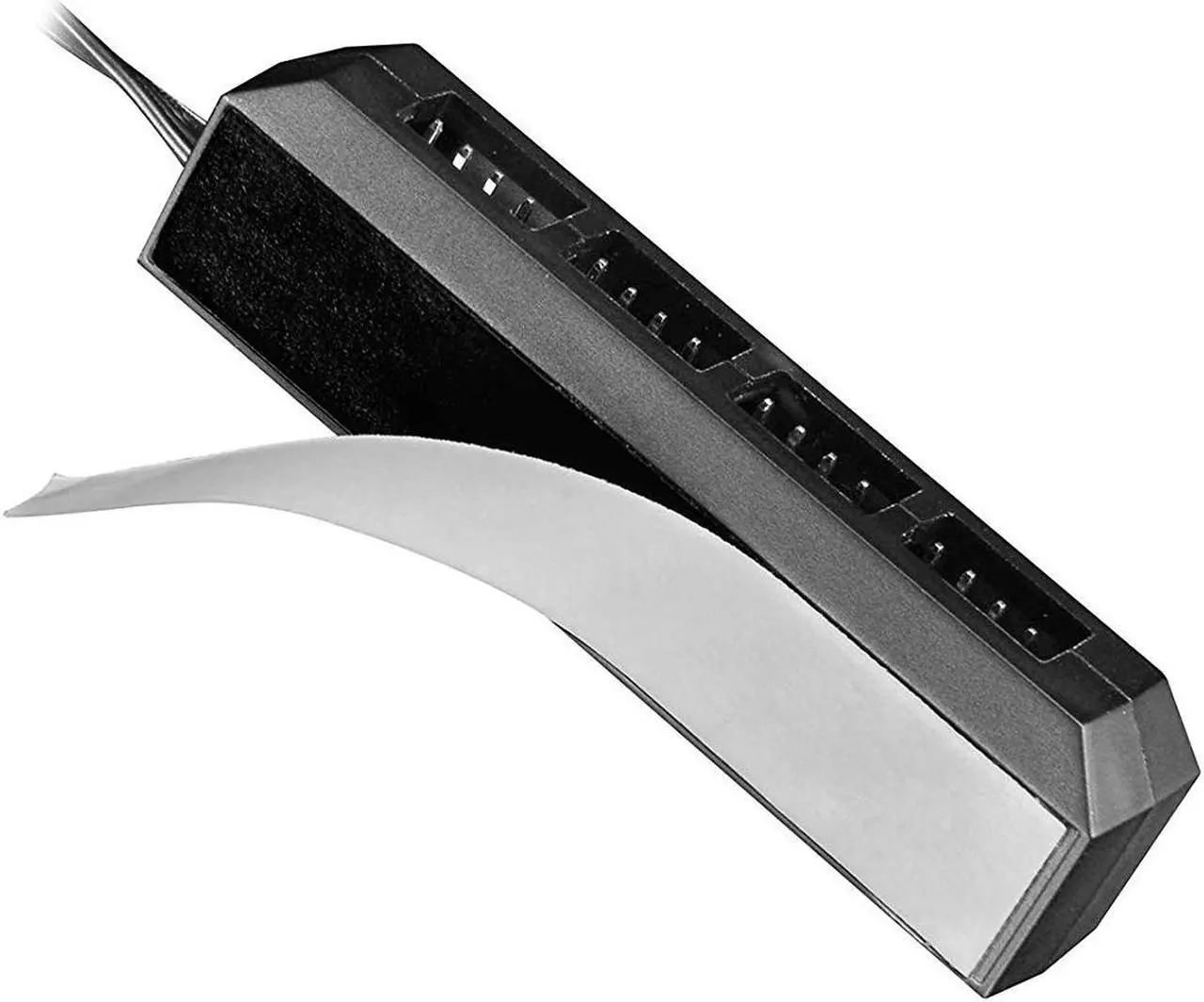

FH-04 is easily installed by included double-sided adhesive.
Product Dimension: 2.7" × 0.5" × 0.7" (68×13× 17.5 mm)
Net Weight: 0.05LB (22g)
Port Type: 4-pin x 1
Extension Port: 4-pin x 4

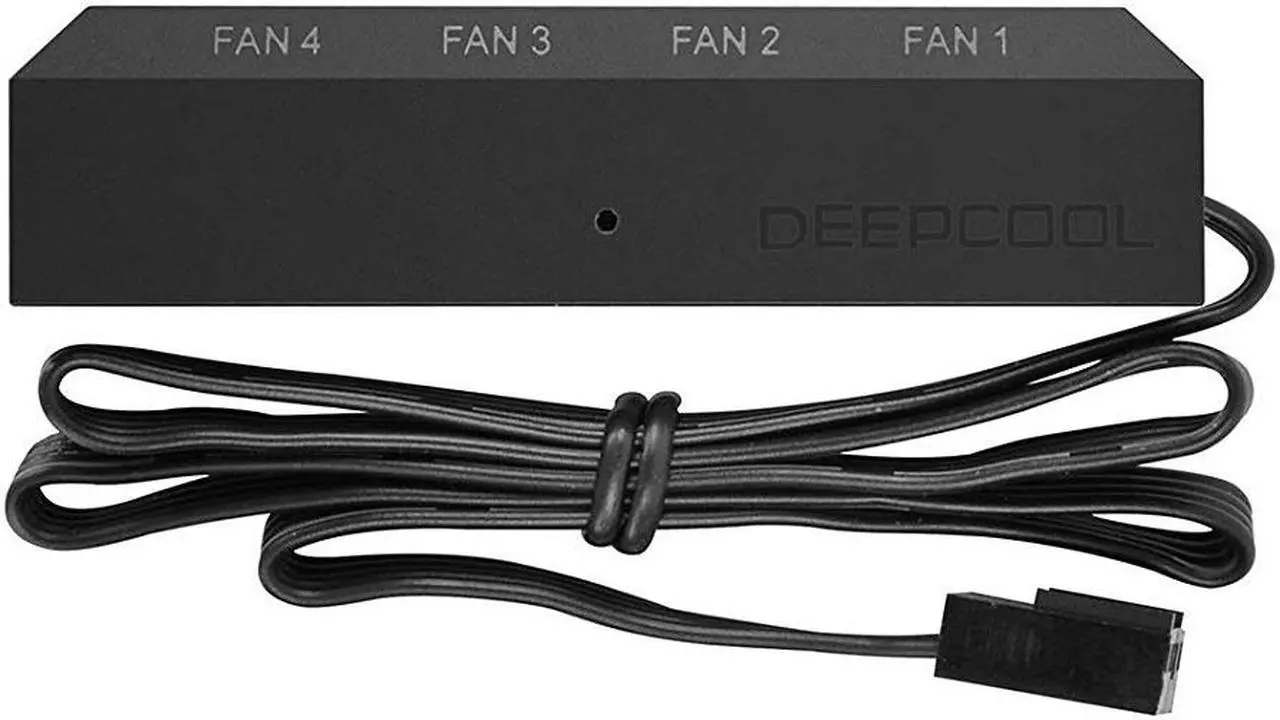

Cable Length: 15.7" (400mm)
Mounting Method: Double-sided Adhesive
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 90 days
- This item is covered by Corn Electronics Return Policy
Manufacturer Contact Info
LOADING...
LOADING...
Pros: - easy to setup - instructions are short and sweet
Cons: - feels a little cheaply made, wish it had a little more heft to it, but I guess it doesn't need it.
Overall Review: Got this little guy to convert the 5v RGB fans in the front of my Phanteks P400A Digital to the 12v headers on my motherboard. After some quick trouble shooting (i didn't have the fans daisy chained right) it worked flawlessly. Recommended.
