DEEPCOOL FH-04 PWM Fan Hub, Supports up to 4 Fans (3-pin or 4-pin), Occupying only One 4-pin Motherboard Header (System Fan or CPU Fan)

(16) Write a Review
  • If 3-pin non-PWM fans are connected to this fan hub, this fan hub CANNOT give them extra PWM function. They will run at FULL SPEED.
  • If 4-pin PWM fans are connected to this fan hub, DUTY RATIO of all PWM fans can be adjusted at the same time. PLEASE NOTE that all PWM fans will run at the same DUTY RATIO, not the same speed. Only speed of Fan 1 can be identified by the system
  • Capable of connecting to 4 PC fans simultaneously for cooling the computer system
  • Double-sided adhesive installation
Overview
Specs
Reviews (16)

FH-04 enables users to greatly expand cooling capability within the chassis and enjoy enhanced system performance. FH-04 is able to extend up to 4 fans and compatible with 3-pin/4-pin Fans.


PWM Function

If non-PWM fans are connected to this fan hub, this fan hub CANNOT give them extra PWM function. They will run at full speed.

If PWM fans are connected to this fan hub, speed of all PWM fans can be adjusted at the same time.
PLEASE NOTE that all PWM fans will run at the same DUTY RATIO, not the same speed.

Only speed of Fan 1 can be identified by the system.


Easy to Install

FH-04 is easily installed by included double-sided adhesive.


Product Dimension: 2.7" × 0.5" × 0.7" (68×13× 17.5 mm)

Net Weight: 0.05LB (22g)

Port Type: 4-pin x 1

Extension Port: 4-pin x 4

Cable Length: 15.7" (400mm)

Mounting Method: Double-sided Adhesive

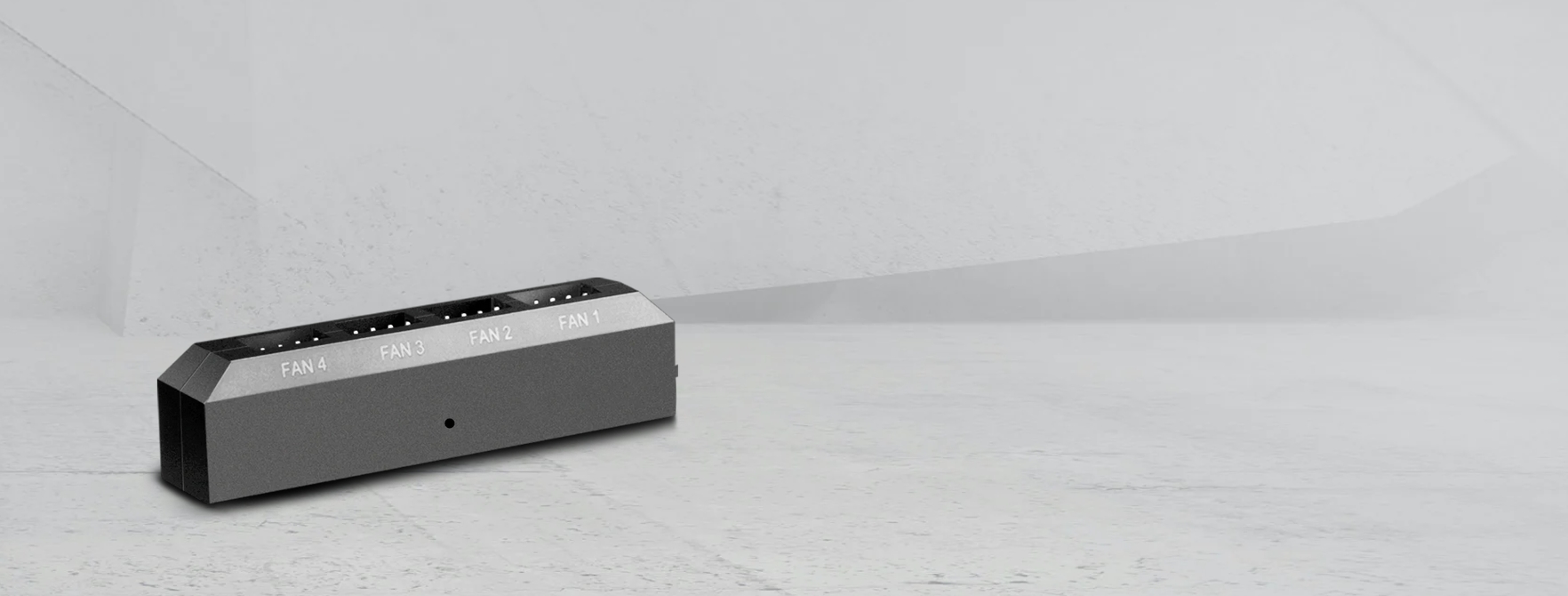

DEEPCOOL FH-04

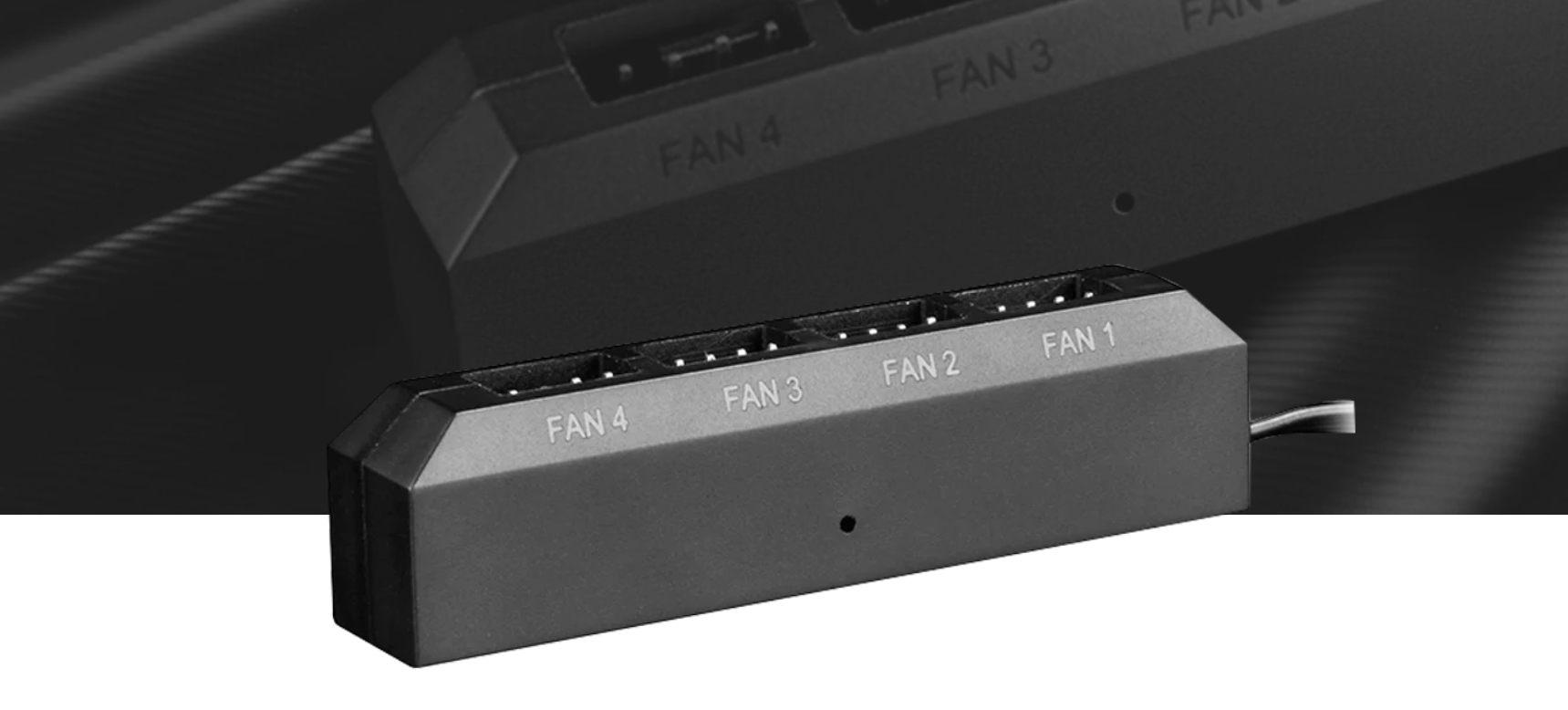

Supports up to 4 Independent Fans

FH-04 enables users to greatly expand cooling capability within the chassis and enjoy enhanced system performance. FH-04 is able to extend up to 4 fans and compatible with 3-pin/4-pin fans.

PWM Function Design

Each port has its own PWM function and fan speed can be adjusted at the same time (But only the speed of Fan 1 can be identified by the system).

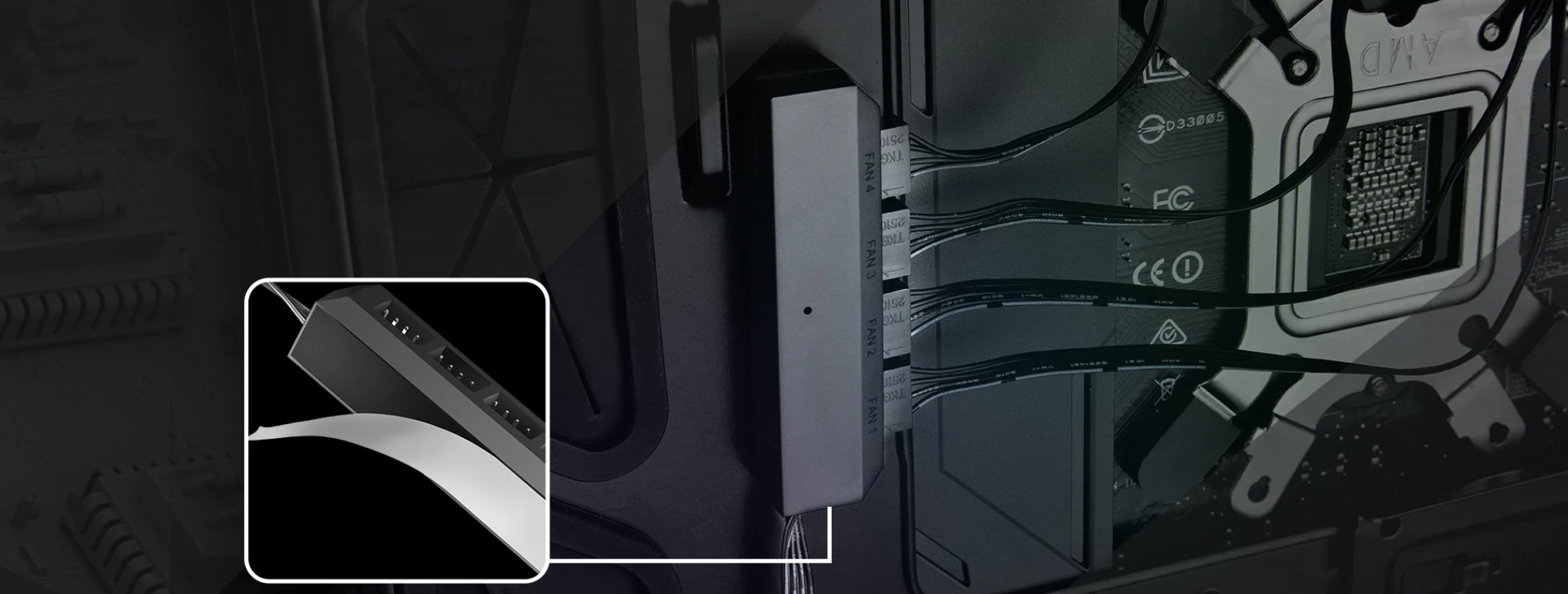

Easy to install

FH-04 can be easily installed by the included double-sided adhesive.
